SKU: BTCS3-CR

3" Crosby® Bolt Type Chain Shackle | G-2150 - 85 Ton

3" Crosby® Bolt Type Chain Shackle | G-2150 - 85 Ton!

Skip to product information
1 of 6

SKU: BTCS3-CR

3" Crosby® Bolt Type Chain Shackle | G-2150 - 85 Ton

3" Crosby® Bolt Type Chain Shackle | G-2150 - 85 Ton!

Authorized Distributor
Regular price $5,555.00
Sale price $5,555.00 Regular price
0% off
Call/Chat for ship date
Request Bulk Pricing
Payment methods
Accepted payments:
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
Fill out the form below or give our sales consultants a call at 866-444-9990.

Specifications

  • Working load limit: 85 tons (Metric) / 187,392 lbs.
  • Inside width: 5"
  • Mouth width: 5"
  • Finish: Galvanized
  • Safety factor: 6:1
  • Manufacturer name: Crosby®
  • Brand part number: 1020013
  • Inside height: 8.56"
  • Pin size: 3-1/4"
  • Shackle size: 3"
  • Standards: Meets or exceeds all requirements of ASME B30.26 and Federal Specification RR-C-271.
  • Type: Bolt Type Chain

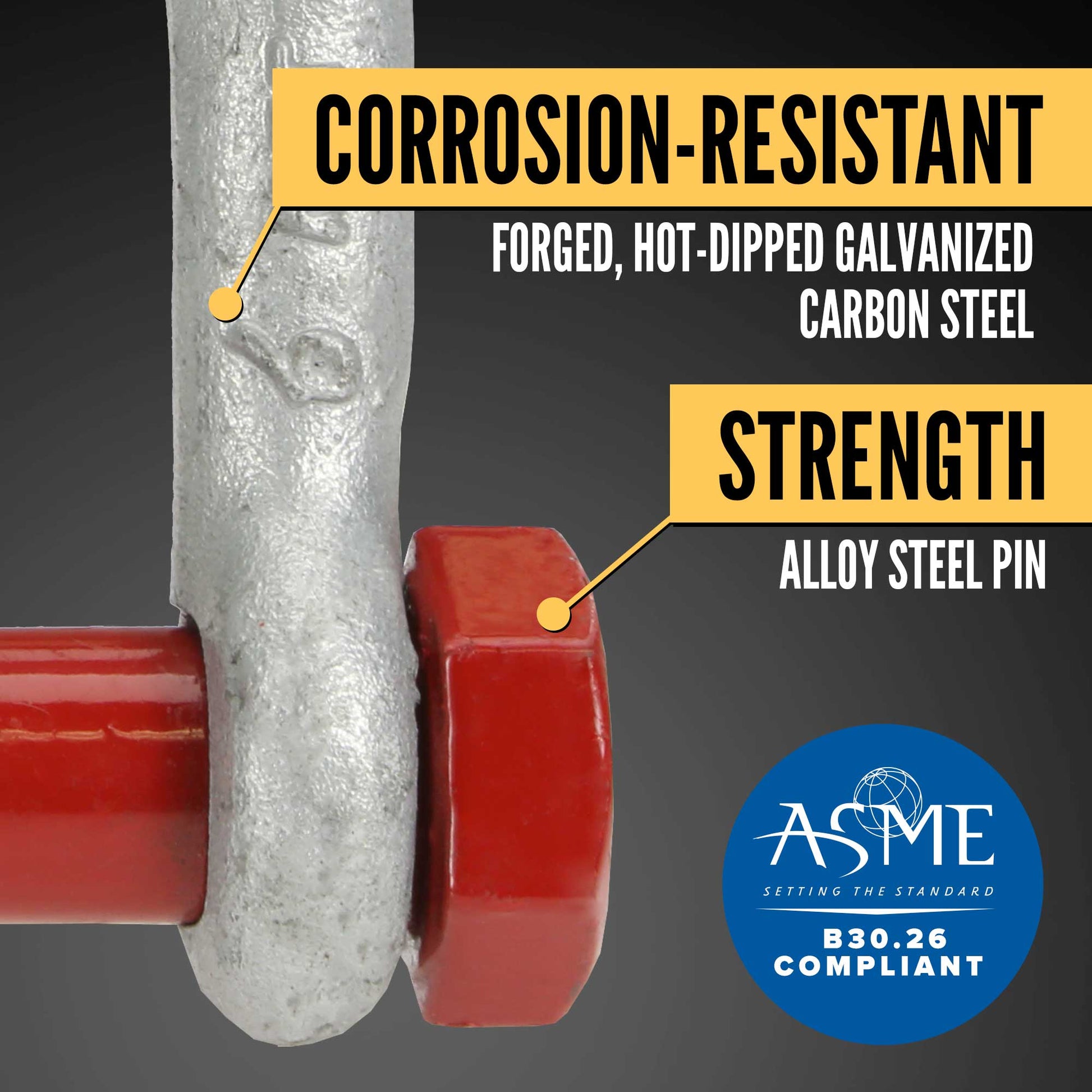

  • Material: Carbon Steel Shackle
    Alloy Steel Pin
  • Product weight: 124.3 lbs.
  • Shipping & Returns: This item cannot be returned due to safety risks associated with used materials.

Description

Crosby® 85 Ton Bolt Type Chain Shackles

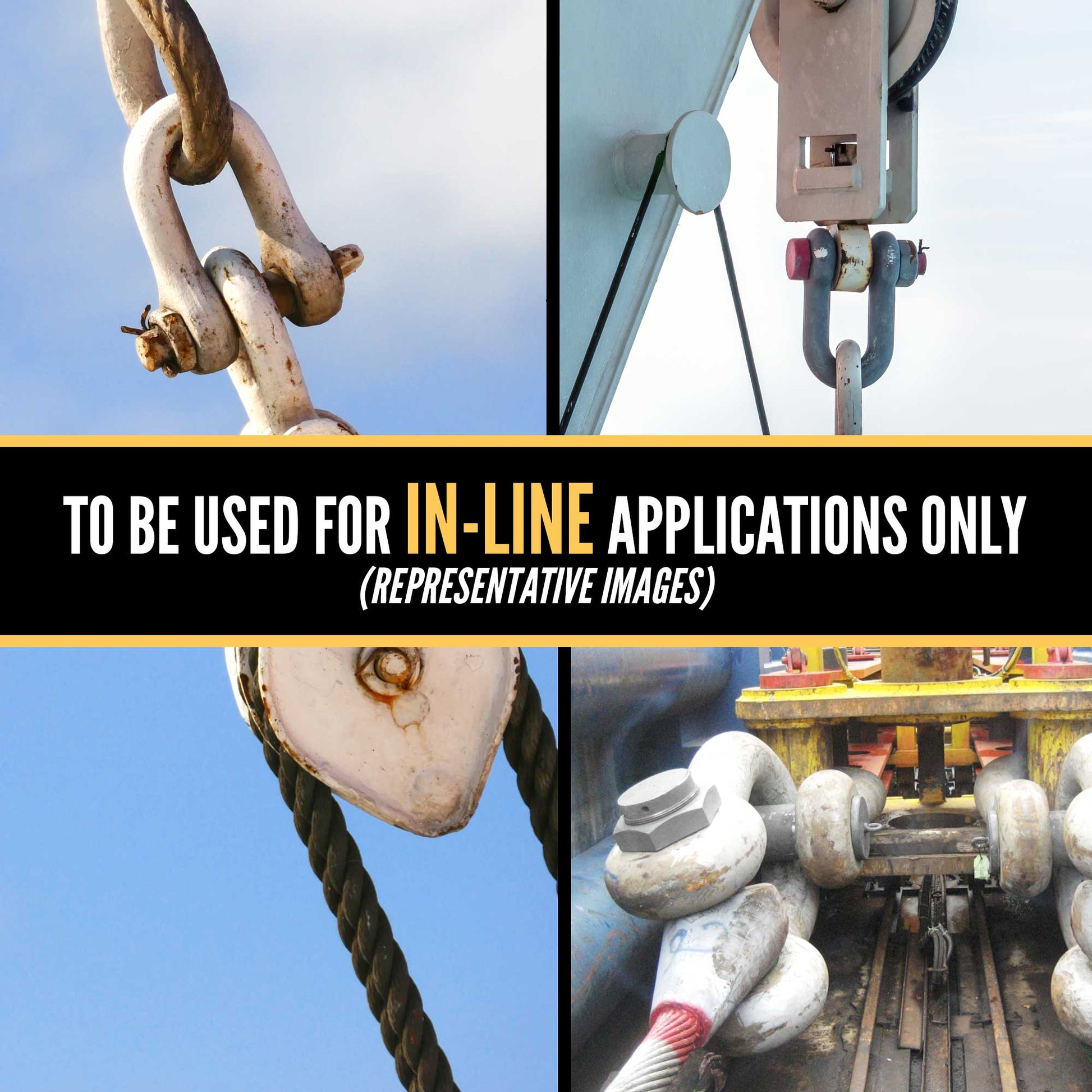

Chain shackles from Crosby® offer some of the highest working load limits in the industry. Designed for straight line pulls or lifts only (side and racking load can cause excessive pressure on the straight legs of a chain shackle). The bolt closure is excellent for permanent or long-term applications, or if there’s a risk of a load sliding on the shackle pin, which can cause it to rotate.

This shackle is quenched and tempered for superior strength and comes with an alloy pin.

G-2161 Shackle Features

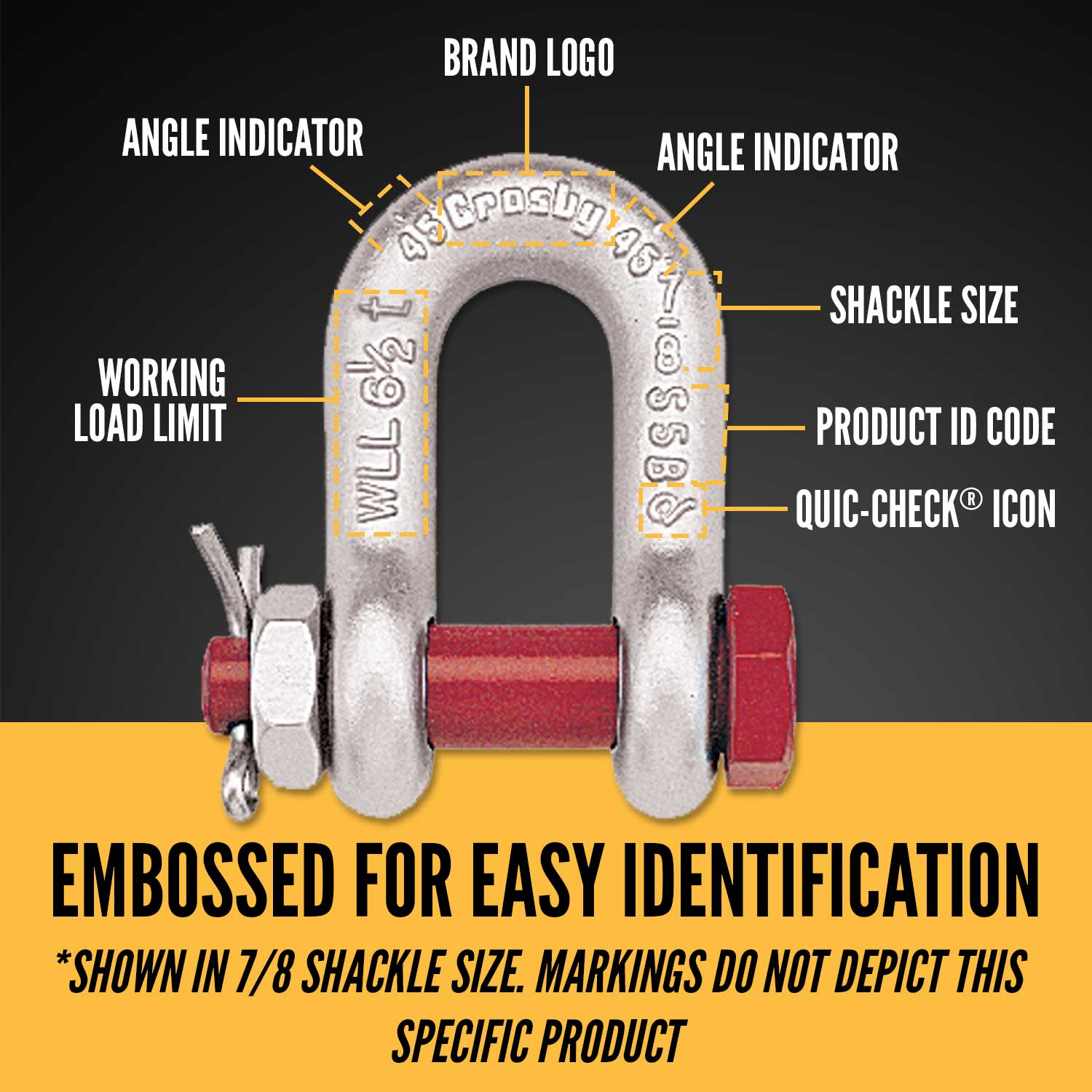

  • Working load limit, PIC, Grade 6, and Crosby name on every shackle.
  • Fatigue rated to 20,000 cycles at 1-1/2 times the WLL.

Looking for other lifting and rigging products? Our wide selection includes lifting slings, turnbuckles, eye bolts, and more.

View Product Safety Warnings

California Residents: WARNING

Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
