SKU: BTCS38-CR
3/8" Crosby® Bolt Type Chain Shackle | G-2150 - 1 Ton
3/8" Crosby® Bolt Type Chain Shackle | G-2150 - 1 Ton!
Authorized Distributor
$23.71
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working load limit: 1 tons (Metric) / 2,204 lbs.
Brand part number: 1019772
Finish: Galvanized
Inside height: 1.26"
Inside width: 0.66"
Manufacturer name: Crosby®
Material: Carbon Steel Shackle
Alloy Steel Pin
Alloy Steel Pin
Mouth width: 0.66"
Pin size: 7/16"
Product weight: .3 lbs.
Safety factor: 6:1
Shackle size: 3/8"
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all requirements of ASME B30.26, Federal Specification RR-C-271, & ASTM A148M.
Type: Bolt Type Chain
Description
Crosby® 1 Ton Bolt Type Chain Shackles
Chain shackles from Crosby® offer some of the highest working load limits in the industry. Designed for straight line pulls or lifts only (side and racking load can cause excessive pressure on the straight legs of a chain shackle). The bolt closure is excellent for permanent or long-term applications, or if there’s a risk of a load sliding on the shackle pin, which can cause it to rotate.
These shackles are quenched and tempered for superior strength and have alloy pins.
G-2165 Shackle Features

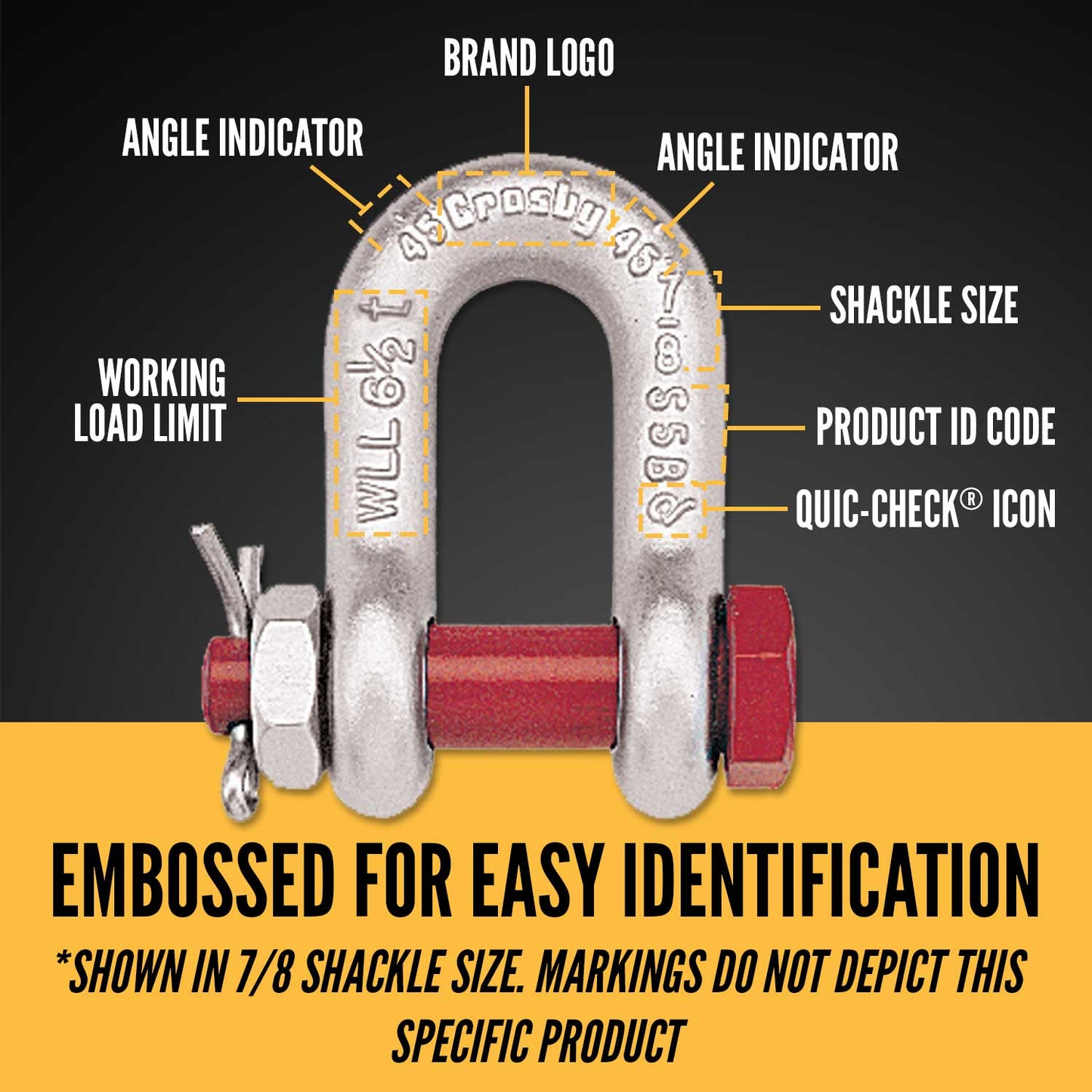

- Working load limit, PIC, Grade 6, and Crosby name on every shackle.
- Fatigue rated to 20,000 cycles at 1-1/2 times the WLL.
Looking for other lifting and rigging products? Our wide selection includes lifting slings, turnbuckles, eye bolts, and more.
