3/16" Crosby® Screw Pin Anchor Shackle | G-209 - 0.33 Ton

3/16" Crosby® Screw Pin Anchor Shackle | G-209 - 0.33 Ton!

Skip to product information
1 of 8

SKU: SPAS316-CR

3/16" Crosby® Screw Pin Anchor Shackle | G-209 - 0.33 Ton

3/16" Crosby® Screw Pin Anchor Shackle | G-209 - 0.33 Ton!

Authorized Distributor
Regular price $9.76
Sale price $9.76 Regular price
0% off
Ships today when you order in the next 7 hours
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 866-444-9990.

Specifications

  • Working load limit: 0.33 tons (Metric) / 0,727 lbs.
  • Inside width: 0.60"
  • Mouth width: 0.38"
  • Finish: Galvanized
  • Safety factor: 6:1
  • Manufacturer name: Crosby®
  • Brand part number: 1018357
  • Inside height: 0.88"
  • Pin size: 1/4"
  • Shackle size: 3/16"
  • Standards: Meets or exceeds all requirements of ASME B30.26 and Federal Specification RR-C-271.
  • Type: Screw Pin Anchor
  • Material: Carbon Steel Shackle
    Alloy Pin
  • Product weight: .1 lbs.
  • Shipping & Returns: This item cannot be returned due to safety risks associated with used materials.

Description

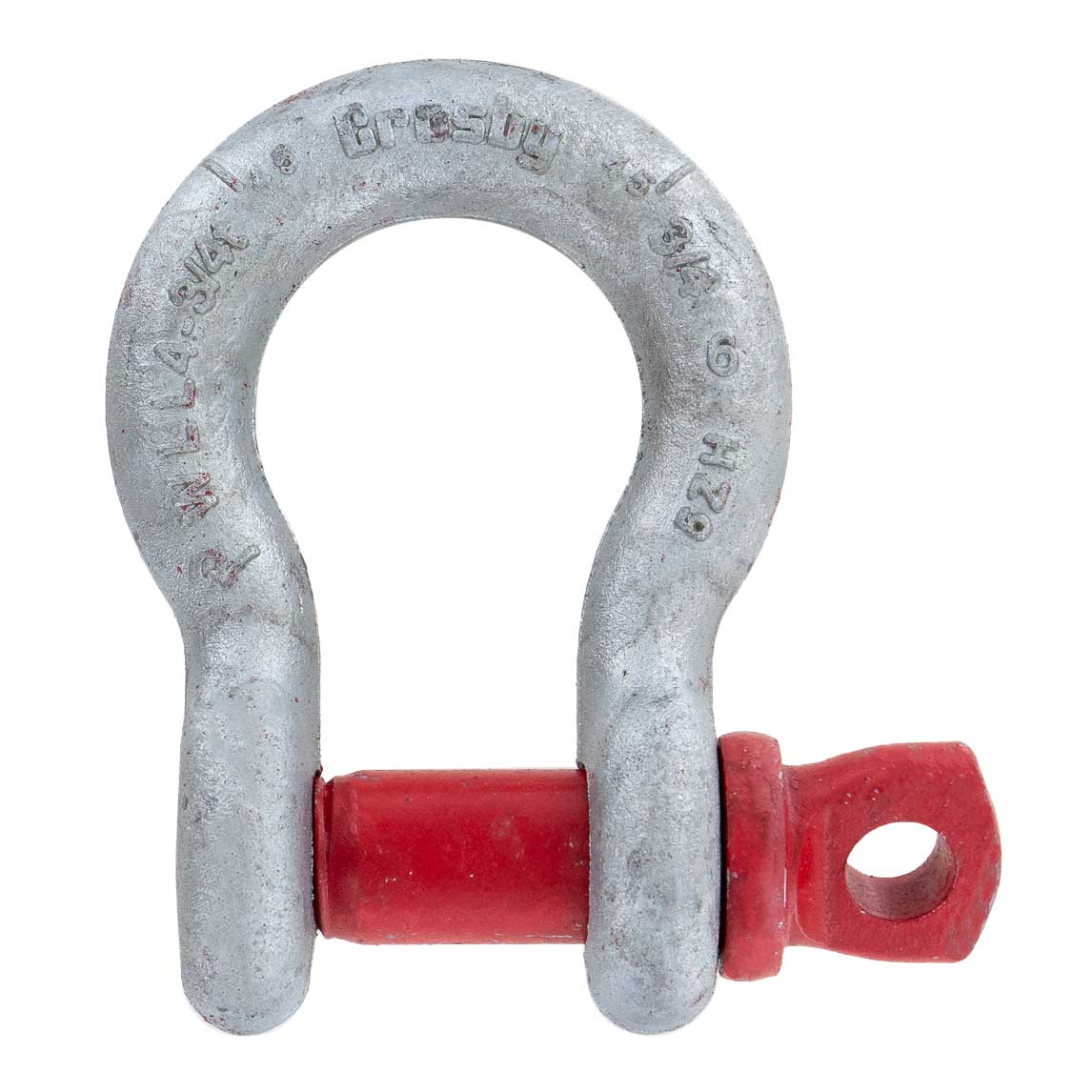

Crosby® .33 Ton Screw Pin Anchor Shackles

Offers the ease of a quick-release pin and the security of a strong connection. A bow shape can handle a wider variety of connections - including multi-dimensional pulling - over chain shackles/D shackles.

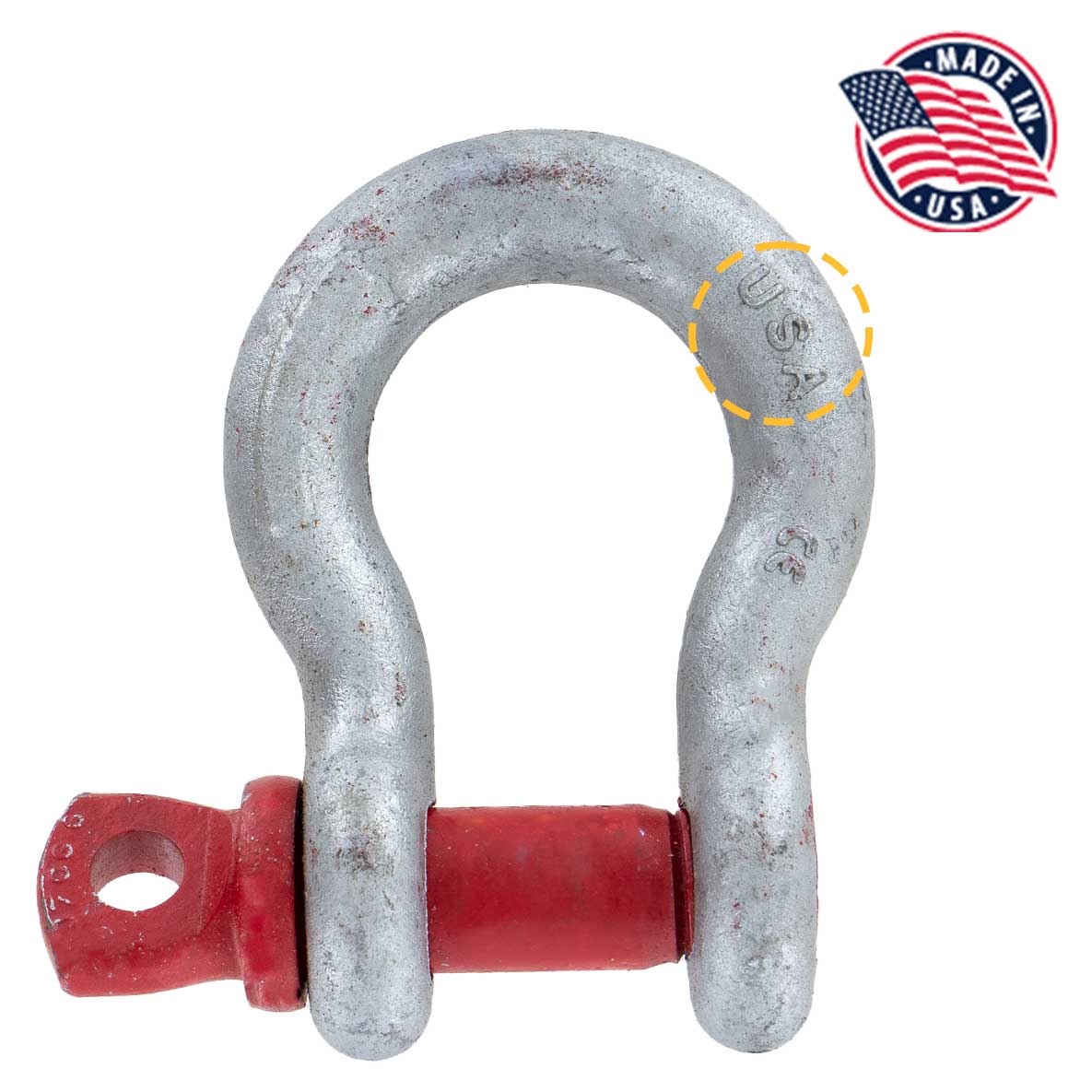

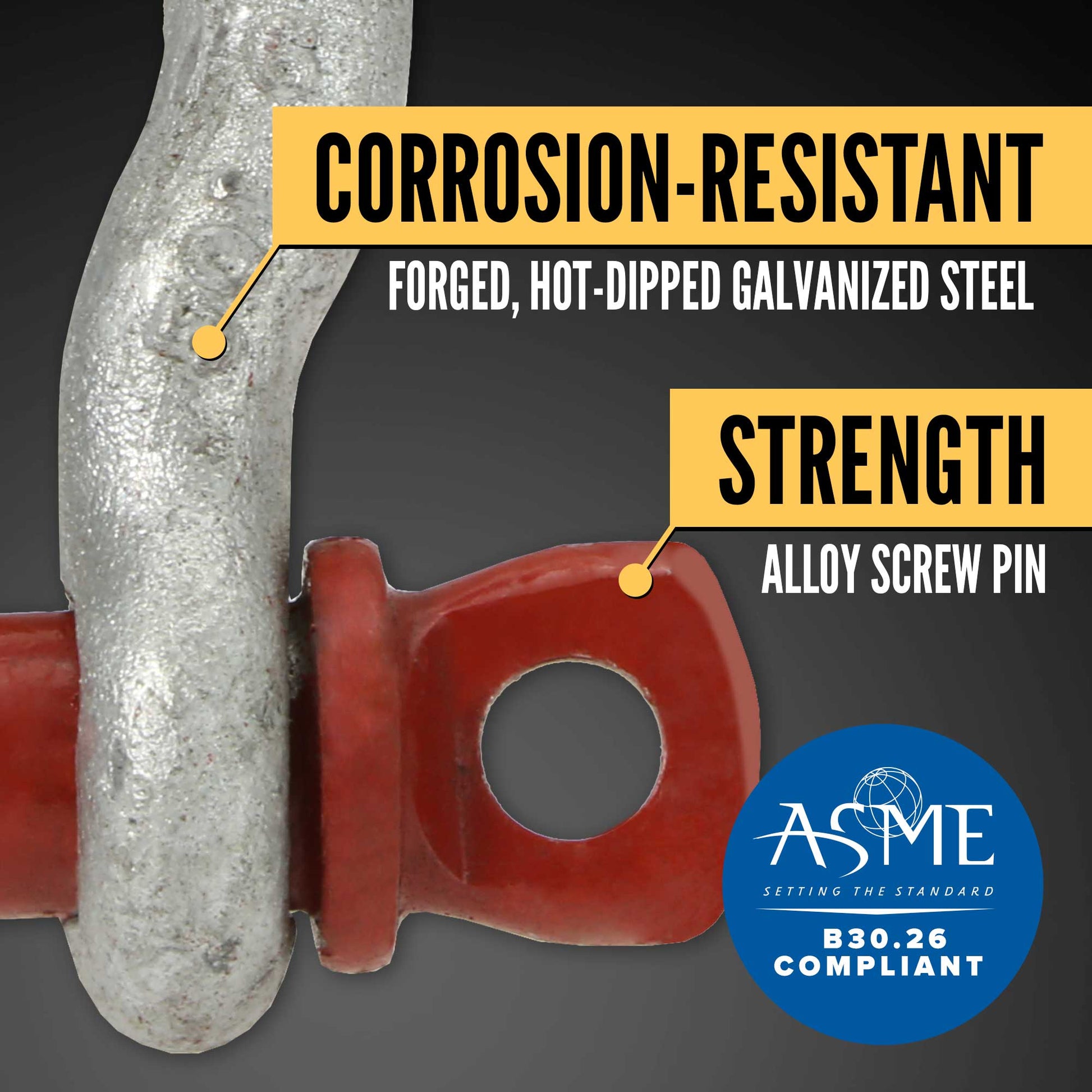

The USA-made Crosby shackles are made from forged, hot-dipped galvanized steel for corrosion-resistance. An alloy pin adds strength. Approved for use at temperatures between -40°F / -40°C and 400°F / 204°C.

This screw pin anchor shackle is designed to perform. They can meet DNV impact requirements of 42 Joules (31 ft-lb) at 4°F / -20°C upon request, and can be furnished with proof-testing certificates to designated standards, such as DNV, ABS, Lloyds, etc. If you want this certification, please call to order and request the applicable testing.

Why Choose Screw Pin Anchor Shackles?

A quick release screw style pin allows these shackles to attach and detach quickly, making them perfect for temporary or non-permanent lifting jobs. They are faster than using shackles with round pins. Anchor bow shackles have a wider shape than D shaped shackles and are mainly used on multi-leg rigging systems.

G-209 Shackle Features

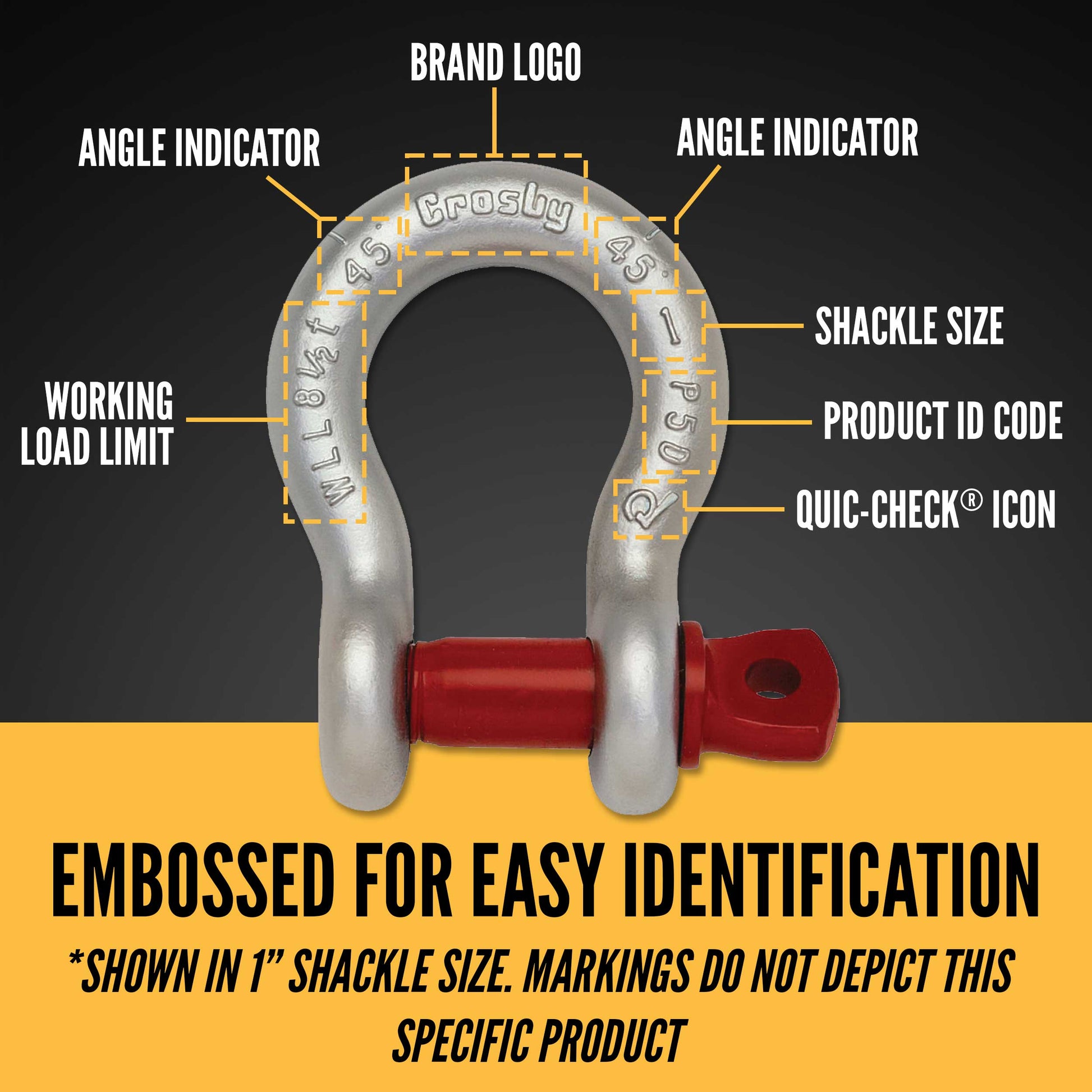

  • Working load limit, Grade 6, PIC, and Crosby name on every shackle.
  • Fatigue rated to 20,000 cycles at 1-1/2 times the WLL.
  • Meets performance requirements of Grade 6 shackles.

Looking for other lifting and rigging products? Our wide selection includes lifting slings, turnbuckles, eye bolts, and more.
