SKU: SPAS1-18-CR

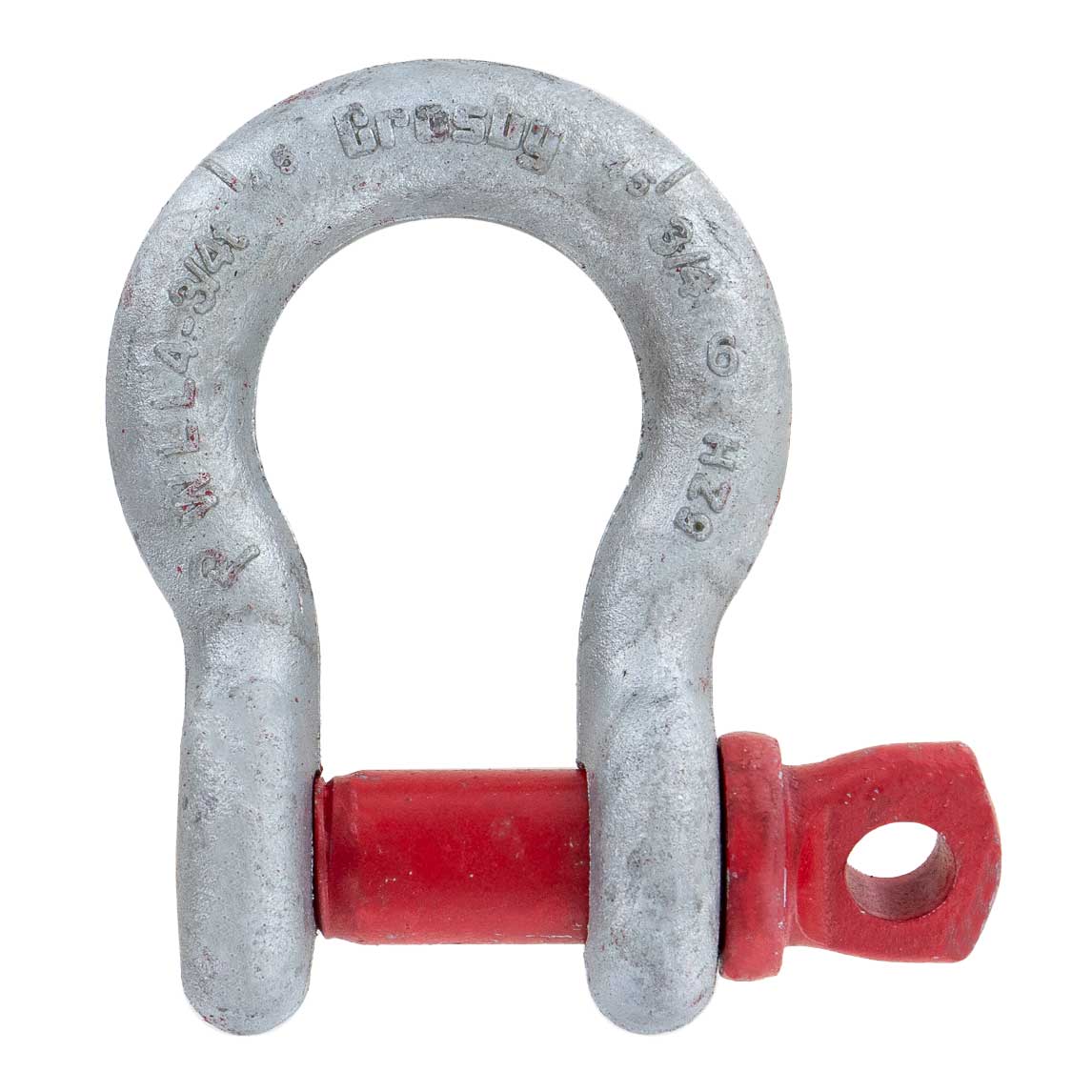

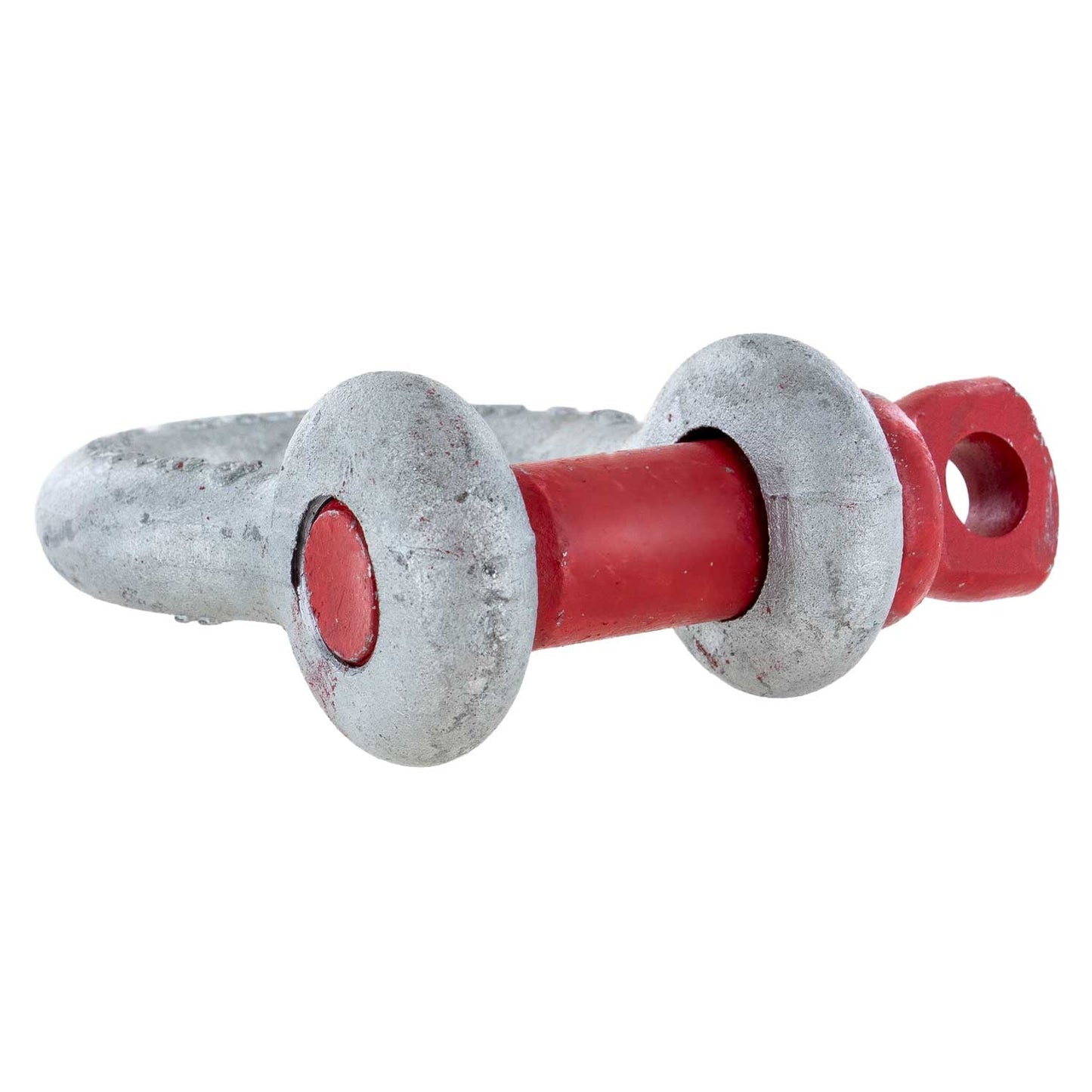

1-1/8" Crosby® Screw Pin Anchor Shackle | G-209 - 9.5 Ton
1-1/8" Crosby® Screw Pin Anchor Shackle | G-209 - 9.5 Ton!
Authorized Distributor
$135.90
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working load limit: 9.5 tons (Metric) / 20,943 lbs.
Brand part number: 1018552
Finish: Galvanized
Inside height: 4.27"
Inside width: 2.91"
Manufacturer name: Crosby®
Material: Carbon Steel Shackle
Alloy Pin
Alloy Pin
Mouth width: 1.81"
Pin size: 1-1/4"
Product weight: 7.4 lbs.
Safety factor: 6:1
Shackle size: 1-1/8"
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all requirements of ASME B30.26, Federal Specification RR-C-271, & ASTM A148M.
Type: Screw Pin Anchor
Description
Crosby® 9.5 Ton Screw Pin Anchor Shackles
Offers the ease of a quick-release pin and the security of a strong connection. A bow shape can handle a wider variety of connections - including multi-dimensional pulling - over chain shackles/D shackles.

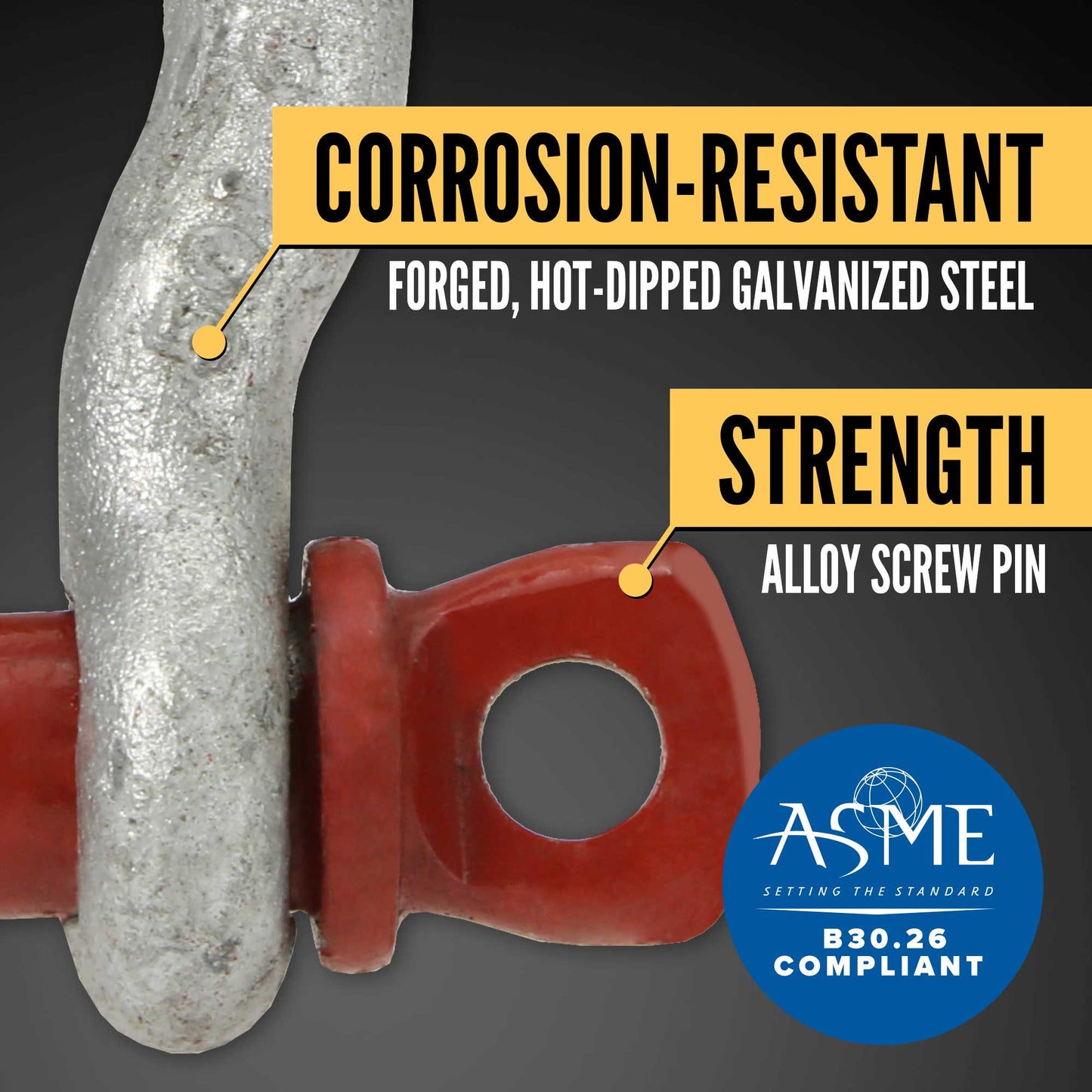

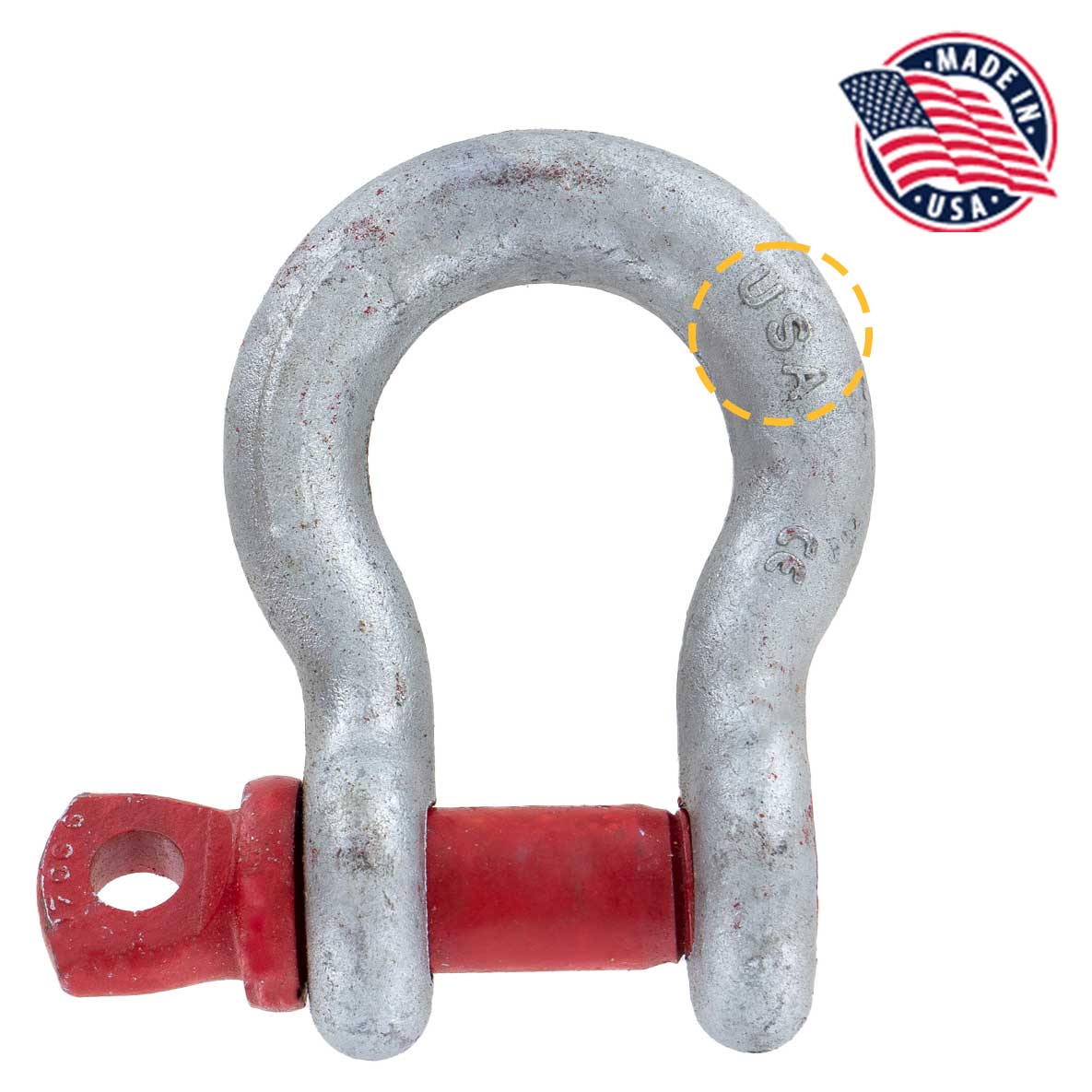

The USA-made Crosby shackles are made from forged, hot-dipped galvanized steel for corrosion-resistance. An alloy pin adds strength. Approved for use at temperatures between -40°F / -40°C and 400°F / 204°C.
This screw pin anchor shackle is designed to perform. They can meet DNV impact requirements of 42 Joules (31 ft-lb) at 4°F / -20°C upon request, and can be furnished with proof-testing certificates to designated standards, such as DNV, ABS, Lloyds, etc. If you want this certification, please call to order and request the applicable testing.
Why Choose Screw Pin Anchor Shackles?

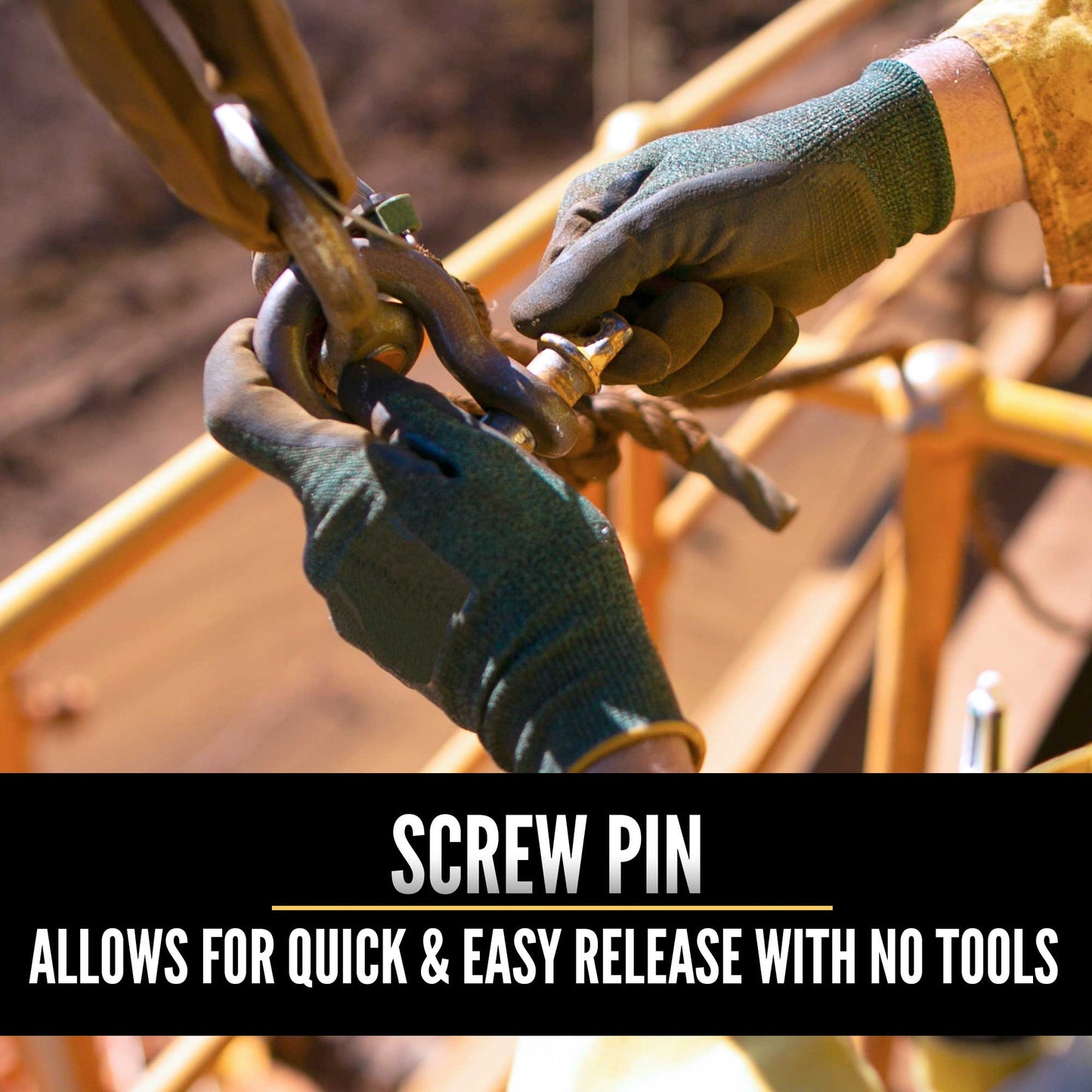

A quick release screw style pin allows these shackles to attach and detach quickly, making them perfect for temporary or non-permanent lifting jobs. Anchor bow shackles have a wider shape than D shaped shackles and are mainly used on multi-leg rigging systems.
G-209 Shackle Features

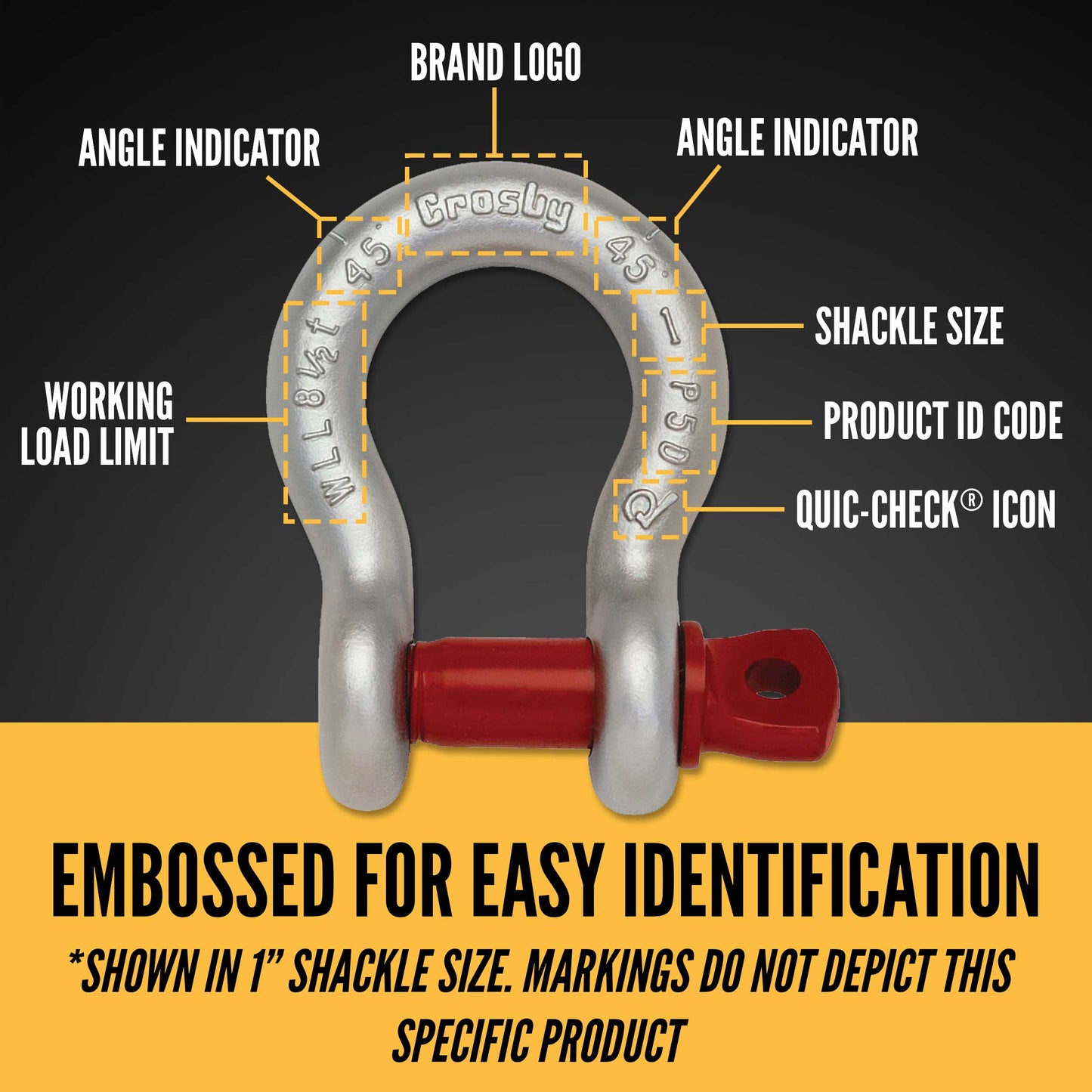

- Working load limit, Grade 6, PIC, and Crosby name on every shackle.
- Fatigue rated to 20,000 cycles at 1-1/2 times the WLL.
- Meets performance requirements of Grade 6 shackles.

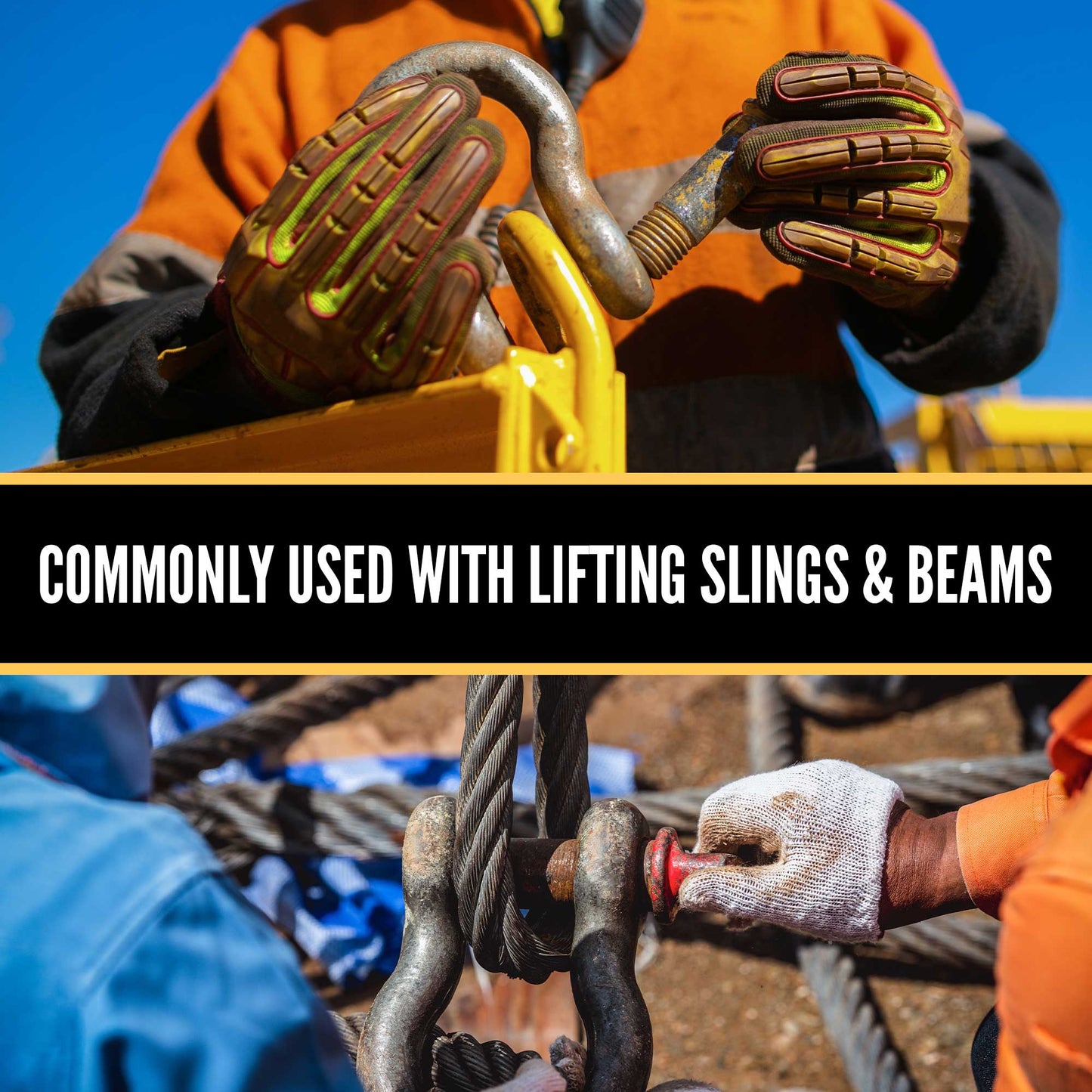

Looking for other lifting and rigging products? Our wide selection includes lifting slings, turnbuckles, eye bolts, and more.
