SKU: GVSEB178X3-BO-AC
Actek 1-7/8" x 3" Galvanized Shoulder Eye Bolt - Black Oxide - 15,000 lbs. WLL
Actek 1-7/8" x 3" Galvanized Shoulder Eye Bolt - Black Oxide - 15,000 lbs. WLL!
SKU: GVSEB178X3-BO-AC
Actek 1-7/8" x 3" Galvanized Shoulder Eye Bolt - Black Oxide - 15,000 lbs. WLL
$75.00
Lengths:
Diameters:
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options

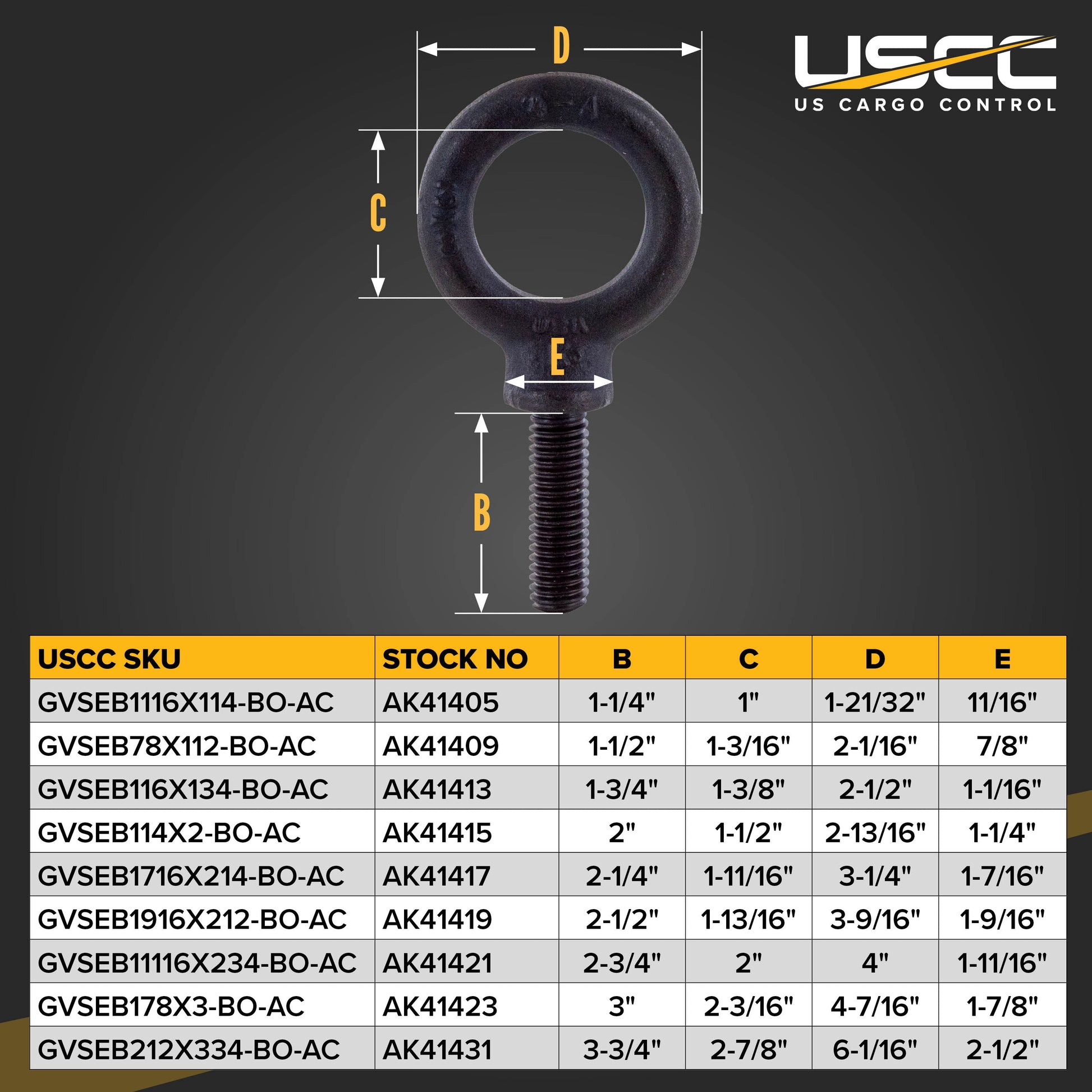

Specifications
Working Load Limit (lbs.): 15000
Rated for Overhead Lifting: Yes
Diameter: 1-1/4" - 7 Bolt
Length: 3" Bolt
Thread Type: UNC
Material: Carbon Steel - C1030
Finish: Black Oxide
Product Weight: 5 lbs.
Standards: Meets or exceeds ASME B18.15 requirements.
Manufacturer Name: Actek®
Brand Part Number: AK41423
Shipping and Returns: This item cannot be returned due to safety risks associated with used materials.
Description

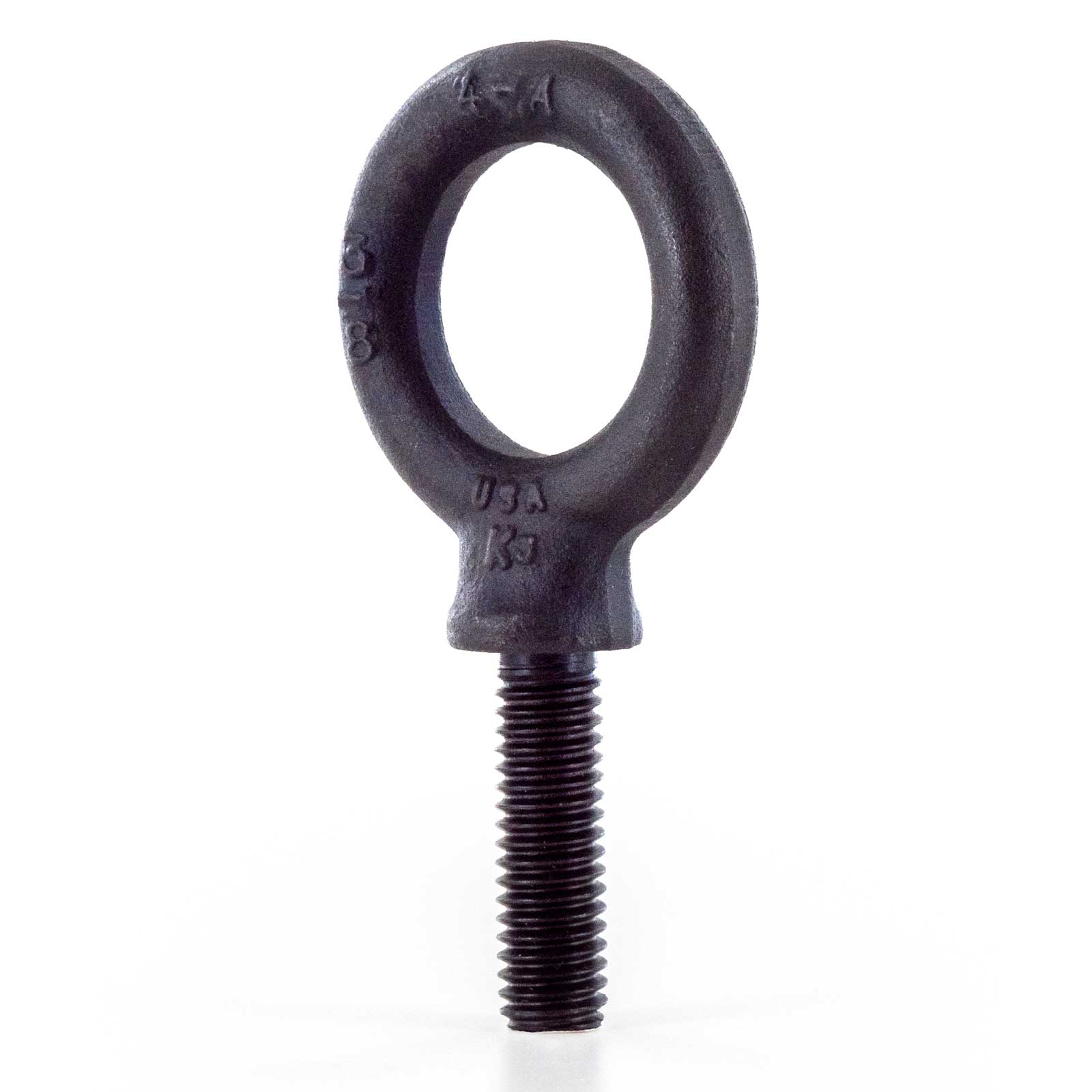

Actek® Black Oxide Shoulder Eye Bolt
Rated at 15,000 lbs. WLL with a 1-7/8" shank and 3" thread length, this Actek® Black Oxide Shoulder Eye Bolt is a forged, heat-treated lifting attachment for straight vertical pulls in manufacturing, maintenance, and construction applications. The black oxide finish becomes part of the metal surface-it won't chip or peel. For angular loading, swivel hoist rings are the correct choice.
Why Choose Actek® Black Oxide Shoulder Eye Bolts?
When your application requires a straight vertical lift from a threaded attachment point and load angle is controlled, a forged shoulder eye bolt is a proven, cost-efficient solution used across manufacturing, construction, and maintenance operations.
Manufactured for Strength and Reliability
- C1030 Forged Carbon Steel: Forged construction creates a stronger, more consistent grain structure than machined or cast alternatives, improving resistance to shock loads and service fatigue.
- Quench and Draw Heat Treated: Heat treatment enhances tensile strength and toughness so these eye bolts maintain structural integrity in demanding straight-pull lifting applications.
- Black Oxide Finish: The black oxide treatment bonds to the metal surface-it does not chip, peel, or flake like paint - providing corrosion resistance suited to industrial environments.
- Made by Actek® Manufacturing & Engineering: An ISO 9001 certified manufacturer and industry leader in lifting hardware since 1989.
Built to Meet Industry Standards
Manufactured to ASME B18.15
These shoulder eye bolts are manufactured in accordance with ASME B18.15 specifications, ensuring consistent dimensions, thread form, and mechanical performance across every size in the product line.
Tested to ASTM A489 Requirements
Each eye bolt is tested to ASTM A489 standards, providing documented verification of strength and reliability for lifting service.
Questions?
We also offer galvanized shoulder eye bolts and a wide selection of stainless steel eye bolts. For applications involving any angle loading, our swivel hoist rings maintain full rated capacity from any direction of pull. Complete your rigging setup with rigging hardware, lifting slings, wire rope, shackles, and chain. Need a size, capacity, or configuration we don't carry? Request a custom hoist ring and our team will work directly with the manufacturer to build it for you.
