Double Stud Fitting w/ Delta Link | 5,000 lbs. BS
Double Stud Fitting w/ Delta Link | 5,000 lbs. BS!
Double Stud Fitting w/ Delta Link | 5,000 lbs. BS
Double Stud Fitting w/ Delta Link | 5,000 lbs. BS!

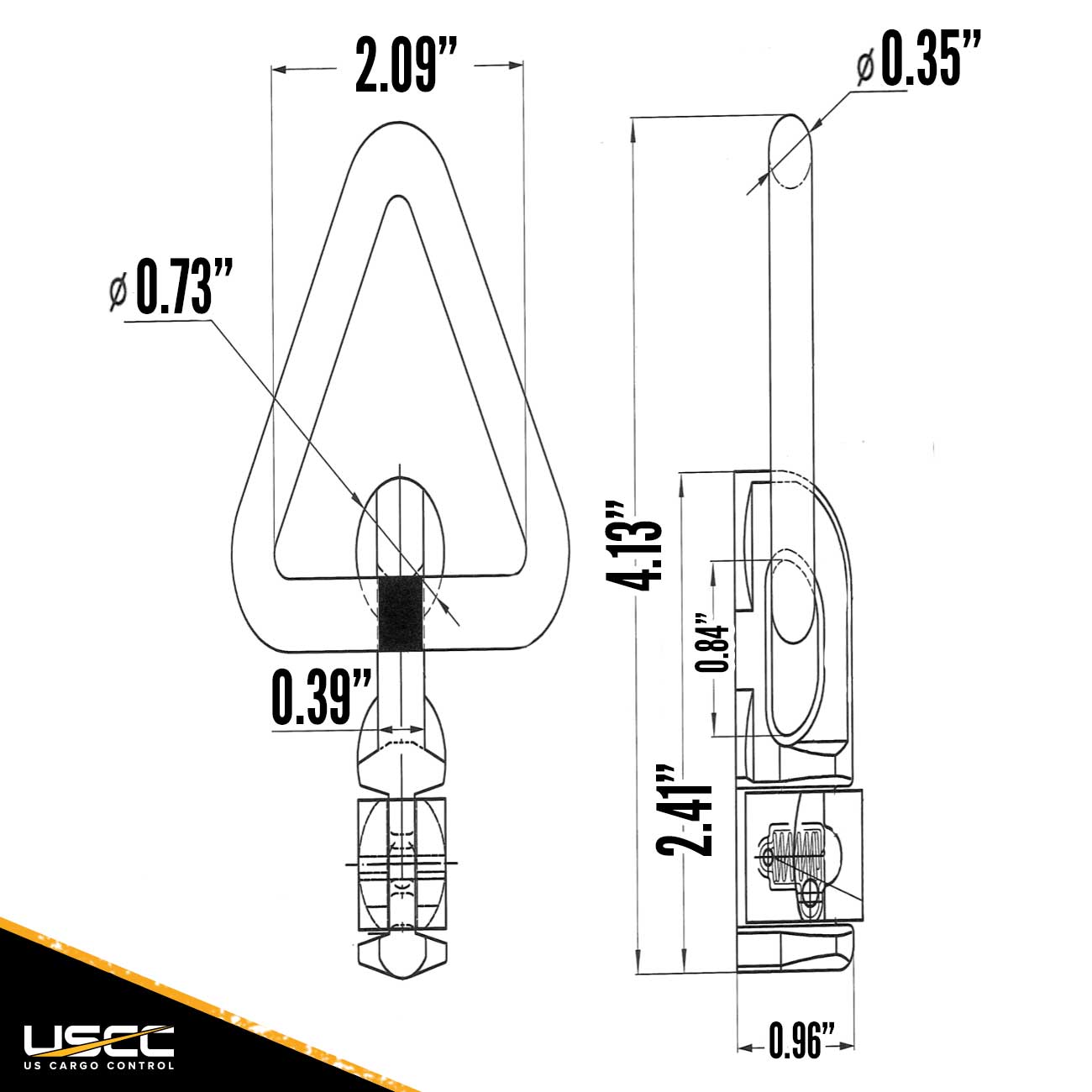

Specifications
Specifications
- Working load limit: 1,666 lbs.
- Assembly break strength: 5,000 lbs.
- Product weight: .5 lbs.
Description
Description

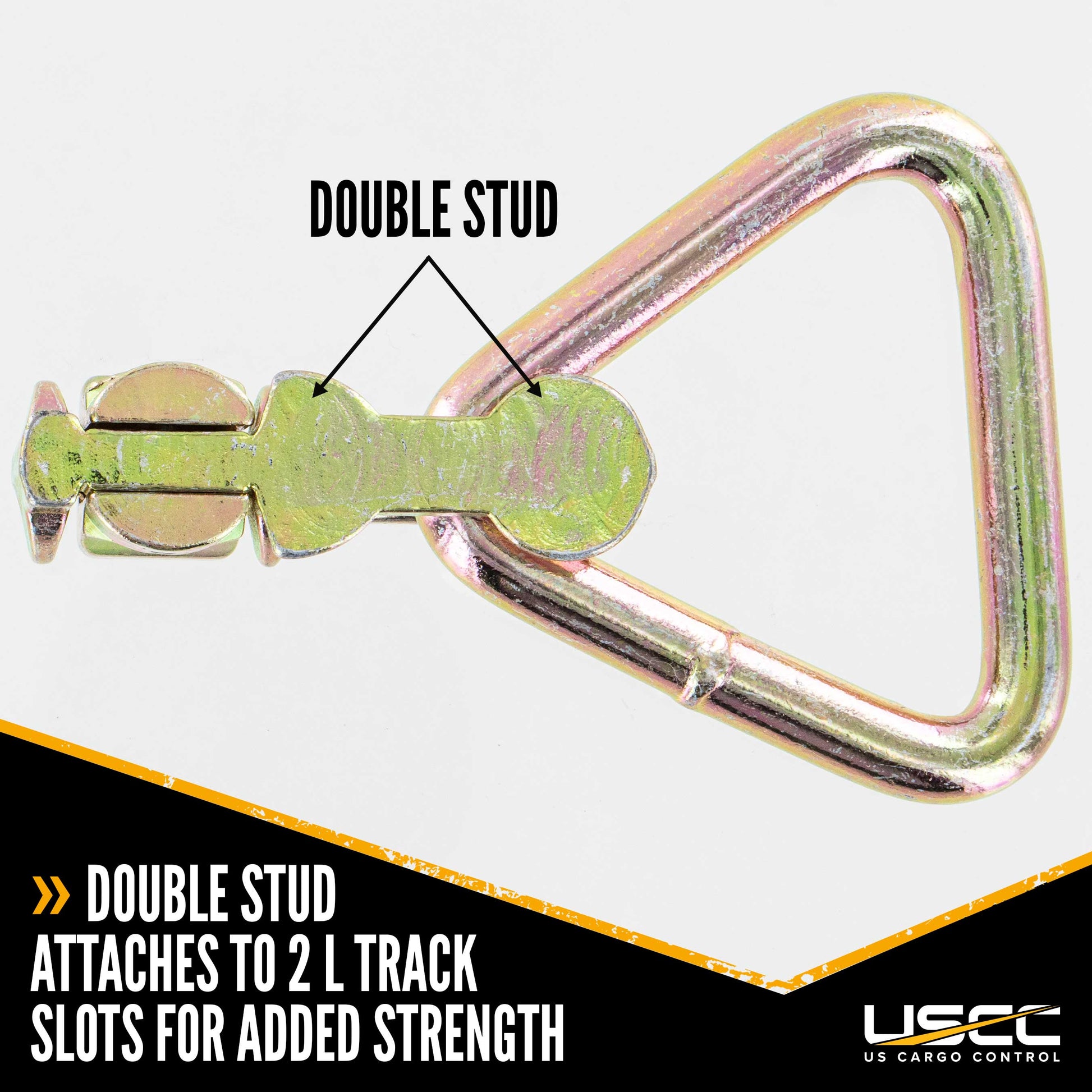

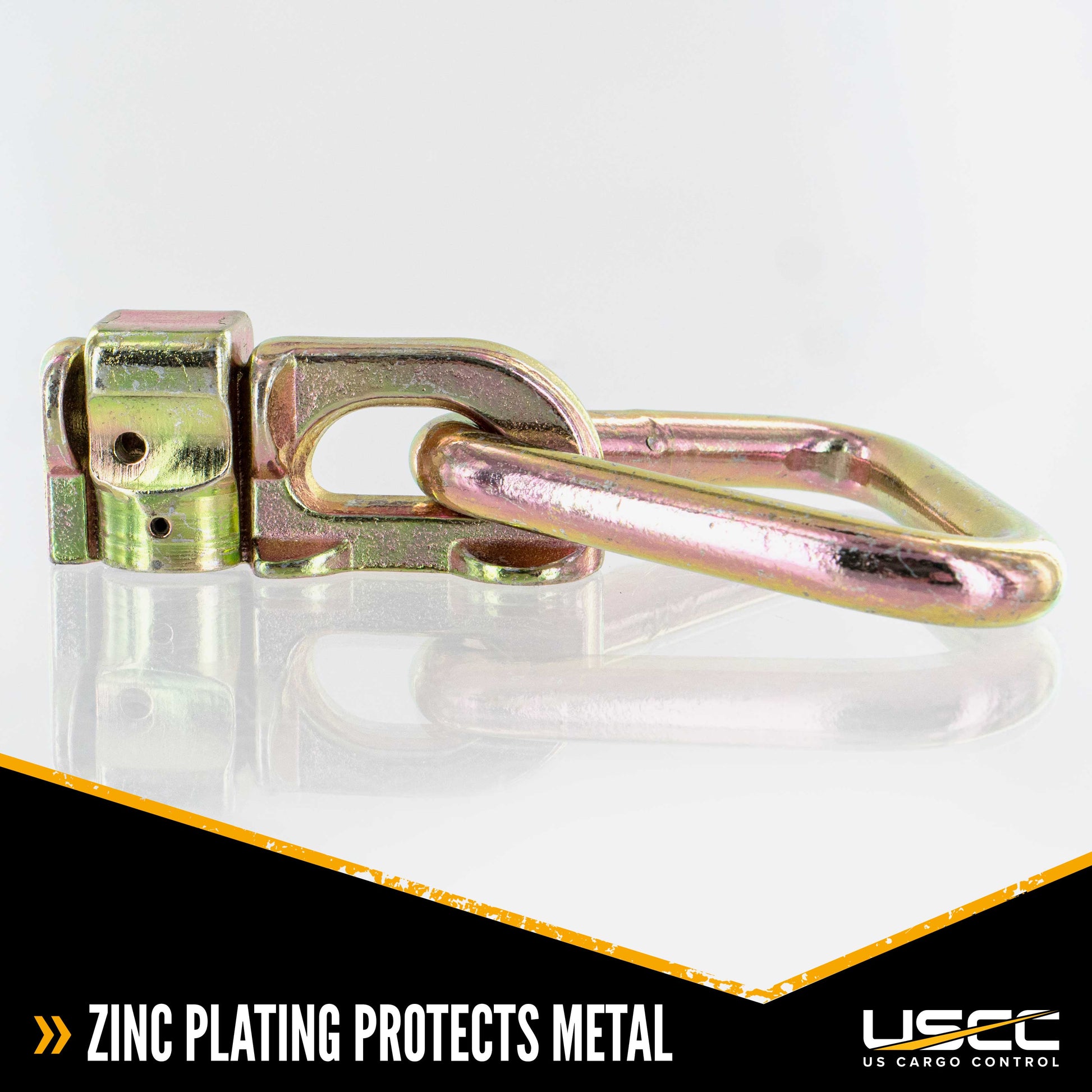

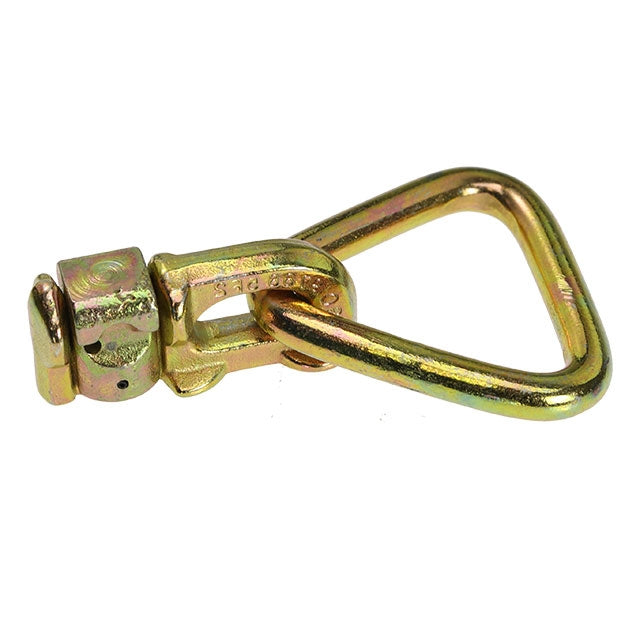

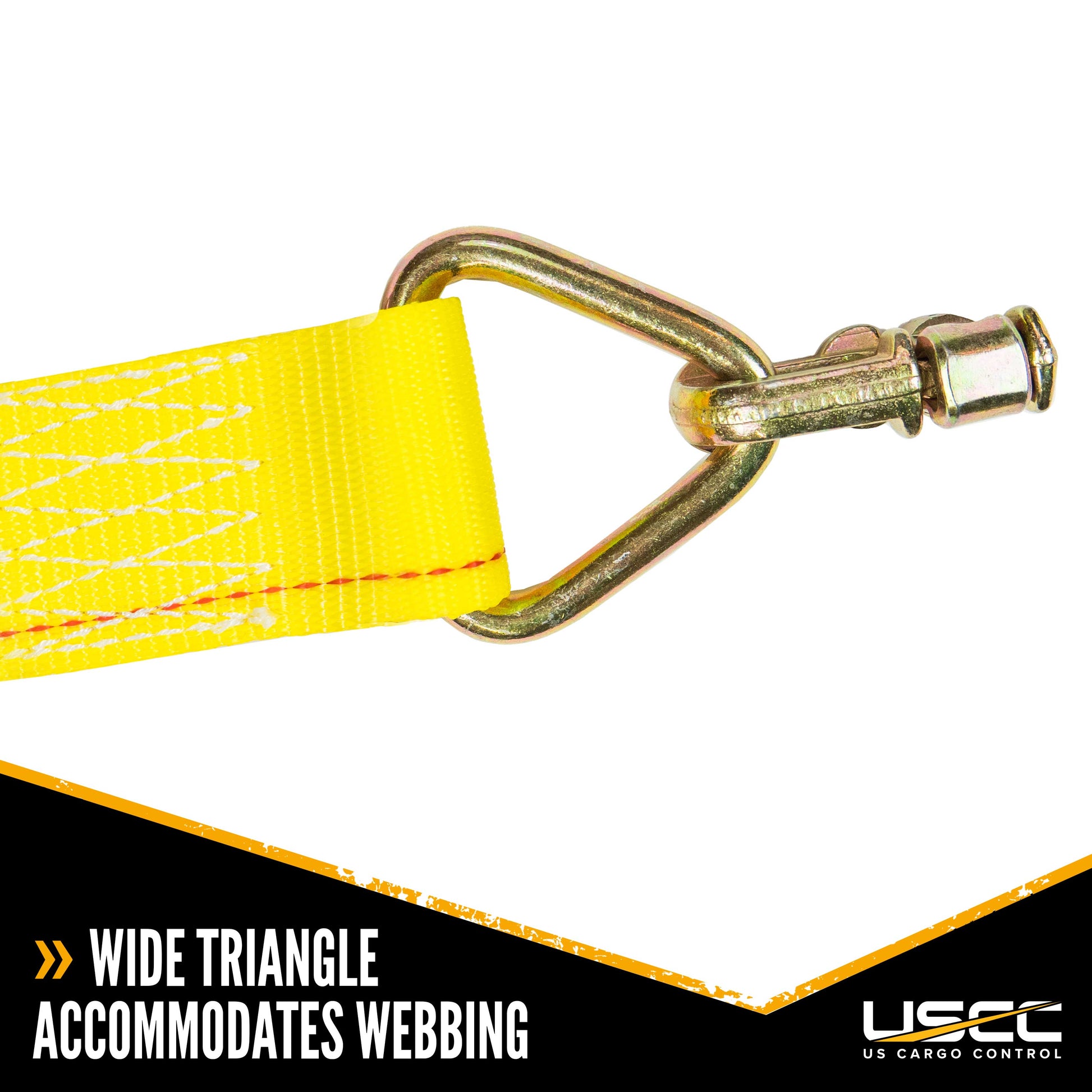

The low profile design of this L-Track stud fitting makes it a strong yet inconspicuous way of creating a quick tie-down point along an L-track rail or on a single anchor point. A wide, triangle-shaped ring is great for accommodating webbing for tie-down applications. And because the triangle shape can be pulled away from the rail at an angle, it can be used even if obstructions are close by. Called a double stud fitting because it takes up two slots on the track, it offers more strength than a single stud fitting. A zinc coating adds a layer of protection to the metal.

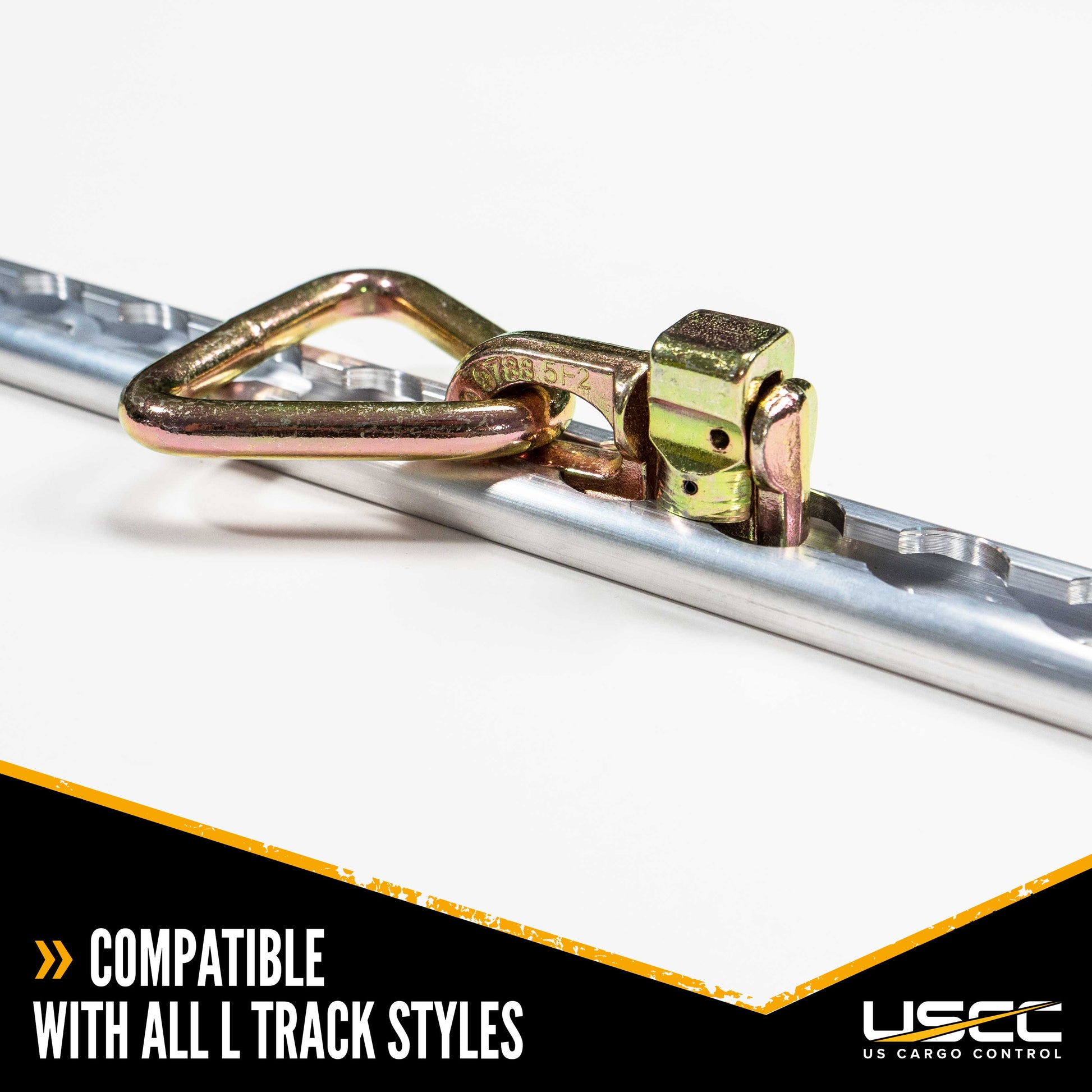

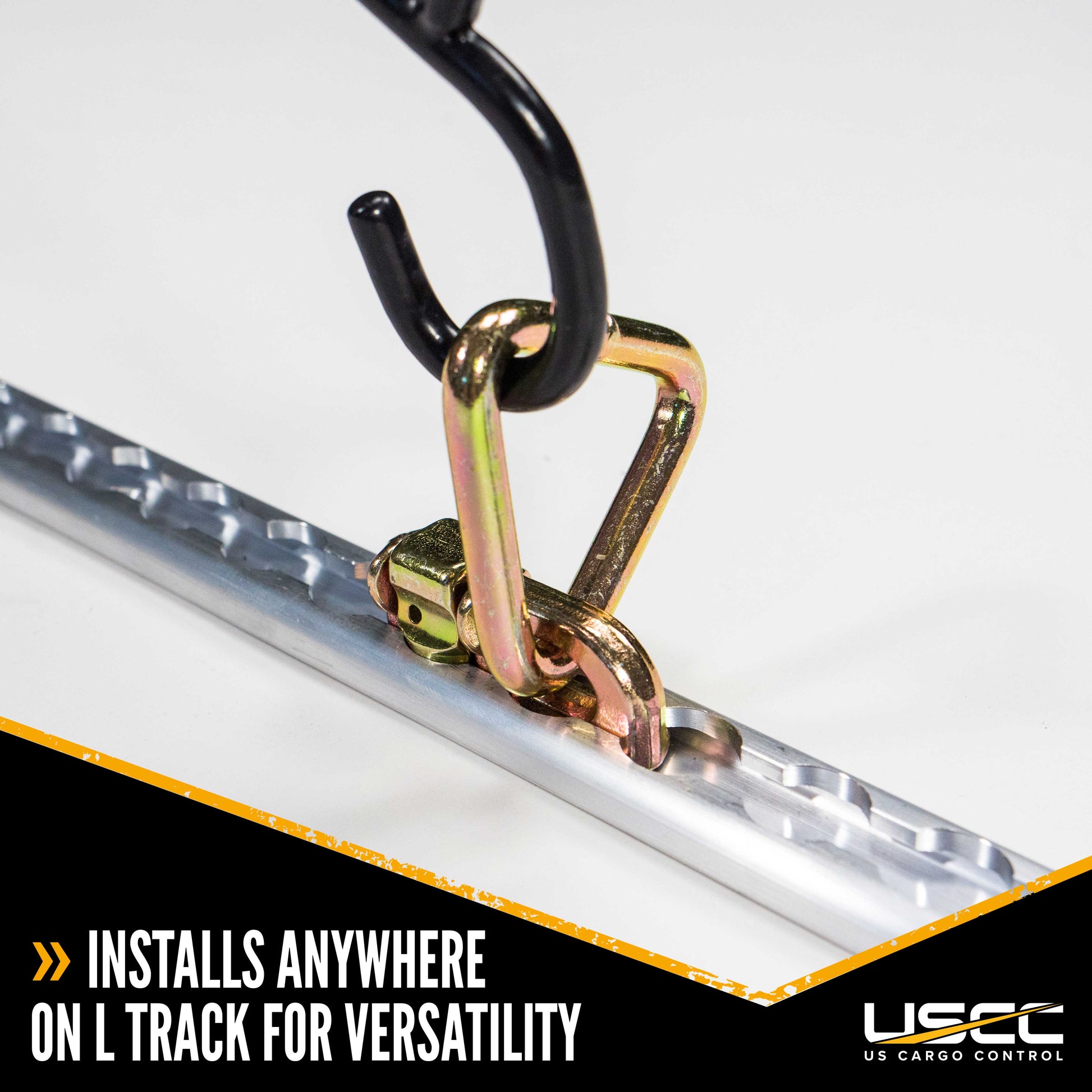

Installation is easy. To slide into place: lift the end clip and insert the two bottom discs into the track slots. Slide until it's halfway between two slots and release the clip to lock the fitting in place. Works with all of our L- track styles: Standard L-track tie-down rails, Aircraft Style Seat Track, Angled L-Track, and Recessed L-Track.
Please note: this fitting is not compatible with single 2" Round or Rectangle L-Track Anchor Point Tie Downs.
Looking for more L-Track Accessories? We carry a wide selection of L-Track fittings as well as L-Track straps so you can create a custom L-Track System to meet your cargo tie-down needs.
For more information on how to use and install L-track (including video demonstrations!), see our How to Use and Install L-Track and L-Track Systems page.
