SKU: 58GWR626-500FT-D
5/8" 6x19 Galvanized Wire Rope - EIPS IWRC | 500' Coil - Domestic
5/8" 6x19 Galvanized Wire Rope - EIPS IWRC | 500' Coil - Domestic!
SKU: 58GWR626-500FT-D
5/8" 6x19 Galvanized Wire Rope - EIPS IWRC | 500' Coil - Domestic
$3,431.82
Lengths:
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Assembly break strength: 20.6 tons / 41,200 lbs.
Grade: EIPS
Length: 500'
Core: IWRC
Finish: Galvanized
Product weight: 360 lbs.
Standards: Meets all dimensional and strength requirements of Federal Specification RR-W-410 (latest revision) and ASTM A1030
Rated for Overhead Lifting: Yes
Rope construction: 6x26
Shipping and returns: This item ships LTL; learn more. This item cannot be returned due to safety risks associated with used materials.
Weight per foot: 0.72 lbs.
Wire rope class: 6x19
Wire rope diameter: 5/8"
Additional Info: Right Hand Regular Lay
Description

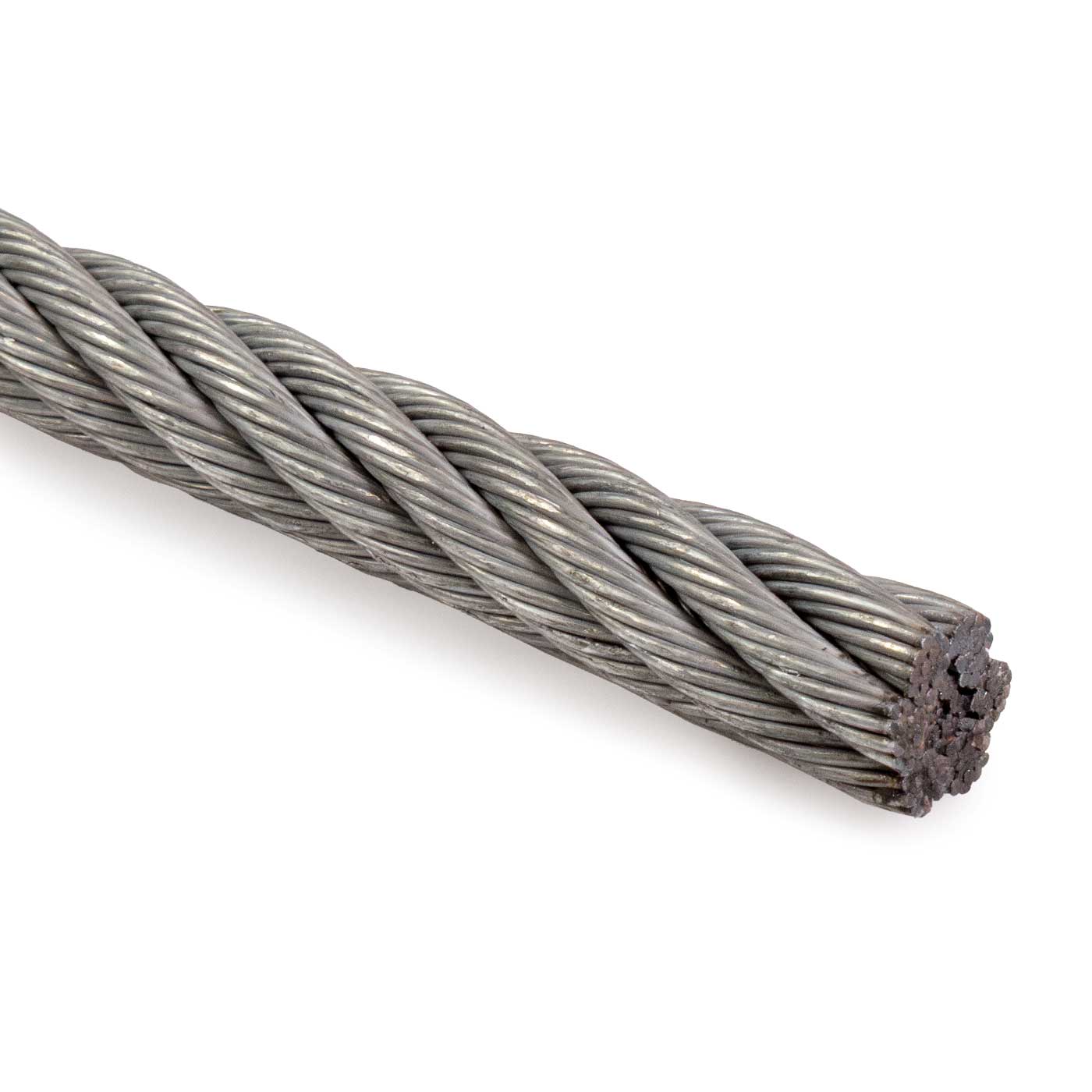

Domestic 5/8" 6x19 Galvanized Wire Rope - EIPS IWRC
This USA-made 5/8" galvanized wire rope uses Extra Improved Plow Steel (EIPS) with a 6x26 construction and an Independent Wire Rope Core (IWRC) for reliable strength and wear resistance. The hot‑dip drawn galvanizing delivers corrosion protection while preserving the rope’s original strength - making it a dependable choice for rigging, winch lines, suspension, and hoisting in harsh or wet environments.
Colored strands may appear in some domestic wire ropes for manufacturer ID or visibility purposes; these color variations do not affect assembly break strength.Corrosion‑Resistant Cable for Rigging, Winching & Outdoor Use
The 6x26 construction layout provides superior abrasion resistance and structural durability where wear from drums, sheaves, or contact surfaces is likely. Galvanizing protects against rust and extends service life in marine, construction, or exterior job‑site conditions. Manufactured to meet federal standards RR‑W‑410 and ASTM A1023, this rope is built for consistent performance under load and exposure.
6x19 Wire Rope Configuration
Our wire rope is made using EIPS-grade cable. EIPS (Extra Improved Plow Steel) refers to the strength of the wire rope - its tensile strength is around 10% greater than an IPS grade, improving the break strength.

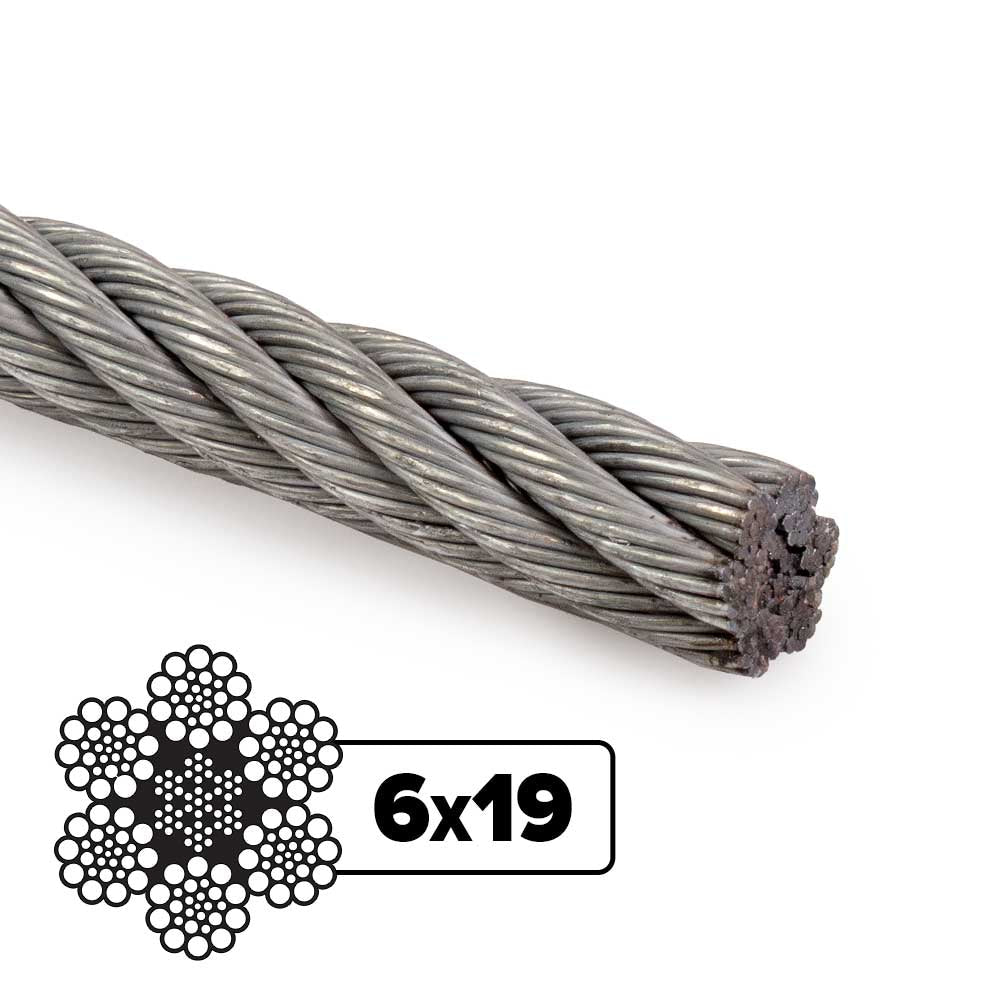

The class of this wire rope is 6x19. These numbers nominally refer to the construction of the wire rope - the number of outer strands around the core and an estimation of the number of wires within each of these outer strands. So for a 6x19 class, the number of outer strands is 6, and the number of wires making up each strand ranges from 15-26.
Key Features
- USA-made from EIPS-grade steel for high tensile strength and durability
- 6x26 construction balances abrasion resistance and load handling
- Hot‑dip drawn galvanized finish offers long‑term corrosion protection without loss of strength
- IWRC core improves resistance to crushing and maintains shape under heavy load
- Compliant with RR‑W‑410 and ASTM A1023 industrial specifications
- Ideal for winching, hoisting, suspension lines, rigging, and outdoor applications
Compatible Accessories for Full System Setup
Build a complete rigging setup with our sturdy wire rope fittings and rugged rigging hardware like eye bolts, shackles, and turnbuckles. Use wire rope thimbles to reduce wear on loops and secure your termination points with trusted Crosby wire rope clips. Custom configurations are available through our custom wire rope assemblies if your job has special requirements.
