SKU: 58BWR626-D
5/8" 6x19 Bright Wire Rope - EIPS IWRC | Linear Foot - Domestic
5/8" 6x19 Bright Wire Rope - EIPS IWRC | Linear Foot - Domestic!
SKU: 58BWR626-D
5/8" 6x19 Bright Wire Rope - EIPS IWRC | Linear Foot - Domestic
$5.36
Lengths:
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Assembly break strength: 20.6 tons / 41,200 lbs.
Grade: EIPS
Length: 1'
Core: IWRC
Finish: Bright
Product weight: 0.72 lbs.
Rated for Overhead Lifting: Yes
Rope construction: 6x26
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets all dimensional and strength requirements of Federal Specification RR-W-410 (latest revision) and ASTM A1023
Weight per foot: 0.72 lbs.
Wire rope class: 6x19
Wire rope diameter: 5/8"
Additional Info: Right Hand Regular Lay
Description

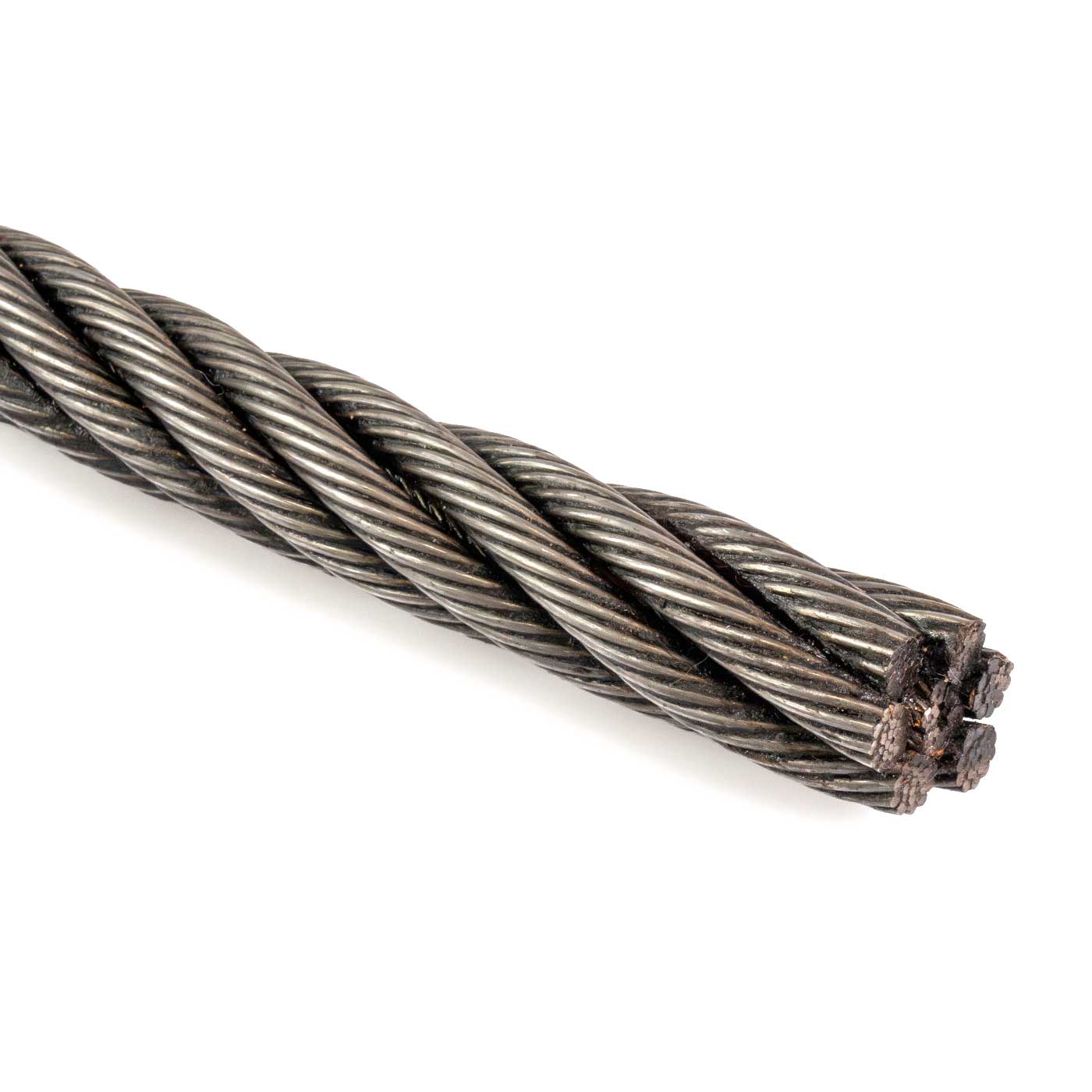

Domestic 5/8" 6x19 Bright Wire Rope - EIPS IWRC
This USA-made 5/8" bright wire rope is constructed from Extra Improved Plow Steel (EIPS) and built to withstand tough jobs. Featuring a 6x26 strand construction and an Independent Wire Rope Core (IWRC), it provides strong abrasion resistance and excellent load control. Commonly used for lifting, winch lines, and structural rigging, it’s a dependable option for general-purpose heavy-duty applications.
Colored strands may appear in some domestic wire ropes for manufacturer ID or visibility purposes; these color variations do not affect assembly break strength.Heavy-Duty Wire Cable for Hoisting, Rigging & Structural Support
The 6x19 class strikes a balance between flexibility and rugged wear resistance. Its bright steel finish is uncoated and treated with a petroleum-based lubricant, reducing internal friction while offering light moisture protection. Designed for performance under pressure, this wire rope meets Federal Specification RR-W-410 and ASTM A1023, ensuring it holds up in the most demanding industrial environments.

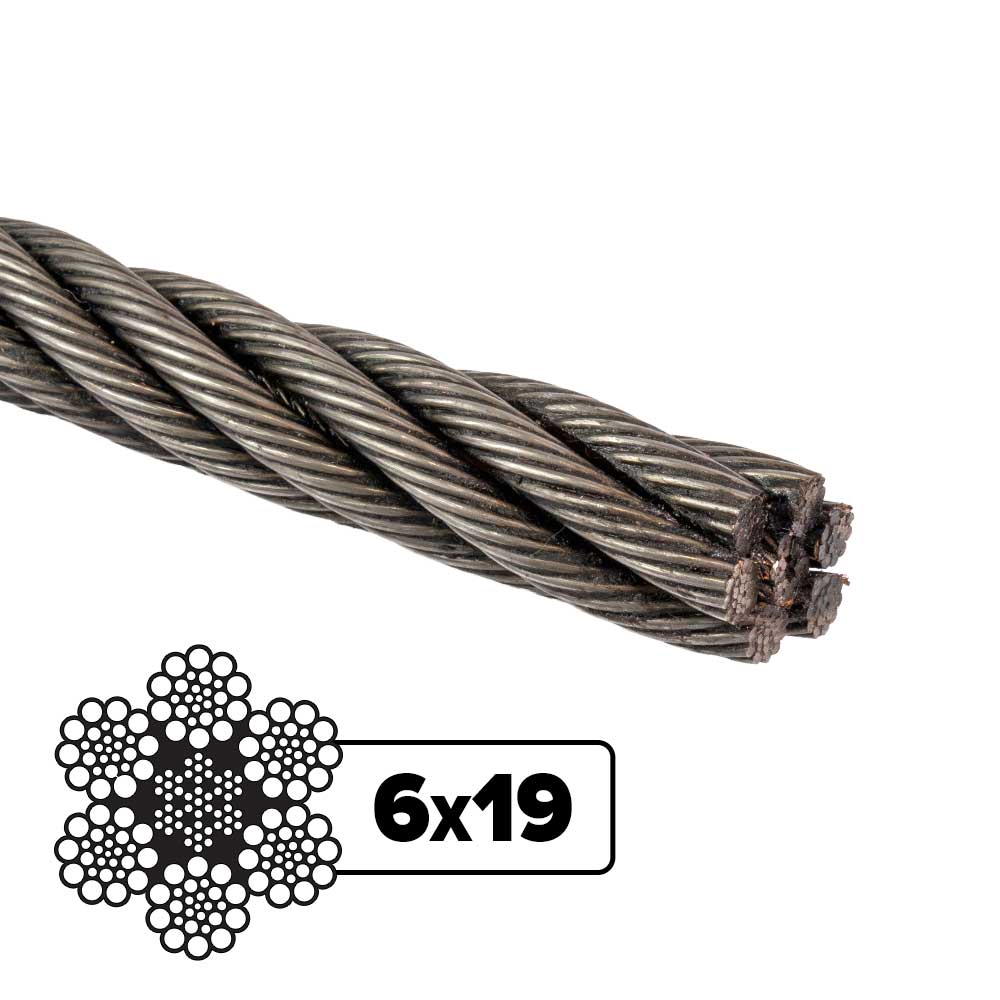

6x19 Wire Rope Configuration
Our wire rope is made using EIPS-grade cable. EIPS (Extra Improved Plow Steel) refers to the strength of the wire rope - its tensile strength is around 10% greater than an IPS grade, improving the break strength.
The class of this wire rope is 6x19. These numbers nominally refer to the construction of the wire rope - the number of outer strands around the core and an estimation of the number of wires within each of these outer strands. So for a 6x19 class, the number of outer strands is 6, and the number of wires making up each strand ranges from 15-26.
Key Features
- USA-made using high-tensile EIPS steel for increased strength
- 6x26 construction delivers abrasion resistance with functional flexibility
- Bright finish treated with petroleum lubricant for internal and external protection
- IWRC provides added support, resisting crushing and heat deformation
- Built to meet RR-W-410 and ASTM A1023 standards
- Ideal for winching, lifting, and general rigging tasks
- Sold by the foot and shipped in one continuous length
Compatible Accessories for Full System Setup
Enhance your setup with reliable wire rope fittings and durable rigging hardware including turnbuckles, eye bolts, and shackles. Add wire rope thimbles to reduce wear at loop connections and secure terminations with trusted Crosby wire rope clips. For job-specific configurations, explore our custom wire rope assemblies tailored to your exact requirements.
Wire Rope by the Foot Ordering FAQ
Does this wire rope come as one length? Yes, the quantity you add to the cart will be provided as one unbroken length of rope. So if you add this to the cart with a quantity of 1000, you will receive one 1000-foot long rope.
Can I order multiple separate lengths? Yes. For example, if you need two 1500-foot lengths of rope, you would set the quantity to 1500 and then add that to the cart twice. For each separate instance you add this to the cart, you will get a separate length of rope.
