SKU: BL8503.75XLCE

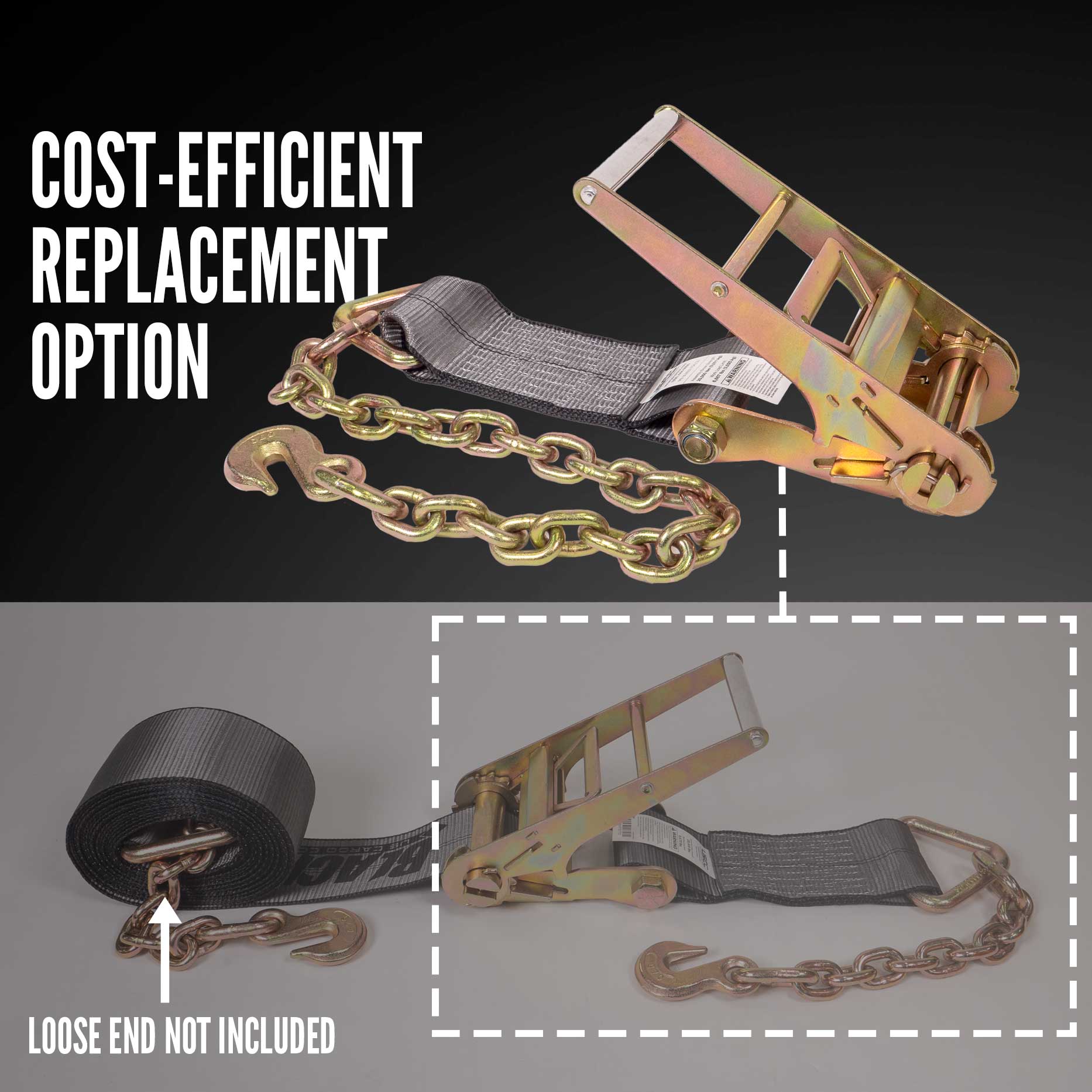

BlackLine 4" x 3.75' Replacement Ratchet Strap Fixed End - Ratchet / Chain Extension

BlackLine 4" x 3.75' Replacement Ratchet Strap Fixed End - Ratchet / Chain Extension!

Skip to product information
1 of 13
$40.59
Get 10+
$39.38/ea
Get 25+
$38.57/ea
Get 100+
$37.35/ea
Request Bulk Pricing
Ships FREE Dec 16 when you add 5 to your cart
Fill out the form below or give our sales consultants a call at 866-444-9990.

Blazing Fast Shipments

Shipping & Returns

Buy in Bulk

Request a Quote

Questions? Need it custom?

We Can Help!

Payment Options

American Express
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa

Specifications

Assembly break strength: 20,000 lbs.
Color: Blackline
Length: 3.75'
Working load limit: 6,670 lbs.
End fitting: Chain Extension
Material: Polyester webbing
Product weight: 11.95 lbs.
Ratchet handle: Standard Long, Wide Handle
Webbing break strength: 24,000 lbs.
Width: 4"
Additional Info: Design Factor: 3:1
Description

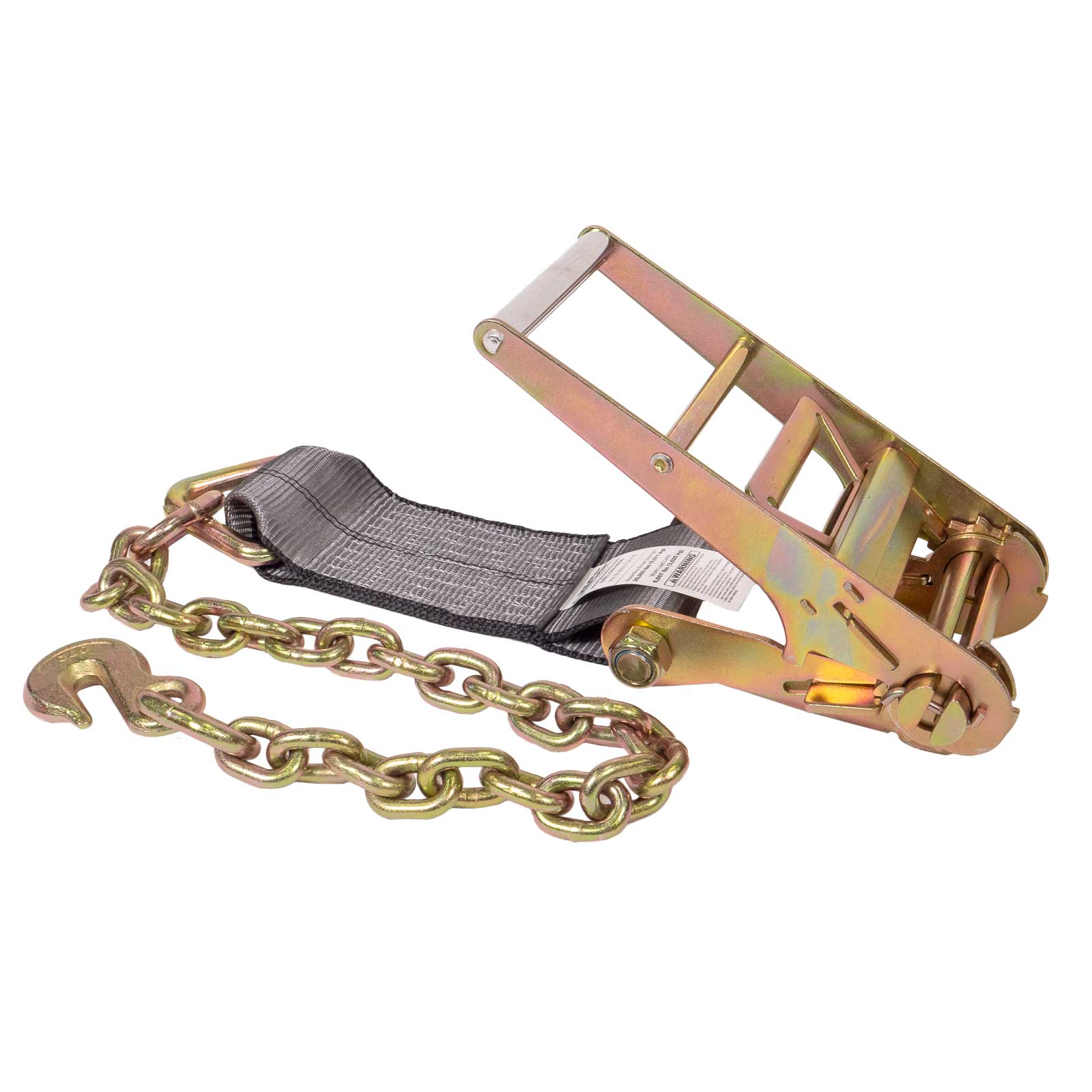

4" x 3.75' Blackline Heavy Duty Tie Down Strap with Chain Extension

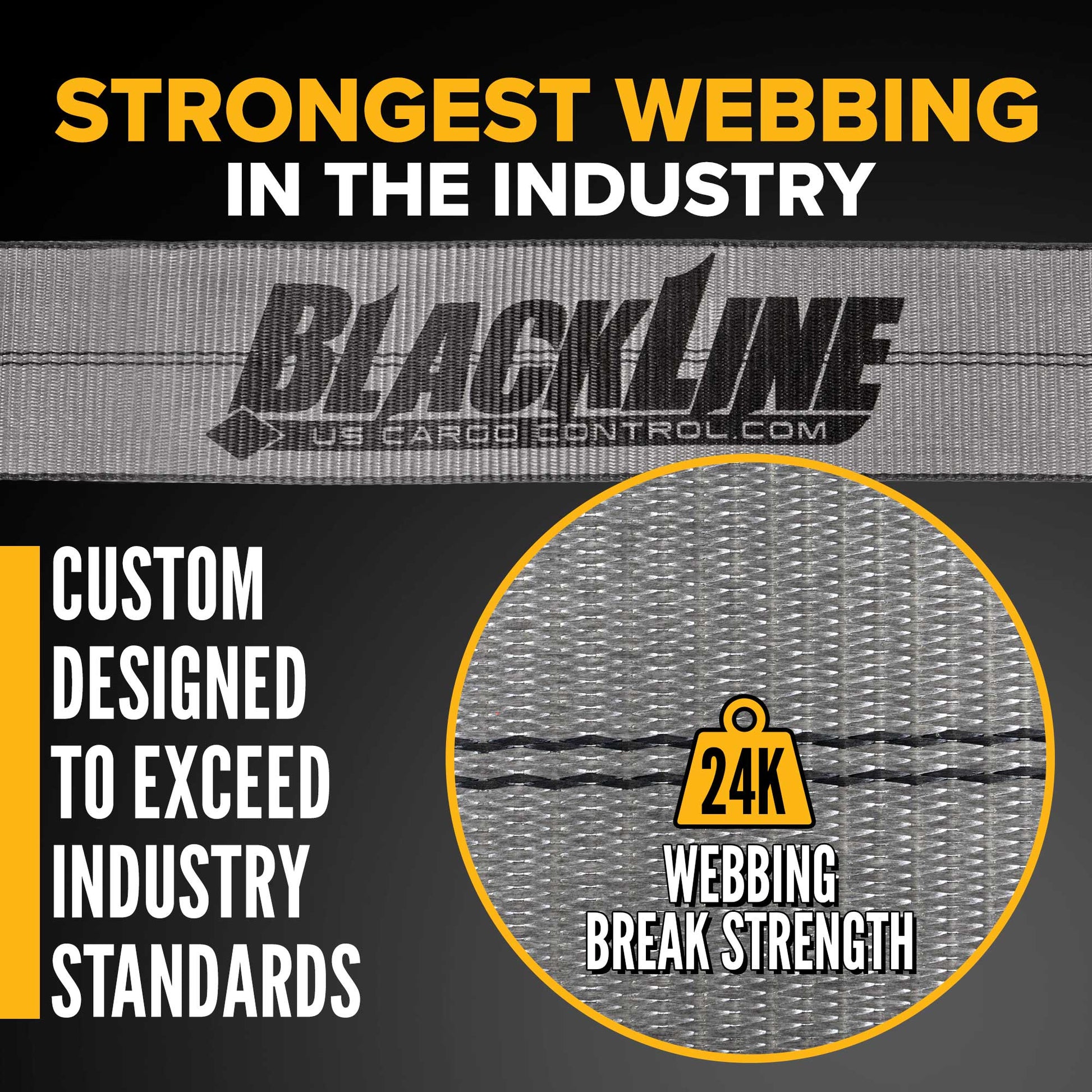

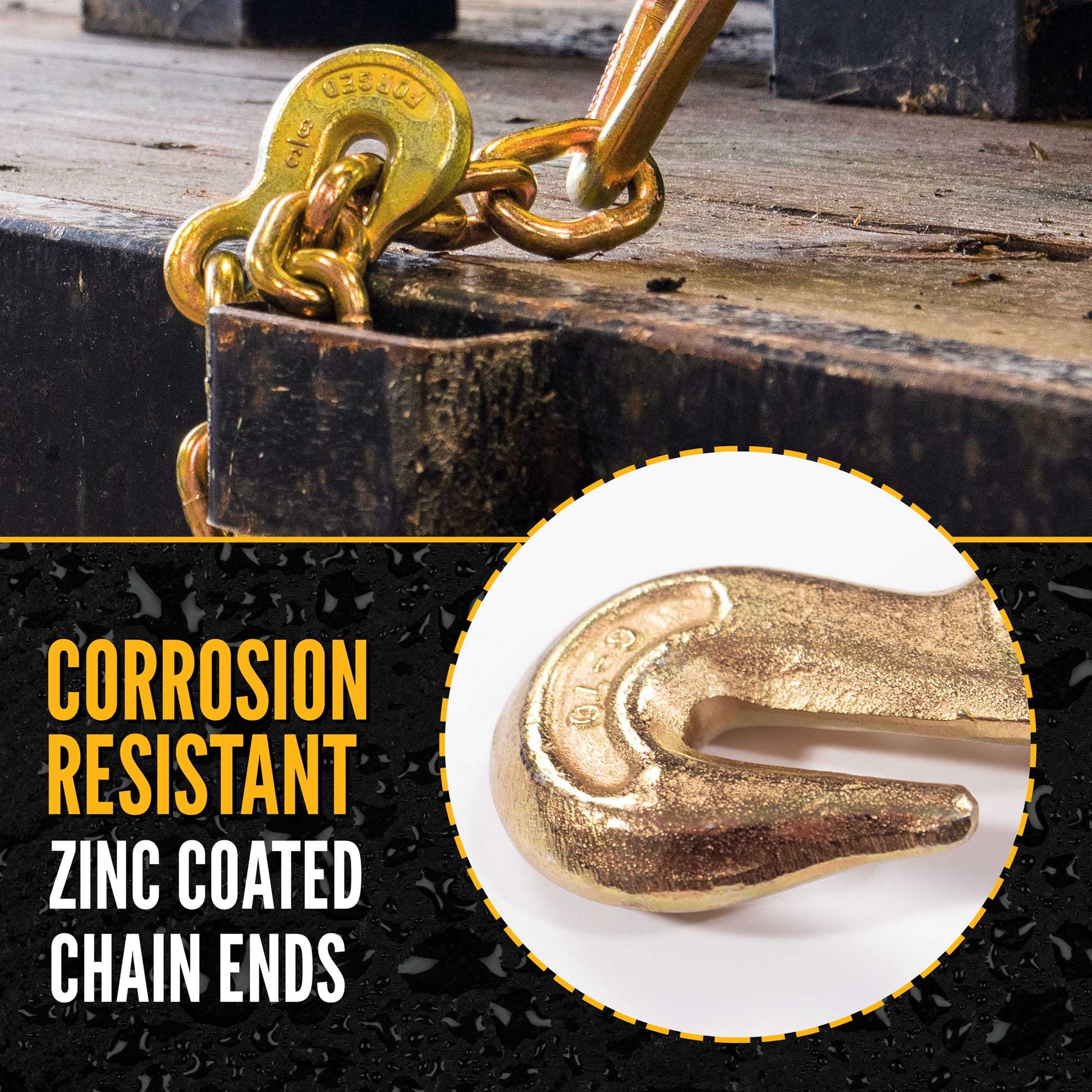

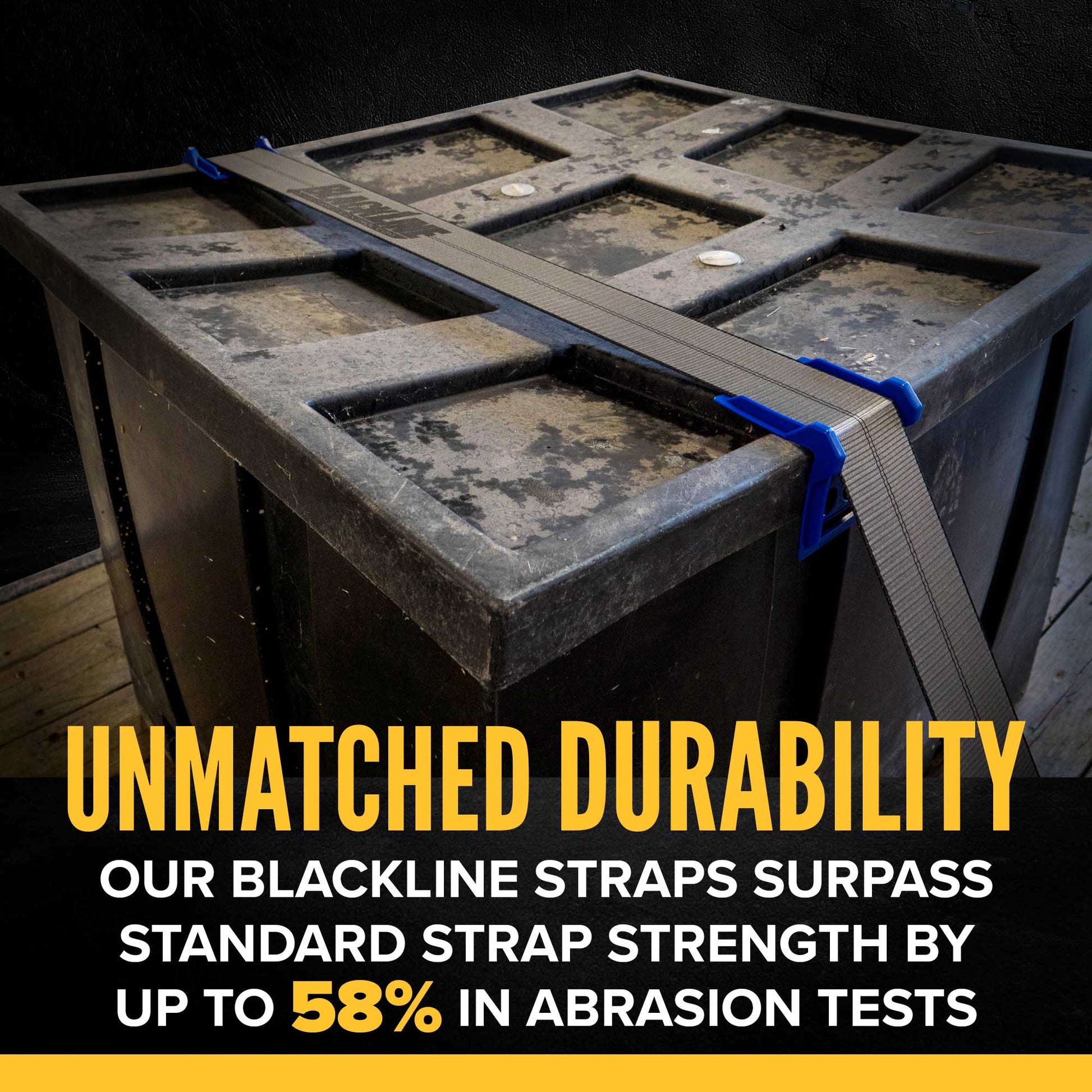

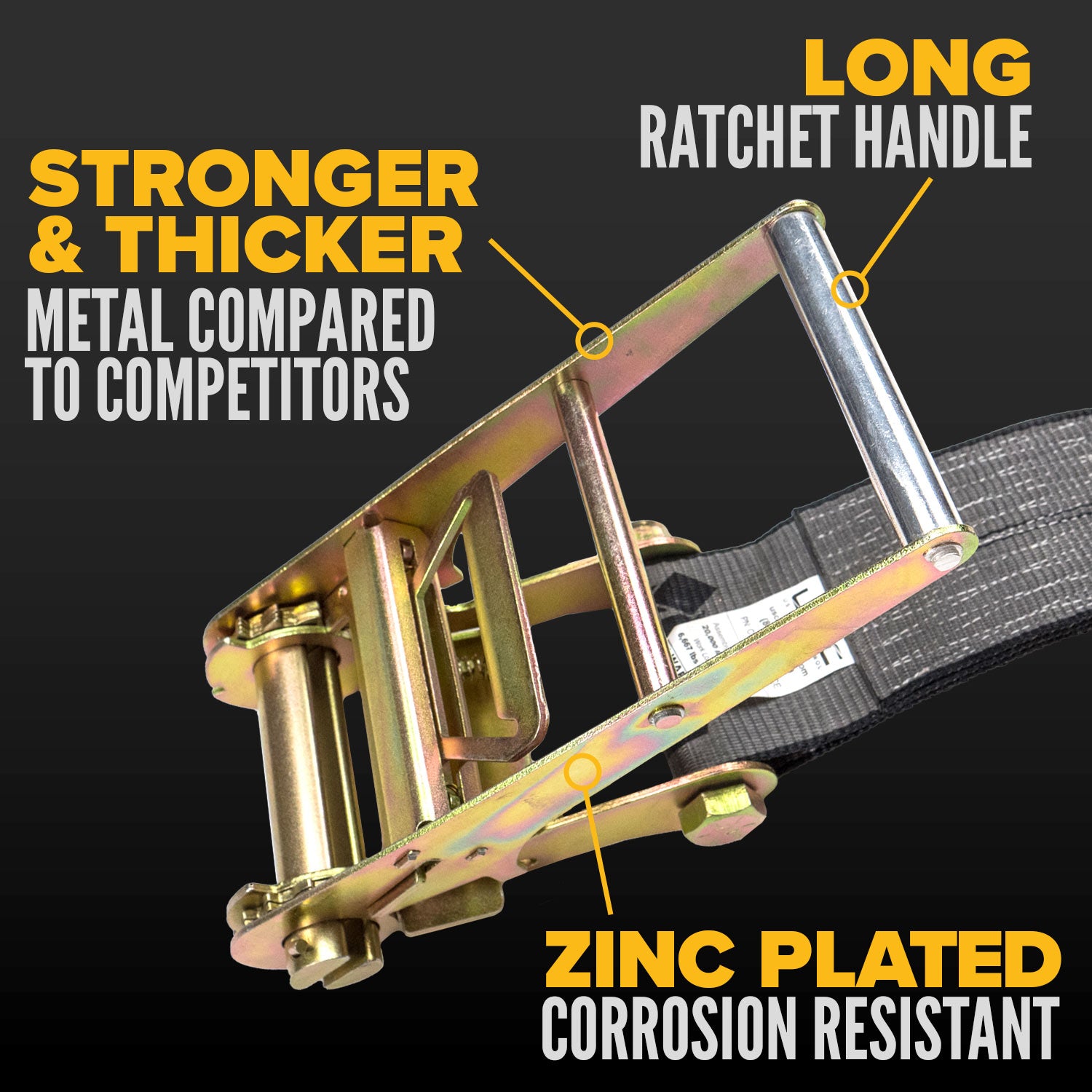

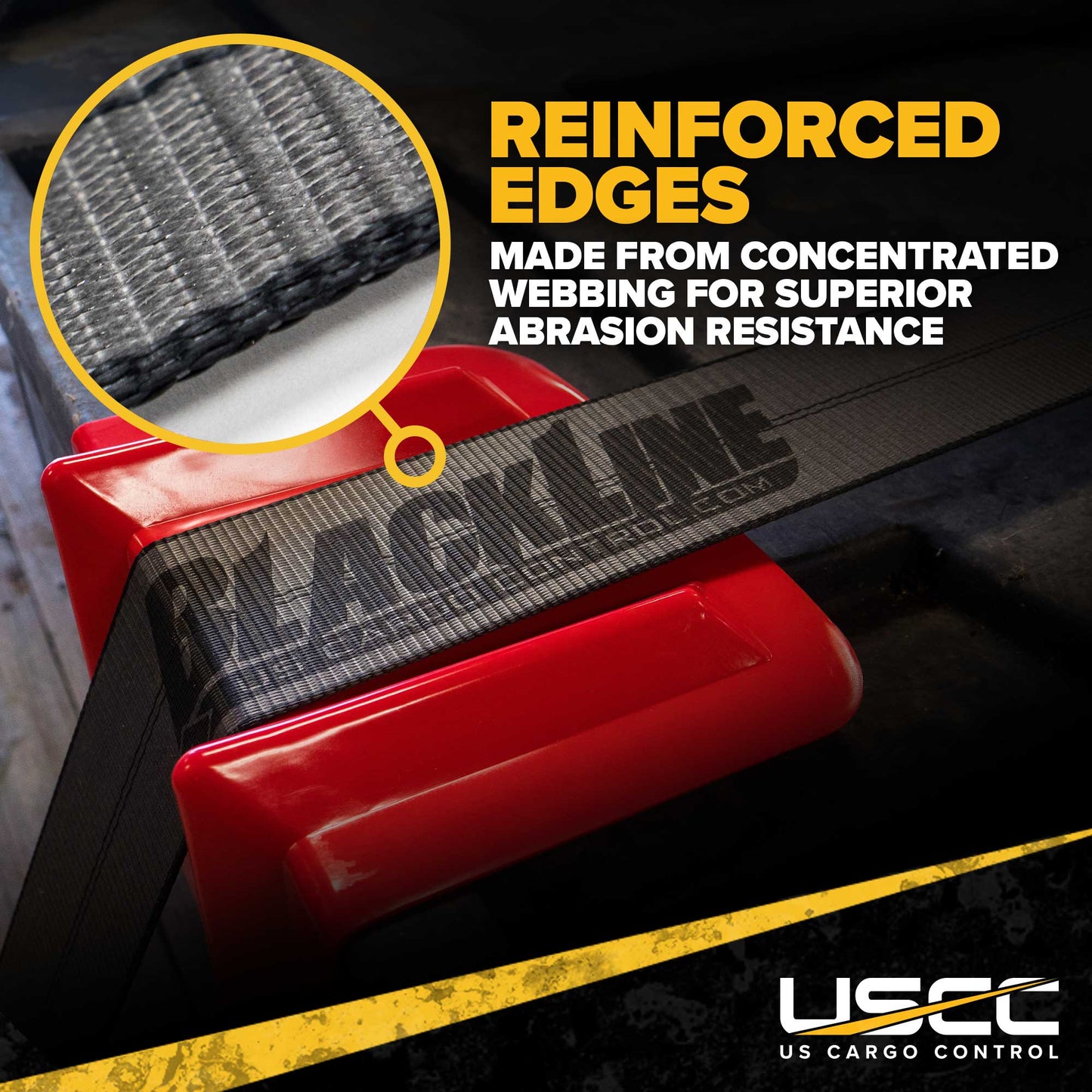

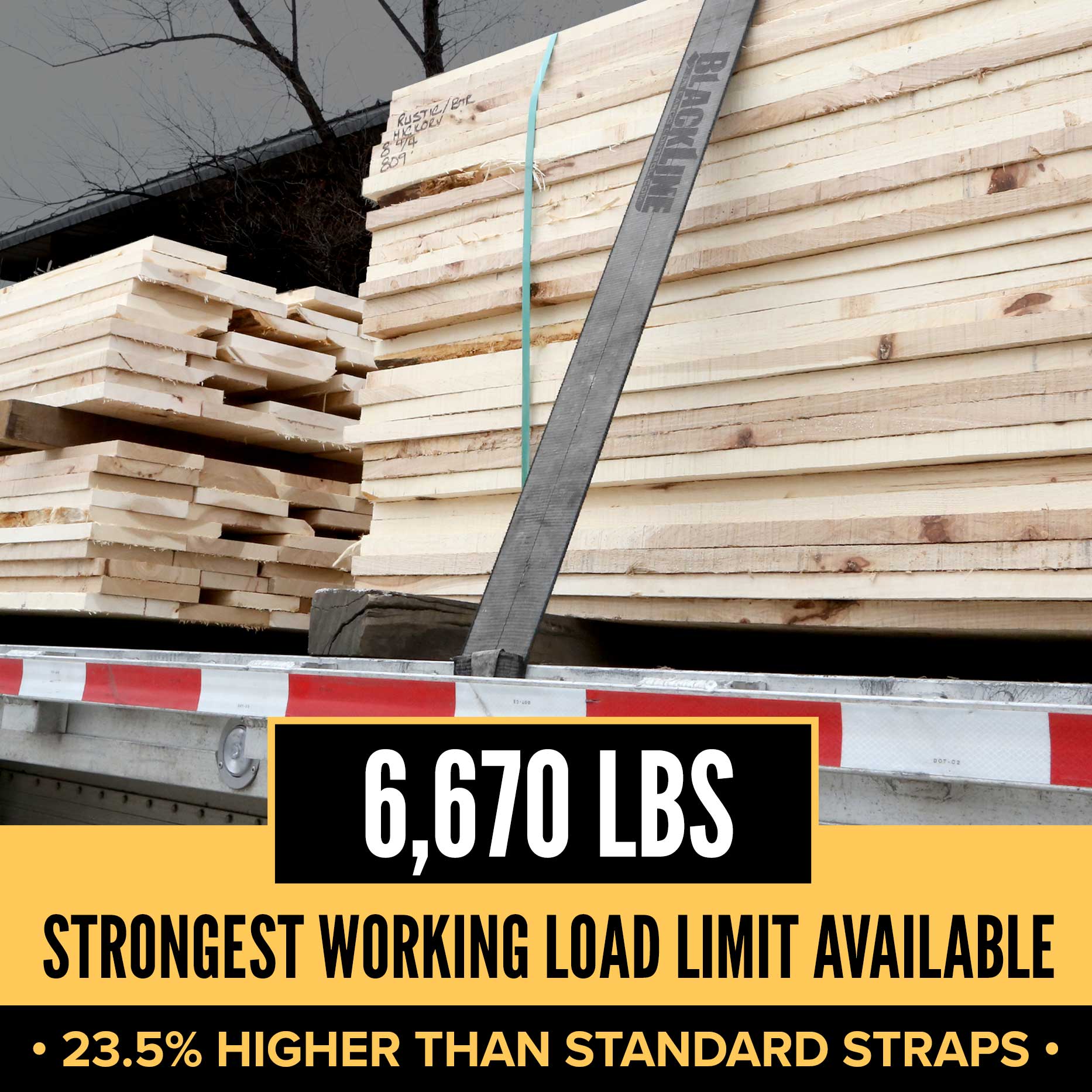

Our 4" wide heavy-duty ratchet straps are made to last. Constructed from industrial-strength webbing with a break strength of 24,000 lbs., they have a working load limit of 6,670 lbs., 23.5% higher than our standard 4" straps! The webbing also offers superior abrasion-resistance, part of which comes from a thicker edge made from concentrated webbing. This slows down the abrasion process (but doesn't prevent it, so you'll still need edge protection). The chain extension end fittings and the ratchet assembly have a zinc plating for protection from the elements.

Compliant with Industry Standards

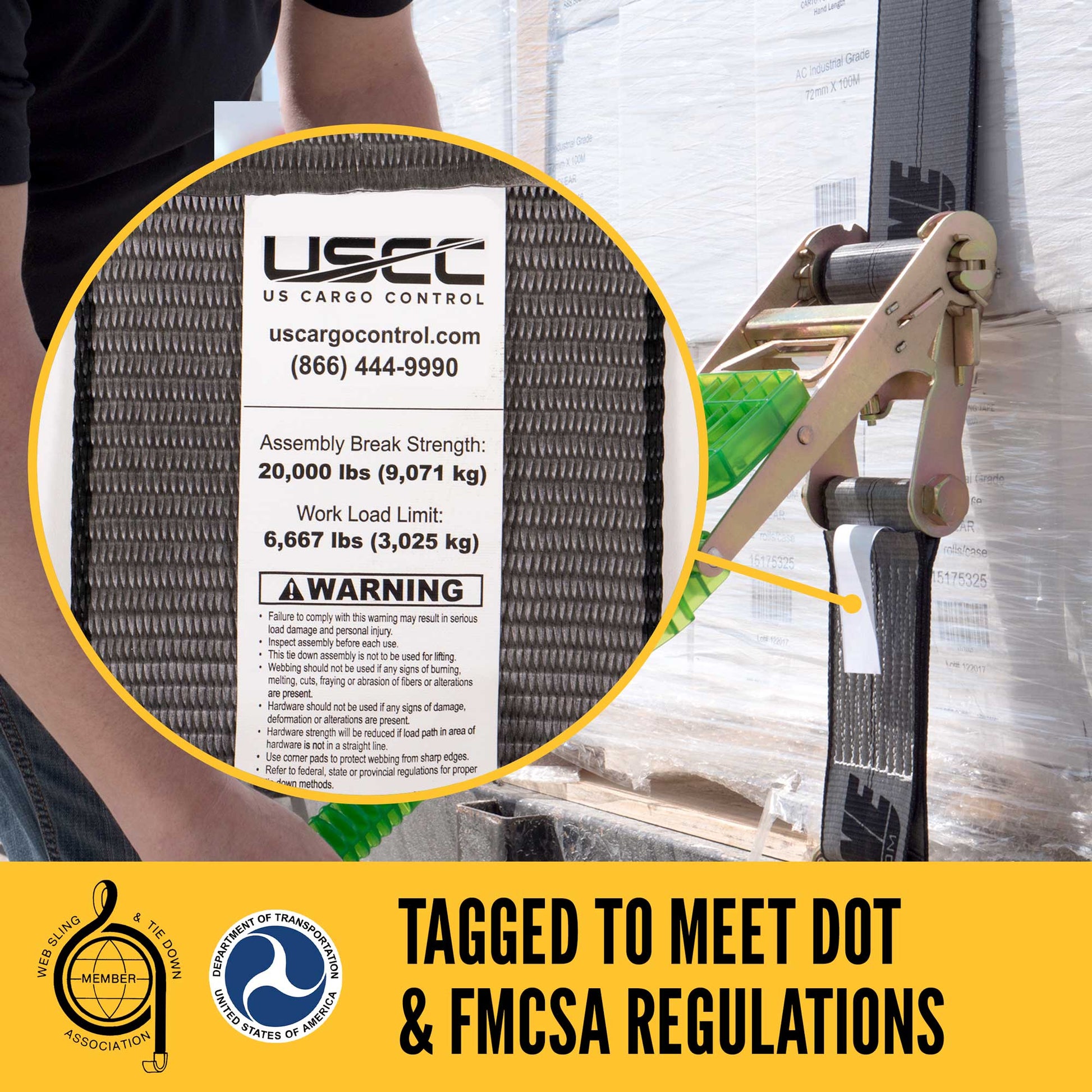

This 4 inch ratchet strap is tagged with the working load limit to meet CVSA guidelines, FMCSA and DOT regulations, and WSTDA, CHP and North American Cargo Securement standards.

Learn more about proper load handling and securement in the WSTDA safety bulletins.

Why Choose 3/8" Chain Extension End Hardware?

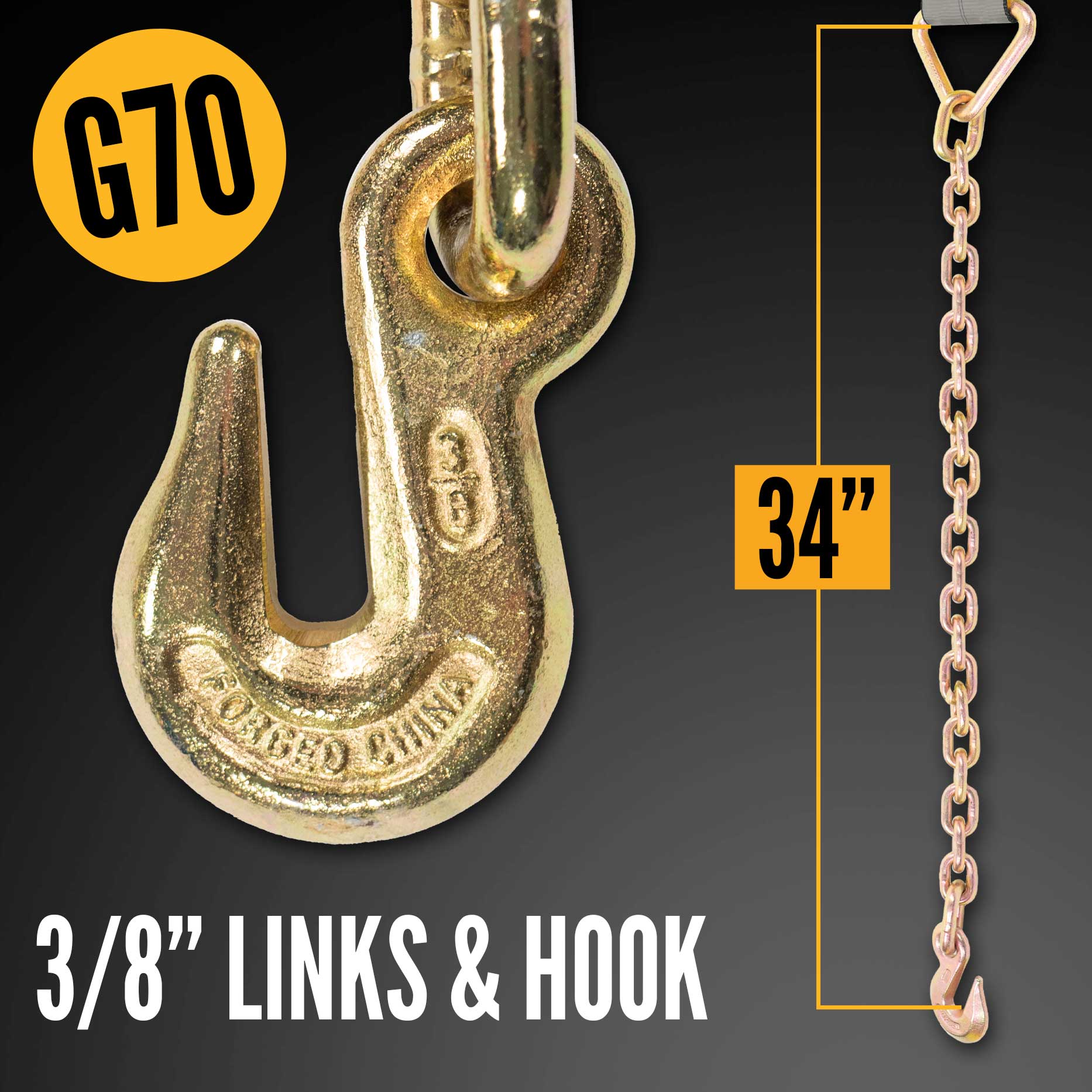

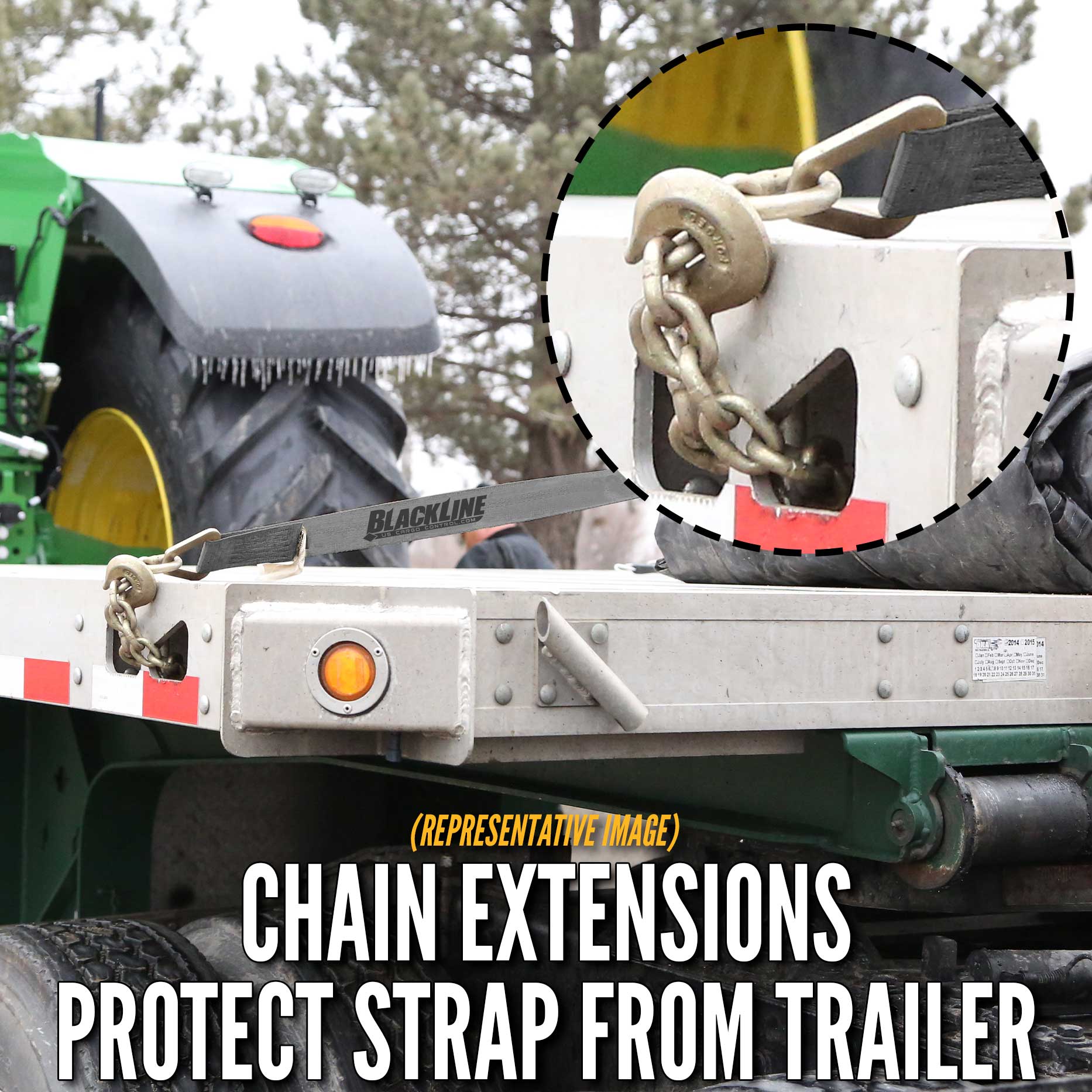

Chain extensions allow you to combine the strength of grade 70 transport chain with the softness of polyester webbing. You can use the rub rails or stake pockets on your truck or trailer to tie down your cargo without risking damage to the webbing part of the strap. The extra-length 34" chain extension is also easier to wrap around your stake pocket. This is best practice and not only provides a better, more secure hold but also gives you the full working load limit of the stake pocket. It has a 3" D-ring, a 30" chain, and a clevis grab hook for quick and secure connections.

Custom Ratchet Straps Available

Looking for a combination of length, color, or hardware you don't see on the website? Want straps stenciled with your company name or logo? We also offer custom tie down straps!

Ratchet Use Guidelines

According to the WSTDA (section 4.6.8): "When using web tie downs with a winch or ratchet, a minimum of 2 and a maximum of 4 wraps of webbing shall be wound on the winch or ratchet mandrel. Excessive wraps of webbing on the mandrel may reduce the working load limit (WLL) of the web tie down and may interfere with proper operation."

What is Design Factor?

Another term defined by the WSTDA, design factor is the "ratio of the breaking strength to the working load limit" and should be 3:1 for these tie down straps. This builds in a level of redundancy to account for unknown factors, keeping you, your crew, and those around you safe.

Comprehensive Cargo Securement Supplies

Complete your tie down system with strap protection, D-rings, corner protectors, and more. We also offer transport chains and binders as an alternative tie-down solution.

California Residents: WARNING

How to Thread a Ratchet Strap | How to Release a Ratchet Strap
