SKU: JETBGV34X6-VB
3/4" x 6" Van Beest® Jaw & Eye Galvanized Turnbuckle - G-6315
3/4" x 6" Van Beest® Jaw & Eye Galvanized Turnbuckle - G-6315!
$89.99
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working load limit: 5,200 lbs.
Body length: 6"
Brand part number: SSGPGO1906
Finish: Galvanized
Jaw opening: 15/16"
Length closed: 15-3/8"
Length open: 20-3/32"
Manufacturer name: Van Beest
Material: Drop-forged high tensile steel
Pin size: 5/8"
Product weight: 5.03 lbs.
Rated for Overhead Lifting: Yes
Safety factor: 5:1
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all requirements of ASTM F-1145.
Turnbuckle size: 3/4"
Additional Info: Jaw end fitted with cotter pin
Description

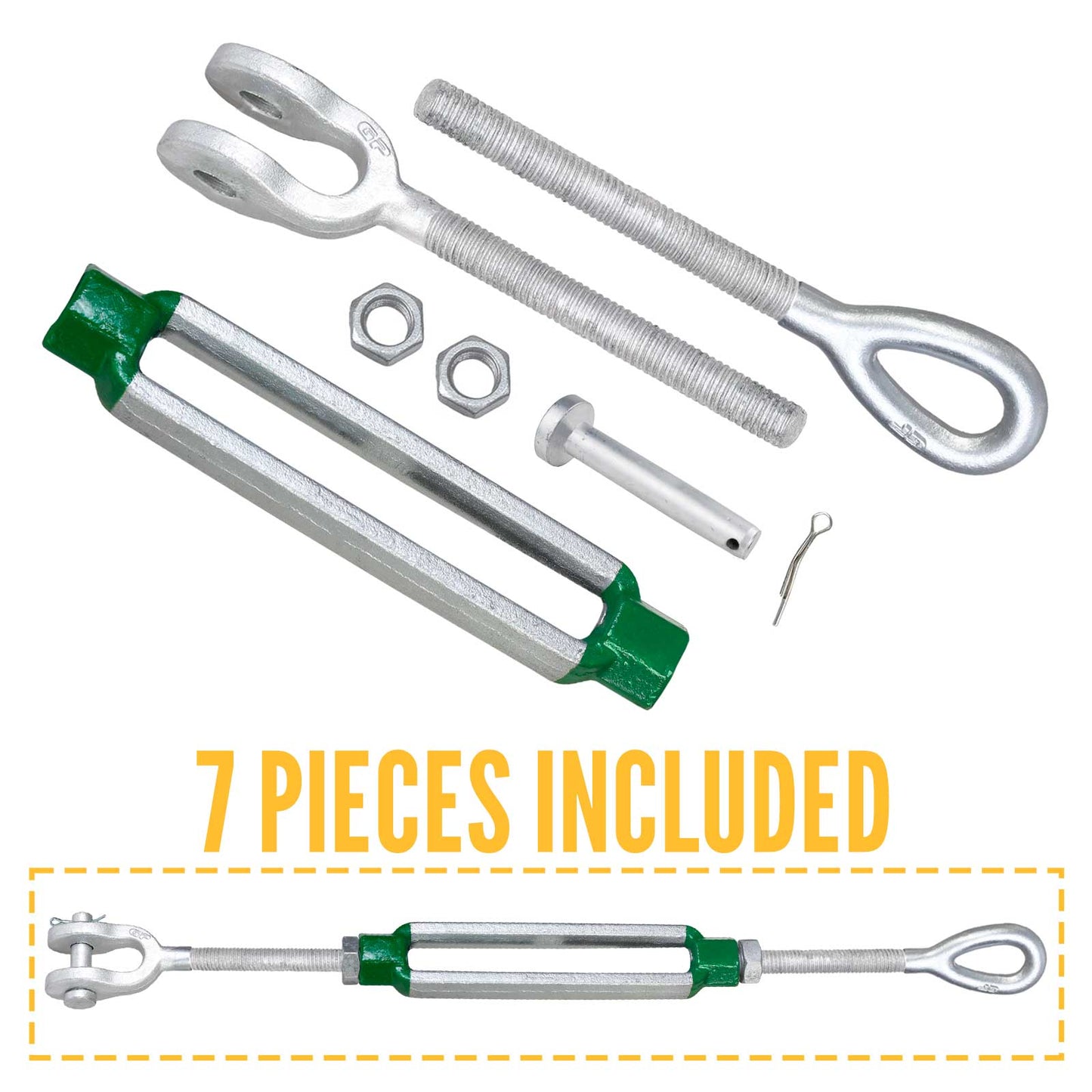

Van Beest Jaw and Eye Turnbuckle | 3/4" x 6"
Used to adjust line tension in a variety of rigging and lifting applications, turnbuckles are an essential rigging component. They are commonly used in mining, construction, and suspension jobs where equipment failure could lead to a catastrophe. Make sure your turnbuckles are up to the task by choosing Van Beest. They've been a reliable manufacturer of turnbuckles for many years, prioritizing long-term durability and performance.
Constructed from drop-forged high tensile steel, they are hot-dipped galvanized for corrosion-resistance and can be used for lashing and lifting if used in accordance with Van Beest's official use instructions. The eye end fitting is elongated to reduce stress on the components, and the jaw end fitting is secured with a cotter pin.
Green Pin Turnbuckle Features:
- Compliant with ASTM F1145-92 (formerly US Federal Specification FF-T-791b).
- Works certificate and proof load certificate available upon request.
- Approved for use in temperatures from -4°F (-20°C) to 492°F (200°C).
- Lock nuts included.
- The jaw end is the right thread fitting and the eye end is the left thread fitting.
- Note: Turnbuckles are only recommended for straight or in-line pulls.
Looking for additional rigging supplies? Check out our full selection of Van Beest rigging products, as well as our wire rope and rigging hooks!
