SKU: 430DR
4" x 30' Winch Strap with D-Ring | Yellow
4" x 30' Winch Strap with D-Ring | Yellow!
$25.29
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsCustom Strap Solutions
Build Your Tie DownPayment Options
Specifications
Assembly break strength: 16,200 lbs.
Color: Yellow
Length: 30'
Working load limit: 5,400 lbs.
End fitting: D Ring
Material: Polyester webbing
Product weight: 5.2 lbs.
Webbing break strength: 20,000 lbs.
Width: 4"
Additional Info: Design Factor: 3:1
Description

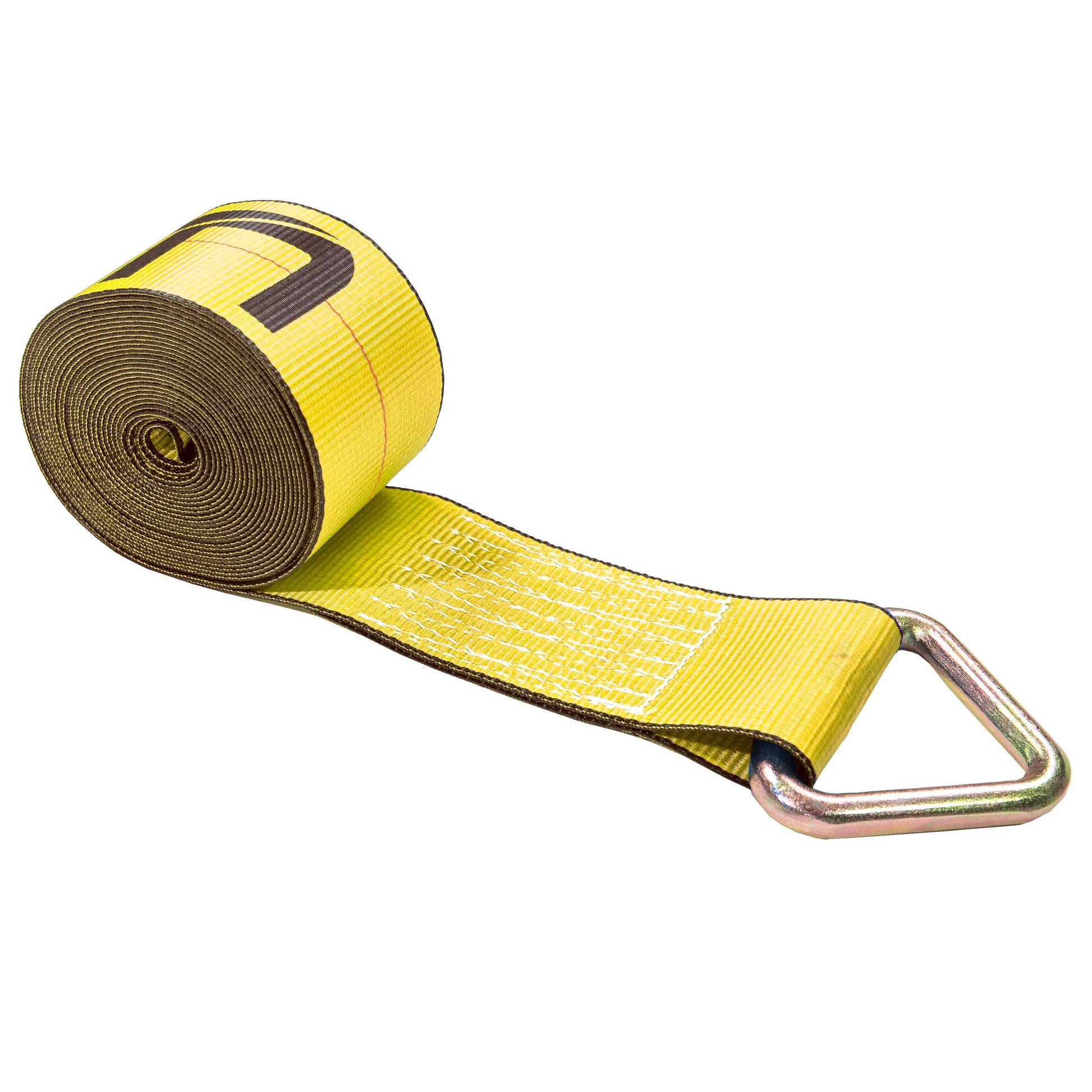

4" x 30' Yellow Heavy Duty Winch Strap with D Ring
Trailer winch straps are one of the most common pieces of tie down equipment for flatbeds and other trailers. Used in combination with winches and other related hardware, their versatility makes them the ideal choice for a wide range of cargo.
The rugged polyester webbing offers very little stretch and is abrasion-, UV-, and water-resistant.
HD Truck Strap Features

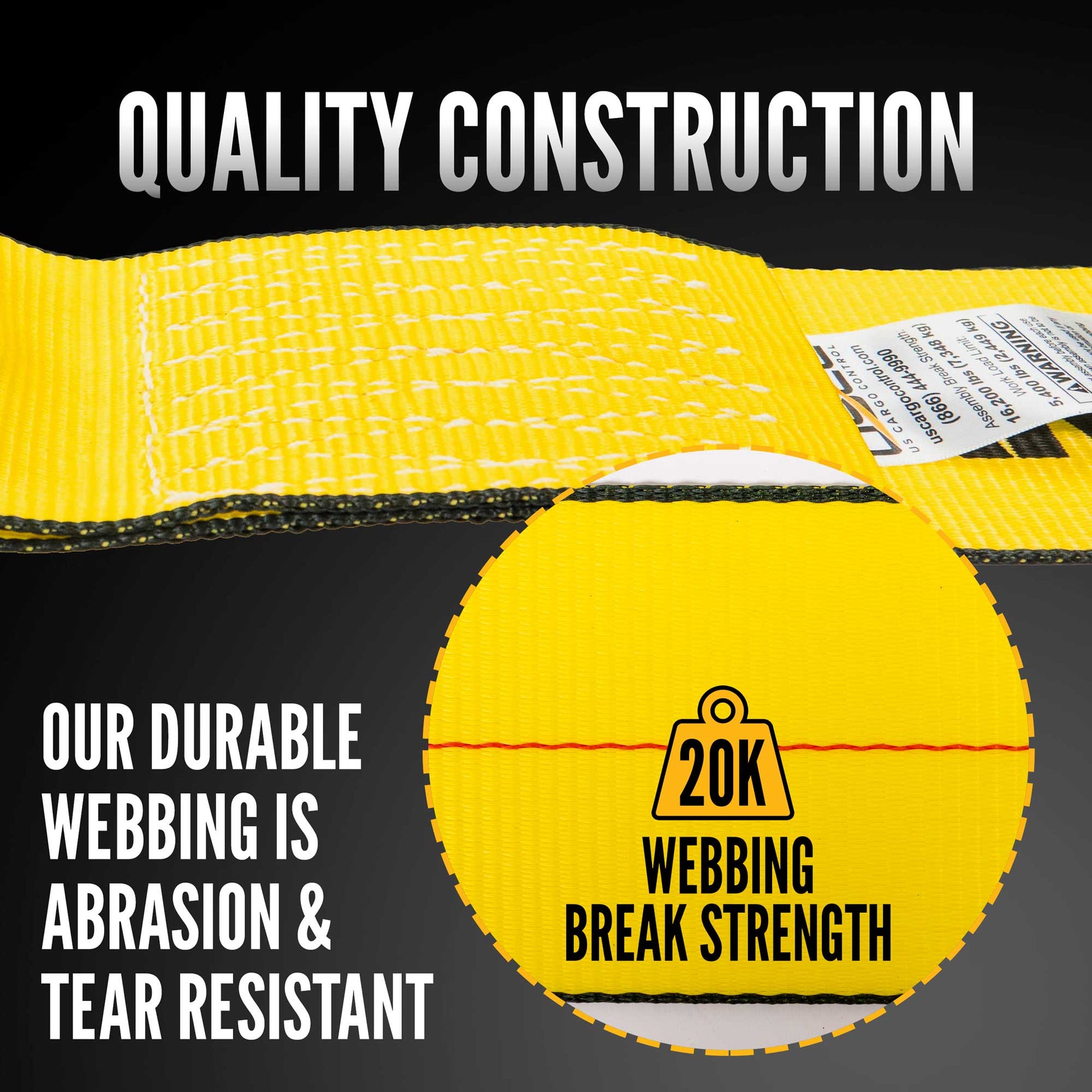

The yarn used to make our webbing is slightly thicker than that offered by most competitors, with more picks per inch used to create each strap. It's also heat-sealed on the end. Together, these features provide better resistance to abrasion, tearing, and cutting, so your winch straps will last longer.
The 30-foot length strap fits standard 4" winches.

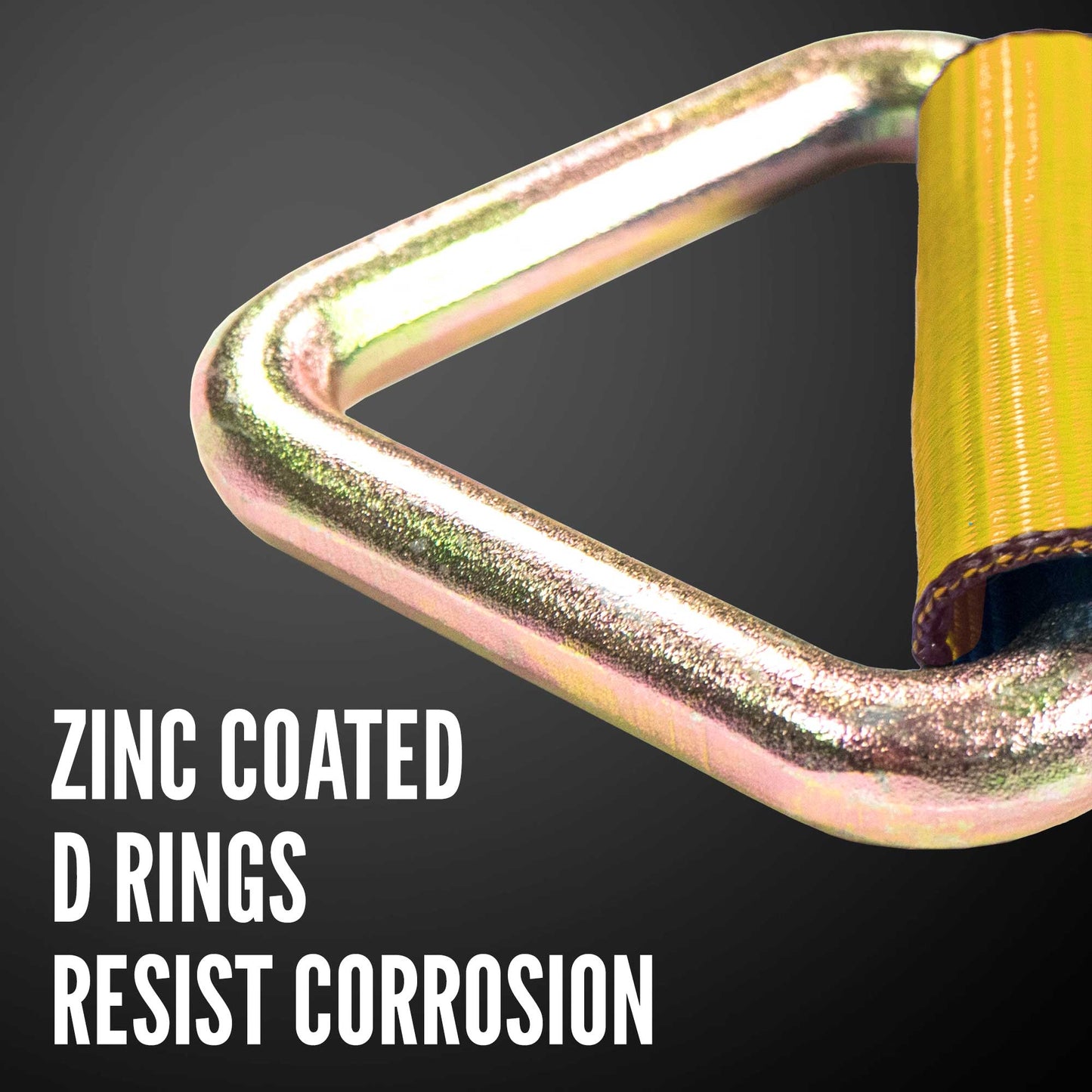

The high-quality ratchet and rings all have a zinc coating to protect against weathering and prolong the life of the strap. The ratchet also comes with a long, wide handle to make tensioning easier.
Compliant with Industry Standards

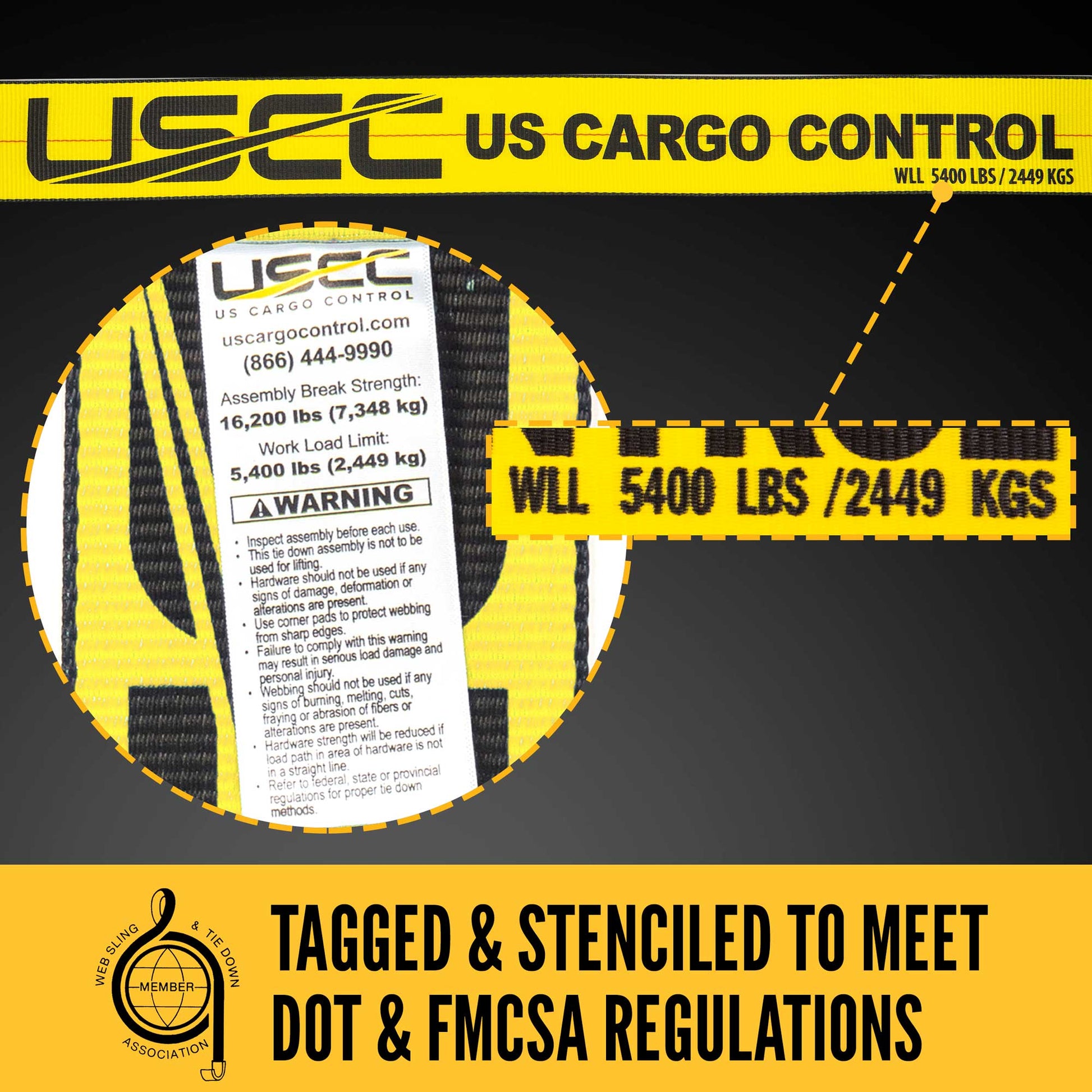

All of our trailer winch straps are tagged and stenciled with the working load limit to meet FMCSA and DOT regulations, CVSA and WSTDA guidelines, and North American Cargo Securement standards.
Learn more about proper load handling and securement in the WSTDA safety bulletins.
Why Choose D Ring End Hardware?

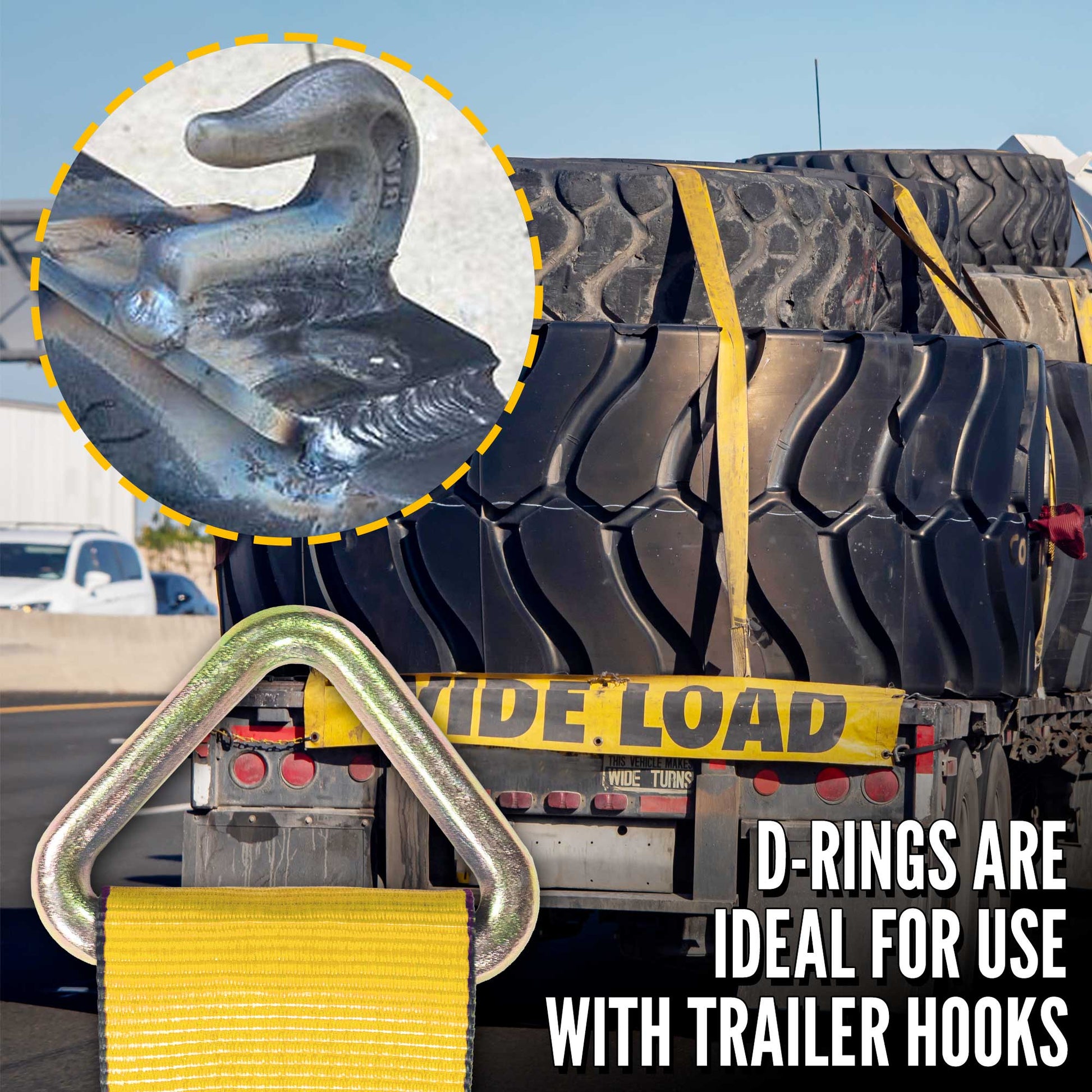

The 4" forged triangle D-rings are compatible with nearly all hook options, giving you flexibility when it comes to making connections.
Custom Winch Straps Available
Looking for a combination of length, color, or hardware you don't see on the website? Want straps stenciled with your company name or logo? We also offer custom tie down straps!
Winch Use Guidelines
According to the WSTDA (section 4.6.8): "When using web tie downs with a winch or ratchet, a minimum of 2 and a maximum of 4 wraps of webbing shall be wound on the winch or ratchet mandrel. Excessive wraps of webbing on the mandrel may reduce the working load limit (WLL) of the web tie down and may interfere with proper operation."
What is Design Factor?
Another term defined by the WSTDA, design factor is the "ratio of the breaking strength to the working load limit" and should be 3:1 for these tie down straps. This builds in a level of redundancy to account for unknown factors, keeping you, your crew, and those around you safe.
Comprehensive Cargo Securement Supplies
Complete your tie down system with winch bars and truck winches, as well as corner protectors and CORDURA cargo strap protectors.
California Residents: WARNING
-
Durable Black Edging
Our black-edged webbing is designed to give our durable 3" and 4" straps a sharp, clean, and sleek look. Upgrade to a strap that’s as tough as it is refined.
-
Uncompromising Quality
All of our tie down straps are made with the highest quality materials for long-lasting performance. Our industrial-grade webbing features heat-sealed ends and is manufactured with thicker yarn and more picks per inch compared to competitors, making it more abrasion, tear, and cut-resistant. The hardware is also made with thicker, corrosion-resistant metal so you are guaranteed a heavier-duty strap that lasts.
-
Customize Your Straps
Learn MoreOur onsite manufacturing facility allows us to handle whatever your cargo control needs entail - quickly. Customize your straps by: webbing, custom stenciling, hardware, and custom tags. Bring us your vision and we'll turn it into reality.
-
Our multiple distribution centers allow us to reach nearly 80% of the U.S. within 1-2 business days for all in-stock items. With thousands of items in stock & ready to ship, orders placed before 4:00pm CST ship out the same day.
-
Our Iowa-based 23,000 square foot manufacturing facility was carefully crafted for the high quality, custom production of tie-down straps and chains, lifting slings, cargo nets, and more. Your vision brought to life.
-
As employee-owners, we take customer service very seriously. Our team members are dedicated, professionally-trained, and have decades of combined experience serving the industry. Always speak with a real person and never wait more than 1 business day.
