SKU: WLP250T-BTASA5-CR-PKG

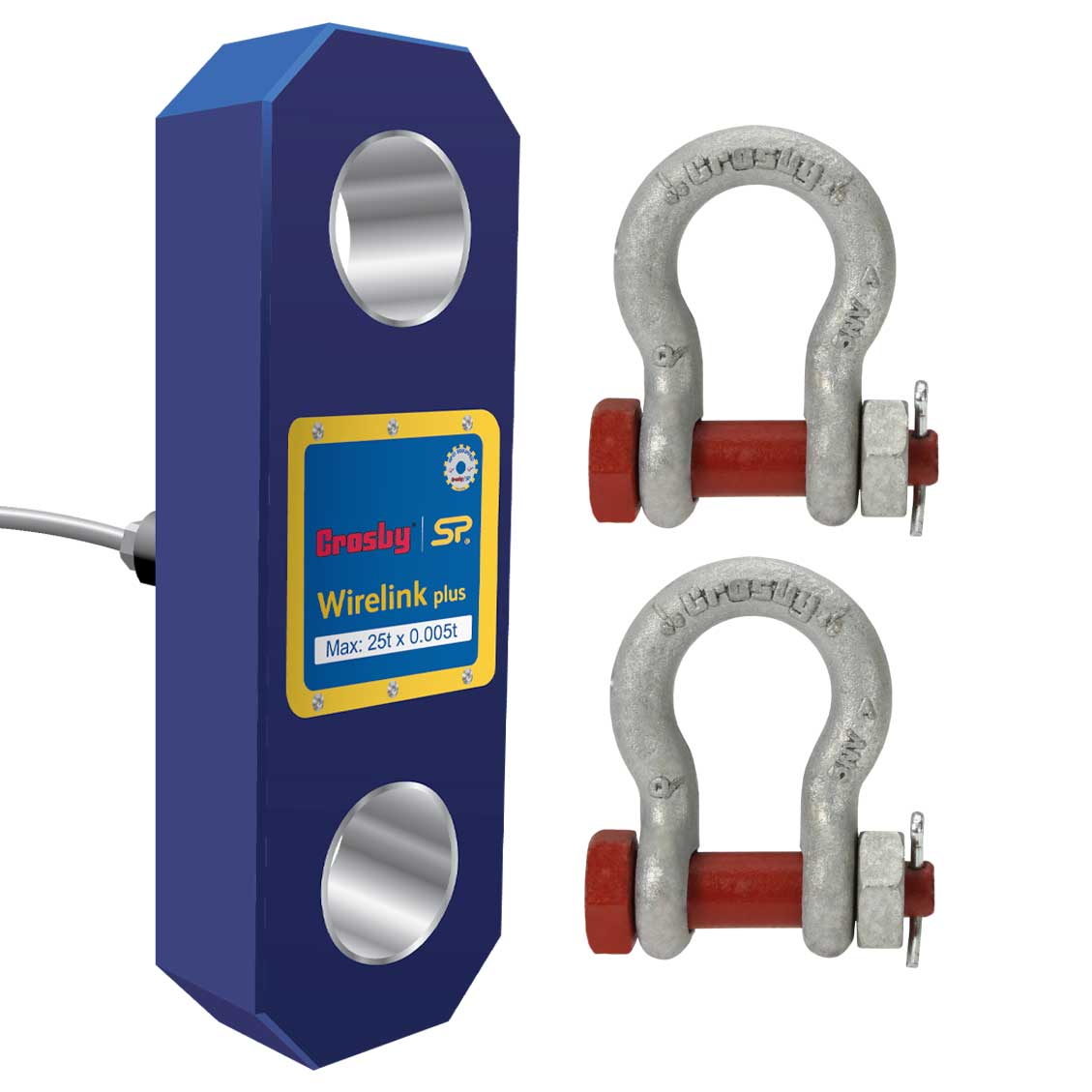

Straightpoint WLP250T 250 T Wirelink Plus with 2 Crosby 5" Shackles
Straightpoint WLP250T 250 T Wirelink Plus with 2 Crosby 5" Shackles!
Continue Browsing
Straightpoint Wirelink Plus
Straightpoint Load Monitoring Loadcells
Rigging Supplies & Rigging Hardware
Related Articles
Call for Price
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Load capacity: 550,000 lbs.
Accuracy: +/- 0.1% of Full Scale
Data rate: 3Hz - up to 200Hz can be ordered for dynamic load monitorning applications
Display type: 240x128 Multi-Line Dot Matrix with Backlight
Manufacturer name: Crosby Straightpoint
Operating temperature: -10° to +50°C | 14° to 122° F
Output: Bluetooth
Pin size: 5"
Product weight: 1,380.8 lbs.
Range: 328'
Resolution: 200 lbs.
Shackle size: 5"
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: IP67
Description

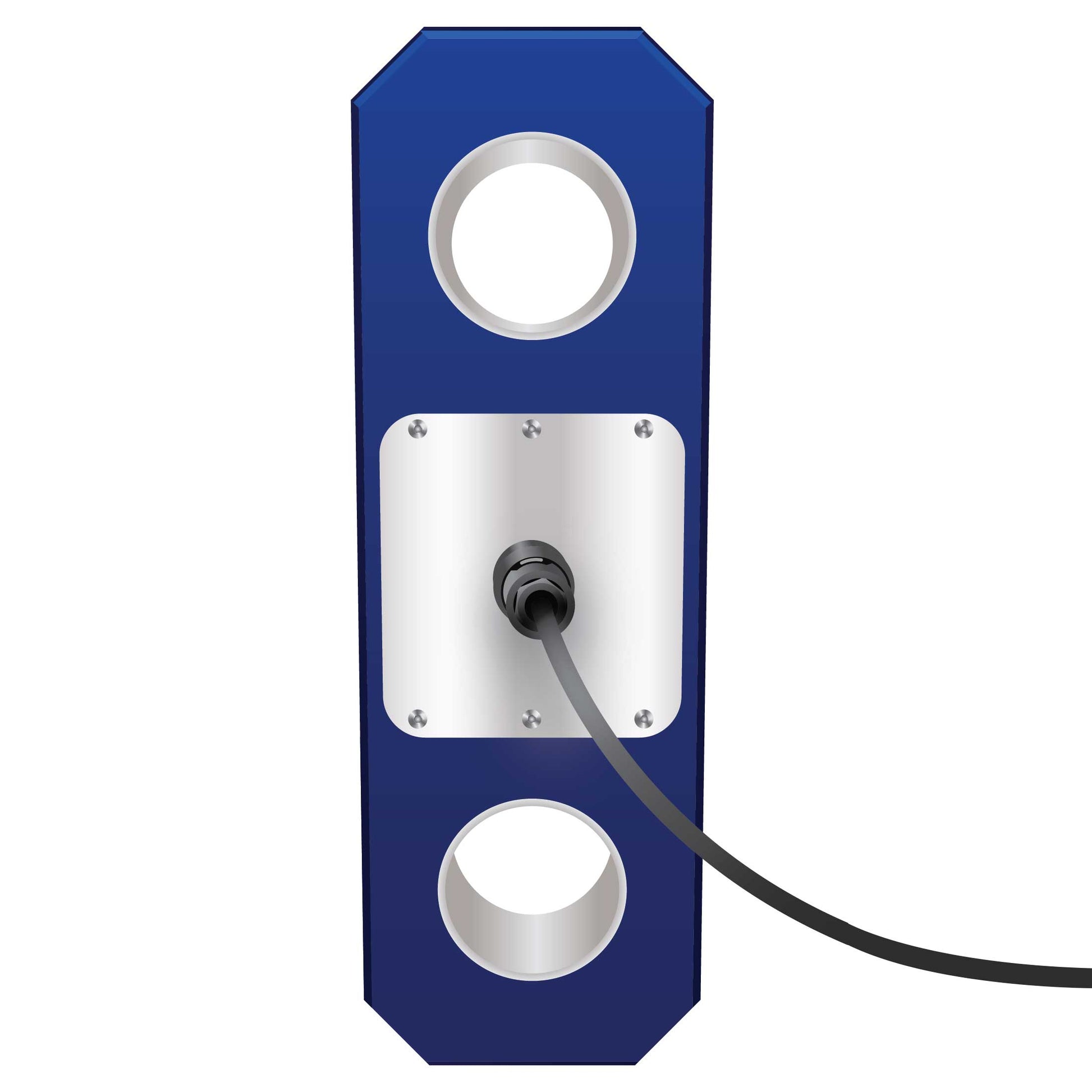

Straightpoint 250-ton Wirelink Plus
This Wirelink Plus load cell uses a 32-foot wired cable (included) to transmit your data to a digital display output, making it simple to weigh and monitor your rigging setup.
To help you ensure safe and optimal tension levels, this tension load cell is configured for a vast array of output formats including mV/V, RS-422, and RS-845. It utilizes the ASCII, MODBUS RTU and CAN-BUS protocols, and is compatible with the Straightpoint HHP Handheld Plus, as well as PLCs and Data Acquisition Systems.
Common applications include overhead weighing, testing, bollard pulling, tug testing, cable tensioning, and heavy lifting. Constructed from high-quality, hard-anodized, aerospace-grade aluminum.

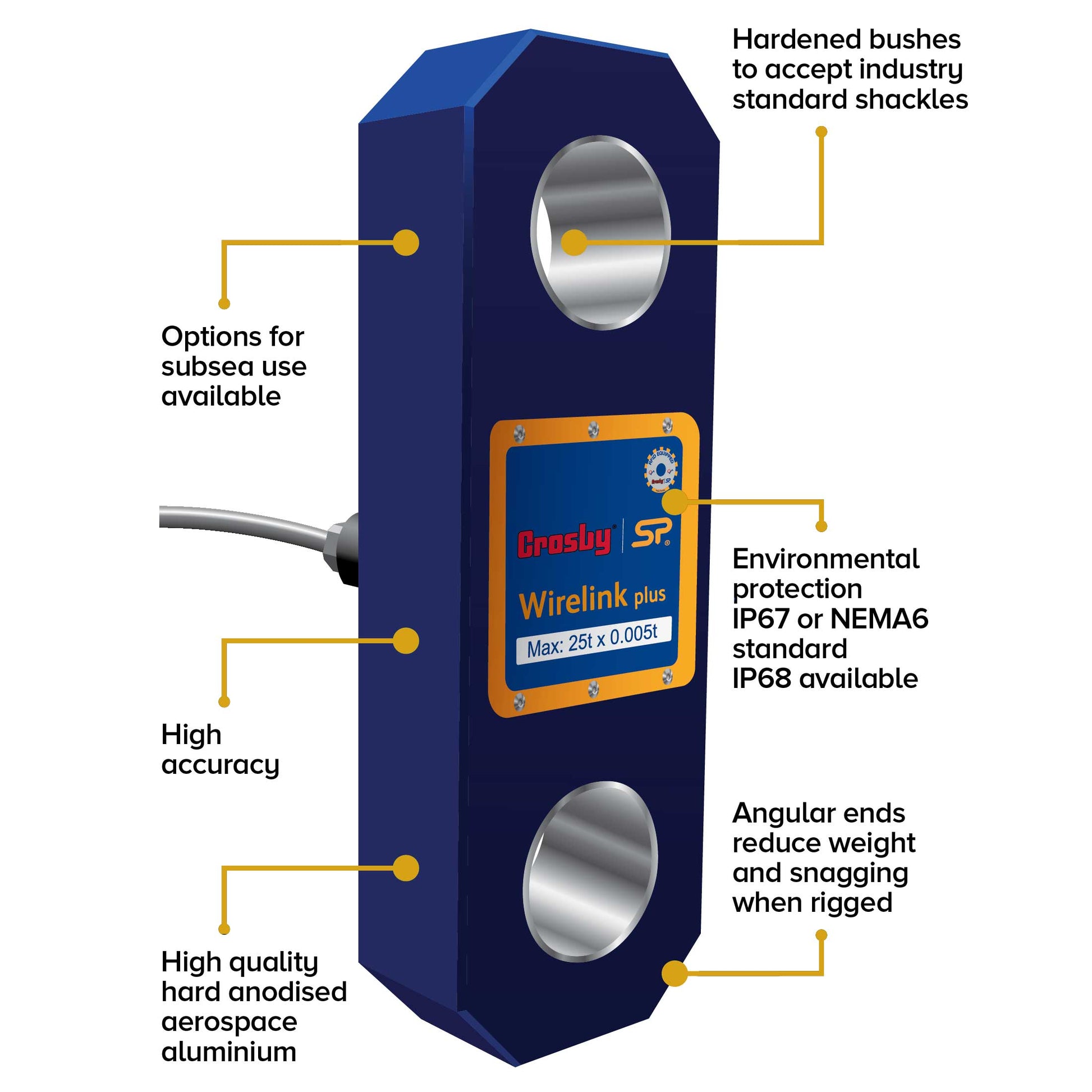

Tension Load Cell Features
- Straightpoint part number: WLP250T
- Crosby part number: 2789155
- Is available with IP68 protection for electronic components and option for subsea use
- Purchase includes calibration and proof test certificate, multilingual user manual, and carrying case
- RFID-tagged
- Complies with ASME B30.26
- 2-year warranty

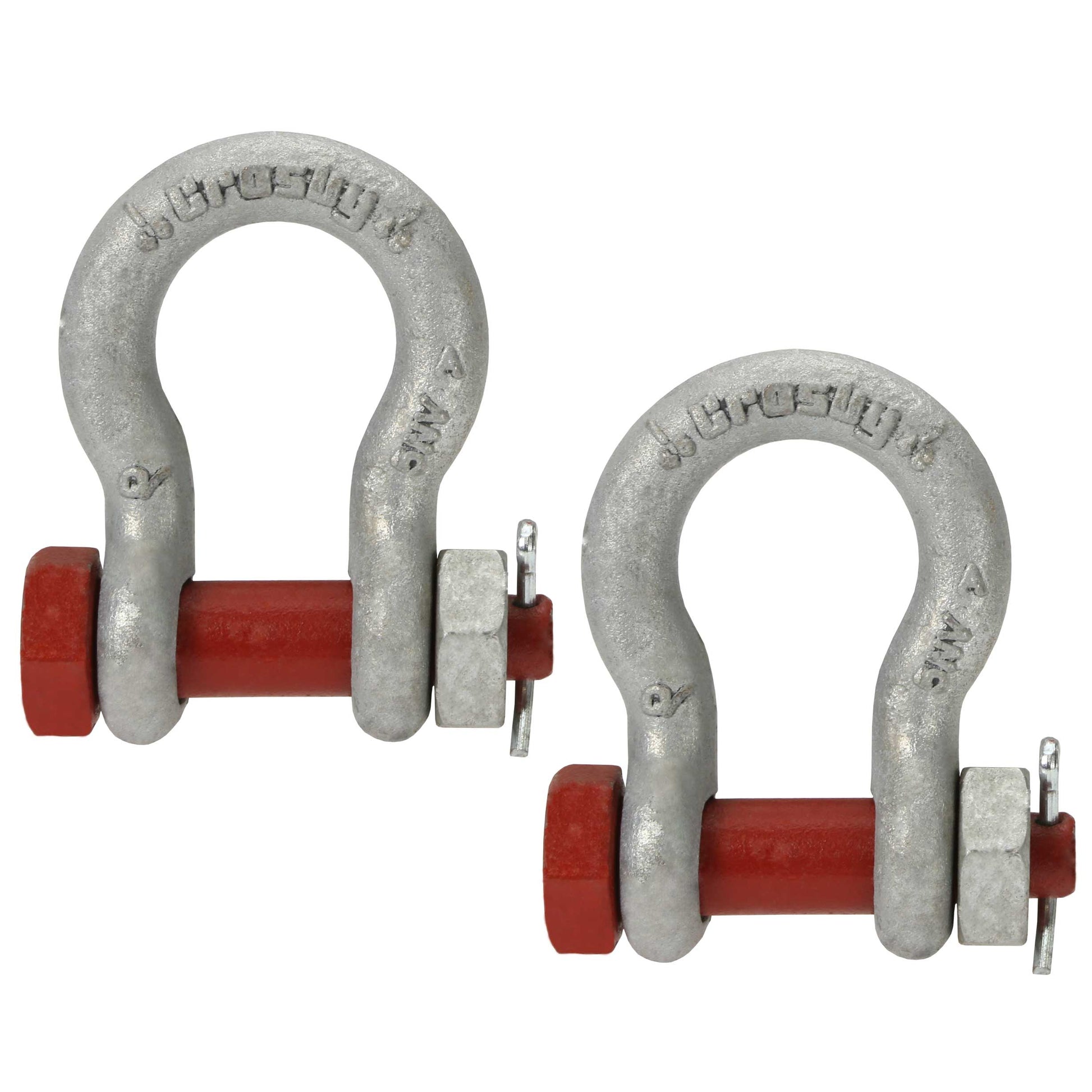

Wirelink Plus Kit Shackle Features
- Number of shackles in kit: 2
- Shackle Safety Factor: 4.1
- Finish: Galvanized
- Learn more about the Crosby shackles included in this kit
