SKU: LLP1T-BTAS58-CR-PKG

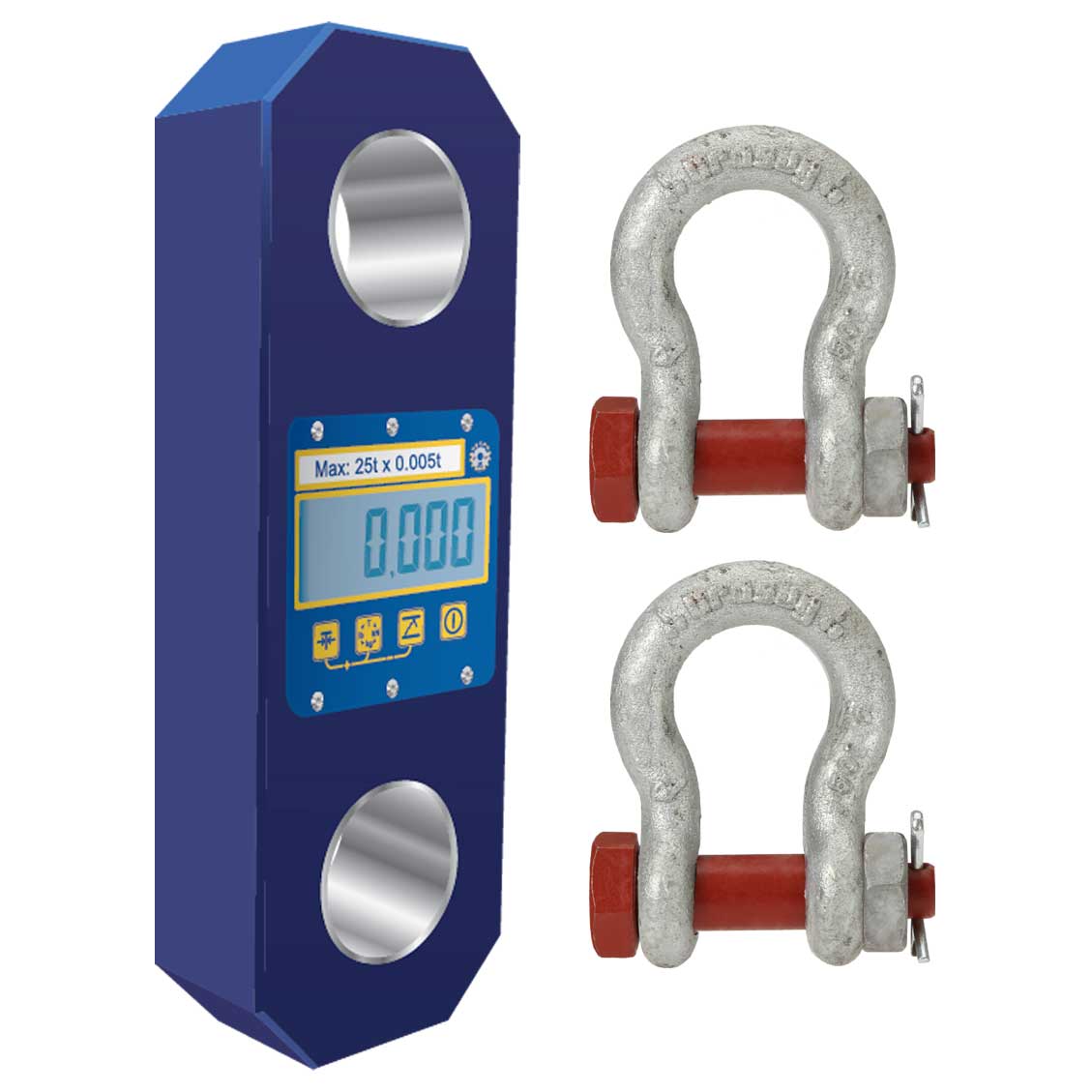

Straightpoint LLP1T 1 T Loadlink Plus with 2 Crosby 5/8" Shackles
Straightpoint LLP1T 1 T Loadlink Plus with 2 Crosby 5/8" Shackles!
Continue Browsing
Straightpoint Loadlink Plus
Straightpoint Load Monitoring Loadcells
Rigging Supplies & Rigging Hardware
Related Articles
$3,343.35
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Load capacity: 2,200 lbs.
Accuracy: +/- 0.1% of Full Scale
Battery life: 80 hours continuous
Battery type: 9v PP3
Data rate: 3Hz - up to 200Hz can be ordered for dynamic load monitorning applications
Display type: 240x128 Multi-Line Dot Matrix with Backlight
Manufacturer name: Crosby Straightpoint
Operating temperature: -10° to +50°C | 14° to 122° F
Output: Handheld
Pin size: 3/4"
Product weight: 6.7 lbs.
Range: 3,280'
Resolution: 1 lbs.
Shackle size: 5/8"
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: IP65
Description
Straightpoint 1-ton Loadlink Plus

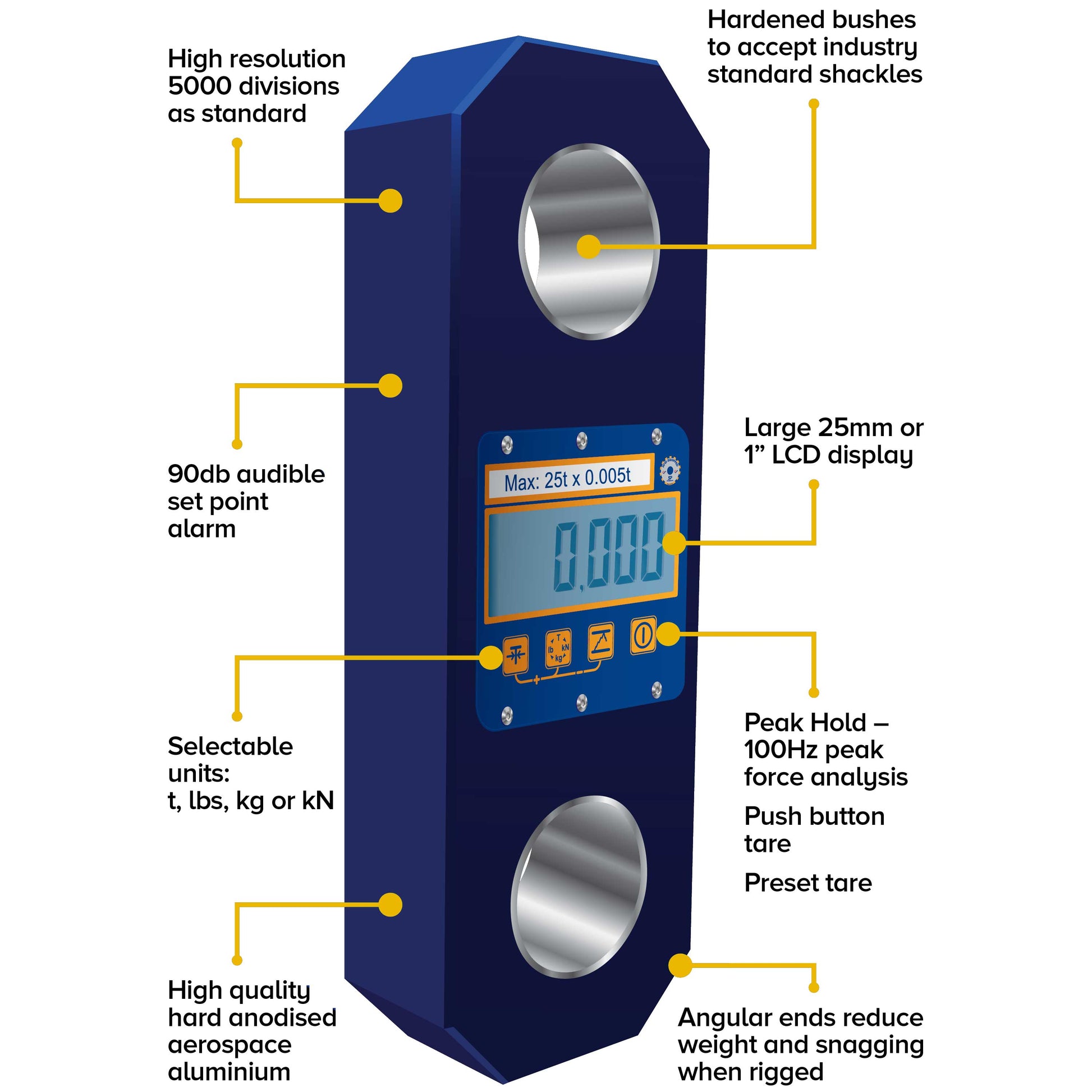

Ensure safe rigging setup tension levels with the Loadlink Plus, a dynamometer from Straightpoint. This device is made from high-quality, hard-anodized, aerospace-grade aluminum and makes it easy to precisely measure your application's tension levels.
The Loadlink Plus features a 1-inch LCD display screen incorporated directly into the load cell design. Other features include a push tare button, multiple display unit options (t/lbs/kg/kN), and an audible overload alarm.
If you need to monitor loads remotely, you can even hook your tension load cell up to a wired HHP Handheld Plus.
Common applications include tandem lifting and lowering, overhead weighing, bollard pull testing, tug testing, cable tensioning, heavy lift projects, and single point mooring.
Tension Load Cell Features
- Straightpoint part number: LLP1T
- Crosby part number: 2789042
- On average, this device is 30% lighter than competition with the same safety rating
- Internal sealed enclosure provides IP67 or NEMA6 environmental protection for electronic components
- Purchase includes calibration and proof test certificate, multilingual user manual, and carrying case
- RFID-tagged
- Complies with ASME B30.26
- 2-year warranty

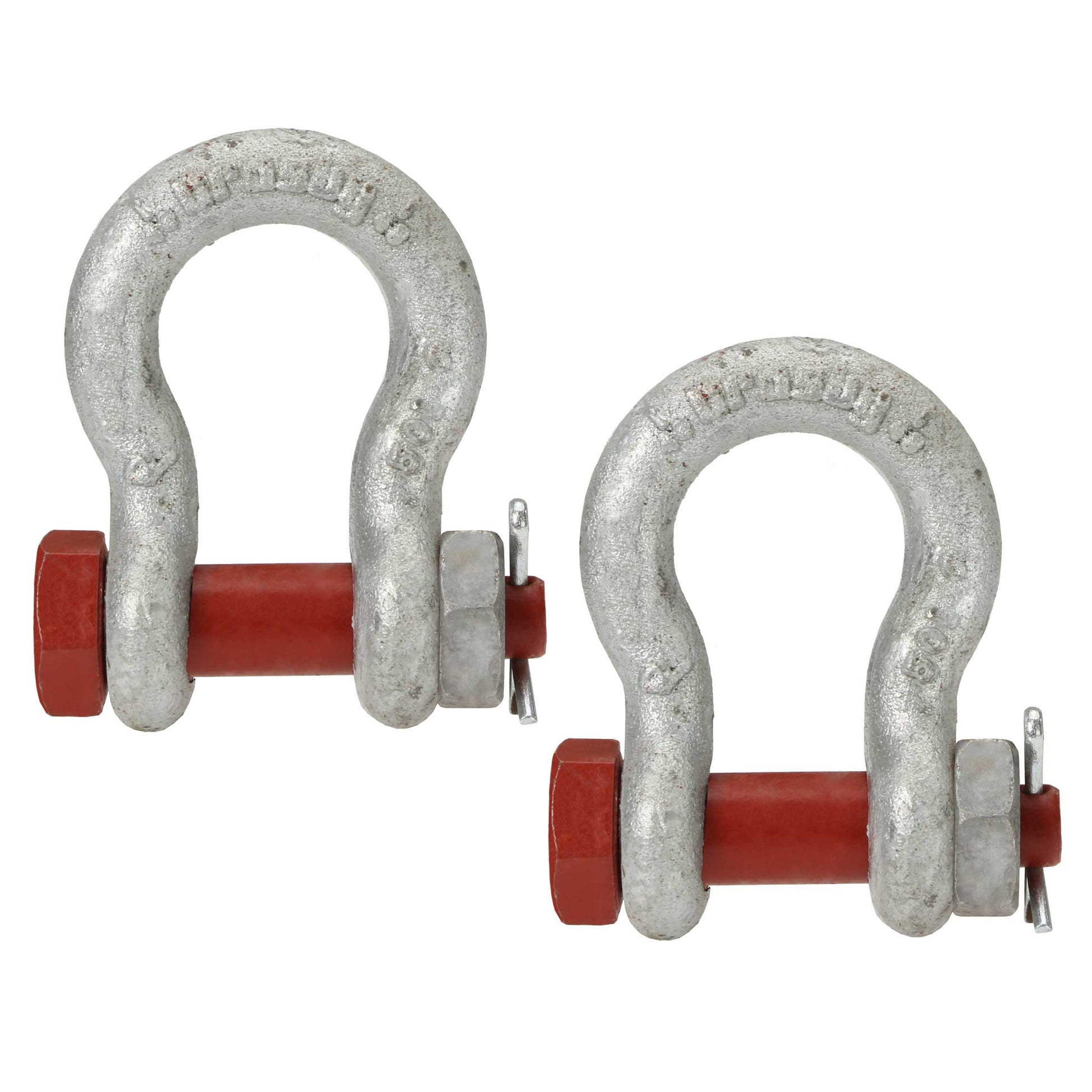

Loadlink Plus Kit Shackle Features
- Number of shackles in kit: 2
- Shackle Safety Factor: 6.1
- Finish: Galvanized
- Learn more about the Crosby shackles included in this kit
Tension Load Cell Options
We also carry Wirelink Plus load cells, which rely on a wired cable for data output, and Radiolink Plus cells, which wirelessly transmit data to an external screen.
Crosby Straightpoint - Loadlink plus - Self indicating load link for load monitoring
