SKU: WLS-85-T

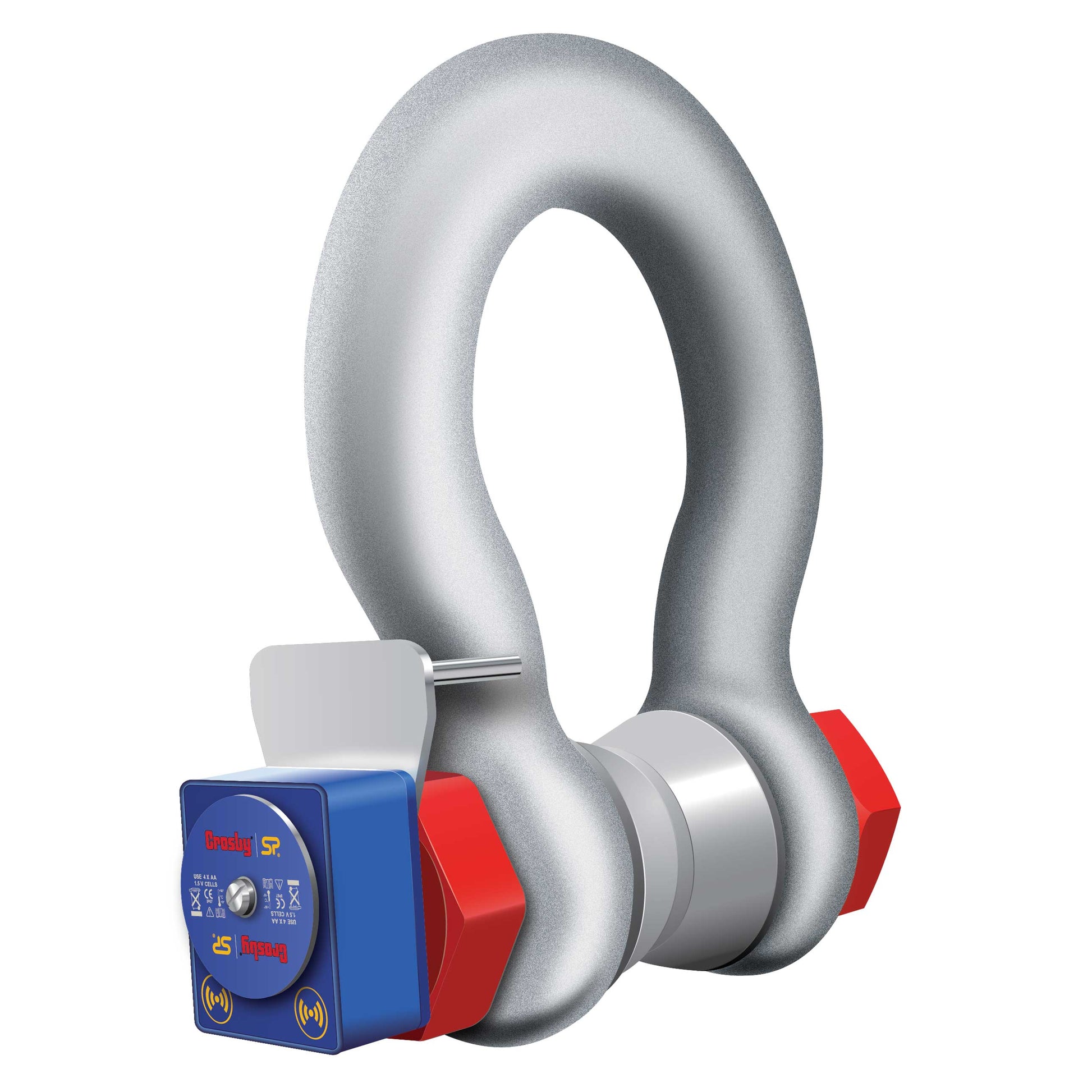

Straightpoint® 85 T Wireless Load Shackle - WLS85T

Straightpoint® 85 T Wireless Load Shackle - WLS85T!

  • Wireless Loadshackle with Bobbin

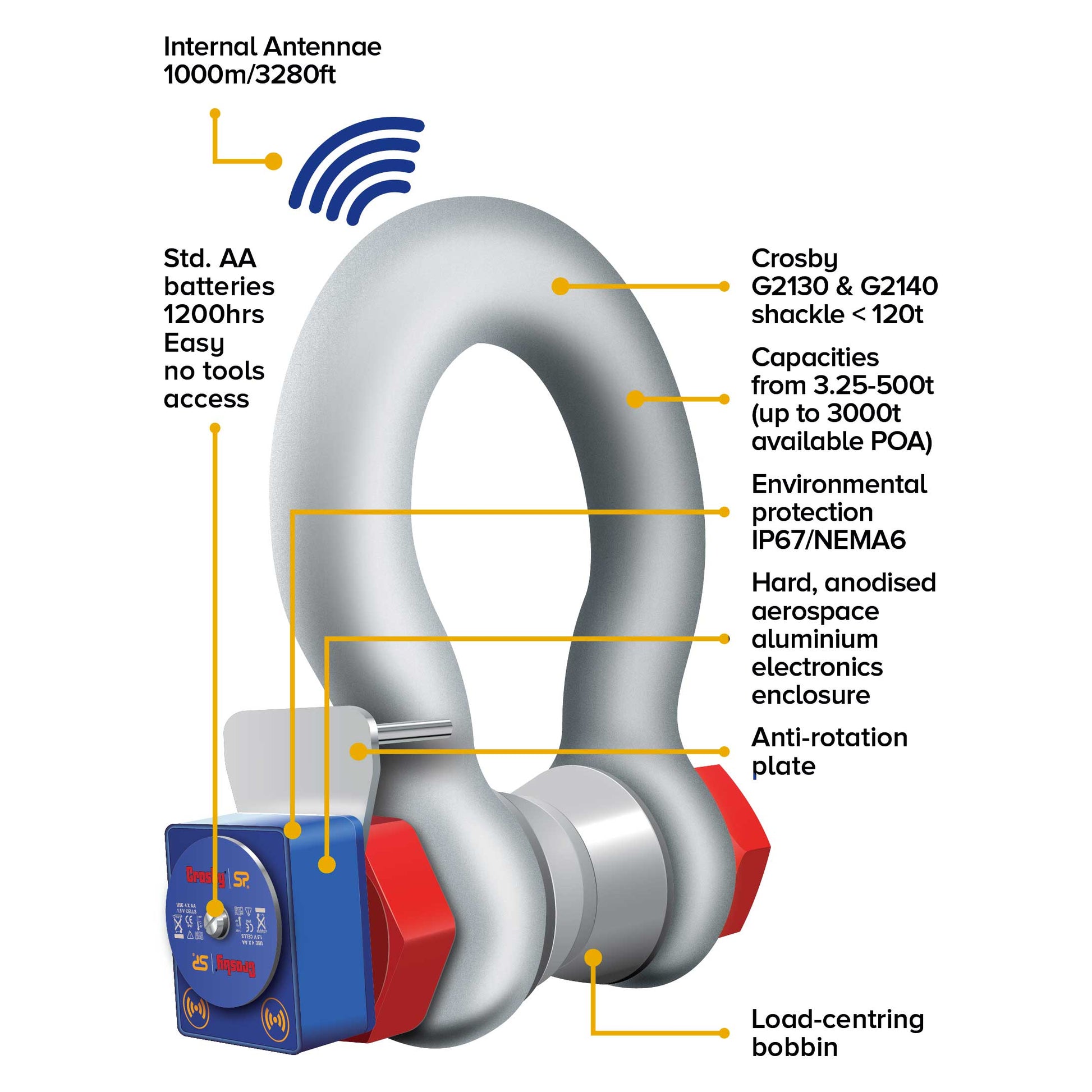

  • Wireless Loadshackle with Bobbin Features

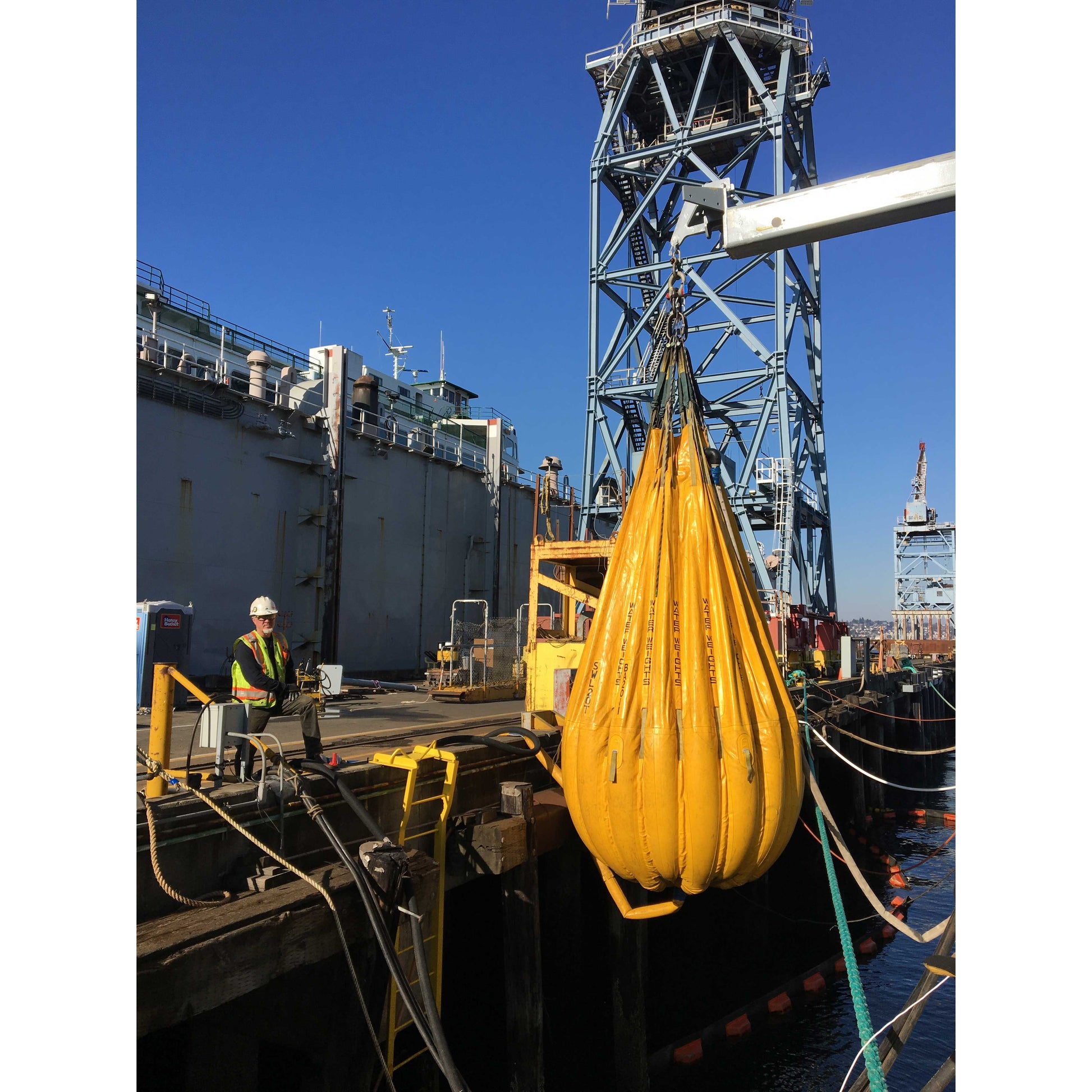

  • Wireless Loadshackle with Bobbin Application 1

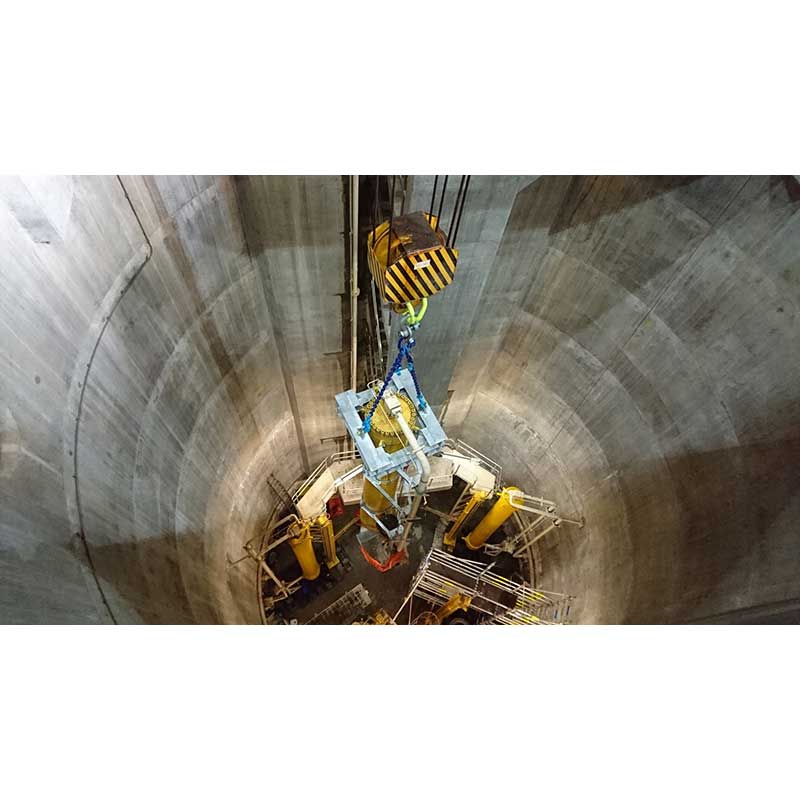

  • Wireless Loadshackle with Bobbin Application 2
1 4

Continue Browsing

Straightpoint Wireless Loadshackle

Straightpoint Load Monitoring Loadcells

Rigging Supplies & Rigging Hardware
SKU: WLS-85-T

Straightpoint® 85 T Wireless Load Shackle - WLS85T

$15,380.39
Request Bulk Pricing
Request Bulk Pricing
Call/Chat for ship date

Output:

Handheld Bluetooth

Blazing Fast Shipments

Shipping & Returns

Tailored Business Programs

Partner with Us

Questions? Need it custom?

We Can Help!

Payment Options

American Express
Apple Pay
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa

Specifications

Load capacity: 187,000 lbs.
Accuracy: +/- 1% of Full Scale
Battery life: 1,200 hours continuous
Battery type: 4 x AA Alkaline Batteries
Brand part number: WLS85T / 2789201
Data rate: 3 updates per second
Manufacturer name: Crosby Straightpoint
Operating temperature: -10° to +50°C | 14° to 122° F
Output: Handheld
Product weight: 187 lbs.
Range: 3,280'
Resolution: 100 lbs.
Safety factor: 5:1 when used with bobbin
Standards: IP67
Additional Info: Shackle requires handheld device to work; please order both if you don't currently have one.
Description
This wireless loadshackle from Straightpoint provides the perfect solution to limited headroom or super heavy lift projects. Straightpoint Loadshackles are made using Crosby brand shackles, a trusted industry leader. These advanced wireless Loadshackles use and internal antennae and four AA alkaline batteries to remotely transmit load readings and load tests from a safe distance (up to 3280 feet) and also generate real time test certificates on site. This 85-ton wireless load cell shackle (Straightpoint model #WLS85T & Crosby model #2789201) is designed for use with Straightpoint's SW-HHP handheld device, Straightpoint's INSIGHT computer software (sold separately). Each WLS is proof test, then equipped with a hard-anodized aluminum electronics enclosure, in accordance with IP67 or NEMA6. All Straightpoint loadshackles comply with ASME B30.26 and feature a load-centering bobbin. Lift yourself into the future of shackle rigging with this wireless shackle load cell today. We also offer Bluetooth-only wireless loadshackles and cabled loadshackles.
