Straightpoint® 3.25 T Wireless Load Shackle - WLS3.25T

SKU: WLS-3-25-T

$2,924.76
Free Shipping
Standard Lead Time 2-4 days.

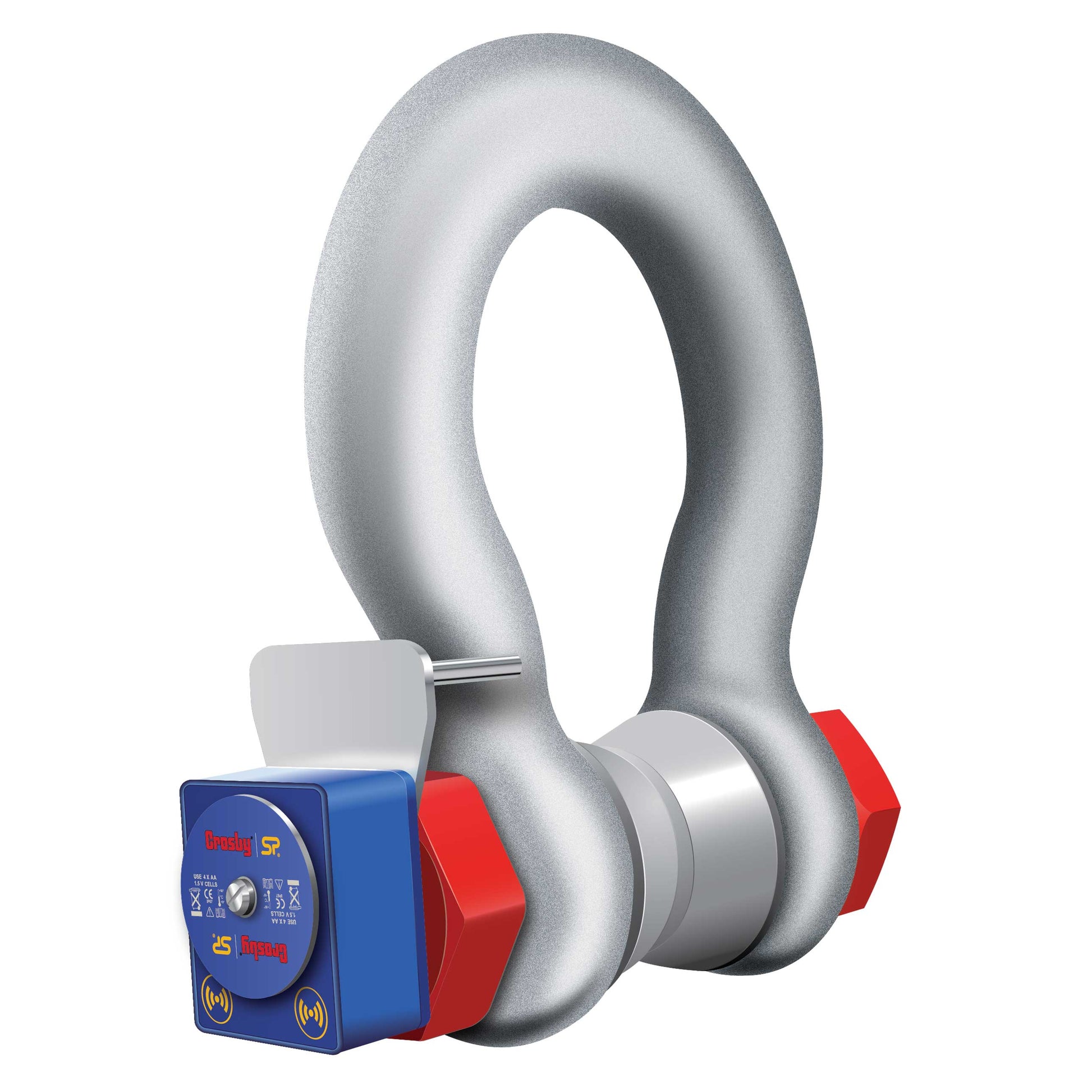

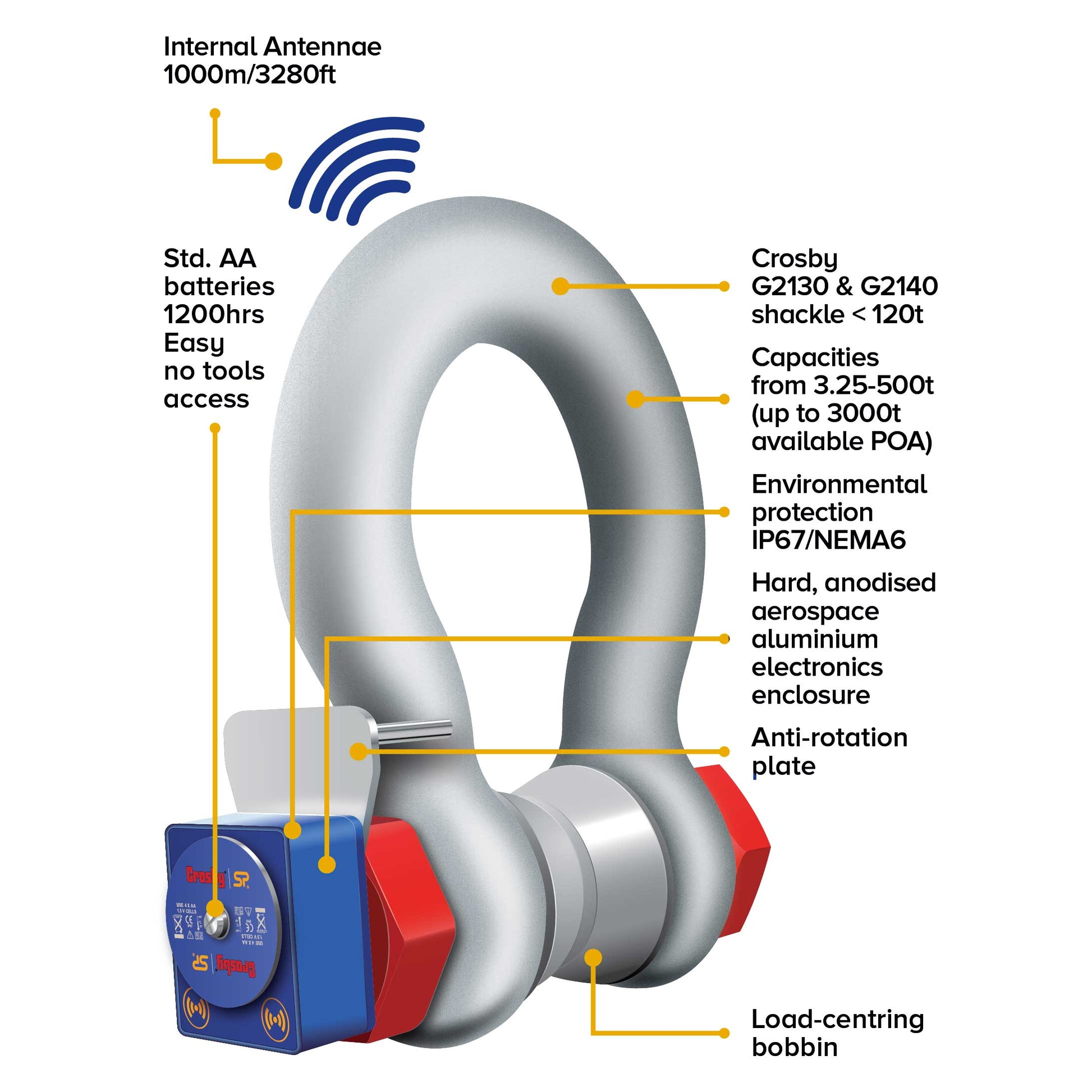

This wireless loadshackle from Straightpoint provides the perfect solution to limited headroom or super heavy lift projects. Straightpoint Loadshackles are made using Crosby brand shackles, a trusted industry leader. These advanced wireless Loadshackles use and internal antennae and four AA alkaline batteries to remotely transmit load readings and load tests from a safe distance (up to 3280 feet) and also generate real time test certificates on site. This 3.25-ton wireless load cell shackle (Straightpoint model #WLS3.25T & Crosby model #2789186) is designed for use with Straightpoint's SW-HHP handheld device, Straightpoint's INSIGHT computer software (sold separately). Each WLS is proof test, then equipped with a hard-anodized aluminum electronics enclosure, in accordance with IP67 or NEMA6. All Straightpoint loadshackles comply with ASME B30.26 and feature a load-centering bobbin. Lift yourself into the future of shackle rigging with this wireless shackle load cell today. We also offer Bluetooth-only wireless loadshackles and cabled loadshackles.
This wireless loadshackle from Straightpoint provides the perfect solution to limited headroom or super heavy lift projects. Straightpoint Loadshackle...

Read More

This wireless loadshackle from Straightpoint provides the perfect solution to limited headroom or super heavy lift projects. Straightpoint Loadshackles are made using Crosby brand shackles, a trusted industry leader. These advanced wireless Loadshackles use and internal antennae and four AA alkaline batteries to remotely transmit load readings and load tests from a safe distance (up to 3280 feet) and also generate real time test certificates on site. This 3.25-ton wireless load cell shackle (Straightpoint model #WLS3.25T & Crosby model #2789186) is designed for use with Straightpoint's SW-HHP handheld device, Straightpoint's INSIGHT computer software (sold separately). Each WLS is proof test, then equipped with a hard-anodized aluminum electronics enclosure, in accordance with IP67 or NEMA6. All Straightpoint loadshackles comply with ASME B30.26 and feature a load-centering bobbin. Lift yourself into the future of shackle rigging with this wireless shackle load cell today. We also offer Bluetooth-only wireless loadshackles and cabled loadshackles.

Show Less

Product Weight:
6.16

Load Capacity:
7,150 lbs.

Safety Factor:
5:1 when used with bobbin

Output:
Handheld

Resolution:
10 lbs.

Protection:
IP67

Battery Type:
4 x AA Alkaline Batteries

Operating Temperature:
-10° to +50°C | 14° to 122° F

Accuracy:
+/- 1% of Full Scale

Battery Life:
1,200 hours continuous

Range:
3,280'

Data Rate:
3 updates per second

Product Guide:
