SKU: WLS-BLE-200-T

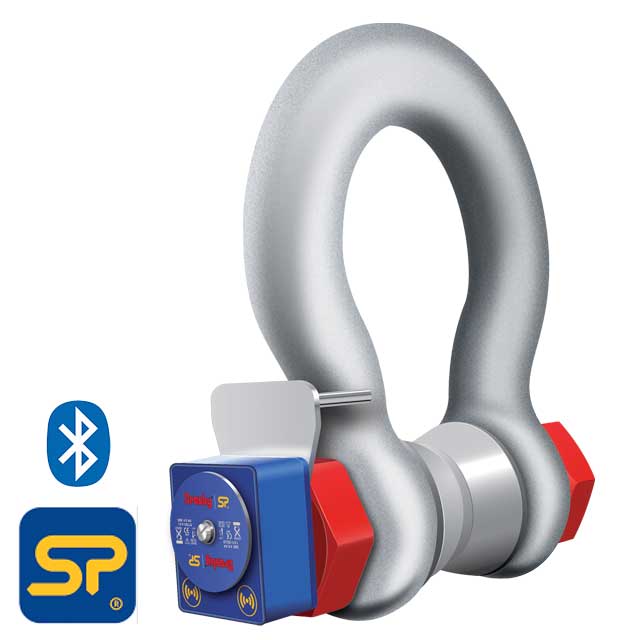

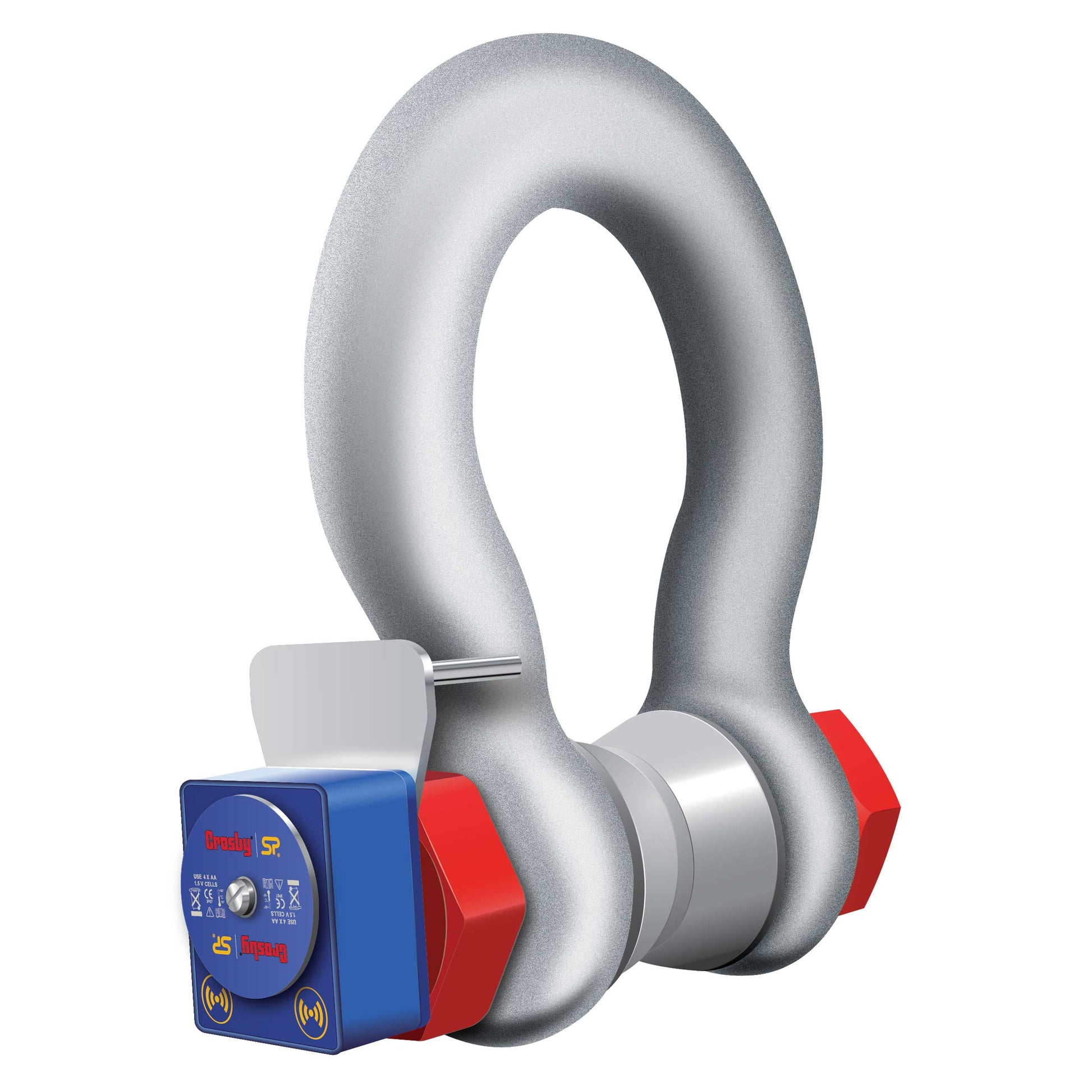

Straightpoint® 200 T Wireless Load Shackle - Bluetooth Enabled - WLS200T-BLE

Straightpoint® 200 T Wireless Load Shackle - Bluetooth Enabled - WLS200T-BLE!

Skip to product information
1 of 5
$30,910.00

Request Bulk Pricing
Request Bulk Pricing
Call/Chat for ship date
Fill out the form below or give our sales consultants a call at 866-444-9990.

Blazing Fast Shipments

Shipping & Returns

Buy in Bulk

Request a Quote

Questions? Need it custom?

We Can Help!

Payment Options

American Express
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa

Specifications

Load capacity: 440,000 lbs.
Accuracy: +/- 1% of Full Scale
Battery life: 500 hours continuous
Battery type: 4 x AA Alkaline Batteries
Brand part number: WLS200T-BLE / 2789175
Data rate: 3 updates per second
Manufacturer name: Crosby Straightpoint
Operating temperature: -10° to +50°C | 14° to 122° F
Output: Bluetooth
Product weight: 573 lbs.
Range: 328'
Resolution: 200 lbs.
Safety factor: 5:1 when used with bobbin
Standards: IP67
Description

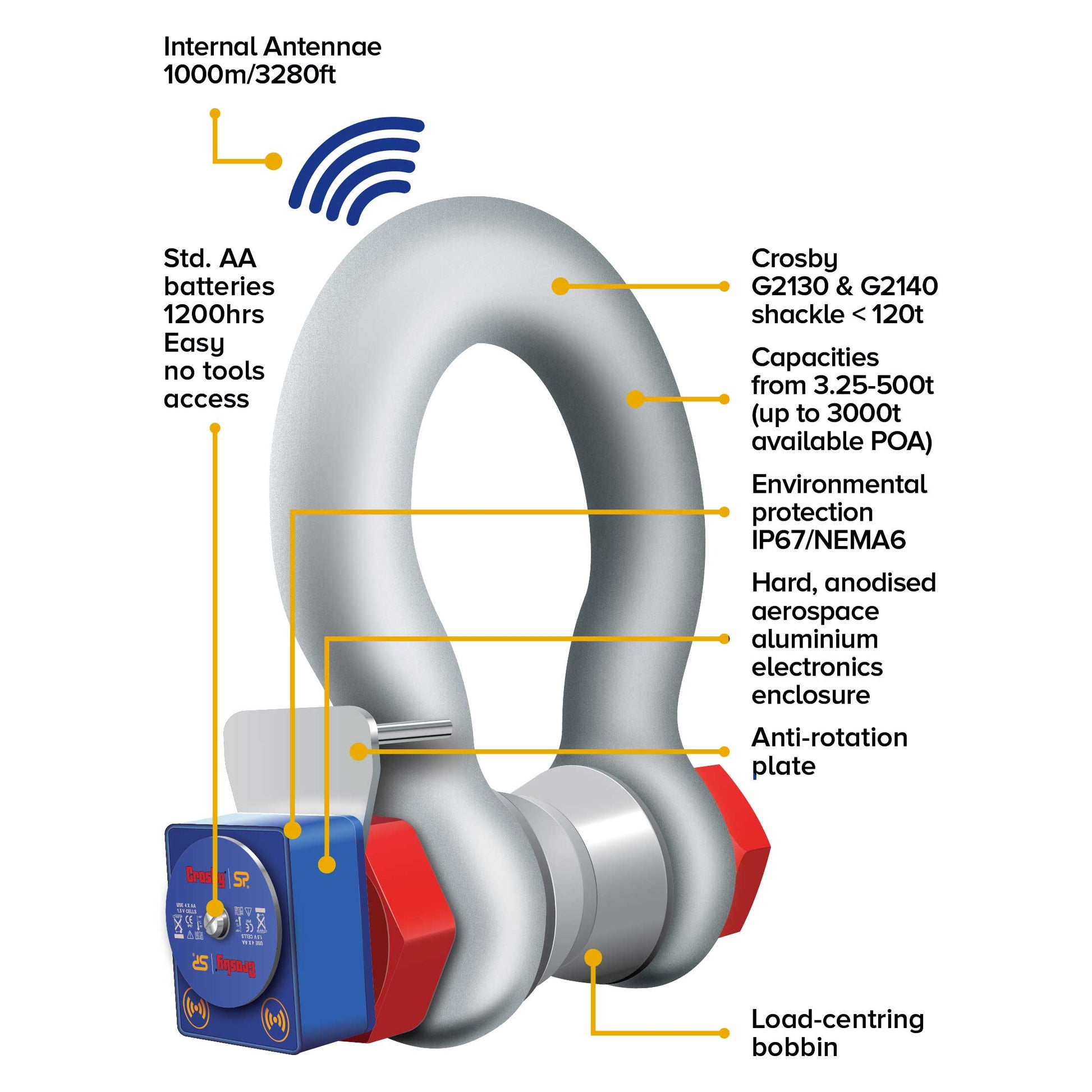

This wireless loadshackle from Straightpoint provides the perfect solution to limited headroom or super heavy lift projects. Straightpoint Loadshackles are made using Crosby brand shackles, a trusted industry leader. These advanced wireless Loadshackles use and internal antennae and four AA alkaline batteries to transmit load readings and load tests via Bluetooth from a safe distance (up to 328 feet) and also generate real time test certificates on site. This 200-ton Bluetooth load cell shackle (Straightpoint model #WLS200T-BLE & Crosby model #2789175) is designed for use with any Bluetooth-enabled device running Straightpoint's free app that's available for Android or iOS. Each WLS is proof test, then equipped with a hard-anodized aluminum electronics enclosure, in accordance with IP67 or NEMA6. All Straightpoint loadshackles comply with ASME B30.26 and feature a load-centering bobbin. Lift yourself into the future of shackle rigging with this wireless shackle load cell today. We also offer a wireless load shackle that is designed for use with Straightpoint's SW-HHP handheld device or INSIGHT computer software, as well as a cabled loadshackle option.
