Straightpoint® 150 T Compound Plus - CP150T
Straightpoint® 150 T Compound Plus - CP150T!
- Load capacity: 330,000 lbs.
- Safety factor: 4:1
- Pin size: 3-3/4"
- Output: Handheld
- Resolution: 100 lbs.
- Standards: IP67
- Battery type: 4 x AA Alkaline Batteries
- Operating temperature: -10° to +50°C | 14° to 122° F
- Accuracy: +/- 0.1% of Full Scale
- Battery life: 1,200 hours continuous
- Display type: 240x128 Multi-Line Dot Matrix with Backlight
- Range: 3,280'
- Data rate: 3Hz - up to 200Hz can be ordered for dynamic load monitorning applications
- Product weight: 101.4 lbs.

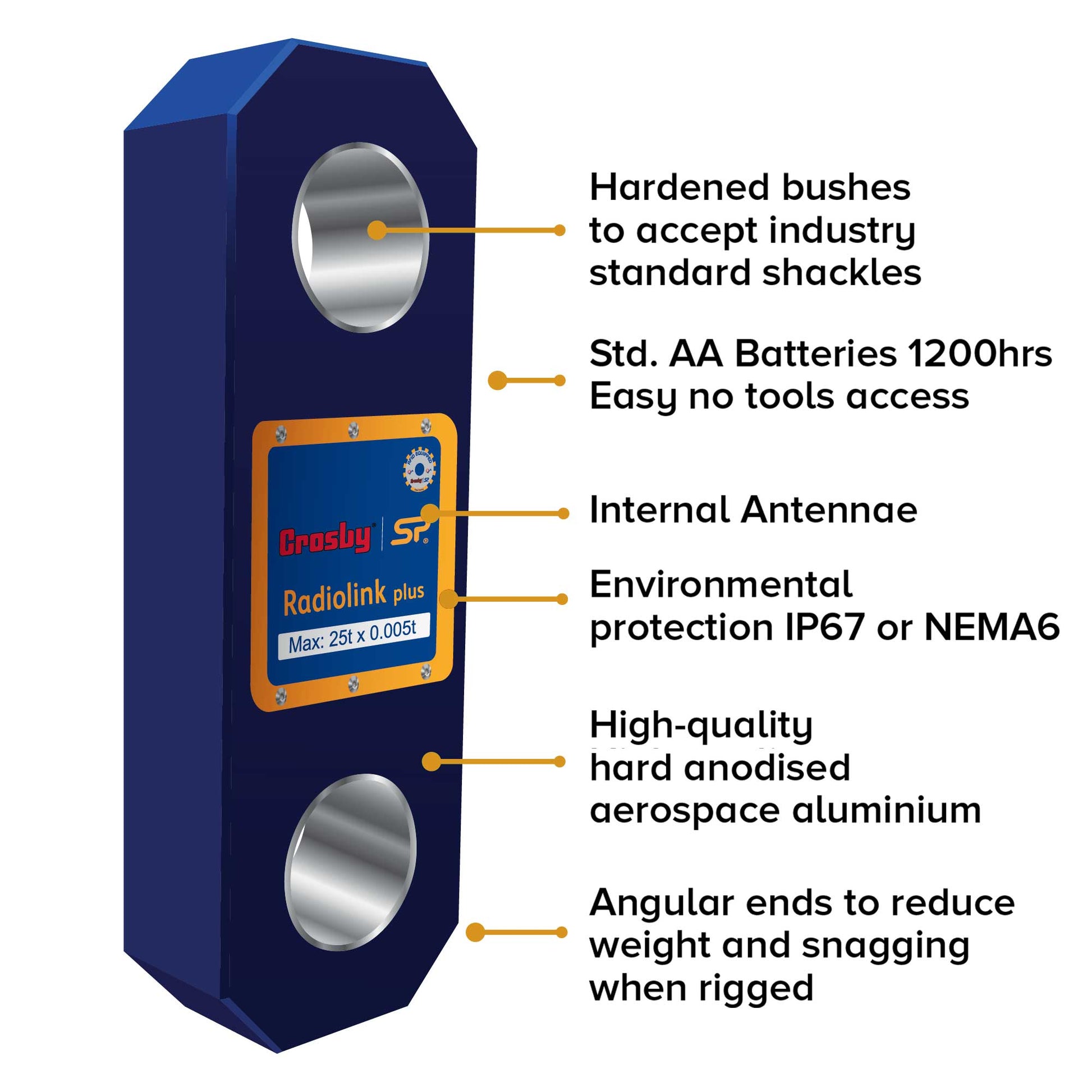

Straightpoint's Compound Plus is a powerful wireless load cell that allows you to precisely weigh and dynamically monitor rigging setups to ensure safe and optimal tension levels. This particular model (Straightpoint part #CP150T and Crosby part #2789017) is a 150-ton rated tension load cell that's constructed from high-quality hard anodized aerospace grade aluminum. Straightpoint load cells are designed to be used with Crosby shackles, however they are also compatible with other shackle brands. Unlike Wirelink Plus load cell, which relies on a wired cable for data output, the Compound Plus runs on 6 AA alkaline batteries that provide an impressive 1,200 hours of power. This Compound Plus load cell is identical to Straightpoint's Radiolink load cell but is sold without the wireless SW-HHP handheld deviceThis handheld device, which you can purchase separately, allows for a safe 3,280-foot wireless range. The handheld's LCD screen can remotely read up to 4 load cells at once while the user enjoys the convenience of a push tare button, multiple display unit options (t/lbs/kg/kN), and audible overload alarm. This item is also compatible with the INSIGHT computer software. Common applications for this 150-ton load monitoring meter include tandem lifting and lowering, water bag load testing, overhead weighing, bollard pull testing, tug testing, breakbulk applications, heavy lift projects, offshore cranes, spreader beam load monitoring, measurement of vehicle towing loads, ship to ship transfers, and single point mooring. Compound Plus tension load cells are suitable for even the harshest of environments, as they allow the use of a separate internal sealed enclosure that provides the load cell's electronic components with IP67 or NEMA6 environmental protection. This 150-ton load cell also complies with ASME B30.26 and comes with a 2-year warranty, calibration & proof test certificate, user manual, carry case, and is RFID tagged. Don't risk an overloaded lift ever again, get your hands on this game changing digital tension meter today.
