SKU: CP-BLE-150-T

Straightpoint® 150 T Compound Plus - Bluetooth Enabled - CP150T

Straightpoint® 150 T Compound Plus - Bluetooth Enabled - CP150T!

Skip to product information
1 of 4
$26,370.00

Request Bulk Pricing
Request Bulk Pricing
Ships FREE in 14-21 business days.
Fill out the form below or give our sales consultants a call at 866-444-9990.

Blazing Fast Shipments

Shipping & Returns

Buy in Bulk

Request a Quote

Questions? Need it custom?

We Can Help!

Payment Options

American Express
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa

Specifications

Load capacity: 330,000 lbs.
Accuracy: +/- 0.1% of Full Scale
Battery life: 500 hours continuous
Battery type: 4 x AA Alkaline Batteries
Brand part number: CP150T-BLE / 2789004
Data rate: 3Hz - up to 200Hz can be ordered for dynamic load monitorning applications
Display type: 240x128 Multi-Line Dot Matrix with Backlight
Manufacturer name: Crosby Straightpoint
Operating temperature: -10° to +50°C | 14° to 122° F
Output: Bluetooth
Pin size: 3-3/4"
Product weight: 143 lbs.
Range: 328'
Resolution: 100 lbs.
Safety factor: 4:1
Standards: IP67
Description
Straightpoint's Compound Plus - Bluetooth Version is a powerful load cell that allows you to precisely weigh and dynamically monitor rigging setups to ensure safe and optimal tension levels. This particular model (Straightpoint part #CP150T-BLE and Crosby part #2789004) is a 150-ton rated load cell that's constructed from high-quality hard anodized aerospace grade aluminum. Straightpoint load cells are designed to be used with Crosby shackles, however they are also compatible with other shackle brands. This Compound Plus Bluetooth enabled load cell is similar to Straightpoint's Compound Plusload cell, except this Bluetooth version does not support data transmission via radio frequency to the SW-HHP handheld device. This Compound Plus Bluetooth enabled tension meter is only able to transmit load cell readings via Bluetooth to your phone or other Bluetooth-enabled device using the free HHP app on iOS or Android. Bluetooth transmission works up to 328 feet away. Common applications for this 150-ton load monitoring meter include tandem lifting and lowering, water bag load testing, overhead weighing, bollard pull testing, tug testing, breakbulk applications, heavy lift projects, offshore cranes, spreader beam load monitoring, measurement of vehicle towing loads, ship to ship transfers, and single point mooring. Compound Plus Bluetooth tension load cells are suitable for even the harshest of environments, as they allow the use of a separate internal sealed enclosure that provides the load cell's electronic components with IP67 or NEMA6 environmental protection. This 150-ton load cell also complies with ASME B30.26 and comes with a 2-year warranty, calibration & proof test certificate, user manual, carry case, and is RFID tagged. Don't risk an overloaded lift ever again, get your hands on this game changing digital tension meter today.

View Product Safety Warnings

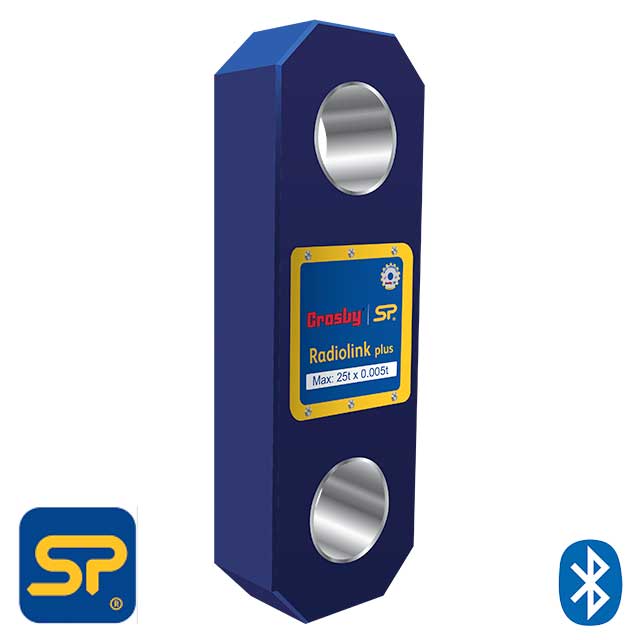

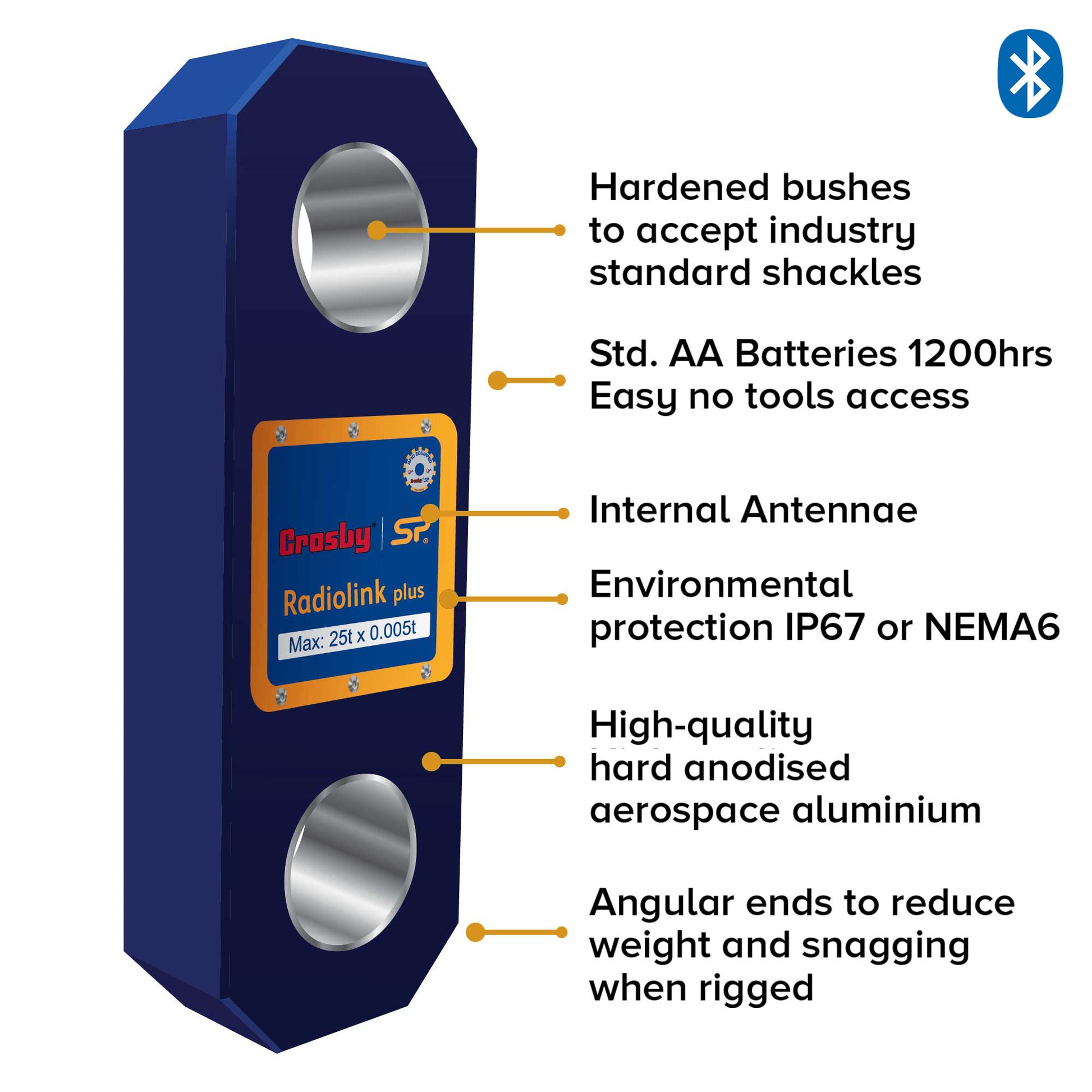

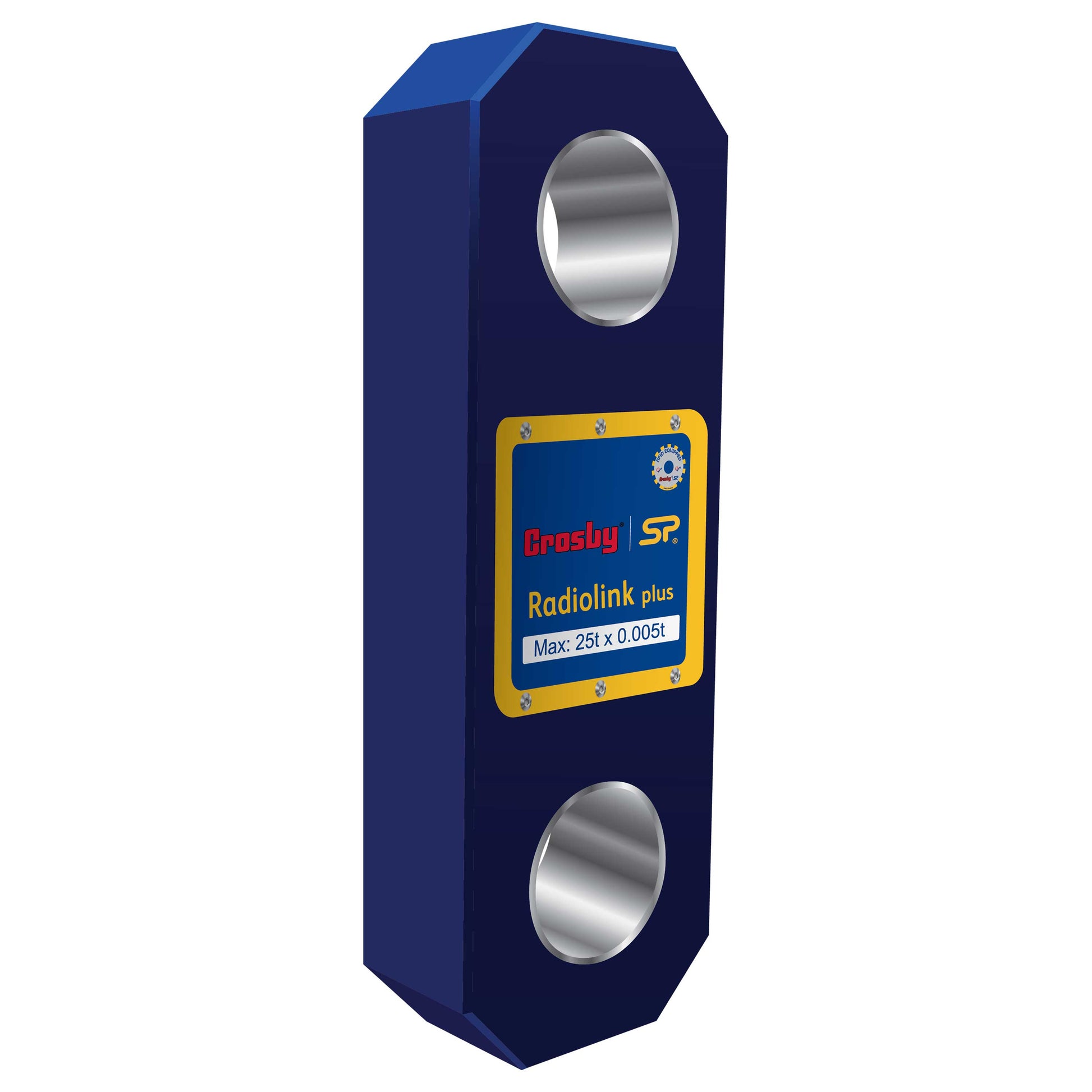

Straightpoint Radiolink plus - Wireless Load Cell
