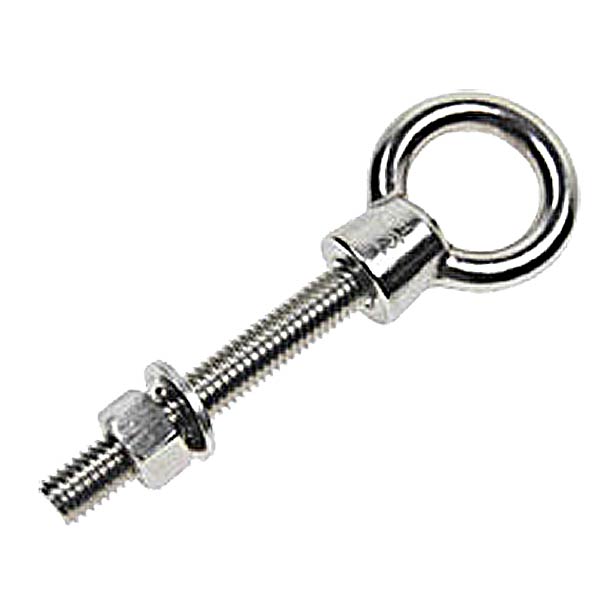

Shoulder Eye Bolts - Stainless Steel Type 316 - 1" x 9"L

SKU: SSSEB1X9
Quantity
Unit Price
Save
1 - 9
$85.99
-
10 - 49
$83.42
3%
50 - 99
$80.84
6%
100 +
$77.40
10%

$85.99
In stock
Made of type 316 stainless steel, these shoulder eye bolts are commonly used on boats or docks as a tie down loop, since they have great corrosion and oxidation resistance. Their low maintenance and luster also make them popular for architectural applications. Shoulder eyebolts can be used for either straight line or angular lifts, since the shoulder helps support the load as it pulls at an angle. The eyes of the steel eye bolt can accomodate wire rope, shackles and other rigging supplies.

Includes eye bolt, nut and washer.

Please Note:
Loading at an angle will significantly reduce a bolt's rated capacity; a 45 degree angle reduces it to just 1/4 of the stated rating. Never load at an angle greater than 45 degrees from the bolt center line.

California Residents: WARNING
Made of type 316 stainless steel, these shoulder eye bolts are commonly used on boats or docks as a tie down loop, since they have great corros...

Read More

Made of type 316 stainless steel, these shoulder eye bolts are commonly used on boats or docks as a tie down loop, since they have great corrosion and oxidation resistance. Their low maintenance and luster also make them popular for architectural applications. Shoulder eyebolts can be used for either straight line or angular lifts, since the shoulder helps support the load as it pulls at an angle. The eyes of the steel eye bolt can accomodate wire rope, shackles and other rigging supplies.

Includes eye bolt, nut and washer.

Please Note:
Loading at an angle will significantly reduce a bolt's rated capacity; a 45 degree angle reduces it to just 1/4 of the stated rating. Never load at an angle greater than 45 degrees from the bolt center line.

California Residents: WARNING

Show Less

Working Load Limit:
7,500 lbs.

Assembly Break Strength:
30,000 lbs.

Product Weight:
3.8

Shank Length:
9"

Shipping And Returns:
This item cannot be returned due to safety risks.

Diameter:
1"

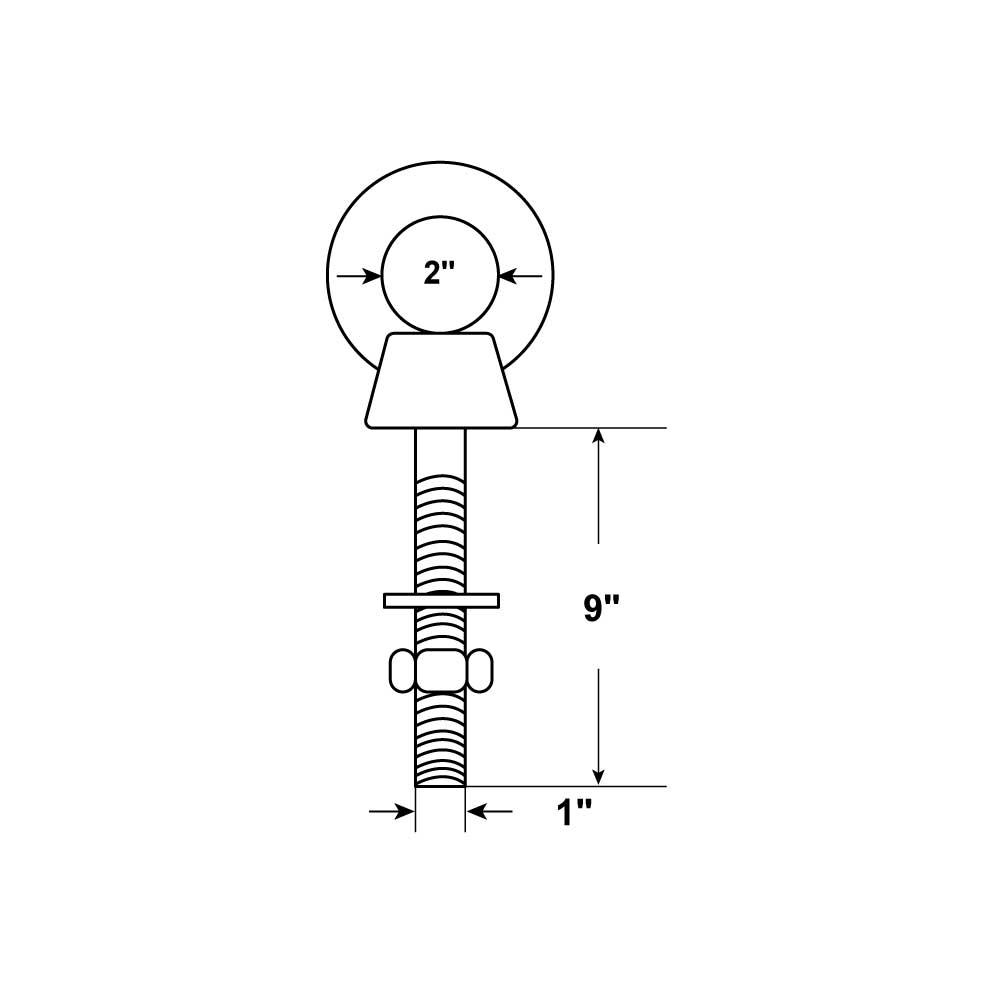

Eye Bolt Dimensions:
A:
1"
B:
9"
C:
2"
