SKU: PF7

Zinc Plated Recessed Pan Fitting - 900 lbs BS

Zinc Plated Recessed Pan Fitting - 900 lbs BS!

Skip to product information
1 of 6
SKU: PF7

Zinc Plated Recessed Pan Fitting - 900 lbs BS

$6.92
Get 40+
$6.65/ea
Get 80+
$6.51/ea
Get 160+
$6.23/ea
Request Bulk Pricing
Ships today when you order in the next 10 hours 42 minutes
Fill out the form below or give our sales consultants a call at 866-444-9990.

Quantities:

Blazing Fast Shipments

Shipping & Returns

Tailored Business Programs

Partner with Us

Questions? Need it custom?

We Can Help!

Payment Options

American Express
Apple Pay
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa

Specifications

Assembly break strength: 900 lbs.
Working load limit: 300 lbs.
Finish: Zinc
Product weight: .4 lbs.
Quantity: Single
Type: Bolt On
Additional Info: This item is not rated for overhead lifting - for tie down use only.
Hardware NOT included
Description

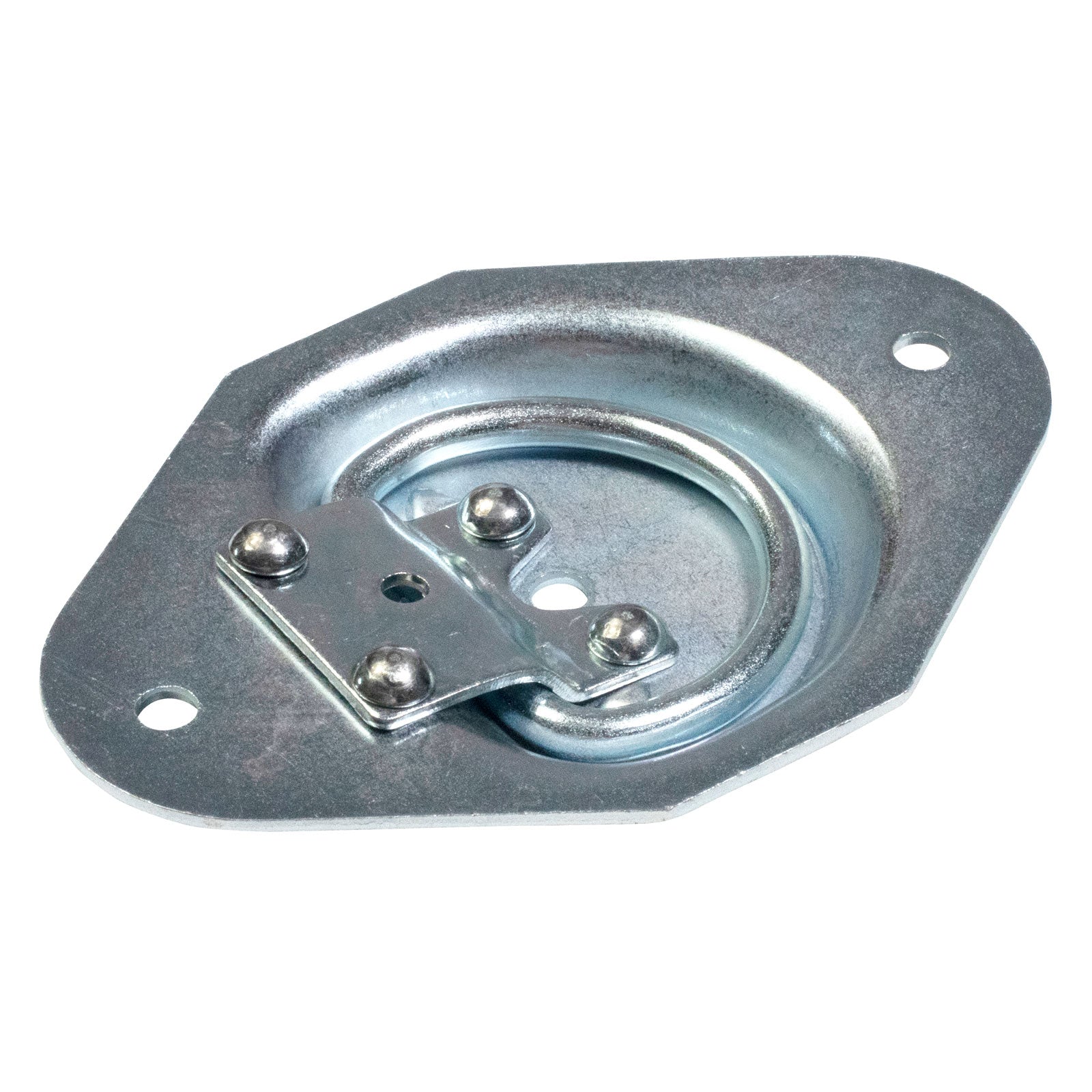

Recessed D-Ring - Bolt-On

Bolt-on D-rings are the perfect solution for adding more tie down anchors to your trailer or enclosed van, giving you the flexibility of placing anchor points exactly where you need them. The recessed design is an ideal option on trailer floors - they won't be in the way when not in use, and you can easily roll wheeled cargo over them.

Compatible with a variety of tie downs, including S-hook ratchet straps, they can be used in a wide range of applications, but are most frequently used for light vehicle transport, including motorcycle, snow mobile, and ATV / UTV hauling.

900 lbs. Break Strength D-Ring Construction

This steel D-ring comes with a galvanized finish (also known as zinc-plating) to prevent corrosion, making it suitable for most exterior applications. It's well-suited even for enclosed trailers with moderate exposure to moisture or mud.

How to Choose a D-Ring

The primary considerations when choosing a D-ring are mount type, environment, cargo weight, and what tie downs are being used:

  • Mounting type is fairly simple - do you want a weld-on or bolt-on installation? This will generally depend on where you are installing the D-ring.
  • For environment, choose stainless steel D-rings for marine applications. Otherwise, galvanized should offer acceptable corrosion-resistance.
  • Cargo weight and tie down type go hand-in-hand - you will choose your tie downs based on what cargo you are hauling. According to the FMCSA CFR49 sections 393.102-104, anchor points must be at least as strong as the tie down they are attached to. In other words, you want the D-ring to have an equivalent or higher load rating than your tie down.

Note: Before purchase, double-check to make sure your tie down attachments are compatible with the D-ring dimensions.

Bolt-On Heavy-Duty D-Ring Features:

  • D-ring folds conveniently away when not in use.
  • Break Strength Dependent on Installation: Bolt-on D-rings are only as strong as the hardware they are mounted with - best practice is to bolt all the way through the material they are mounted to.
  • Weep Hole Included: A weep hole in the bottom of the pan fitting allows for water drainage.
  • Two Pre-Drilled Holes for Fast Installation.
  • Versatile Applications: Commonly used on trailers that haul equipment, but can also be used for tents, pool covers, and more.
  • Not Rated for Overhead Lifting.

Recessed D-Ring Installation

Our recessed D-rings come with pre-drilled holes for easy mounting, but because these are designed to recess into the floor, you will need to cut a hole to fit the plate flush. And since D-rings are only as strong as the hardware they are mounted with, best practice is to bolt all the way through the material they are mounted to to achieve the highest strength.

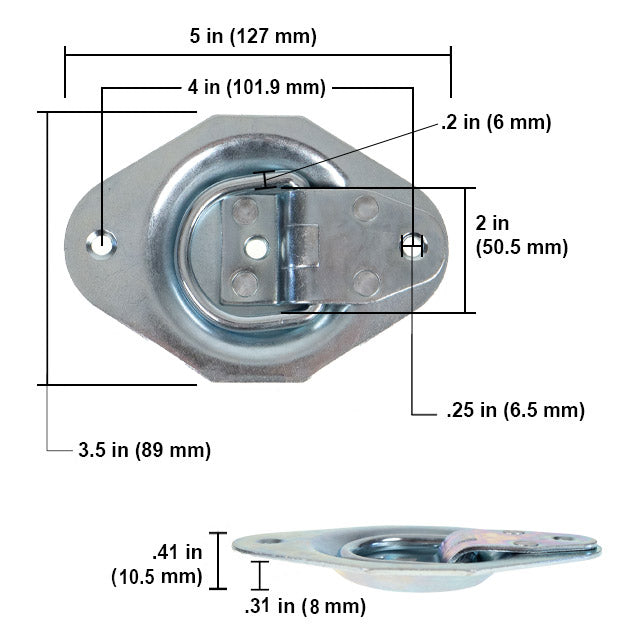

To find the hardware you need, look at the bolt hole size noted in our dimensions to make sure your bolt size is compatible. For length, if you are bolting through, the bolt should be long enough to get a fender washer and nuts on the back. Our team recommends either the use of Loctite on the threads or a locking nut.

Complete Your Tie-Down Setup

US Cargo Control offers a full selection of trucking and transportation products, including tie down straps, tie down chain, and cargo nets. If you have any questions on which products will work best for your application, get in touch with one of our product experts today!
