SKU: LBLHA4K5
Low Headroom Adjustable Lifting Beam | 4,000 lb. Capacity | 3' to 5' Spread
Low Headroom Adjustable Lifting Beam | 4,000 lb. Capacity | 3' to 5' Spread!
Continue Browsing
Adjustable Lifting Beams
Lifting Beams & Spreader Bars
Rigging Supplies & Rigging Hardware
Related Articles
$1,655.33
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsCustom Configuration Options
Connect with an ExpertPayment Options

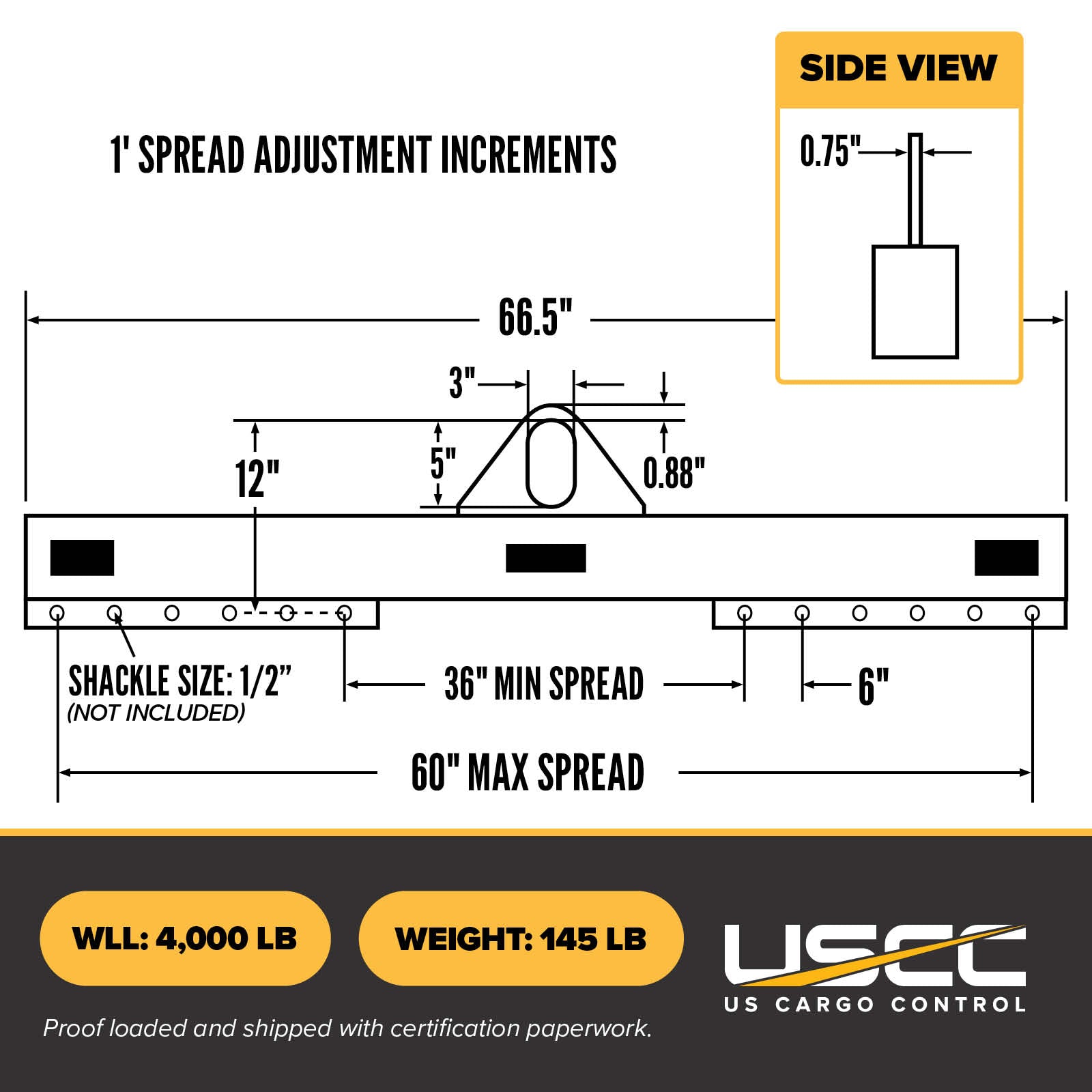

Specifications
Working load limit: 2 tons (US) / 4,000 lbs.
Bail Dimensions: Inside Width: 3"
Inside Length: 5"
Top Thickness: 0.88"
Thickness: 0.75"
Inside Length: 5"
Top Thickness: 0.88"
Thickness: 0.75"
Brand part number: 22152
Finish: High visibility yellow powder coated paint
Manufacturer name: M&W
Material: Steel
Spread: 3' - 5'
Overall length: 66.5"
Product weight: 145 lbs.
Rated for Overhead Lifting: Yes
Safety factor: 3:1
Shipping and returns: This item ships complete with proof testing certificate; it cannot be returned due to safety risks associated with used materials.
Standards: Exceeds all ASME B30.20 and OSHA regulations.
Proof loaded per OSHA requirements.
Proof loaded per OSHA requirements.
Additional Info: Headroom: 12"
Spread Adjustment Increments: 6" per side
Spread Adjustment Increments: 6" per side
Description

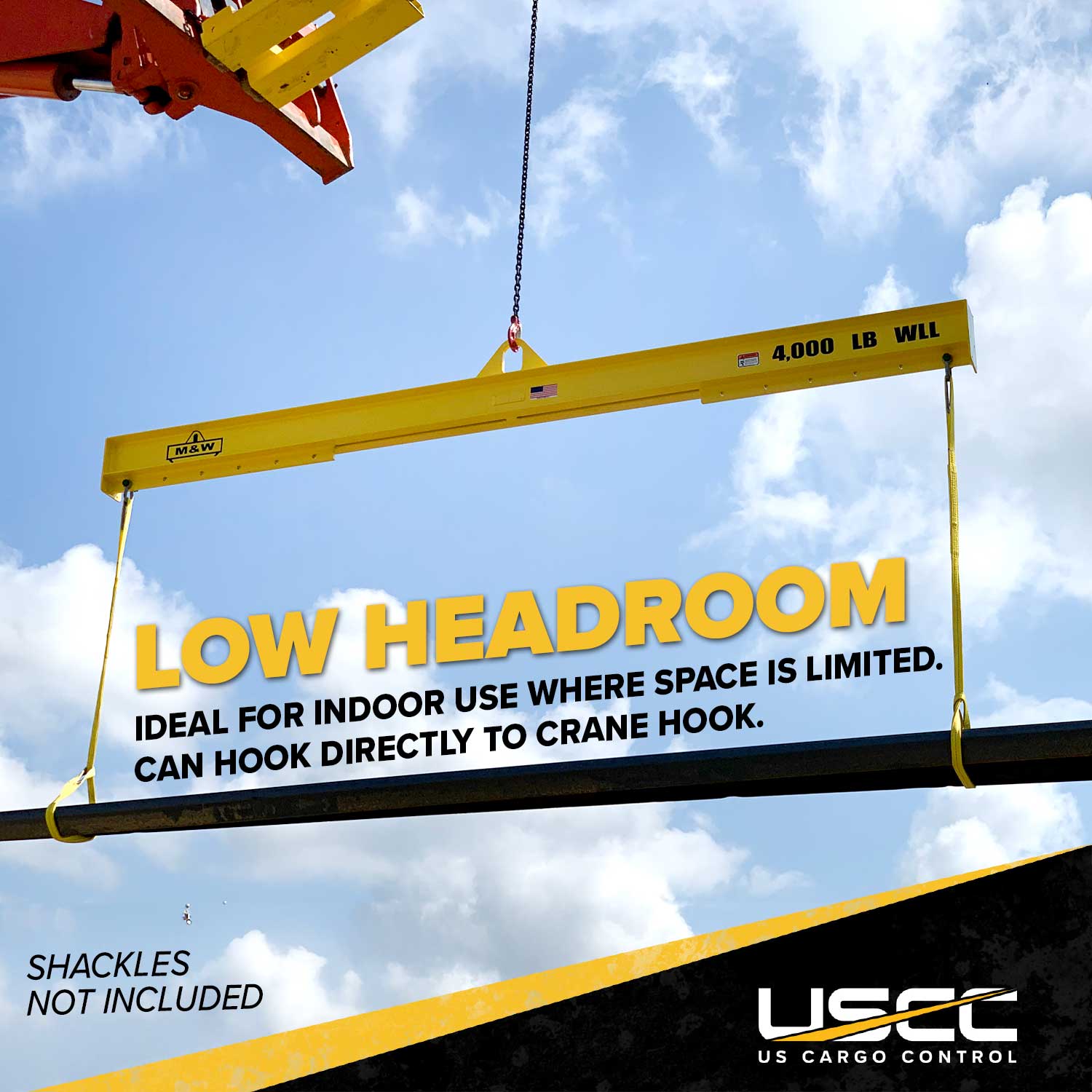

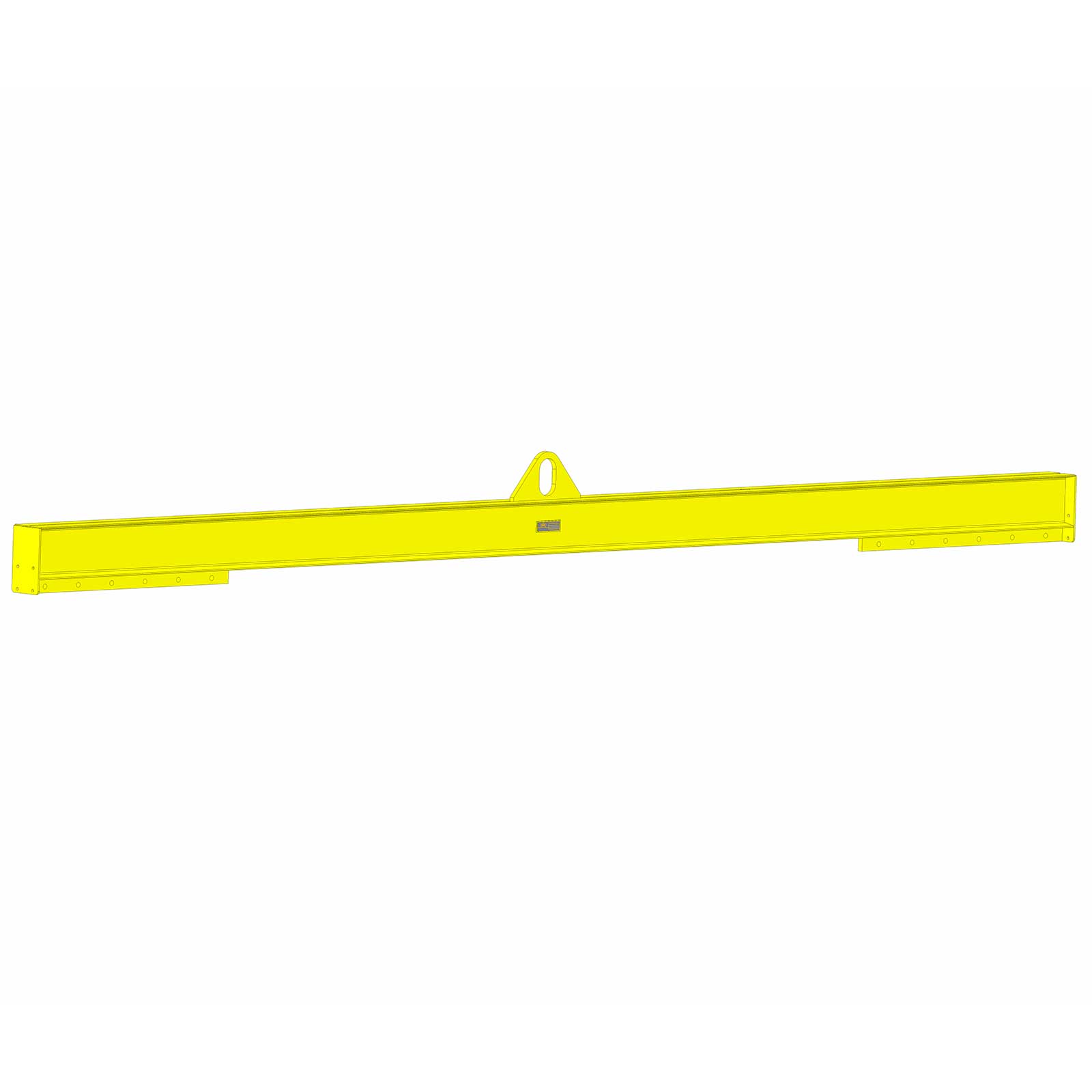

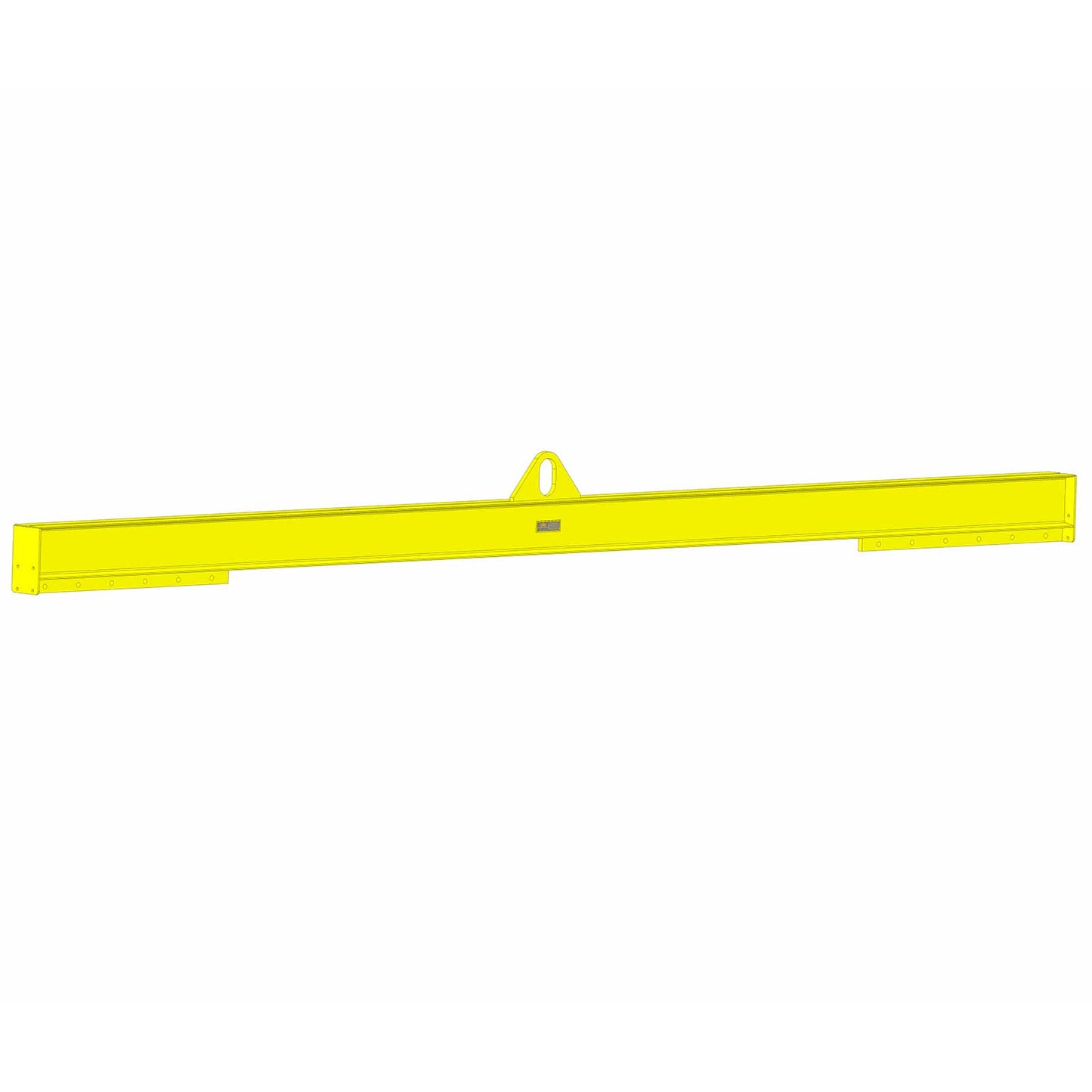

5' Max Spread Low Headroom Adjustable Lifting Beam
This combination lifting beam is versatile and reliable. The low headroom design makes it excellent for lifting situations where space is limited, and the adjustable features allow for easy correction of unbalanced loads.
The yellow color ensures superior visibility, and the beam can be customized with hooks or other end fittings as needed.
4,000 lb. Capacity Lifting Beam Features
- Shipped with necessary certification paperwork - they exceed all ASME B30.20 and OSHA regulations
- Proof loaded per OSHA requirements
- Equipped with RFID Tracking Chip
- Made in the USA by M&W
