SKU: LBLHA10K25
Low Headroom Adjustable Lifting Beam | 10,000 lb. Capacity | 20' to 25' Spread
Low Headroom Adjustable Lifting Beam | 10,000 lb. Capacity | 20' to 25' Spread!
Continue Browsing
Adjustable Lifting Beams
Lifting Beams & Spreader Bars
Rigging Supplies & Rigging Hardware
Related Articles
$11,036.49
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsCustom Configuration Options
Connect with an ExpertPayment Options

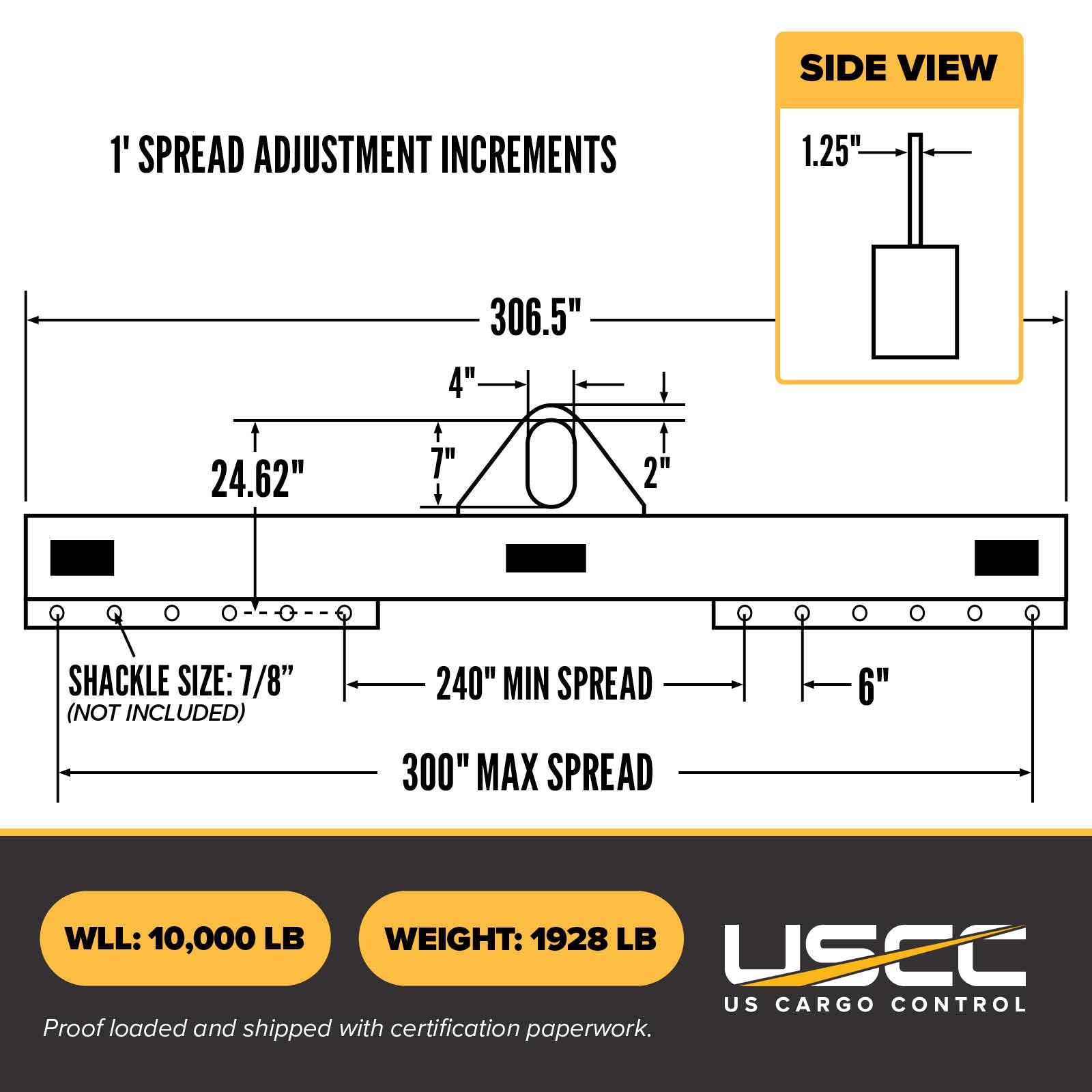

Specifications
Working load limit: 5 tons (US) / 10,000 lbs.
Bail Dimensions: Inside Width: 4"
Inside Length: 7"
Top Thickness: 2"
Thickness: 1.25"
Inside Length: 7"
Top Thickness: 2"
Thickness: 1.25"
Brand part number: 24512
Finish: High visibility yellow powder coated paint
Manufacturer name: M&W
Material: Steel
Spread: 20' - 25'
Overall length: 306.5"
Product weight: 1928 lbs.
Rated for Overhead Lifting: Yes
Safety factor: 3:1
Shipping and returns: This item ships complete with proof testing certificate; it cannot be returned due to safety risks associated with used materials.
Standards: Exceeds all ASME B30.20 and OSHA regulations.
Proof loaded per OSHA requirements.
Proof loaded per OSHA requirements.
Additional Info: Headroom: 24.62"
Spread Adjustment Increments: 6" per side
Spread Adjustment Increments: 6" per side
Description

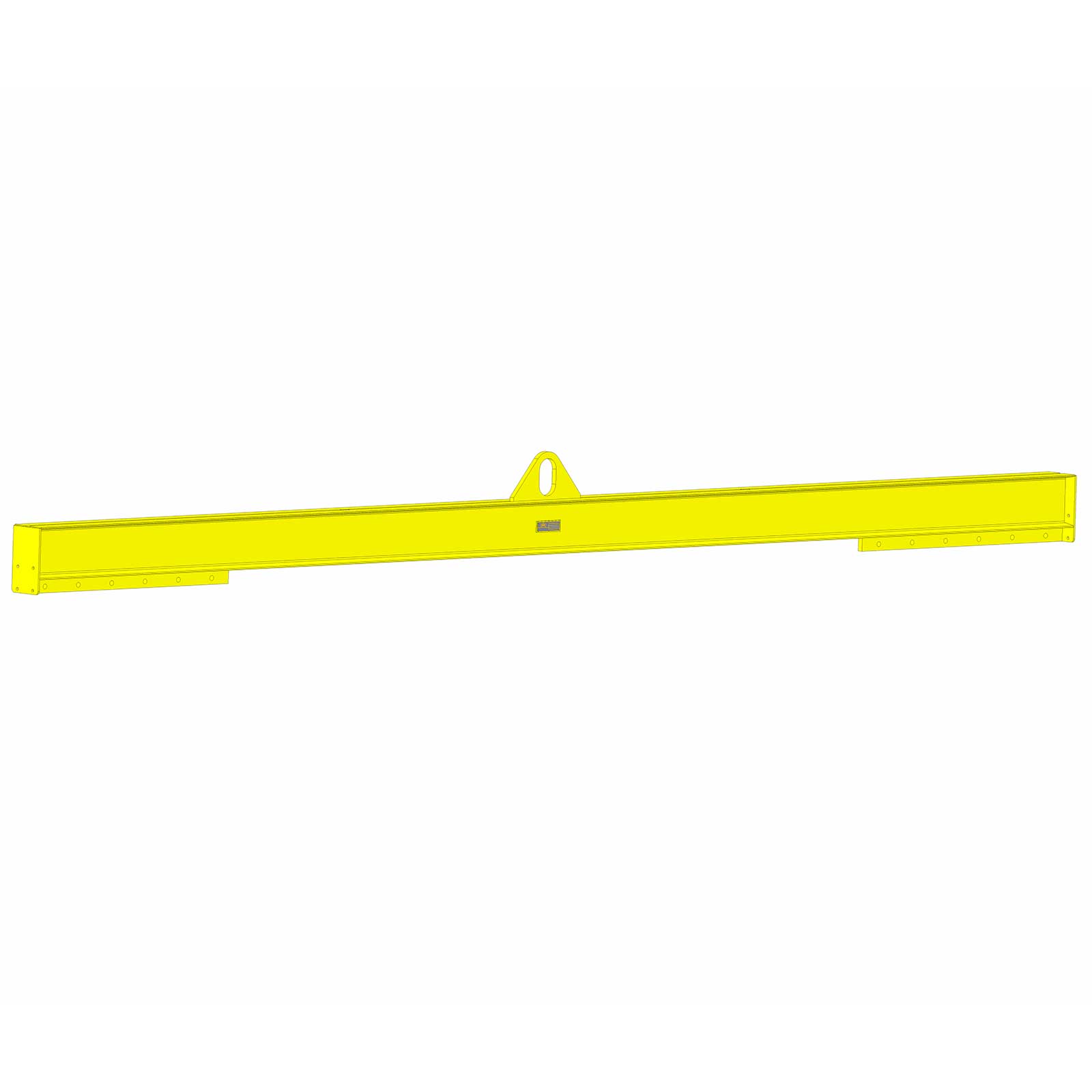

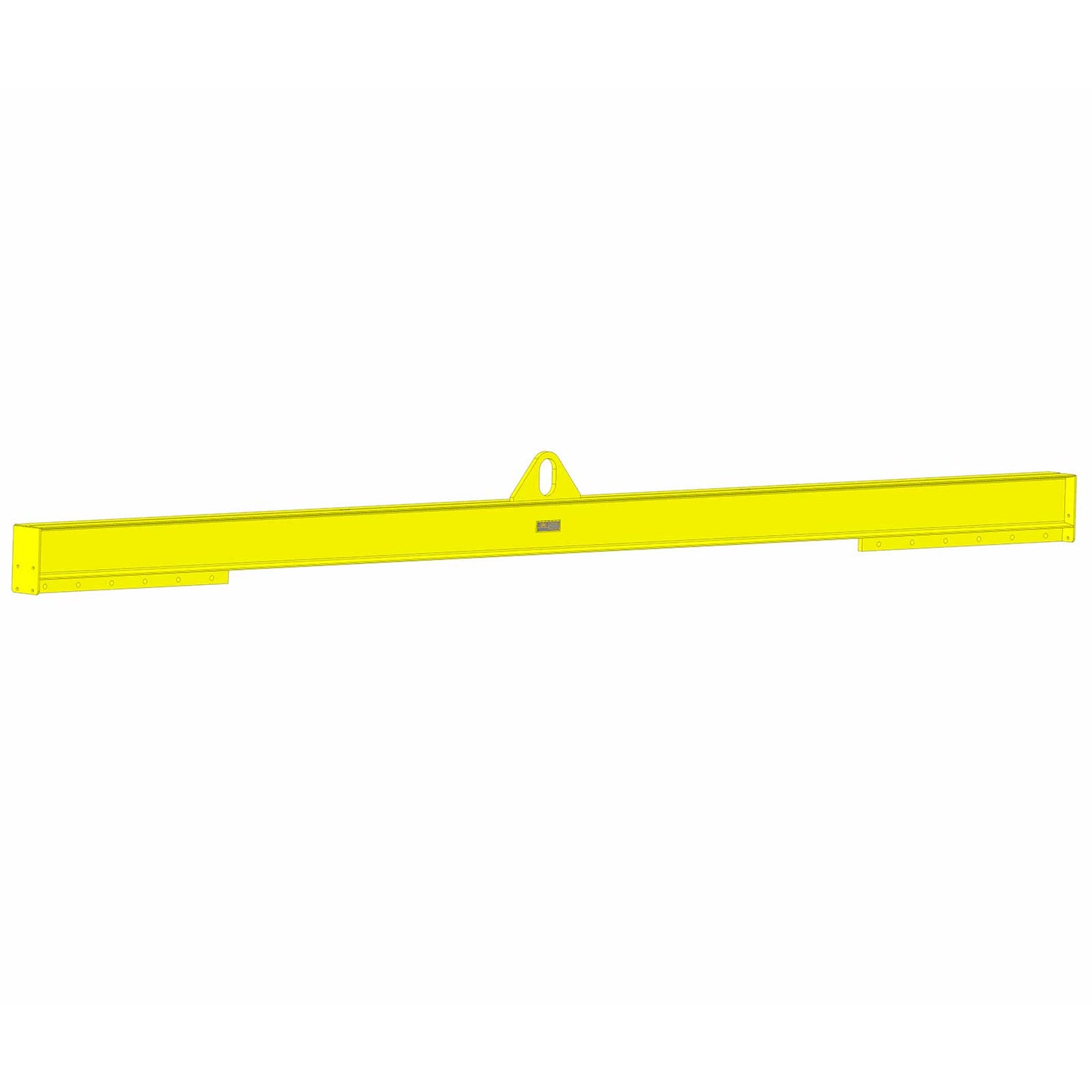

M&W 24512 Low Headroom Lifting Beam - Adjustable
This low-headroom 20' to 25' adjustable lifting beam is designed for confined lifting applications and provides a reliable solution when space is limited. Its adjustable design allows for easy load balancing, while the heavy-duty steel construction with premium welds ensures durability at 10,000 lbs of capacity. The bright yellow powder coat finish allows for superior visibility. Compatible with hooks and shackles to offer versatility for various lifting needs. This beam is Suitable for indoor and outdoor use and can handle demanding lifting operations.
Looking for other adjustable lifting beam options? Check out our full adjustable lifting beam catalog
Looking to add shackles to your order? This product is compatible with7/8" shacklesLifting Beams vs. Spreader Bars
When compared with spreader bars, lifting beams often use a singular center top lifting point that bears most of the load through bending forces and utilizes multiple attachment points underneath. Lifting beams often require less headroom to operate making them better suited for confined spaces.
20' - 25' Low Headroom Lifting Beam Features:
- Made in the USA: Providing premium machined and welded quality that you can trust.
- Individually Proof-Loaded Per OSHA Requirements: Ships with certification paperwork.
- Industry-Compliant: Manufactured to exceed all ASME B30.20 and OSHA regulations.
- High Visibility Durable Powder Coat Finish: Powder coating is more resistant to scratches, chips, and other wear.
- 30-day limited manufacturer's warranty.
Custom Below-The-Hook Lifting Devices
Looking for a custom lifting beam or spreader bar? Get in touch with our product experts today - we'll work with you and an engineer to build the right configuration for you.
Complete Your Rigging Setup
Check out the rest of our rigging and lifting equipment, including lifting beams, shackles, and outrigger pads.
