SKU: WBSS7T-CR
Crosby® Bolt Type Wide Body Shackle | G-2160 - 7 Ton
Crosby® Bolt Type Wide Body Shackle | G-2160 - 7 Ton!
Authorized Distributor
$151.70
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working load limit: 7 tons (Metric) / 15,432 lbs.
Brand part number: 1021256
Finish: Galvanized with painted pin
Inside height: 3.56"
Manufacturer name: Crosby®
Material: Forged Alloy Steel
Mouth width: 1.25"
Pin size: 7/8"
Product weight: 4 lbs.
Safety factor: 4.5:1
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all requirements of ASTM A148M.
Type: Bolt Type Wide Body
Additional Info: Outside width: 4.1"
Description
7 Ton Crosby Wide Body Shackles

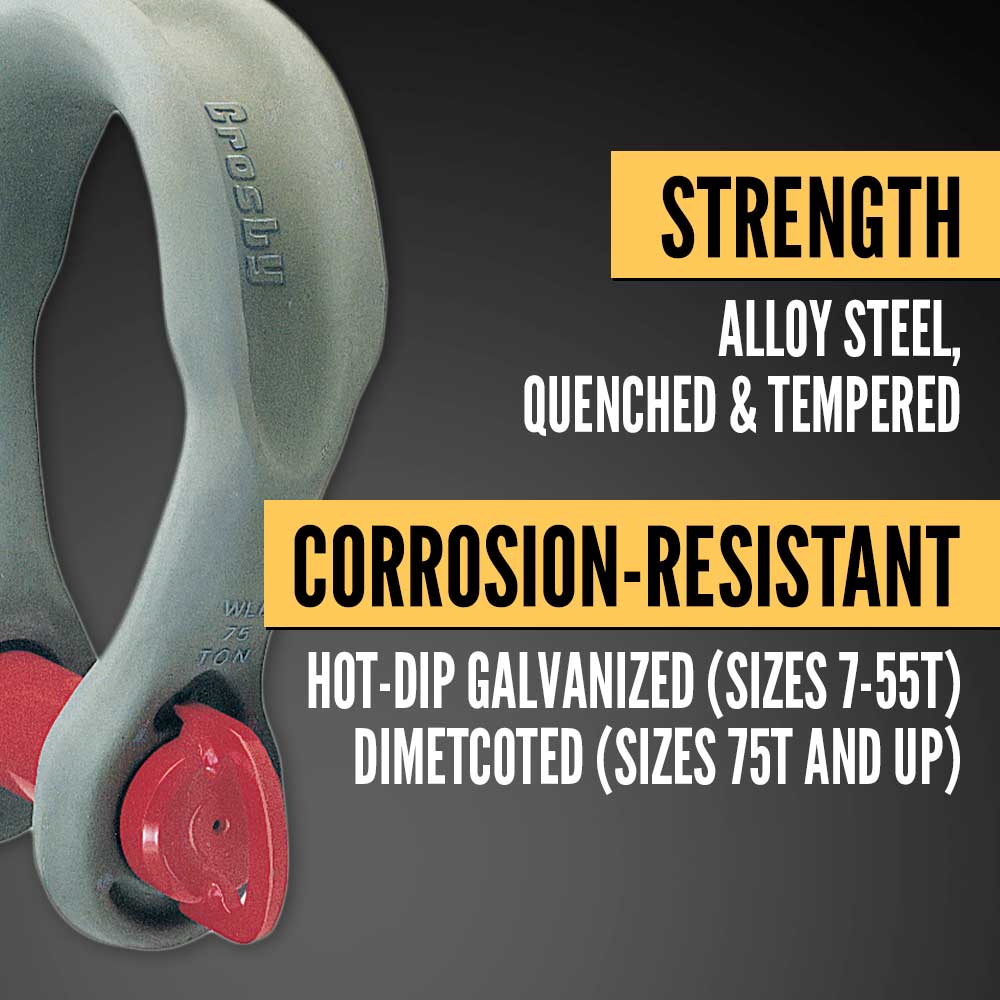

The primary benefit of choosing a G-2160 wide body shackle is the increased bow radius. With at least a 58% increase in sling-bearing surface, the usable sling strength improves by a minimum of 15%! This design also eliminates the need for a thimble. Forged alloy steel components are quenched and tempered for superior strength and the hot dip galvanized finish offers protection from corrosion.
These bolt type shackles are best-suited for more permanent installations - for short-term projects, check out our screw pin wide body shackles.
G-2160 Bolt Type Shackle Testing & Certification
These wide body shackles undergo rigorous testing to ensure they can perform. The bolt and bow are certified to meet Charpy impact testing of 42 Joules (31 ft-lb) min. avg. at -4°F (-20°C), and each shackle is individually proof-tested and magnetic-particle inspected. If you need certification for these, please request this when you place your order.
Additionally, Crosby sling shackles have DNV Type Approval to Rules for Certification of Lifting Appliances and are produced in accordance with DNV MSA requirements.
Crosby Shackle Features
- Pin is non-rotating.
- Compatible with synthetic slings and wire rope slings.
- Temperature use range: -40°F / -40°C to 400°F / 204°C.
Looking for other lifting and rigging products? Our wide selection includes lifting slings, turnbuckles, eye bolts, and more.
