4-3/4" Crosby® Easy-Loc Bolt Type Anchor Shackle | G-2140E - 200 Ton
4-3/4" Crosby® Easy-Loc Bolt Type Anchor Shackle | G-2140E - 200 Ton!
Authorized Distributor
SKU: BTELS434
Authorized Distributor
$12,512.89
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working load limit: 200 tons (Metric) / 440,924 lbs.
Brand part number: 1021475
Finish: Dimetcoted
Inside height: 15.19"
Inside width: 11"
Manufacturer name: Crosby®
Material: Alloy Steel
Mouth width: 7.25"
Pin size: 4-3/4"
Product weight: 458 lbs.
Safety factor: 5:1
Shackle size: 4-3/4"
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all requirements of ASME B30.26, Federal Specification RR-C-271, & ASTM A148M.
Type: Bolt Type Anchor
Description

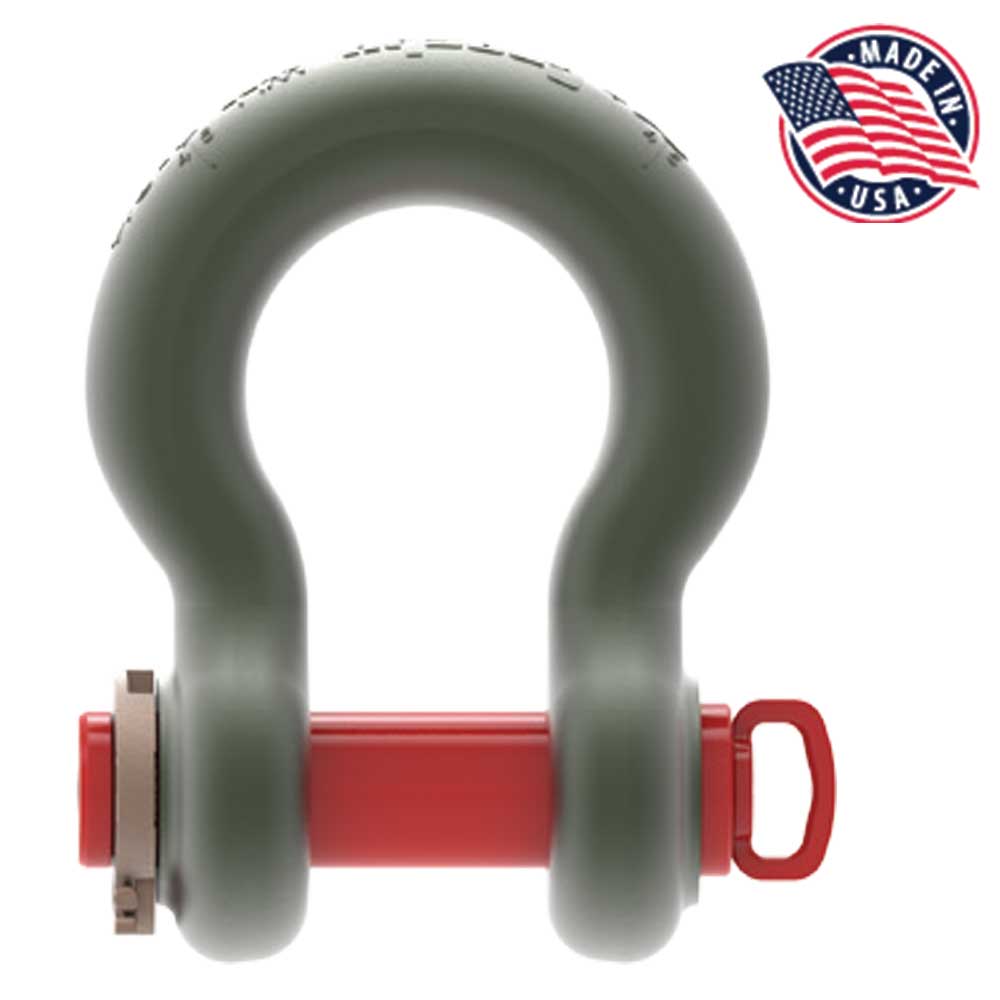

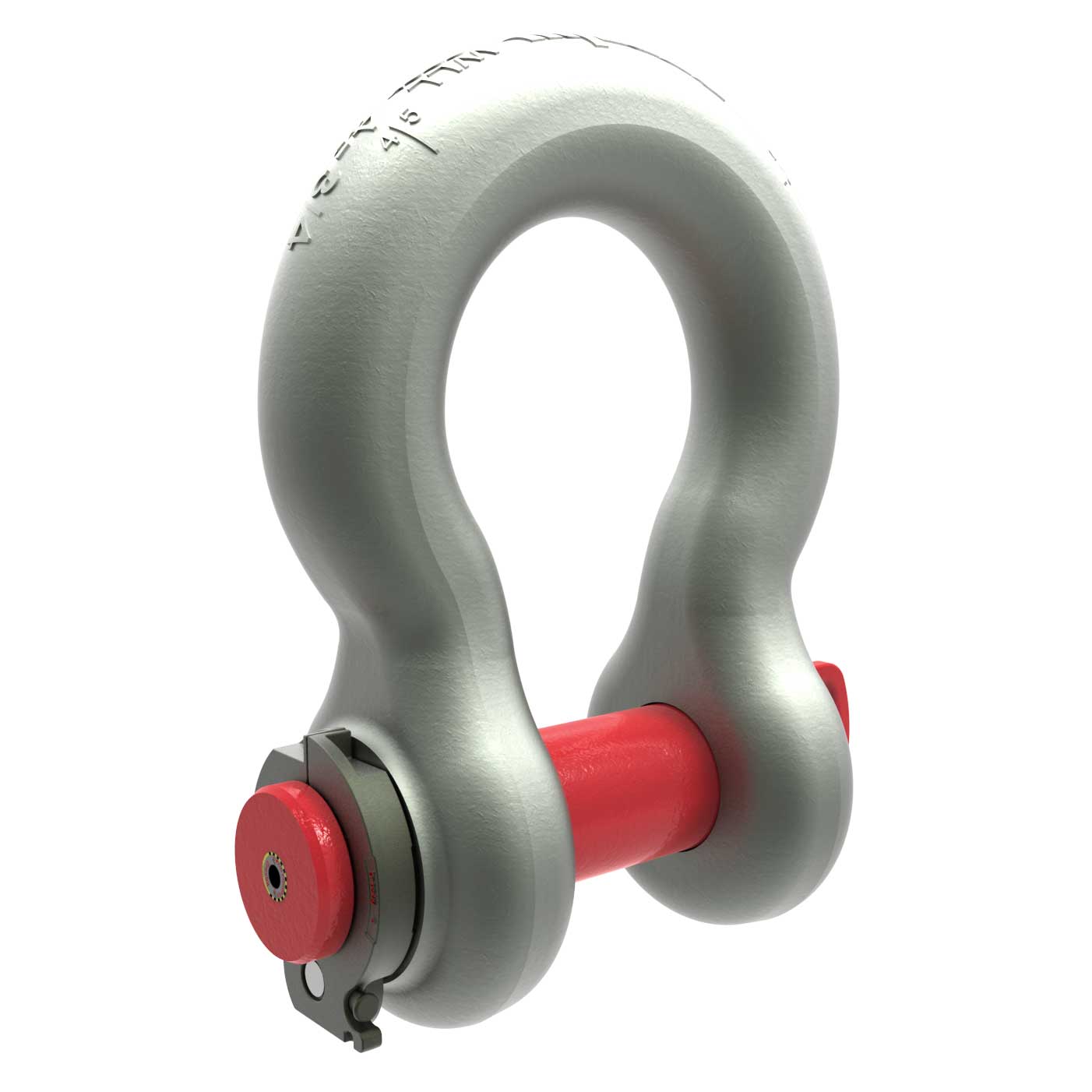

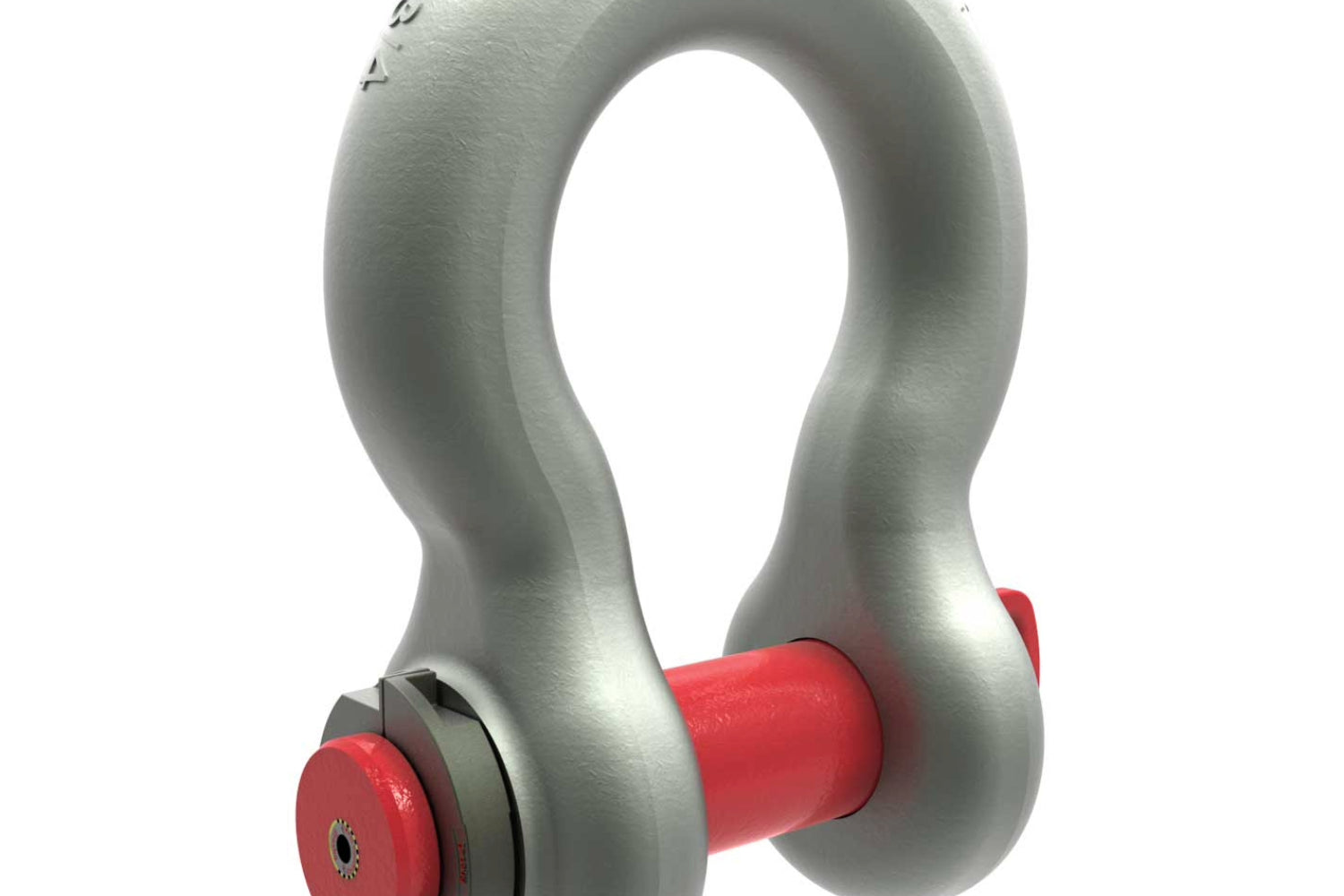

Crosby® 200 Ton Bolt Type Anchor Shackles

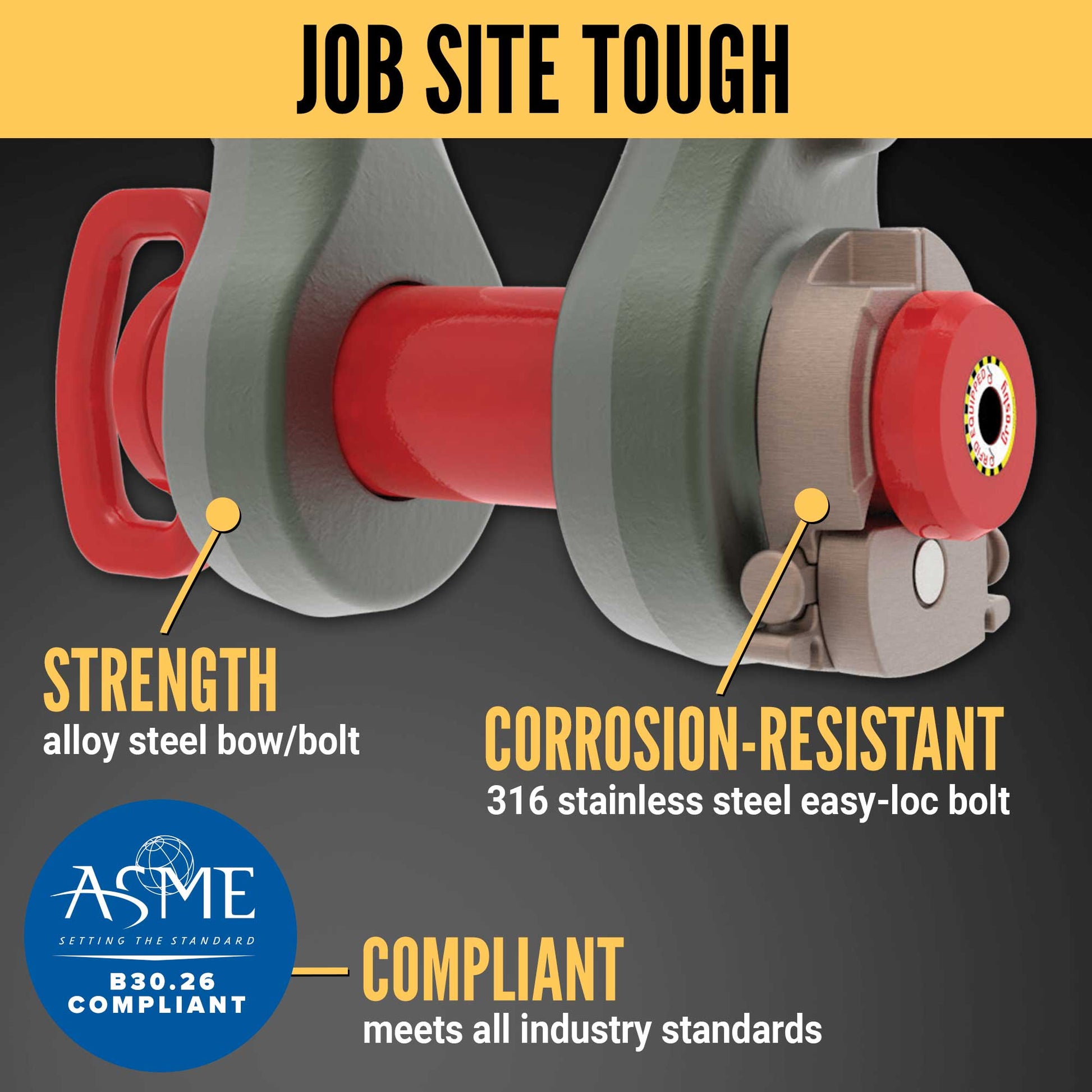

Save time and feel secure with this revolutionary alloy shackle that reduces heavy lift install and release time by as much as 90% by not needing a nut and cotter pin for critical lifts. This Easy-Loc bolt securement system is made from 316 stainless steel to resist corrosion and in many cases can be installed or released using just one hand!
These alloy shackles are quenched and tempered for superior strength and have alloy pins. The rounded bow of anchor shackles allow them to take loads from multiple directions without developing excessive side load. That makes them excellent for connecting slings to load rings, use with wider straps, or use with multiple-leg slings.
G-2140E shackles meet the performance requirements of Grade 8 shackles and are stamped with the working load limit, PIC, and Crosby brand name. They are approved for use at temperatures between -40°F / -40°C and 400°F / 204°C, and can meet DNV impact requirements of 42 Joules (31 ft-lb) at 4°F / -20°C by request.
Why Choose Bolt Type Anchor Shackles?

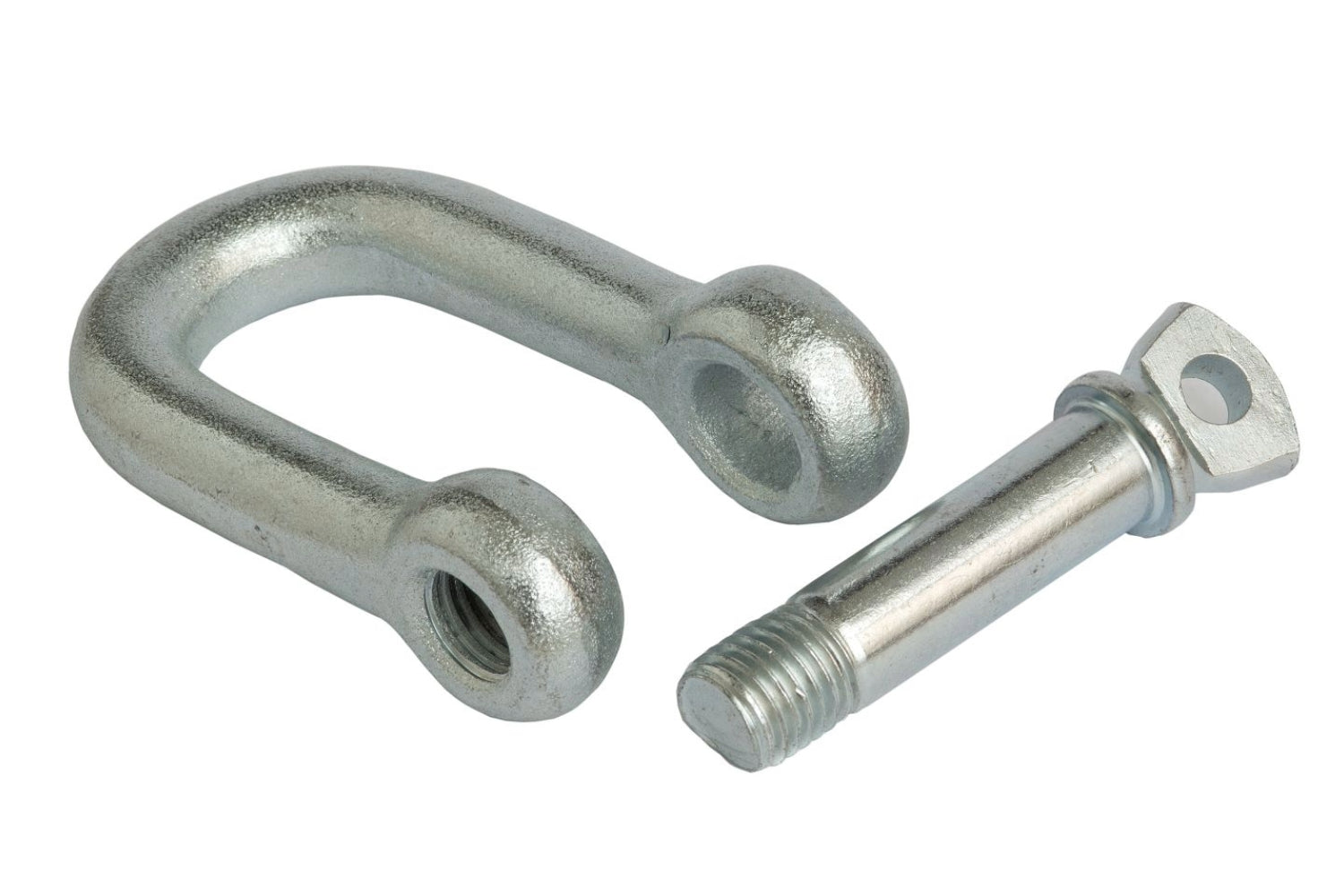

Bolt type anchor shackles are intended for long-term installation or permanent installation, or if there’s a risk of a load sliding on the shackle pin, which can cause it to rotate. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle. Anchor bow shackles have a wider shape than D shaped shackles and are mainly used on multi-leg rigging systems.
G-2140E Shackle Features
- Bolts are Dimetcoted and painted red.
- Certification for ABS 2016 Steel Vessel Rules and 2016 ABS Guide for Certification of Lifting Appliances is available if requested at time of order. May include additional charges.
Looking for other lifting and rigging products? Our wide selection includes lifting slings, turnbuckles, eye bolts, and more.
California Residents: WARNING
Crosby Easy-Loc V2 Shackle Bolt Securement System
-
Save Time & Money
Crosby Easy-Loc shackles can be installed 90% faster than standard bolt shackles, saving you both time and money. The nuts are also 40% lighter than traditional nuts with cotter pins.
-

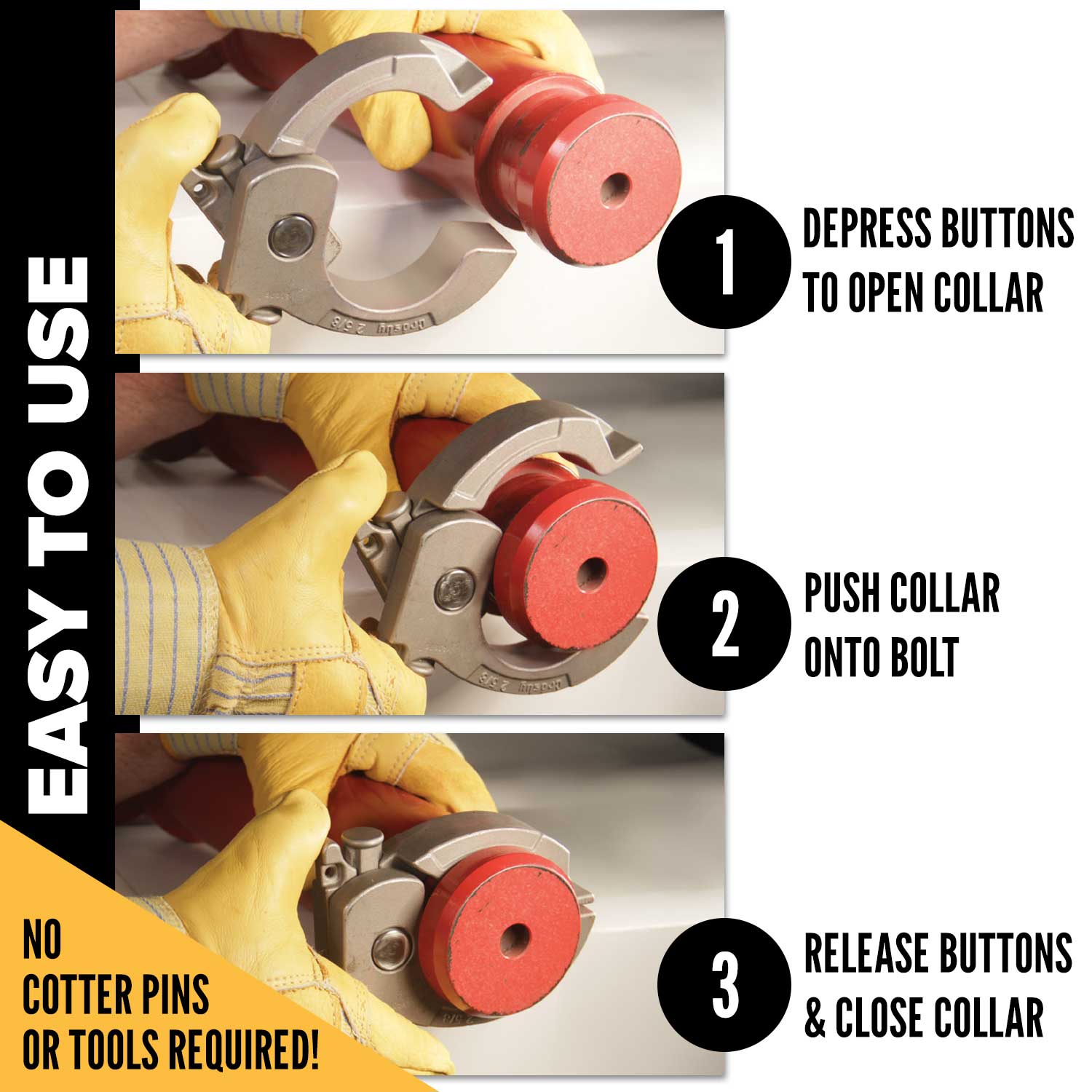

Easy to Use
The innovative bolt securement system can be installed in just 3 easy steps. Simply remove the bolt collar, slide pin in, and engage collar back into place. No tools or cotter pins required.
-

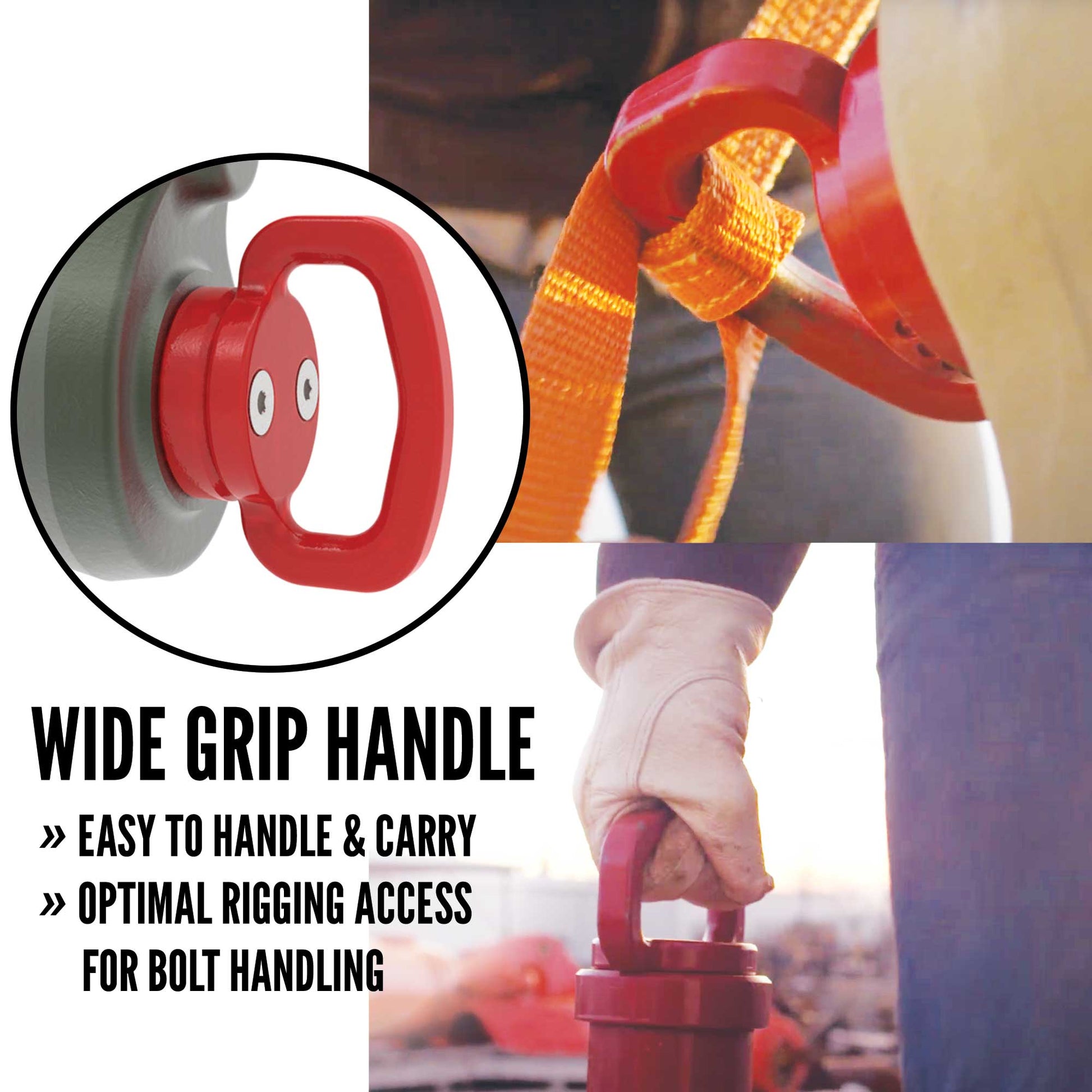

Easy-Carry Handle
The wide-grip, ergonomic handle makes the pin easy to handle and install into the shackle. The oversize design also provides optimal rigging access for bolt handling.
-
