3/4" Crosby® Alloy Screw Pin Anchor Shackle | G-209A - 7 Ton
3/4" Crosby® Alloy Screw Pin Anchor Shackle | G-209A - 7 Ton!
3/4" Crosby® Alloy Screw Pin Anchor Shackle | G-209A - 7 Ton
3/4" Crosby® Alloy Screw Pin Anchor Shackle | G-209A - 7 Ton!
Specifications
Specifications
- Working load limit: 7 tons (Metric) / 15,432 lbs.
- Inside width: 2"
- Mouth width: 1.25"
- Finish: Galvanized
- Safety factor: 5:1
- Manufacturer name: Crosby®
- Brand part number: 1017538
- Inside height: 2.81"
- Pin size: 7/8"
- Shackle size: 3/4"

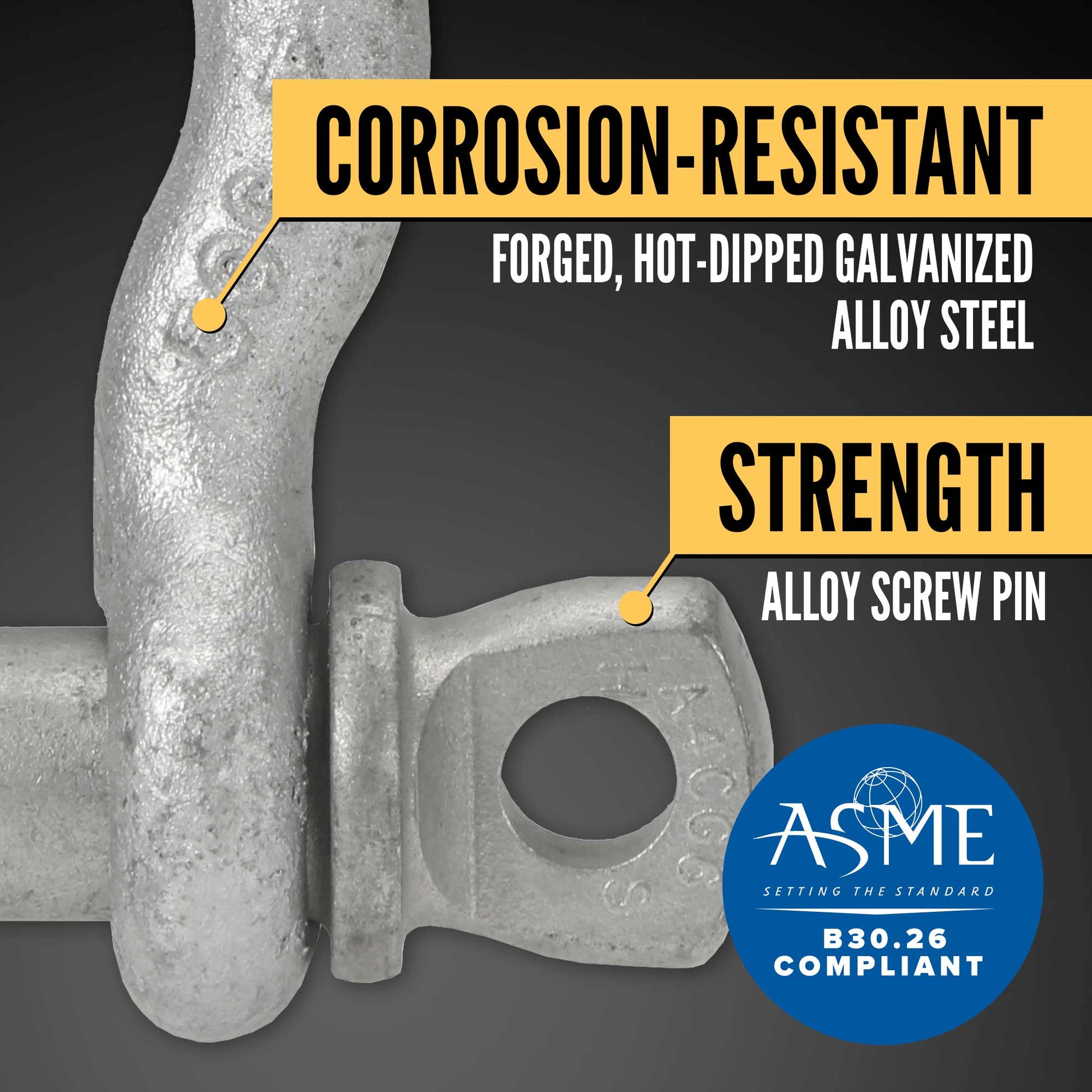

- Standards: Meets or exceeds all requirements of ASME B30.26 and Federal Specification RR-C-271.
- Type: Screw Pin Anchor
- Material: Alloy Steel
- Product weight: 2.4 lbs.
- Shipping & Returns: This item cannot be returned due to safety risks associated with used materials.
Description
Description

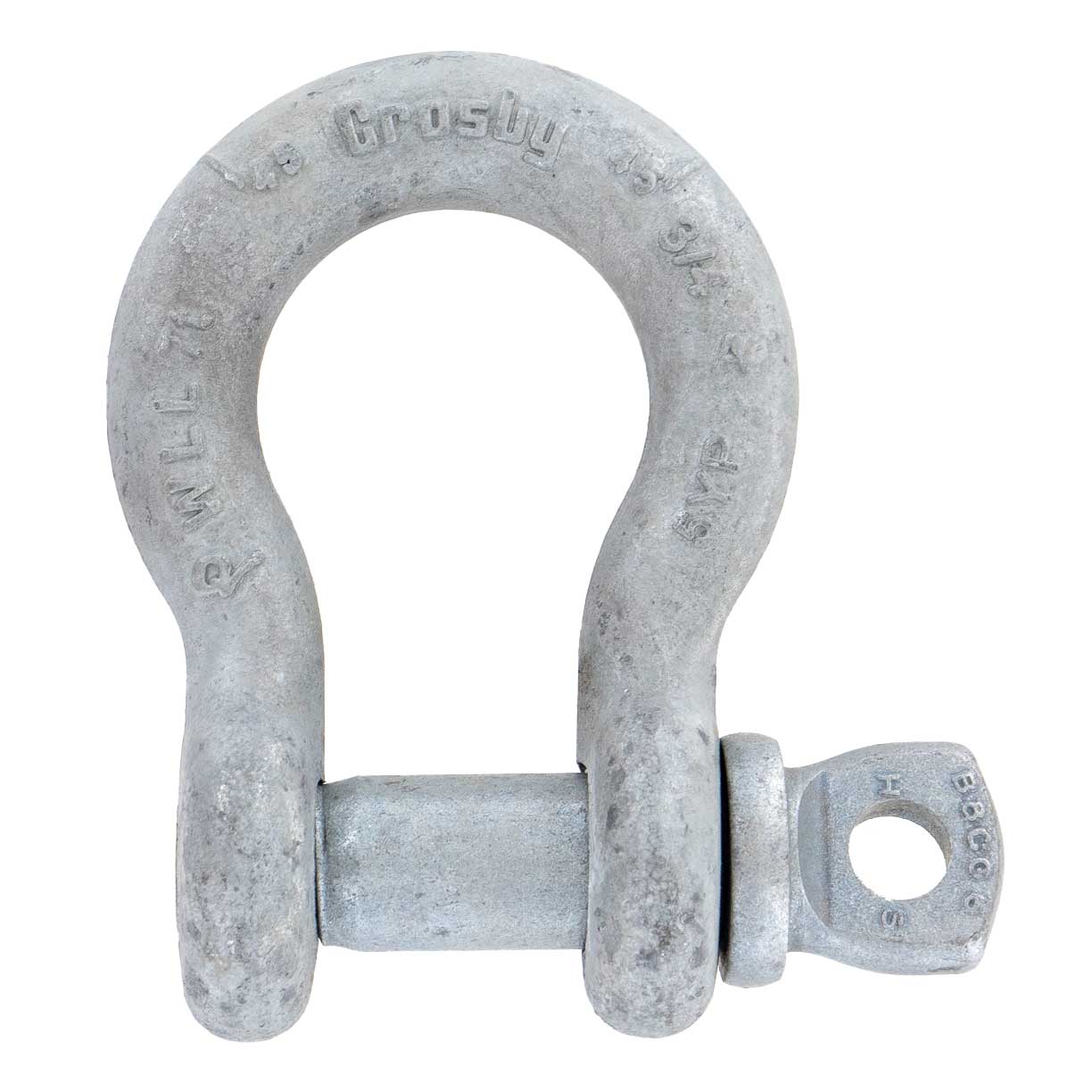

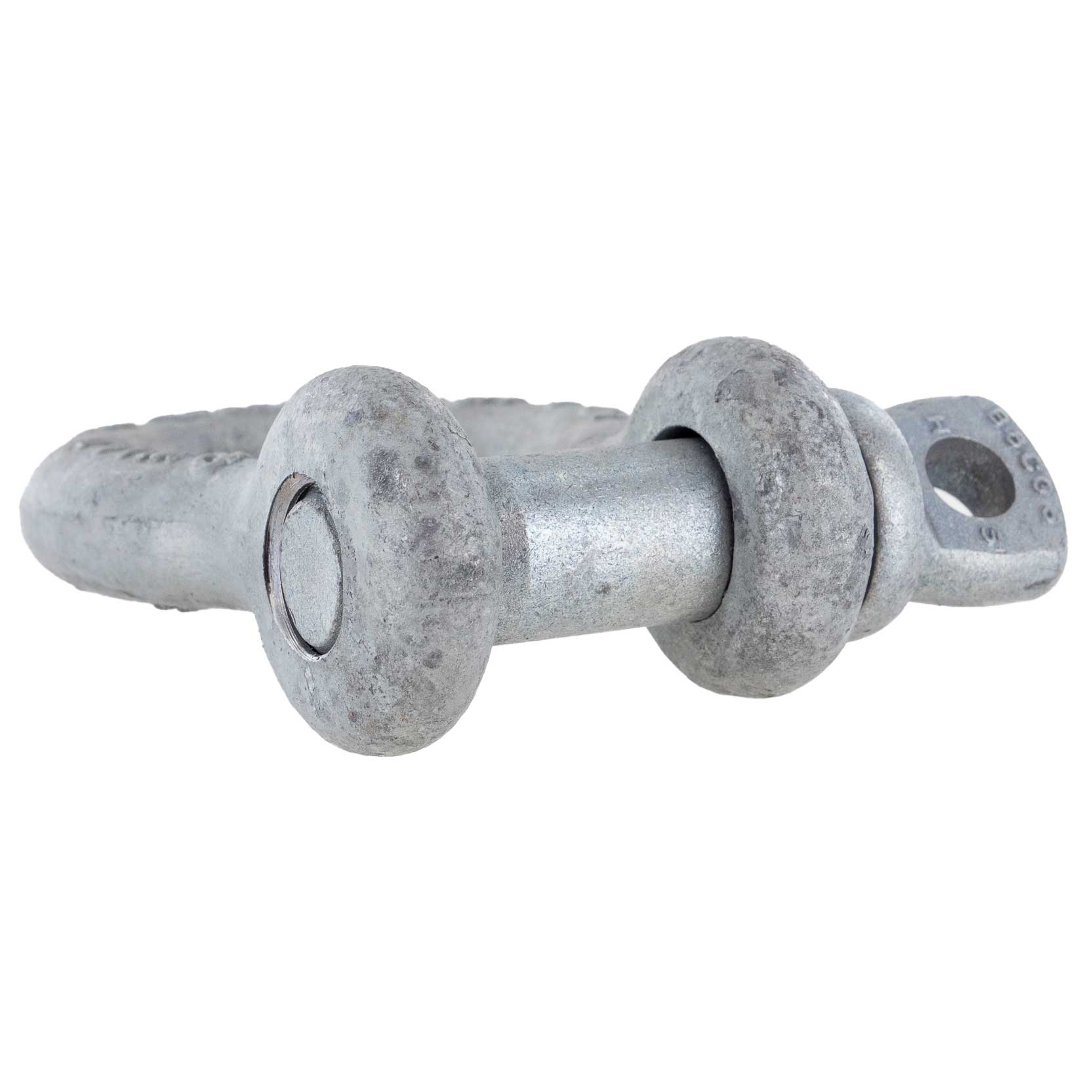

Crosby® 7 Ton Screw Pin Anchor Shackles

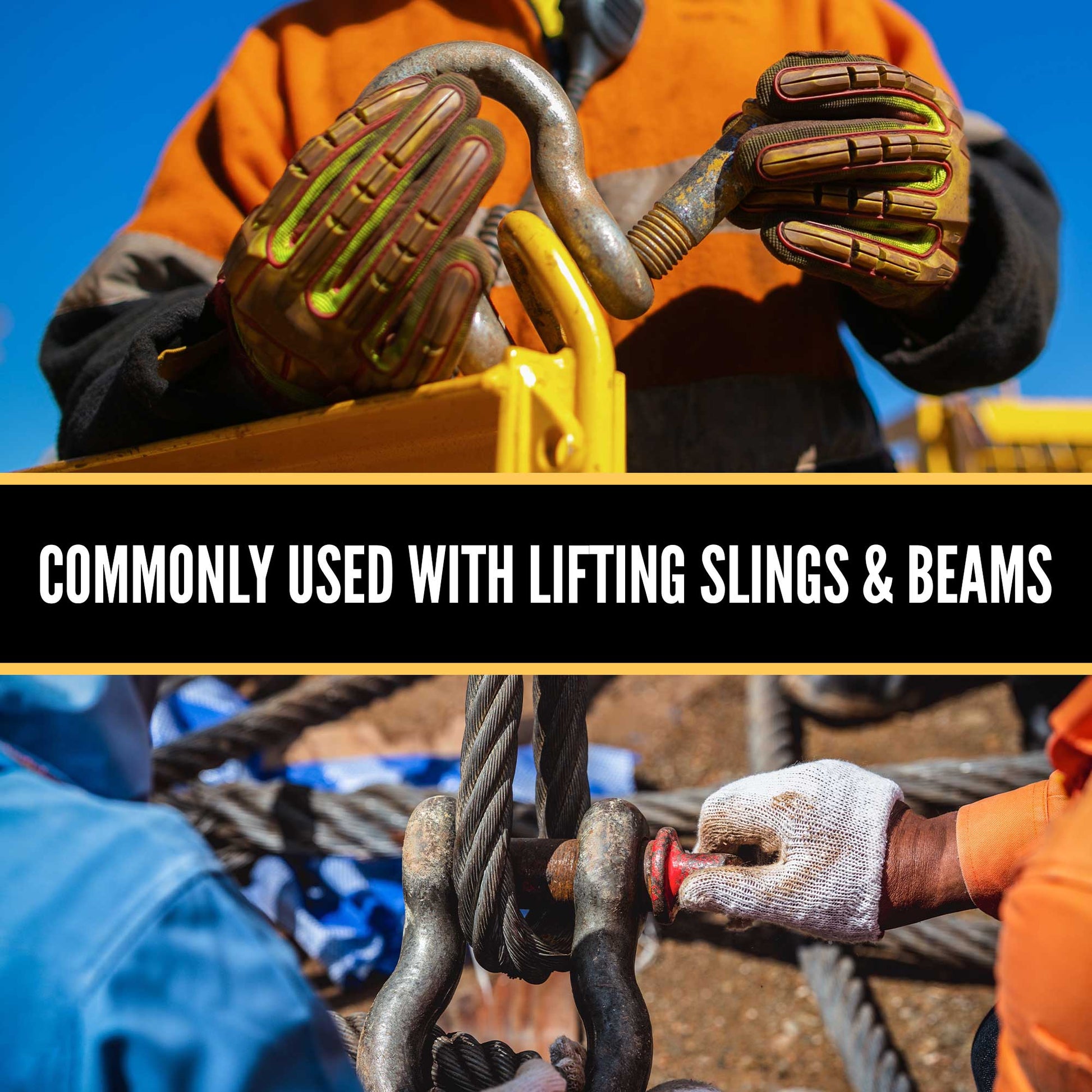

Anchor shackles have a rounded shape, which allows them to take loads from many directions without developing significant side load. That makes them ideal for use with multiple-leg slings, connecting slings to load rings, and accommodating a wider strap. The screw pin configuration works great in applications that are temporary, or require repeated and/or quick connections and disconnections.

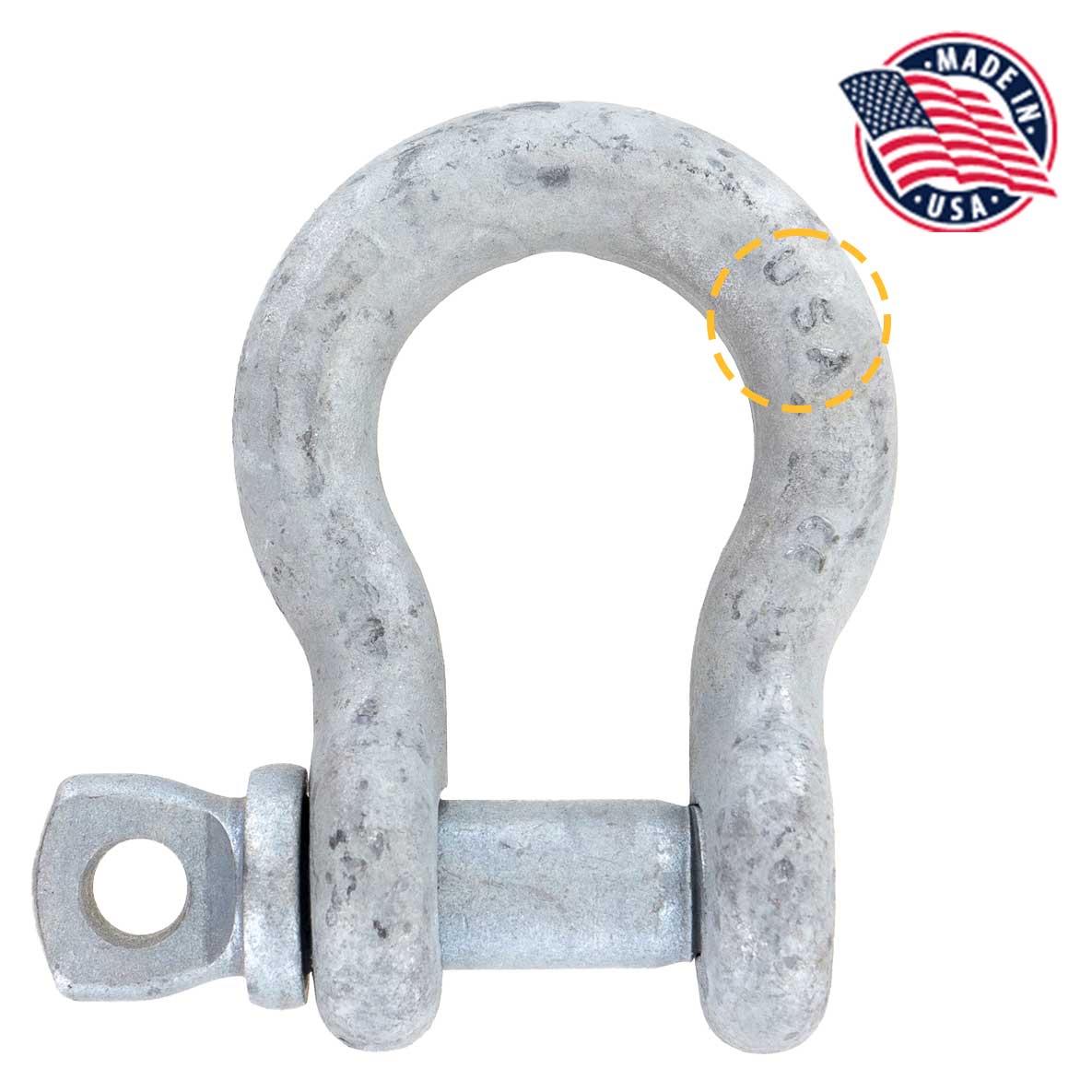

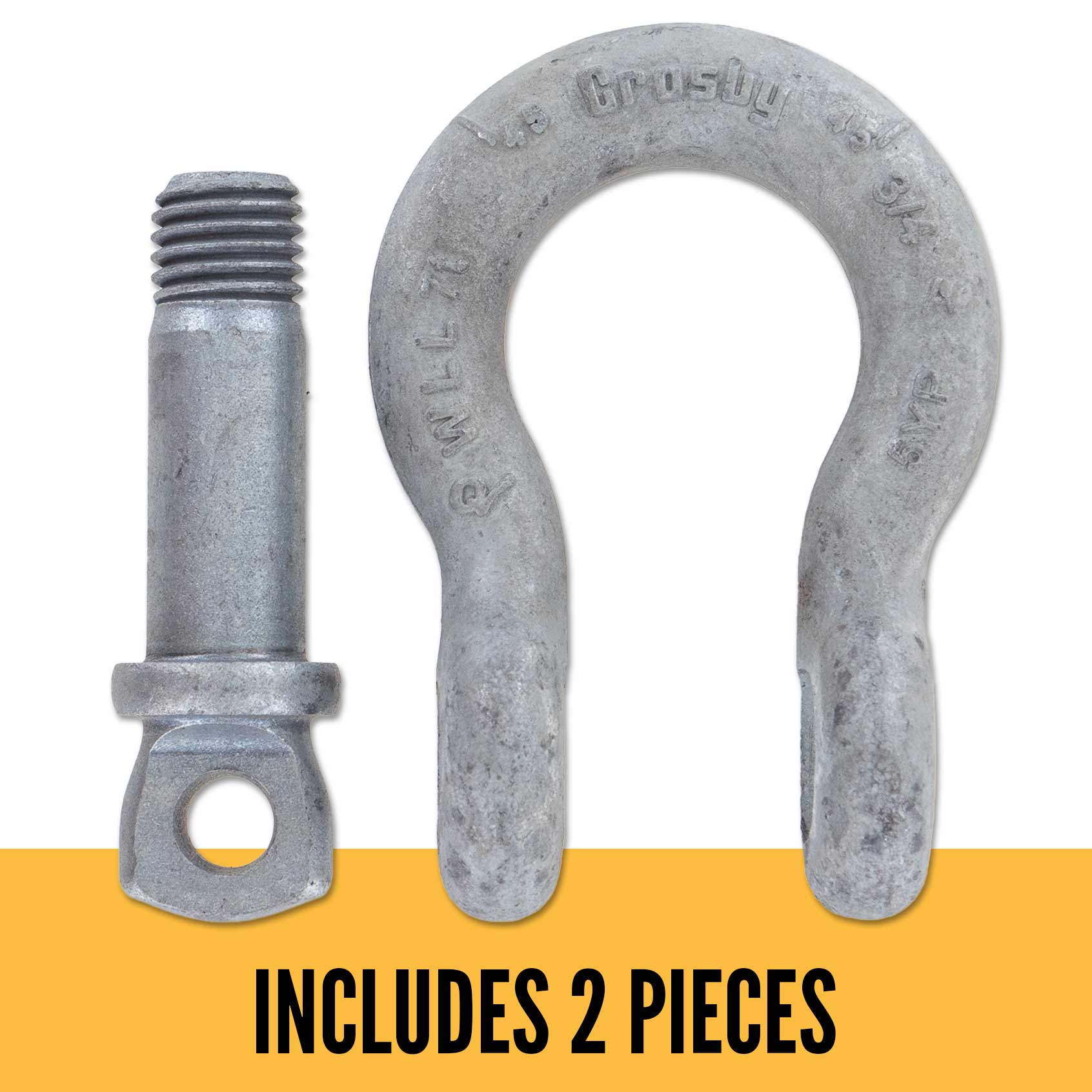

The USA-made Crosby alloy steel shackle is quenched and tempered for superior strength and comes with an alloy pin.
This screw pin anchor shackle is designed to perform. They can be furnished with proof-testing certificates to designated standards, such as DNV, ABS, Lloyds, etc. If you want this certification, please call to order and request the applicable testing.
G-209A Shackle Features

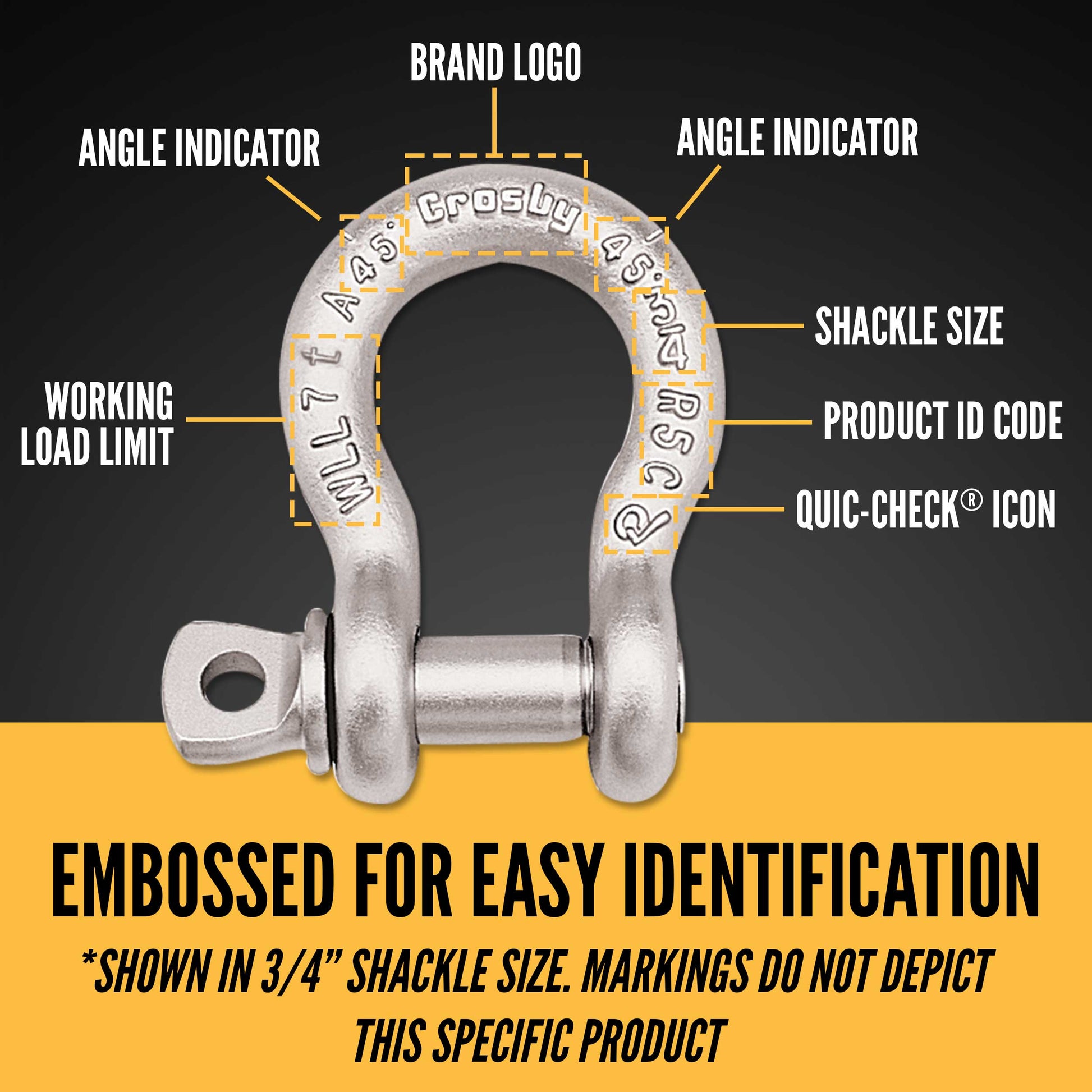

- Working load limit, PIC, and Crosby name on every shackle.
- Meets performance requirements of Grade 8 shackles.
Looking for other lifting and rigging products? Our wide selection includes lifting slings, turnbuckles, eye bolts, and more.
California Residents: WARNING
Reviews + Q&A
Reviews + Q&A
Nice shackle. Works as it should. Worth the coin considering the load capacity for such a small shackle. Don't buy a cheap one and regret it when it breaks. Spend the extra money and get this quality shackle.
