Working load limit: 13.5 tons (Metric) / 29,762 lbs.
Brand part number: 1018231
Finish: Galvanized
Inside height: 5.25"
Inside width: 3.63"
Manufacturer name: Crosby®
Material: Carbon Steel Shackle
Alloy Pin
Mouth width: 2.25"
Pin size: 1-1/2"
Product weight: 13.3 lbs.
Safety factor: 6:1
Shackle size: 1-3/8"
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all requirements of Federal Specification RR-C-271 & ASTM A148M.
Type: Round Pin Anchor

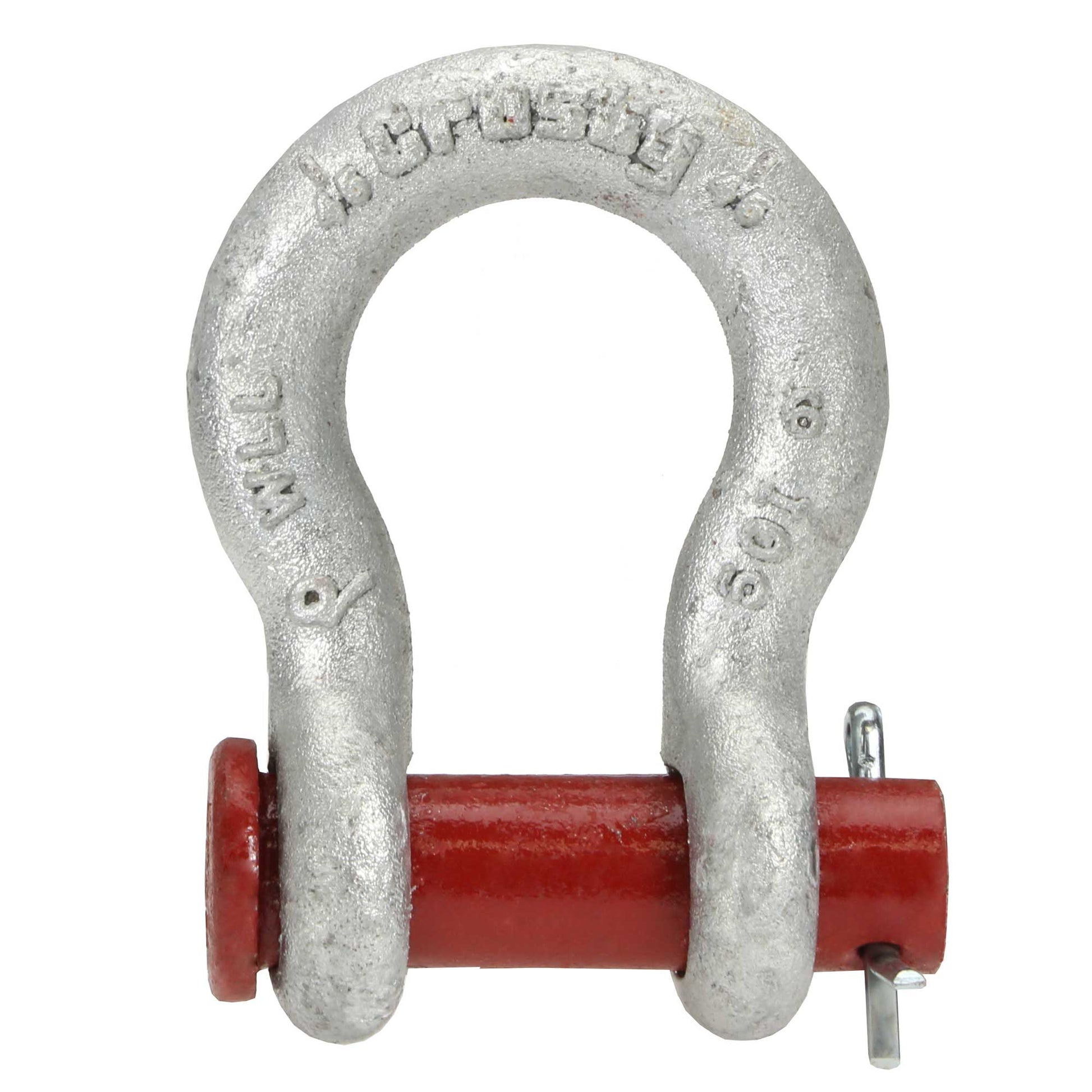

Crosby® 13.5 Ton Round Pin Anchor Shackles

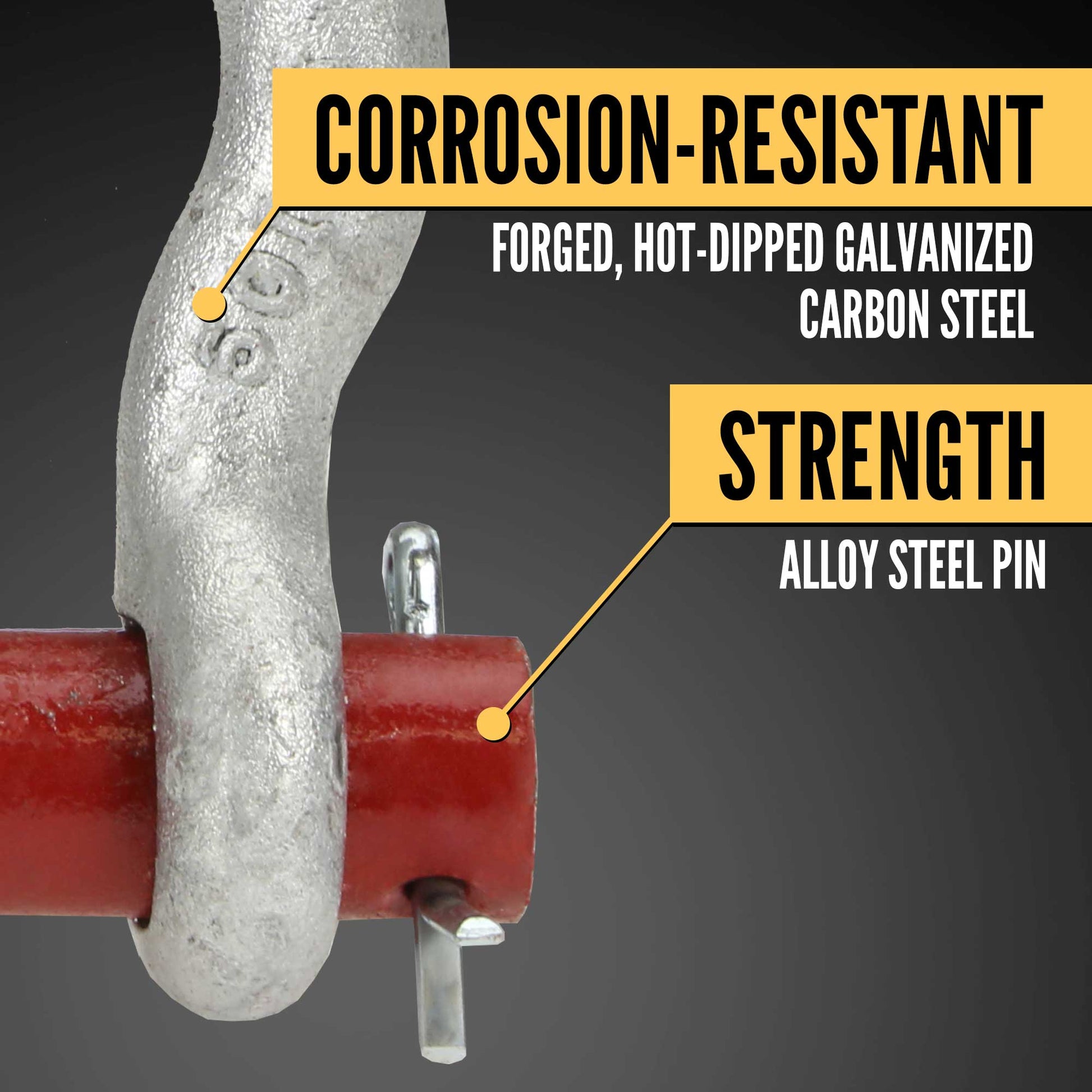

Crosby® anchor shackles are made in the USA with forged, hot dipped galvanized steel to resist corrosion. Alloy pins add strength.
This round pin anchor shackle is designed to perform. They can meet DNV impact requirements of 42 Joules (31 ft-lb) at 4°F / -20°C upon request, and can be furnished with proof-testing certificates to designated standards, such as DNV, ABS, Lloyds, etc. If you want this certification, please call to order and request the applicable testing.
Why Choose Round Pin Anchor Shackles?

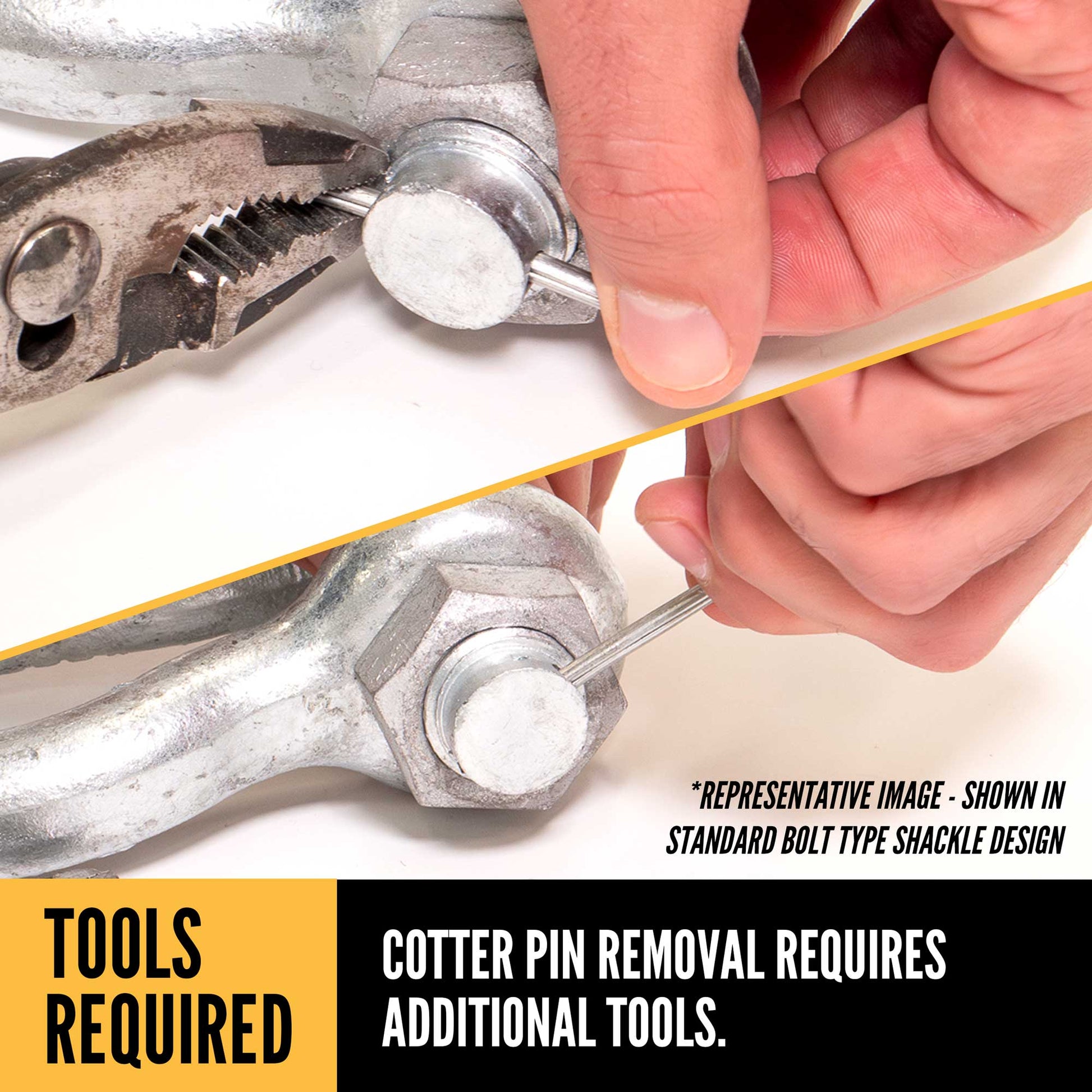

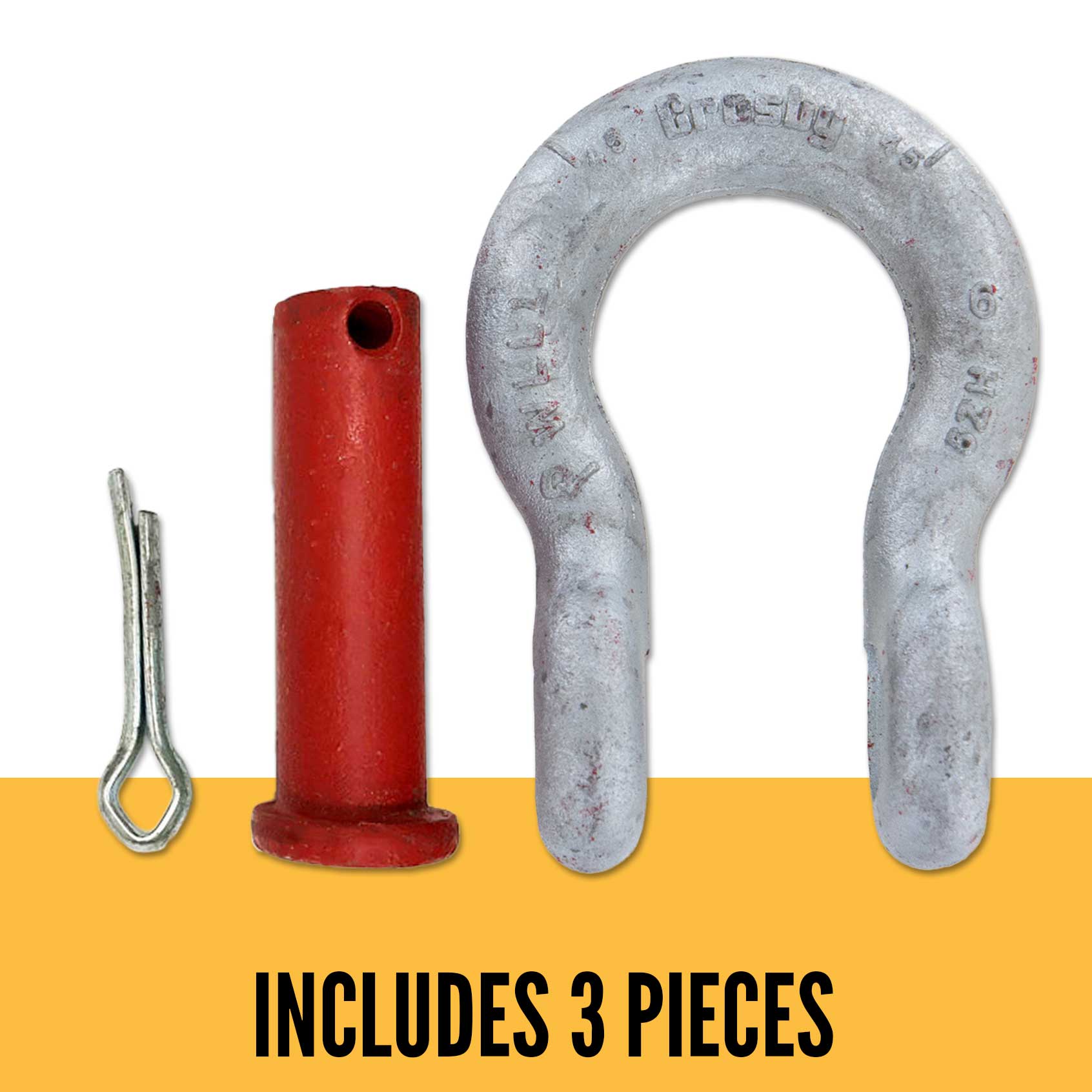

Round pin anchor shackles are a good option for applications where the pin may be subjected to torque or twisting, but not for situations where it will be subjected to an axial load. The rounded bow allows for loads from multiple directions without developing excessive side load. Excellent for connecting slings to load rings, or for use with wider straps or multiple-leg slings. Anchor bow shackles have a wider shape than D shaped shackles and are mainly used on multi-leg rigging systems. A round pin secures with a removeable cotter pin.
G-213 Shackle Features

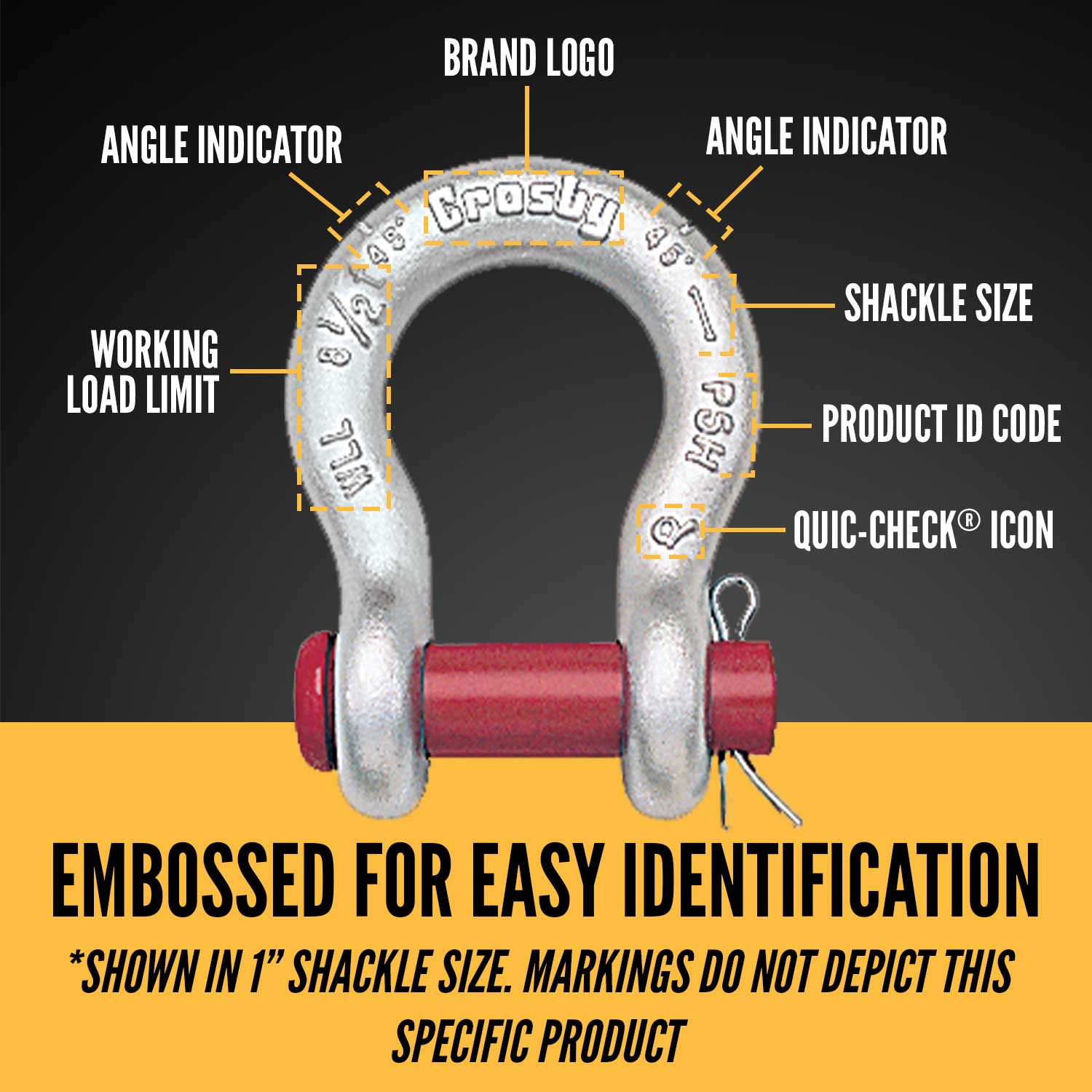

- Working load limit, PIC, and Crosby name on every shackle.
- Fatigue rated to 20,000 cycles at 1-1/2 times the WLL.

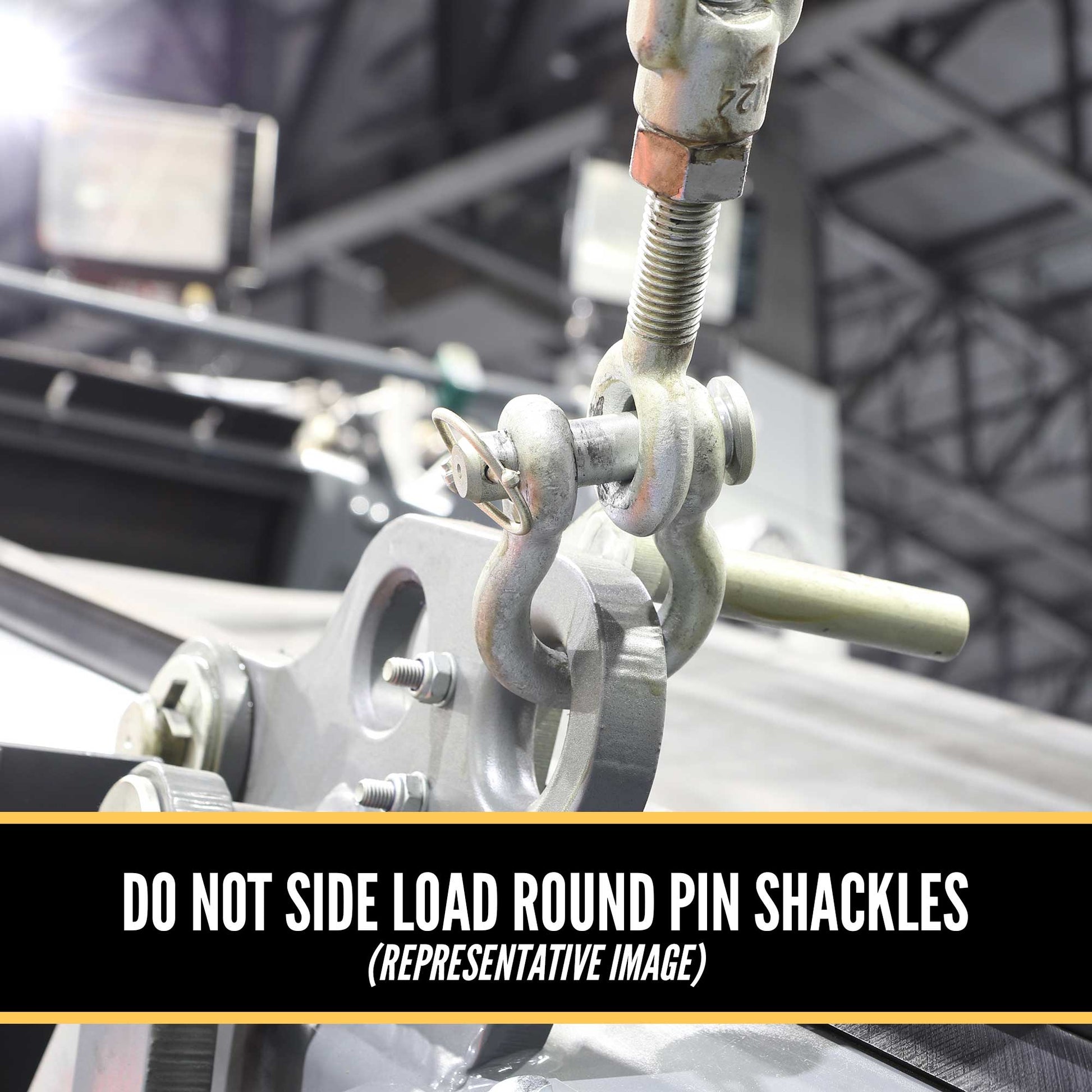

- Do not side load.
Looking for other lifting and rigging products? Our wide selection includes lifting slings, turnbuckles, eye bolts, and more.
