SKU: SSSEB58X6

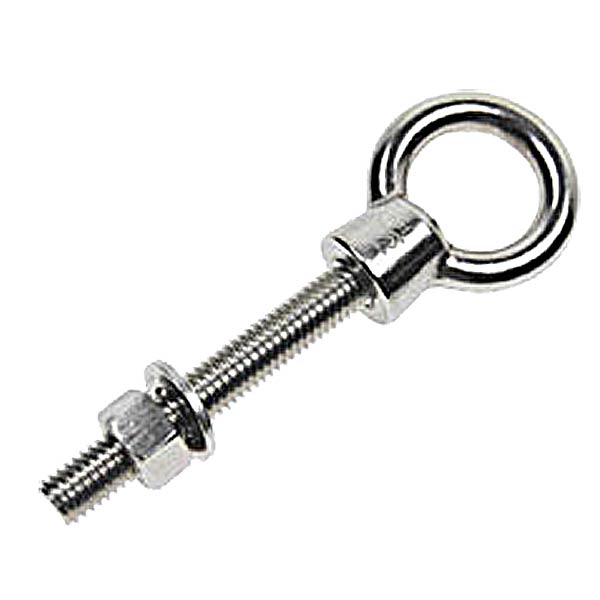

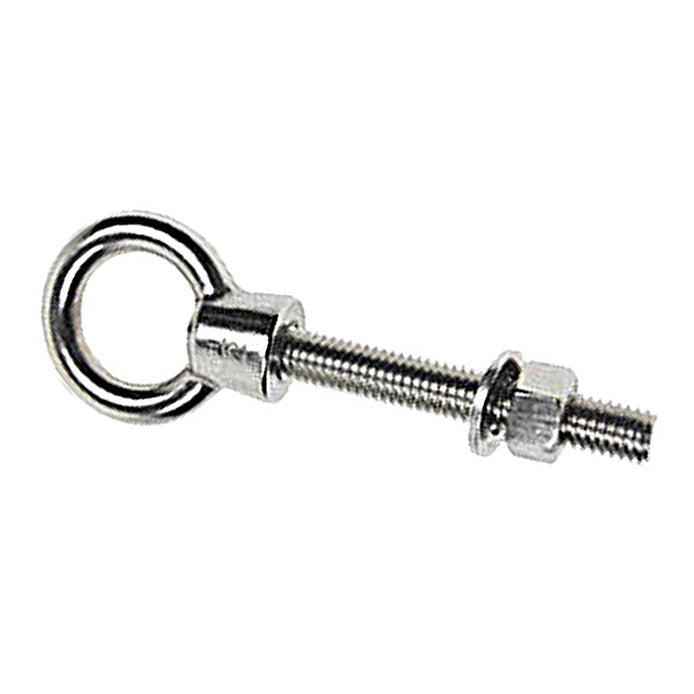

5/8" x 6" Stainless Steel Shoulder Eye Bolts Precision Cast T316
5/8" x 6" Stainless Steel Shoulder Eye Bolts Precision Cast T316!
$29.69
Get 10+
$28.80/ea
Get 50+
$27.91/ea
Get 100+
$26.73/ea
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Assembly break strength: 12,800 lbs.
Diameter: 5/8"
Grade: 316 Stainless Steel
Working load limit: 3,200 lbs.
Material: Steel
Overall length: 8.83"
Product weight: 1.1 lbs.
Safety factor: 4:1
Shank Length: 6"
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds ASTM F541 & ASME B18.15 requirements.
Additional Info: Overall width: 2.34"
Description
Made of type 316 stainless steel, these shoulder eye bolts are commonly used on boats or docks as a tie down loop, since they have great corrosion and oxidation resistance. Their low maintenance and luster also make them popular for architectural applications. Shoulder eyebolts can be used for either straight line or angular lifts, since the shoulder helps support the load as it pulls at an angle. The eyes of the steel eye bolt can accomodate wire rope, shackles and other rigging supplies.
Includes eye bolt, nut and washer.
Please Note: Loading at an angle will significantly reduce a bolt's rated capacity; a 45 degree angle reduces it to just 1/4 of the stated rating. Never load at an angle greater than 45 degrees from the bolt center line.
