SKU: CGH51670
5/16" Clevis Grab Hook | Grade 70
5/16" Clevis Grab Hook | Grade 70!
SKU: CGH51670
$3.73
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Assembly break strength: 18,800 lbs.
Grade: 70
Working load limit: 4,700 lbs.
Chain size: 5/16"
End fitting: Clevis Grab Hook
Finish: Yellow Zinc Chromate
Material: Carbon Steel
Product weight: .8 lbs.
Rated for Overhead Lifting: No
Safety factor: 4:1
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Description

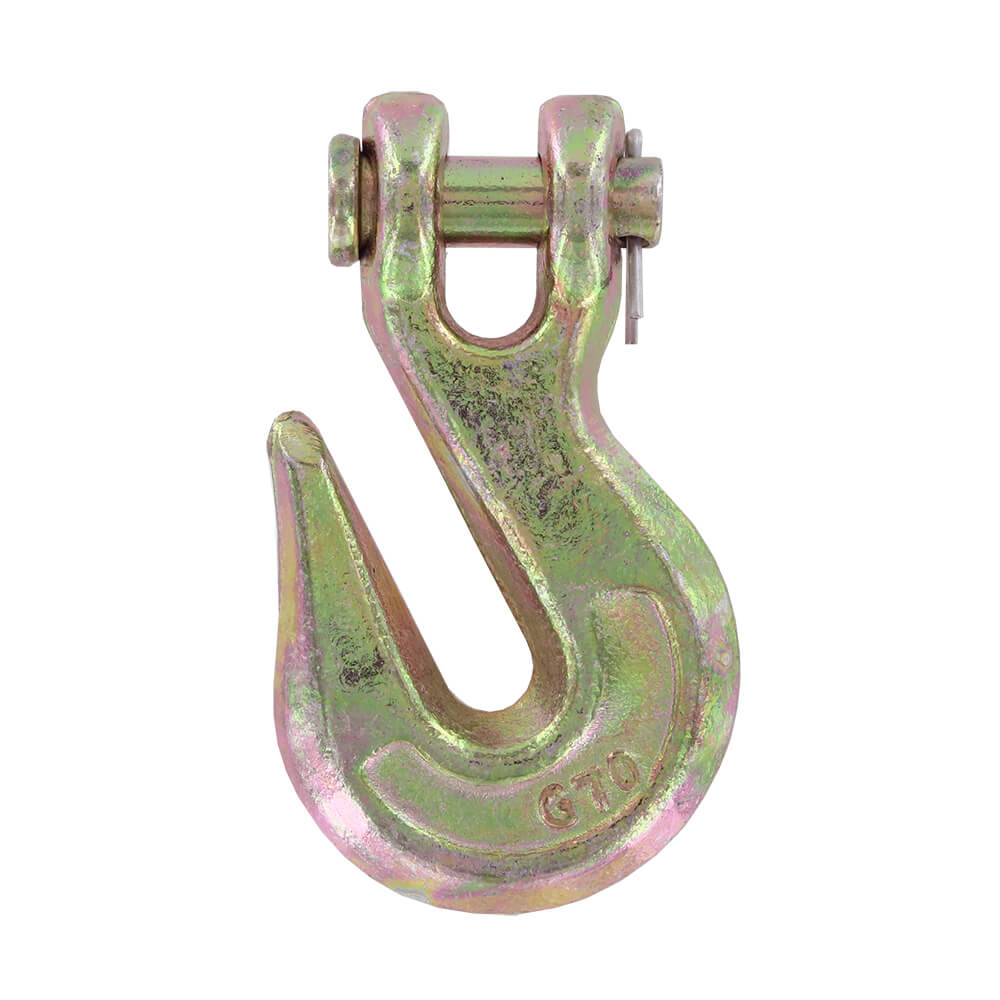

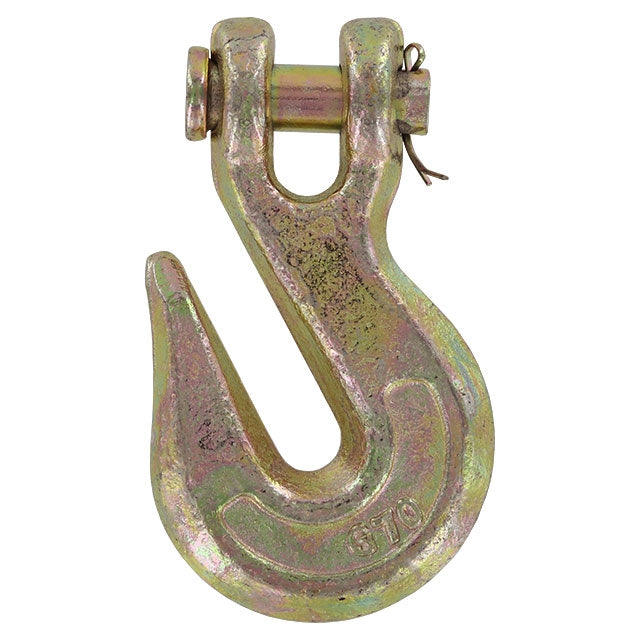

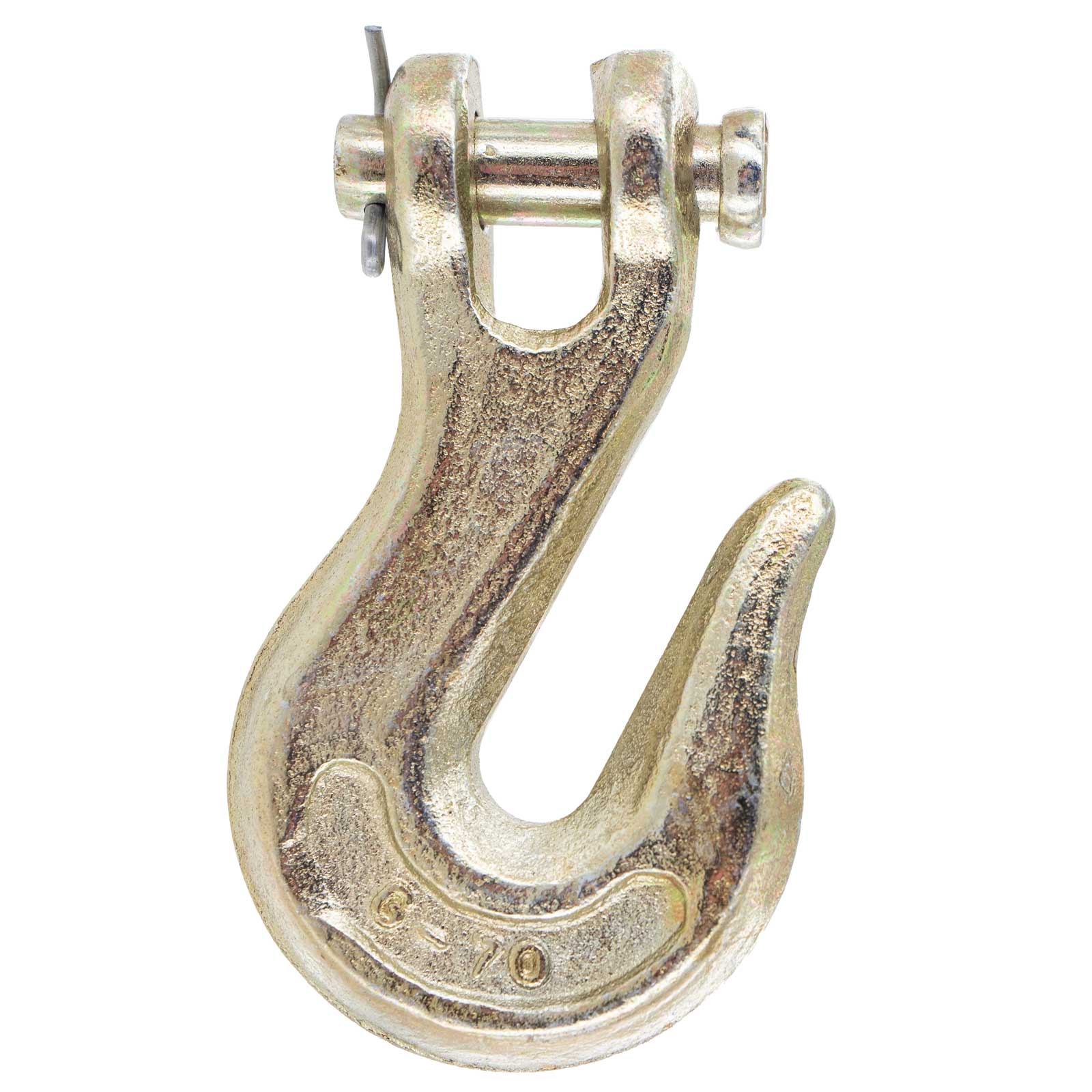

Grade 70 5/16" Clevis Grab Hook

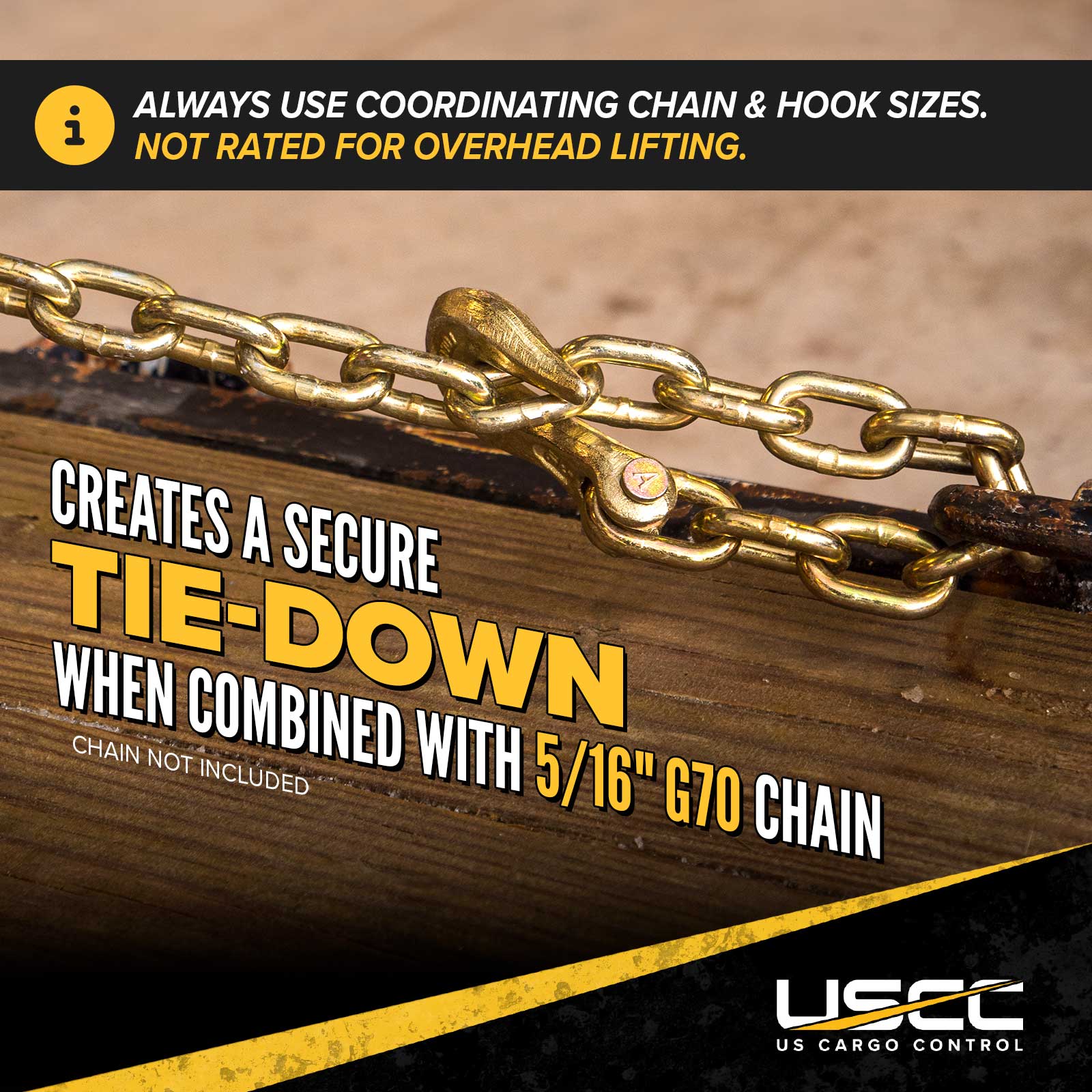

Grade 70 transport chain is the most popular option for tying down loads on a flatbed or other trailer. This grab hook, when combined with G70 chain, creates a secure tie down that can get your cargo where it needs to go safely.
5/16" Chain Grab Hook Construction

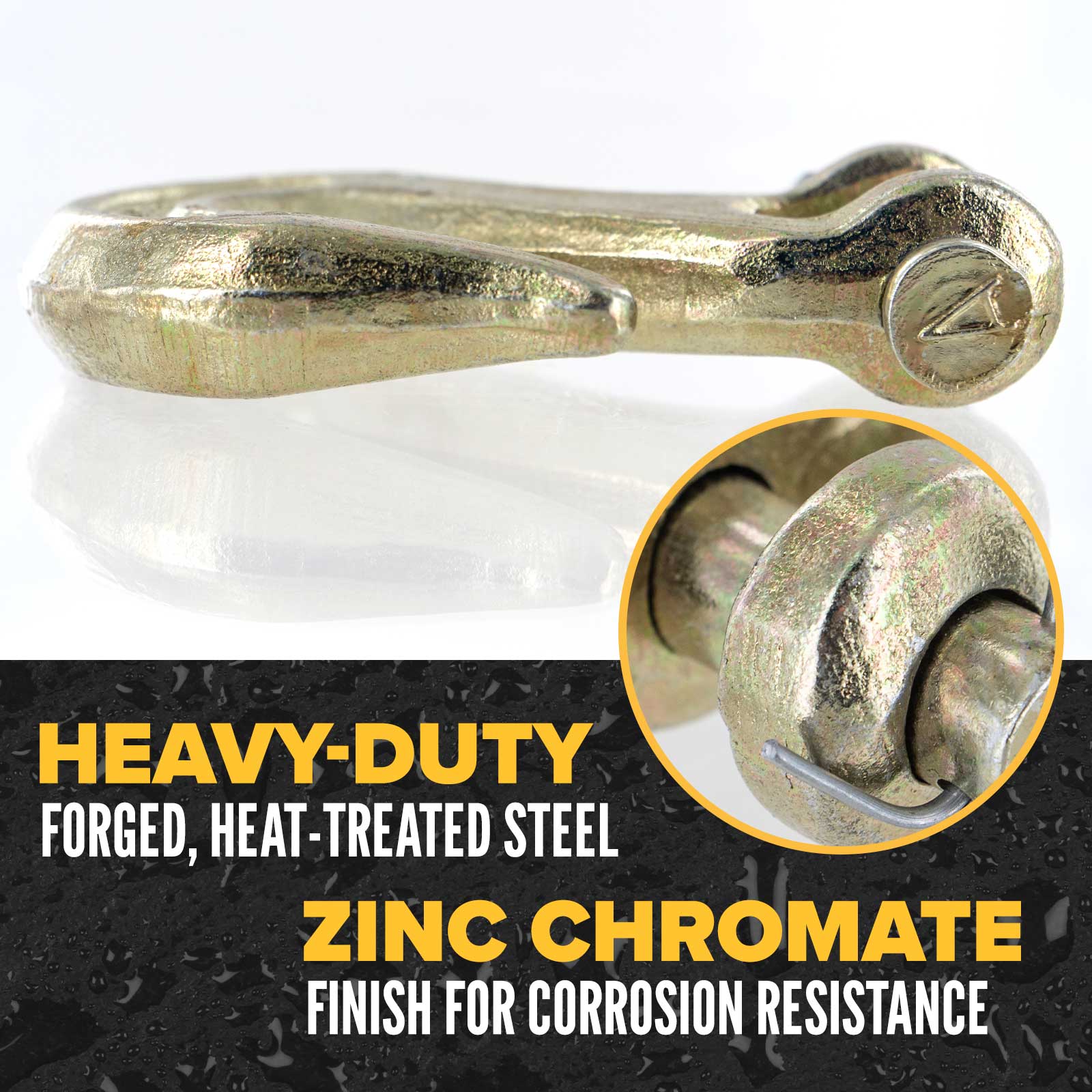

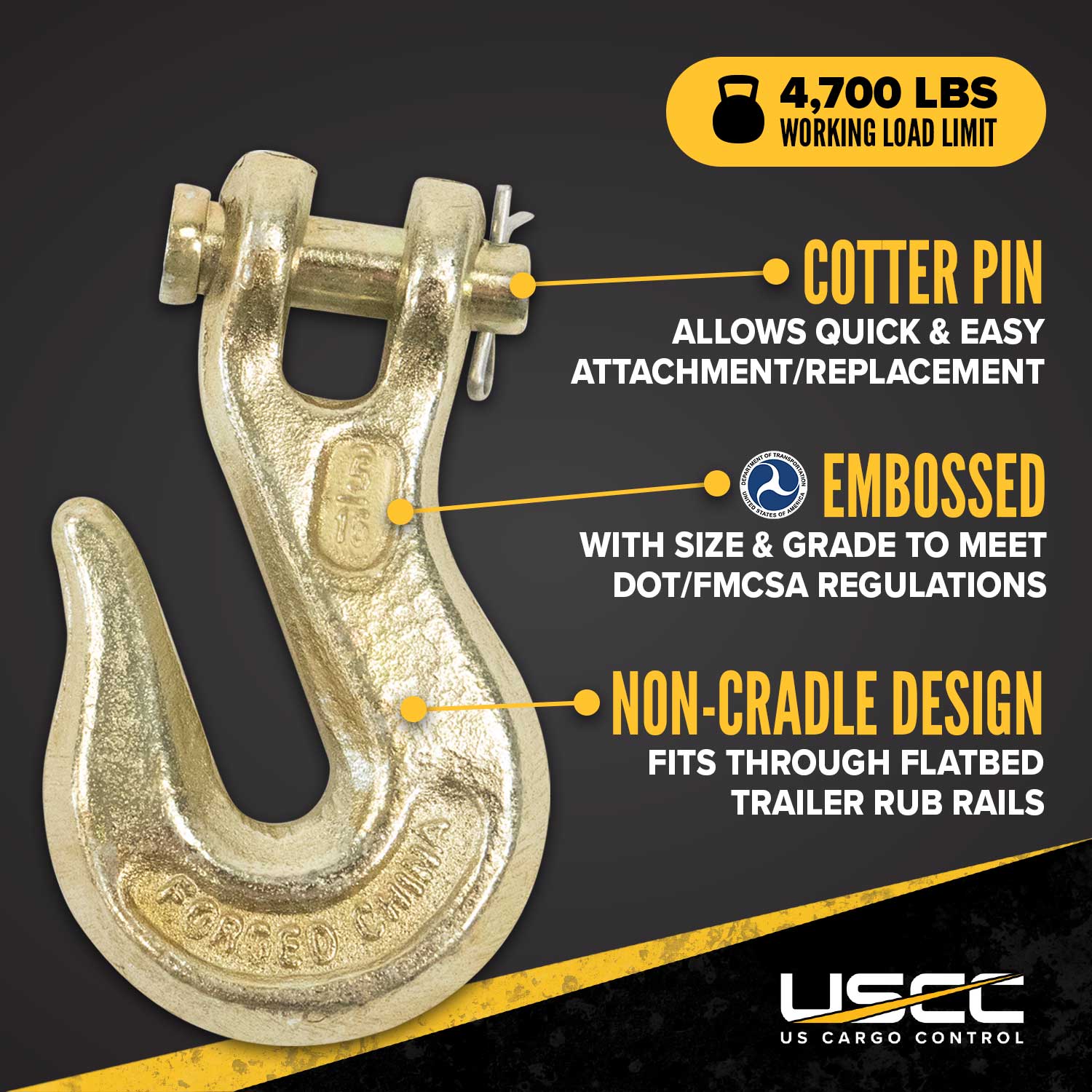

Made from forged, heat-treated steel, this hook has a non-cradle design that allows it to fit through a flatbed trailer rub rail for quick yet secure connections. The shallow throat opening lets you easily connect to chain.
The yellow zinc chromate finish offers corrosion-resistance, ensuring a long service life. The cotter pin provides reliable attachments to chain and other accessories, as well as fast replacement if the hook becomes damaged.
Note: This item is not approved for overhead lifting.
4,700 lbs. Clevis Hook Industry Compliance
This hook is embossed with the size and the grade to meet DOT requirements and for stress-free inspections.
Complete Your Tie Down Setup
Make sure you have everything you need to get your cargo safely from point A to point B - browse our selection of 1/2" grade 70 chain, binders, and fittings, as well as corner protectors, tarps for flatbeds, and more! We even offer custom tie down chain configurations, so you can create the perfect product for your application.
Tie Down Chain Grade Breakdown
Not sure which chain grade you need? Call to speak to one of our product experts or refer to our helpful chart!
| Grade | Material | WLL (lbs) | ||||
| 9/32" (1/4") | 5/16" | 3/8" | 1/2" | 5/8" | ||
| 70 | Carbon Steel | 3,150 | 4,700 | 6,600 | 11,300 | 15,800 |
| 80 | Alloy Steel | 3,500 | 4,500 | 7,100 | 12,000 | 18,100 |
| 100 | Alloy Steel | 4,300 | 5,700 | 8,800 | 15,000 | 22,600 |
| 120 | High Strength Alloy Steel |
5,200 | 6,600 | 10,600 | 17,900 | 27,500 |
Source: Import
