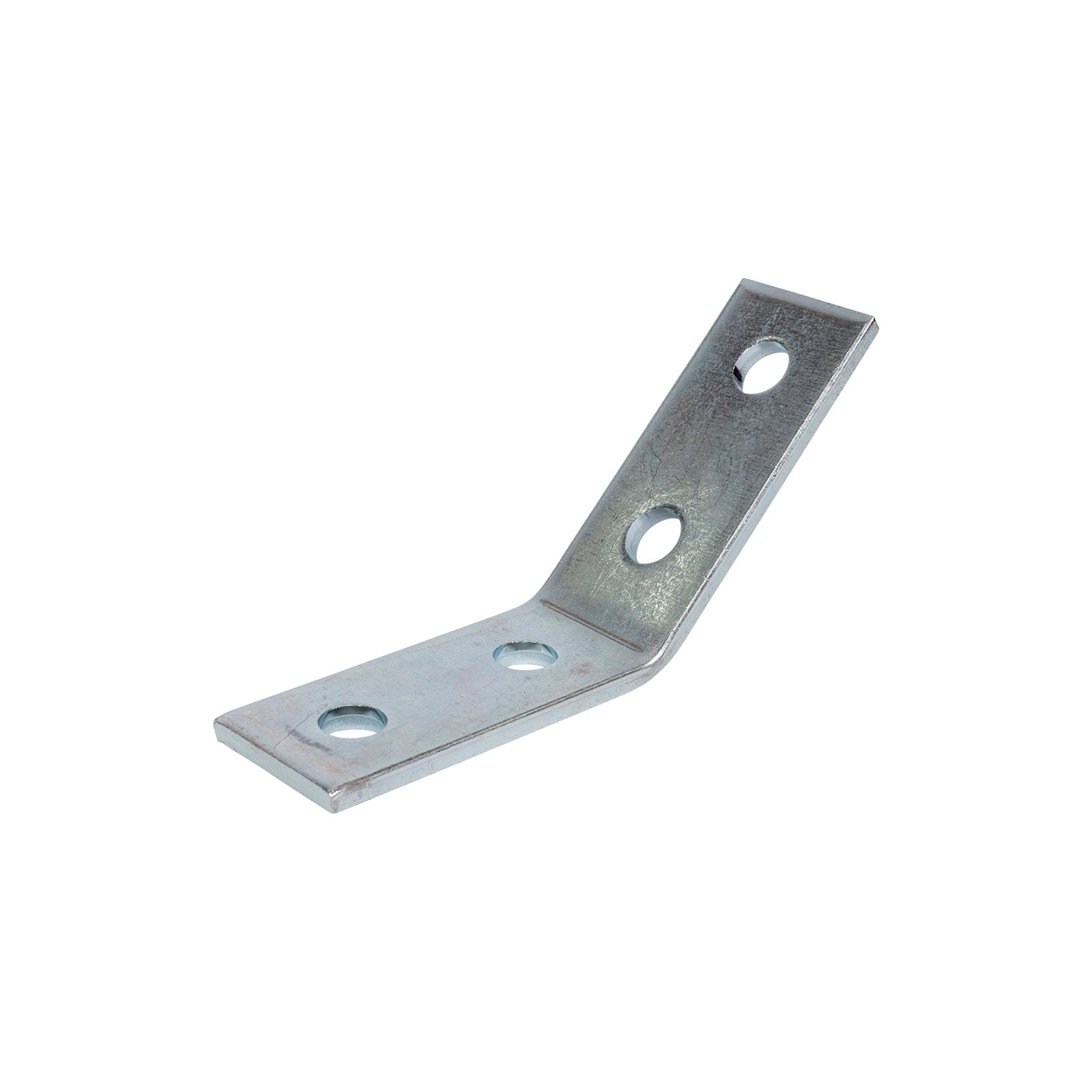

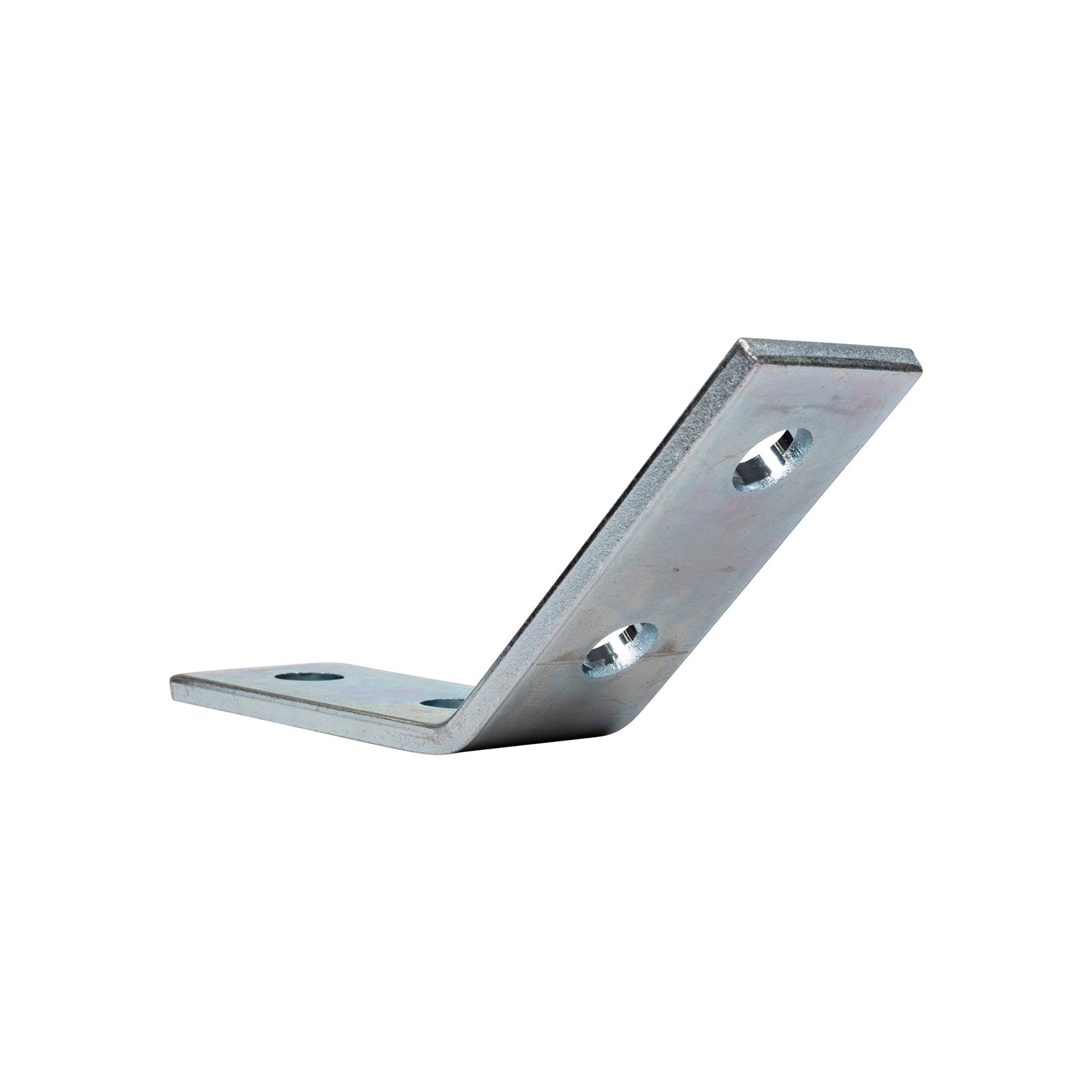

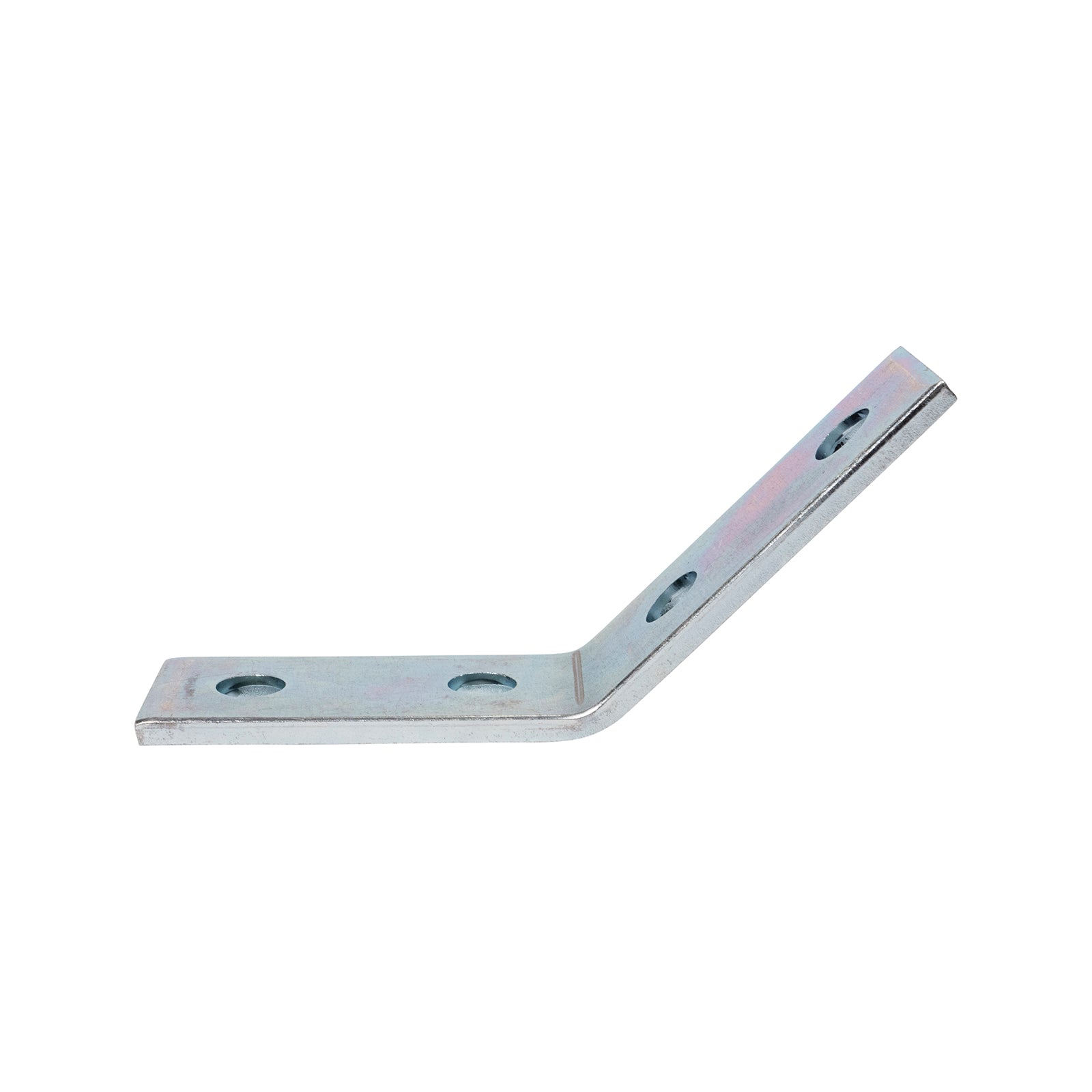

4-Hole 45 Degree Open Strut Angle - Electro-Galvanized
This 4-hole 45 degree open strut angle is designed to create strong, angled connections within strut channel frameworks. Built from carbon steel with an electro-galvanized finish, it provides dependable performance for interior installations. The open angle design allows clean alignment when joining channel sections at non-right angles.
Electro-Galvanized 45 Degree Open Strut Angle for Interior Framing Connections
Use this fitting to join strut channel at 45 degree intersections in electrical, mechanical, and structural support systems. When paired with channel nuts, bolts, and washers, it forms a stable joint while maintaining consistent spacing and alignment.
Key Features
- 45 Degree Open Angle Design: Creates angled connections for strut channel frameworks and transitions.
- Electro-Galvanized Finish: Finished to ASTM B-633 Type III SC1 with a 0.2 mil zinc coating for corrosion resistance in dry, interior environments.
- Heavy-Duty Steel Construction: Manufactured from carbon steel meeting ASTM A575 or ASTM A1011 Grade 33 specifications.

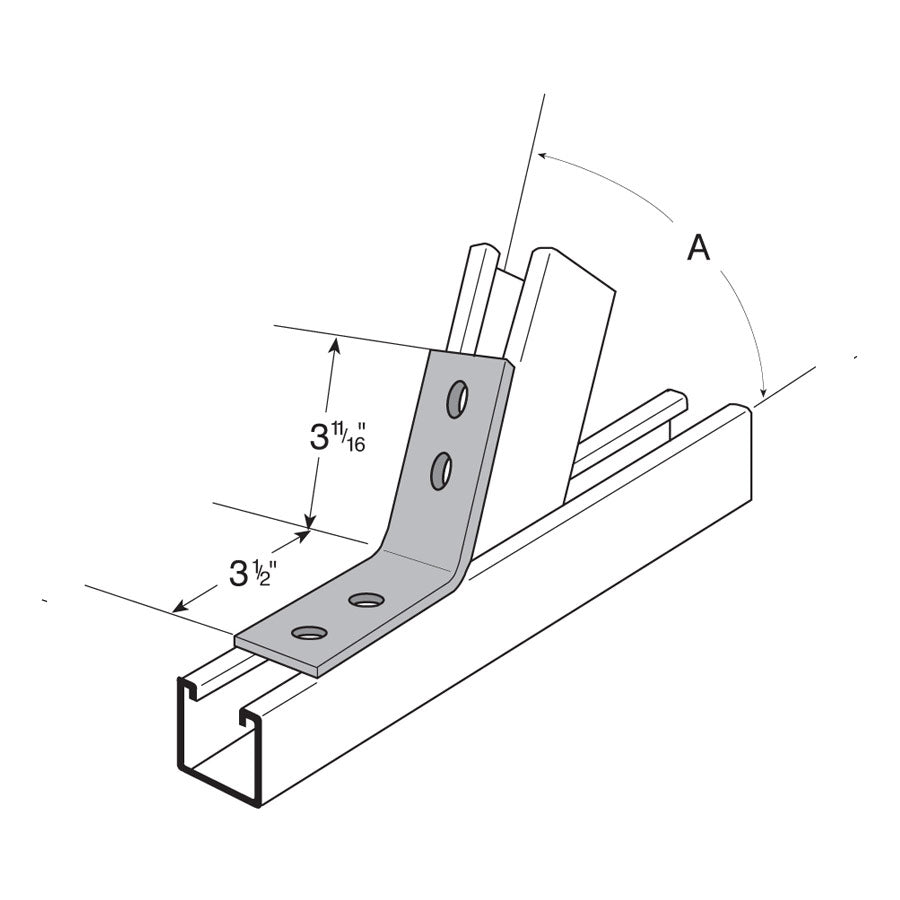

- Precision Hole Pattern: Four 9/16" diameter holes spaced 1-7/8" center to center with a 13/16" end distance for consistent hardware placement.
Common Applications
- Angled Strut Connections: Joins channel sections at 45 degree intersections.
- Electrical Frameworks: Used in conduit racks and support structures.
- Mechanical Systems: Forms angled joints in HVAC and utility assemblies.
- Interior Construction: Suitable for dry, low-humidity environments.
- Modular Strut Builds: Supports custom layouts requiring angled transitions.
Installation Tips
- Use Proper Fasteners: Secure to strut channel using compatible channel nuts, bolts, and washers.
- Check Alignment Before Tightening: Ensure channels are positioned correctly at the 45 degree angle prior to final torque.
- Tighten Evenly: Draw down fasteners uniformly to maintain a square, stable connection.
