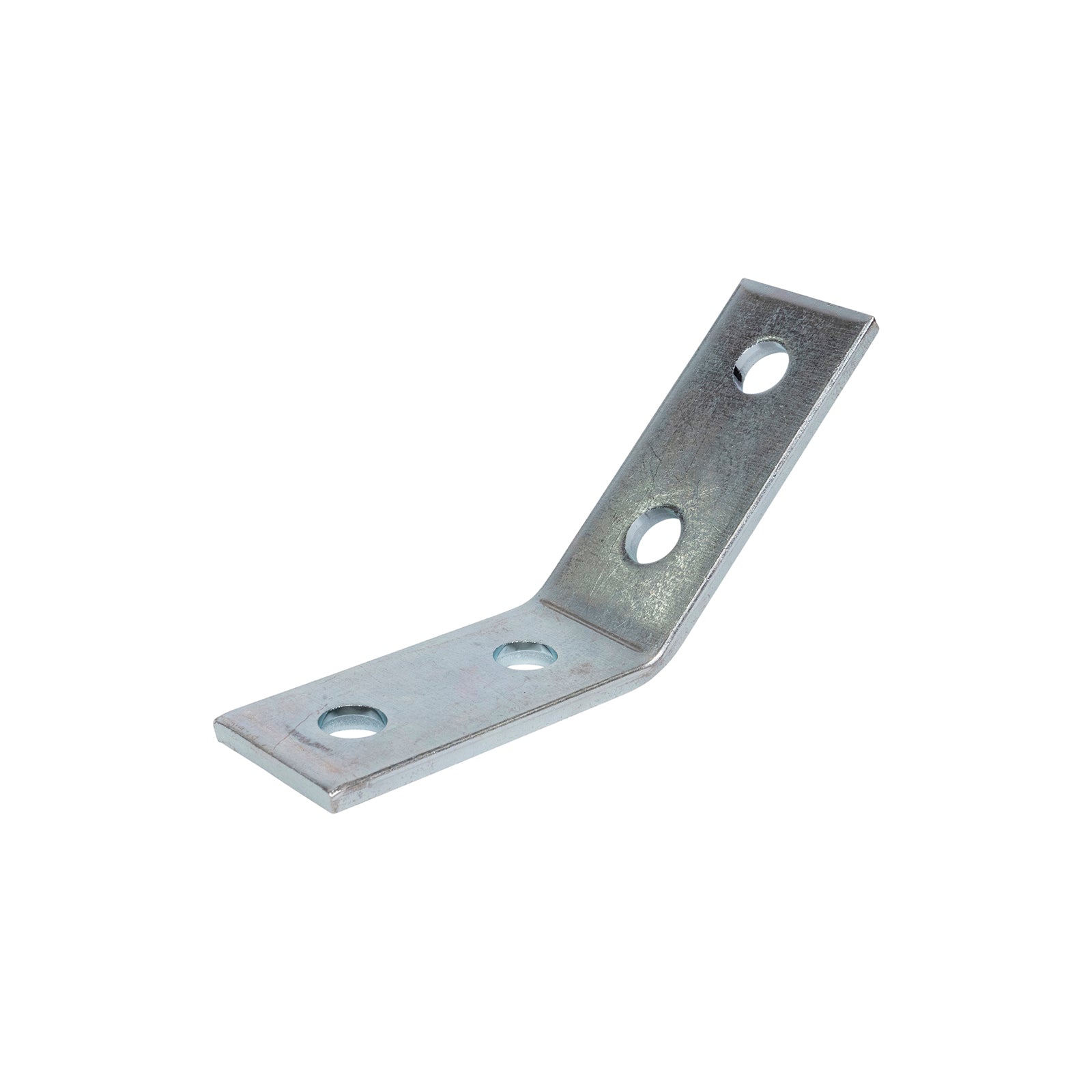

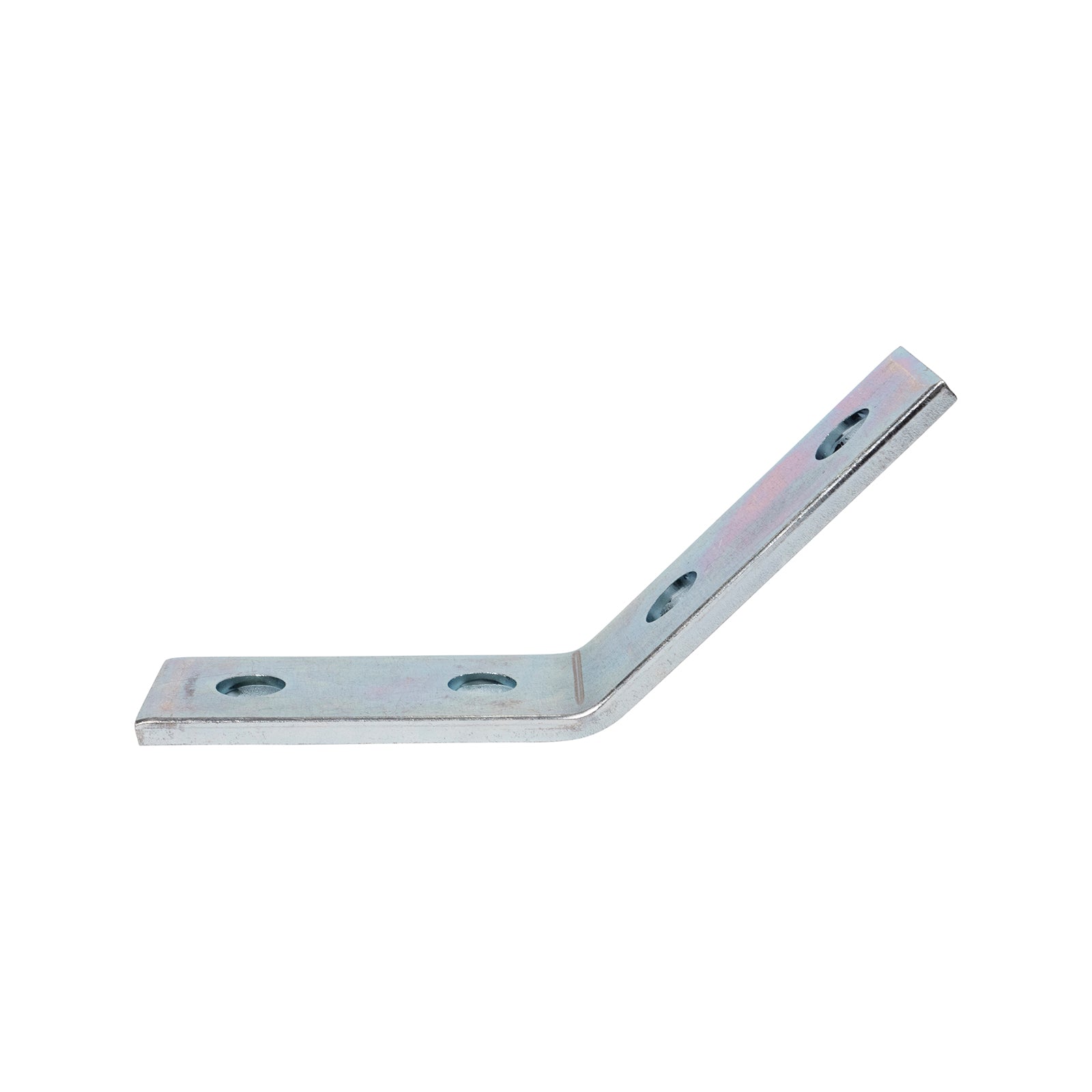

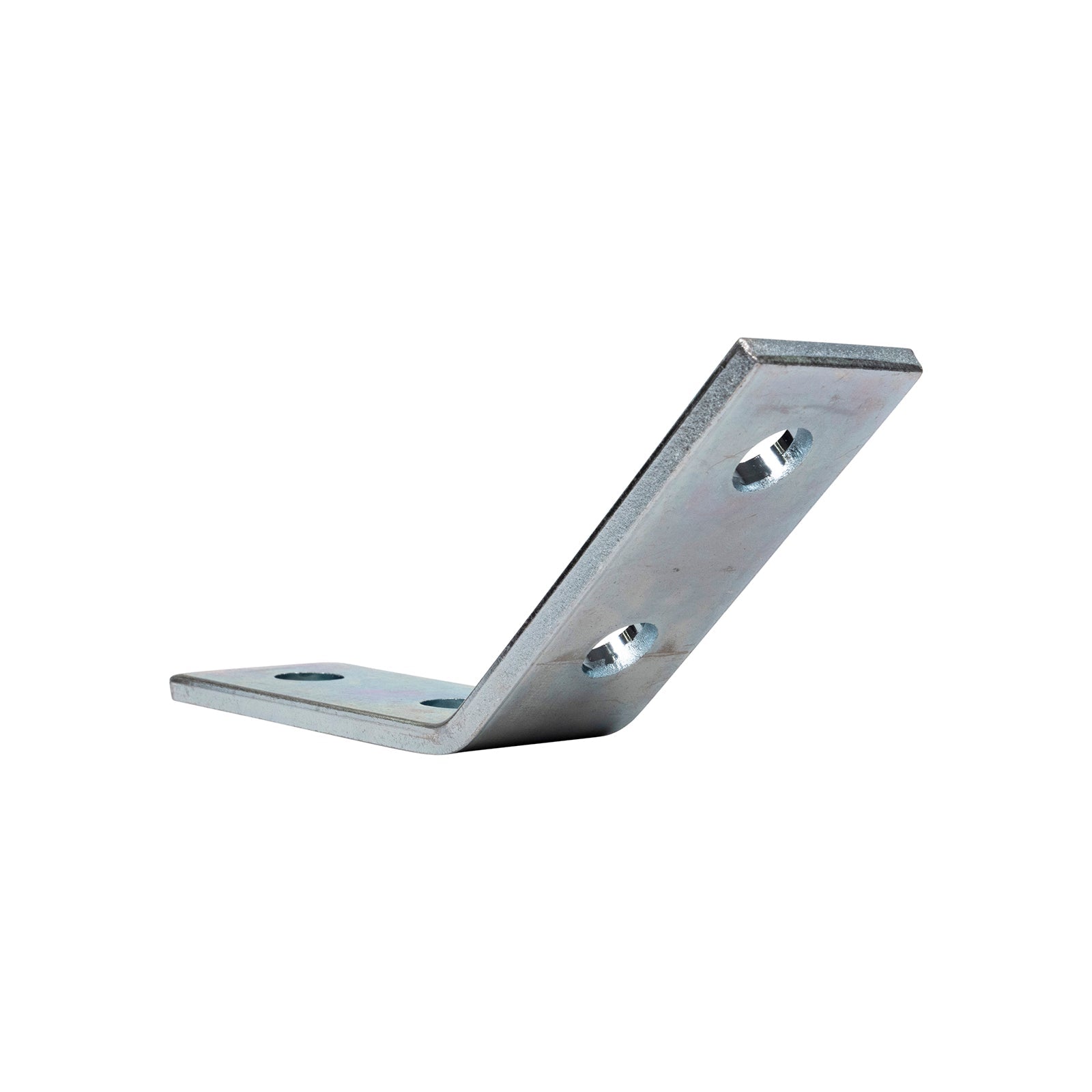

4-Hole 45 Degree Open Strut Angle - 316 Stainless Steel
This 4-hole 45 degree open strut angle is designed to form strong, angled connections within strut channel systems exposed to demanding conditions. Constructed from 316 stainless steel, it offers superior corrosion resistance while maintaining the strength needed for structural framing. The open angle profile allows clean, accurate alignment at 45 degree transitions.
316 Stainless Steel 45 Degree Open Strut Angle for Harsh Environment Applications
Use this fitting to connect strut channel sections at 45 degree angles in electrical, mechanical, and structural frameworks. When installed with channel nuts, bolts, and washers, it creates a rigid joint built to withstand exterior and corrosive environments.
Key Features
- 45 Degree Open Angle Design: Allows precise angled connections for custom strut channel layouts.
- 316 Stainless Steel Construction: Provides superior corrosion resistance for harsh exterior and industrial conditions.
- Heavy-Duty 1/4" Thickness: Adds strength and rigidity at critical connection points.

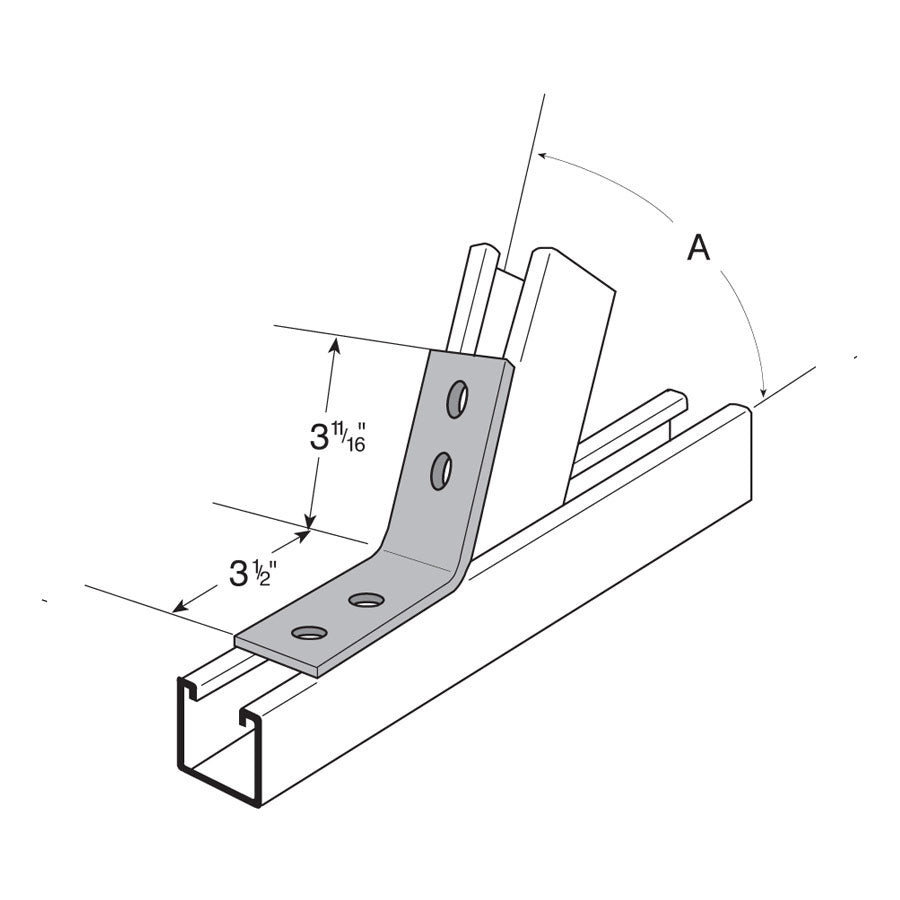

- Accurate Hole Pattern: Features four 9/16" diameter holes with 1-7/8" center-to-center spacing and a 13/16" end distance.
Common Applications
- Angled Strut Connections: Joins channel sections at 45 degree intersections.
- Exterior Support Frameworks: Suitable for outdoor and corrosive environments.
- Electrical Infrastructure: Used in conduit racks and equipment support assemblies.
- Mechanical Systems: Forms angled joints in HVAC and utility structures.
- Industrial Installations: Ideal for facilities requiring high corrosion resistance.
Installation Tips
- Use Compatible Hardware: Pair with stainless steel or corrosion-resistant fasteners to maintain system integrity.
- Verify Angle Orientation: Confirm proper 45 degree alignment before tightening fasteners.
- Tighten Evenly: Draw down bolts uniformly to keep the connection secure and aligned.
