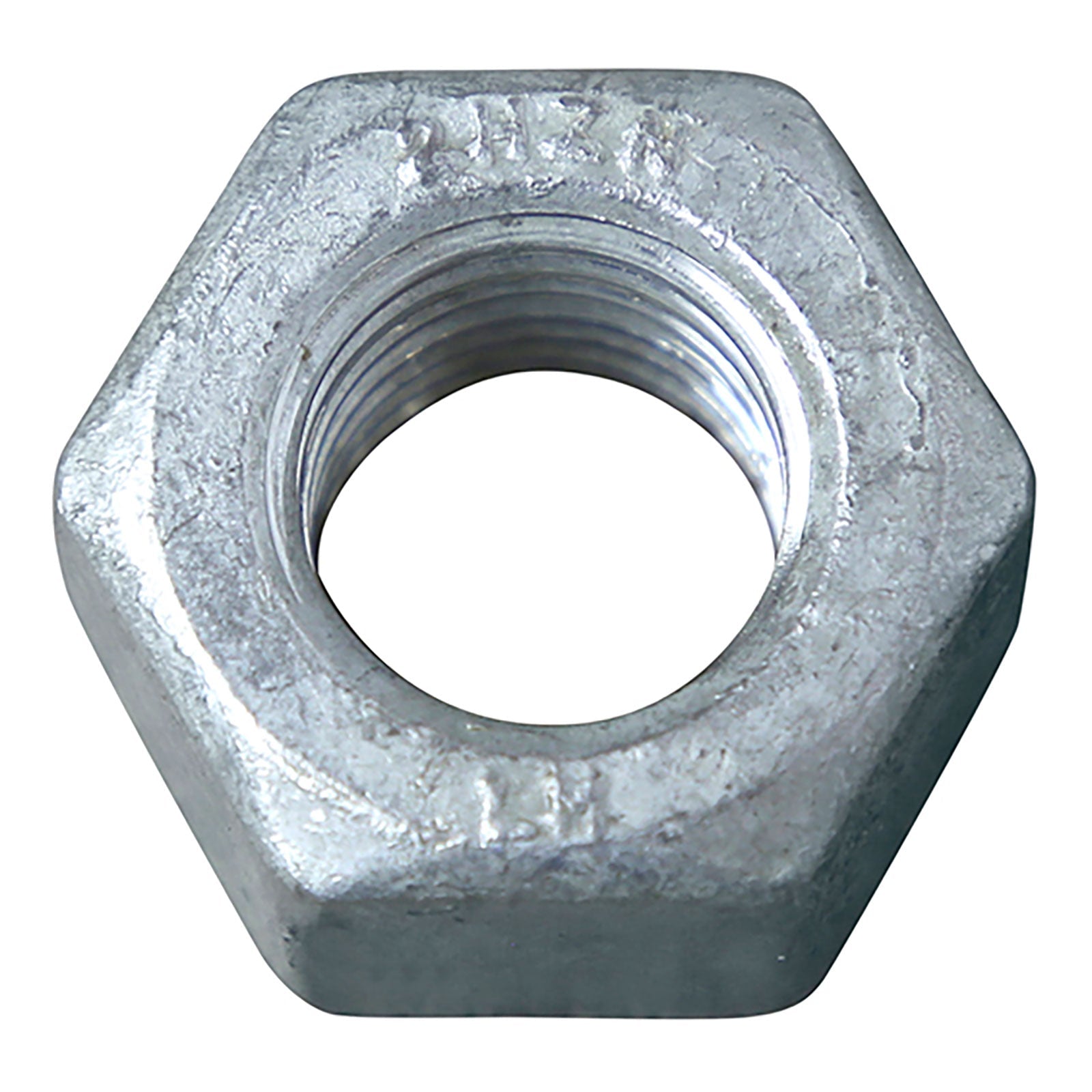

A194 Grade 2H Heavy Hex Nut – 3/4"-10 Hot Dip Galvanized Steel
The Conquest A194 Grade 2H Heavy Hex Nut is engineered to handle demanding loads and critical connections in high-strength construction and industrial applications. Made from medium carbon steel that is quenched and tempered, this nut is built to deliver enhanced hardness, strength, and performance. It is well-suited for structural steel, heavy machinery, and other installations where reliability under stress is essential.
Hot Dip Galvanized 3/4"-10 Heavy Hex Nut for Structural Fastening
With a coarse thread pitch of 10 TPI and a 3/4" diameter, this nut provides secure engagement when paired with matching bolts or threaded rod. The hot dip galvanized finish adds a thick protective coating that shields the steel from rust and corrosion, especially in outdoor or exposed conditions. This nut is built to ASTM A194 Grade 2H standards, ensuring consistent quality in pressure-rated and high-temperature applications.
Key Features
- Designed for High-Strength Use: Commonly used with A325 or A490 bolts and B7 threaded rod in structural or industrial connections.
- Material and Finish: Quenched and tempered medium carbon steel with a hot dip galvanized coating for improved corrosion resistance.
- Thread Type/TPI: Internal 3/4"-10 threads (10 threads per inch) offer tight, stable engagement under heavy torque.
- ASTM Compliance: Meets ASTM A194 Grade 2H specifications for use in pressure vessels, piping systems, and critical structural assemblies.
- Heavy Hex Profile: Larger wrenching flats provide greater tool contact and reduce rounding during tightening.
Applications
- Structural assemblies involving A325 or A490 structural bolts.
- Threaded rod systems using Grade B7 fasteners in industrial and mechanical builds.
- Pressure-rated systems, piping, or vessel flanges.
- Outdoor environments where added rust protection is necessary.
Installation
- Ensure the mating component is threaded to 3/4"-10 for compatibility.
- Begin threading by hand to prevent cross-threading and misalignment.
- Apply proper torque using a wrench on the heavy hex flats.
- Do not overtighten to maintain thread integrity and prevent fastener damage.
- Follow torque specifications and preload requirements based on the specific fastener assembly being used.
