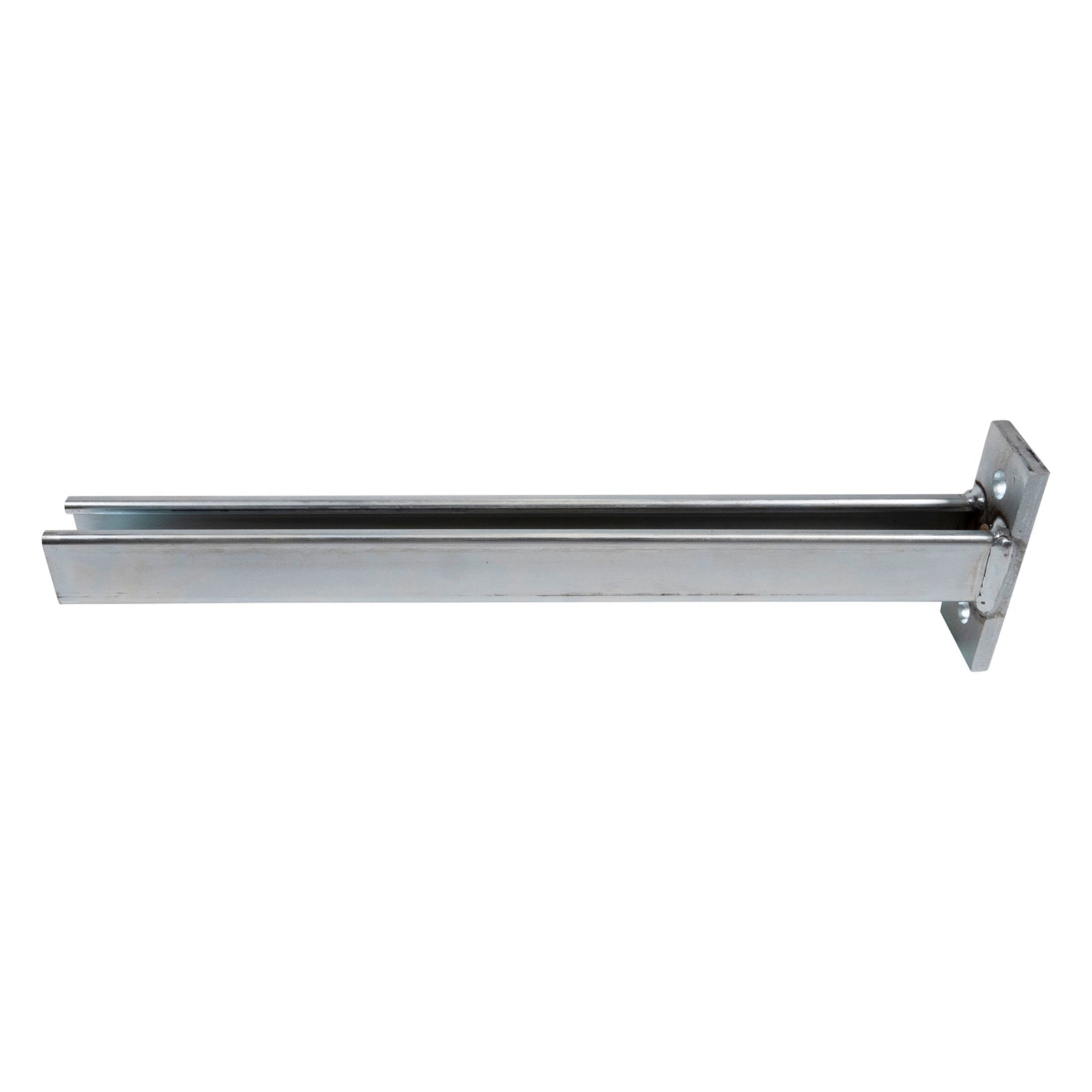

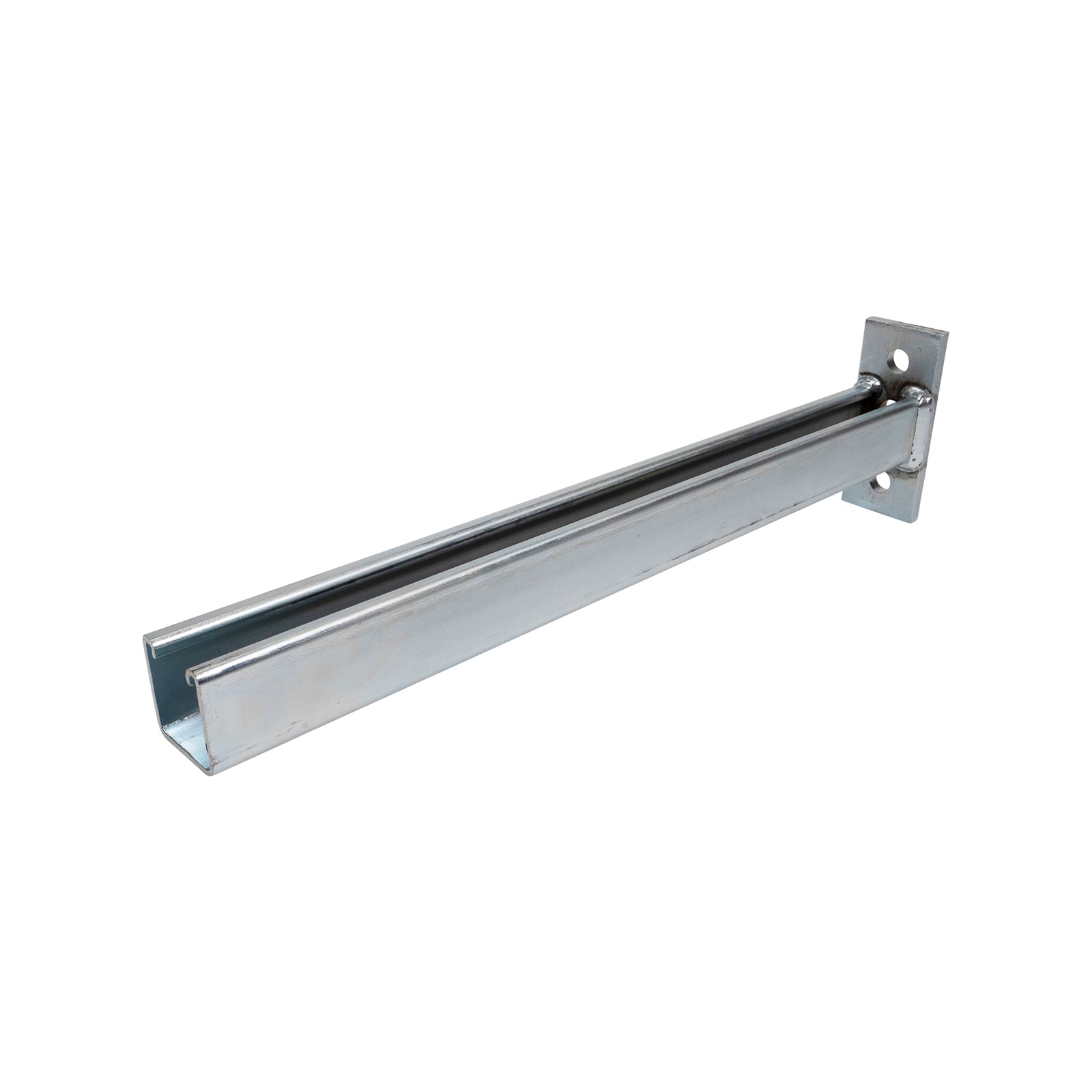

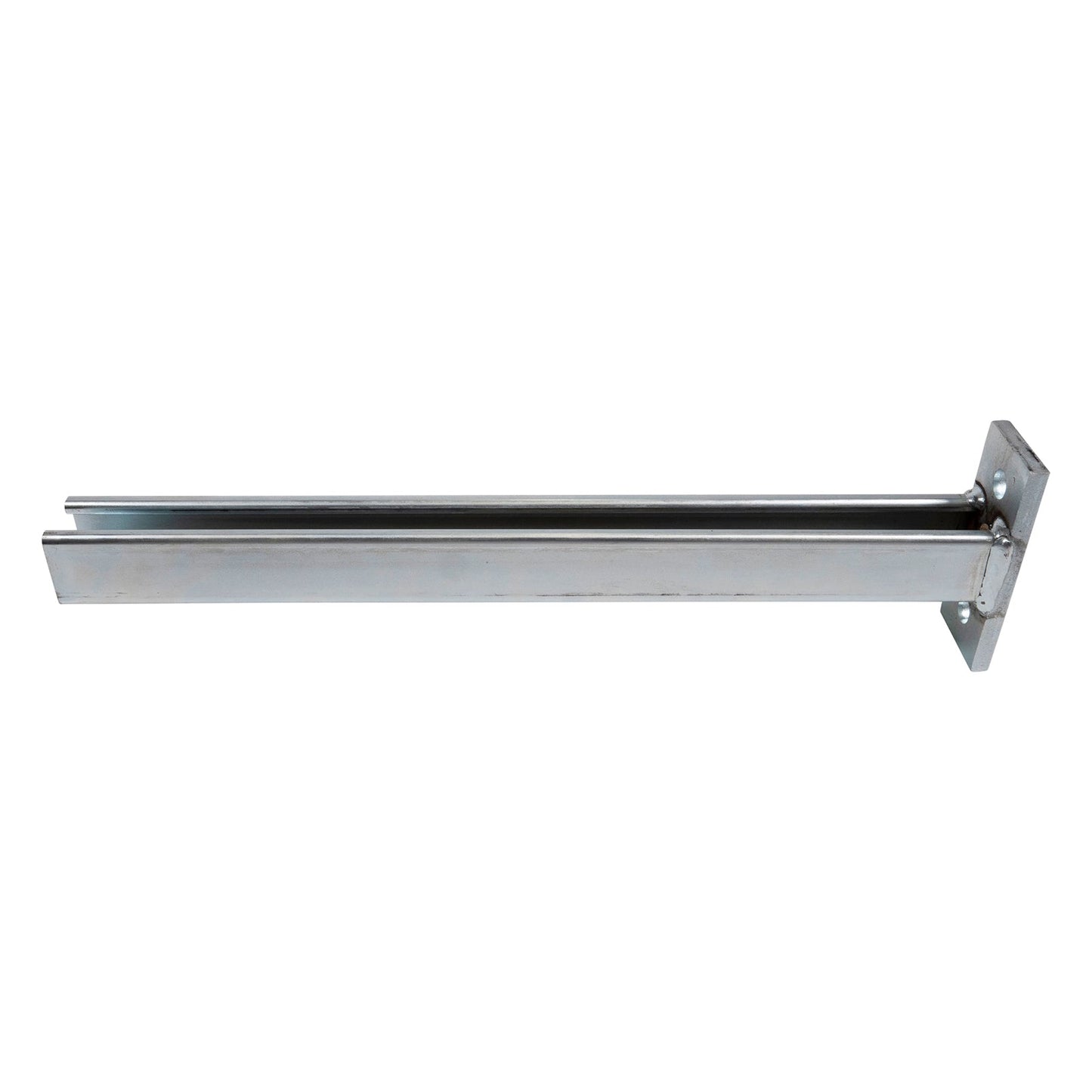

18" Channel Bracket Slot Up - Electro-Galvanized

This 18-inch slot-up channel bracket provides extended reach for mounting and support from vertical strut channel. The upward-facing slots simplify top-side connections, making it easier to build organized support systems. Electro-galvanized steel construction supports consistent performance in interior environments.

Electro-Galvanized 18-Inch Slot-Up Channel Bracket for Structural Support

Designed for electrical, mechanical, and general framing applications, this bracket offers additional span while maintaining reliable load distribution. It’s a practical option when standard-length brackets don’t provide enough reach.

Key Features

• Extended Slot-Up Design: Supports top-mounted connections over a longer horizontal span.
• Electro-Galvanized Carbon Steel: Finished for corrosion resistance in dry indoor conditions.
• 1/4" Thick Steel Construction: Provides strength and rigidity under load.
• Flex-Strut Compatibility: Integrates smoothly with standard strut channel systems.

Common Applications

• Vertical Channel Extensions: Creates longer horizontal support points.
• Electrical Support Systems: Used for conduit racks and mounting platforms.
• Mechanical Framing: Supports piping, trays, and accessories.
• Interior Utility Areas: Well-suited for dry mechanical rooms.
• Facility Maintenance Builds: Adds reach where extra clearance is needed.

Installation Tips

• Confirm Clearance: Verify space before mounting longer brackets.
• Align Before Tightening: Square the bracket to the channel prior to final torque.
• Use Matching Hardware: Select fasteners designed for strut channel connections.
