SKU: FS-5636-12-E/G

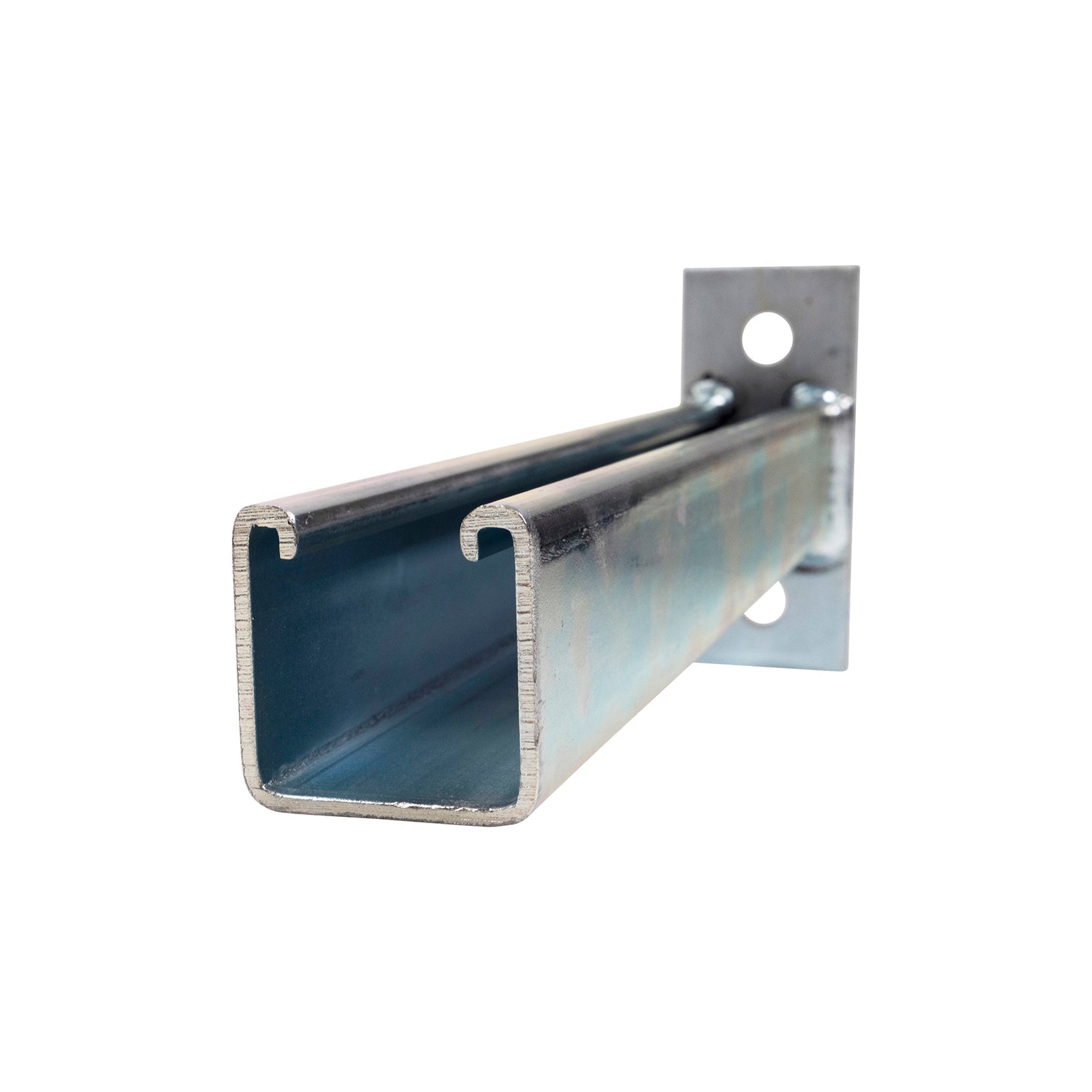

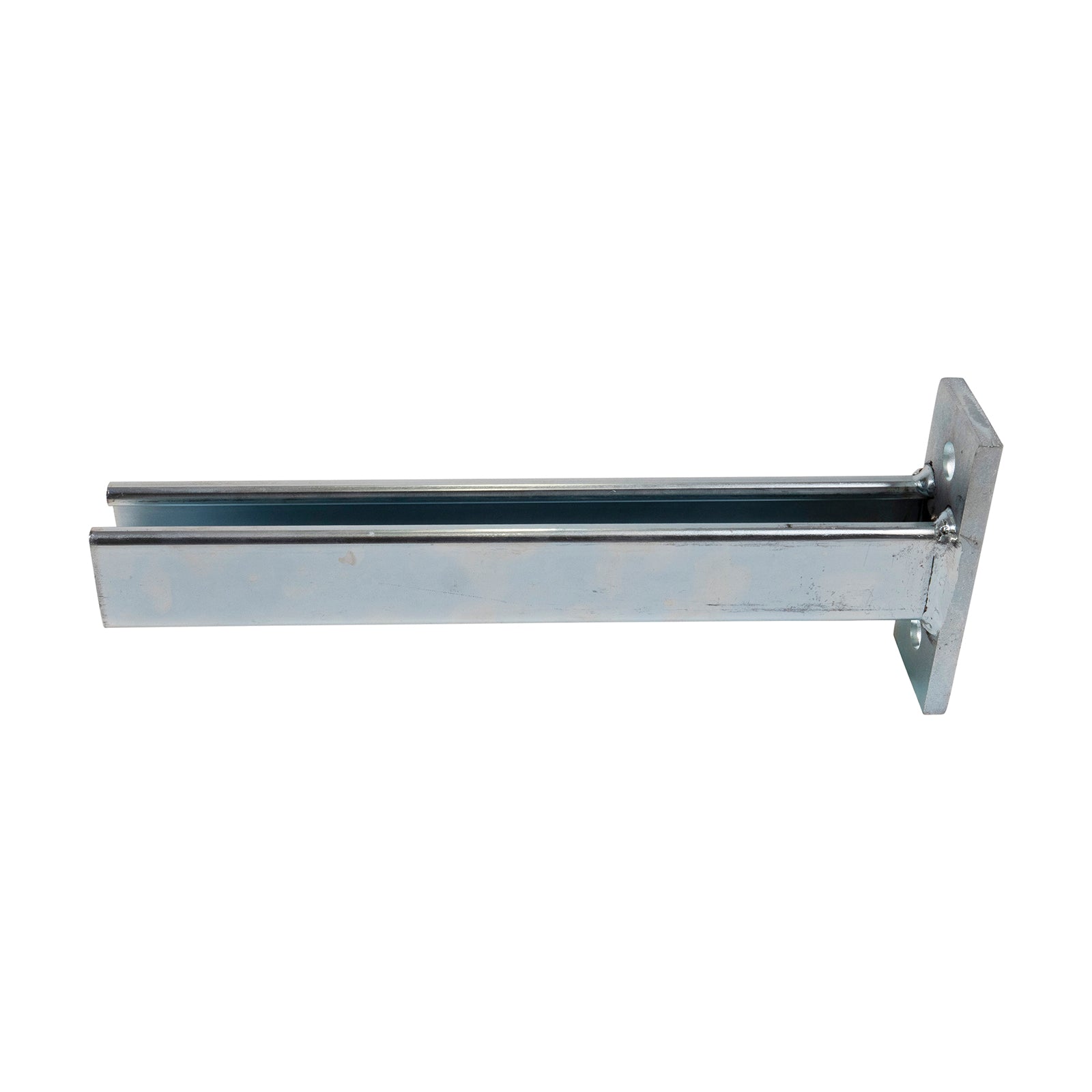

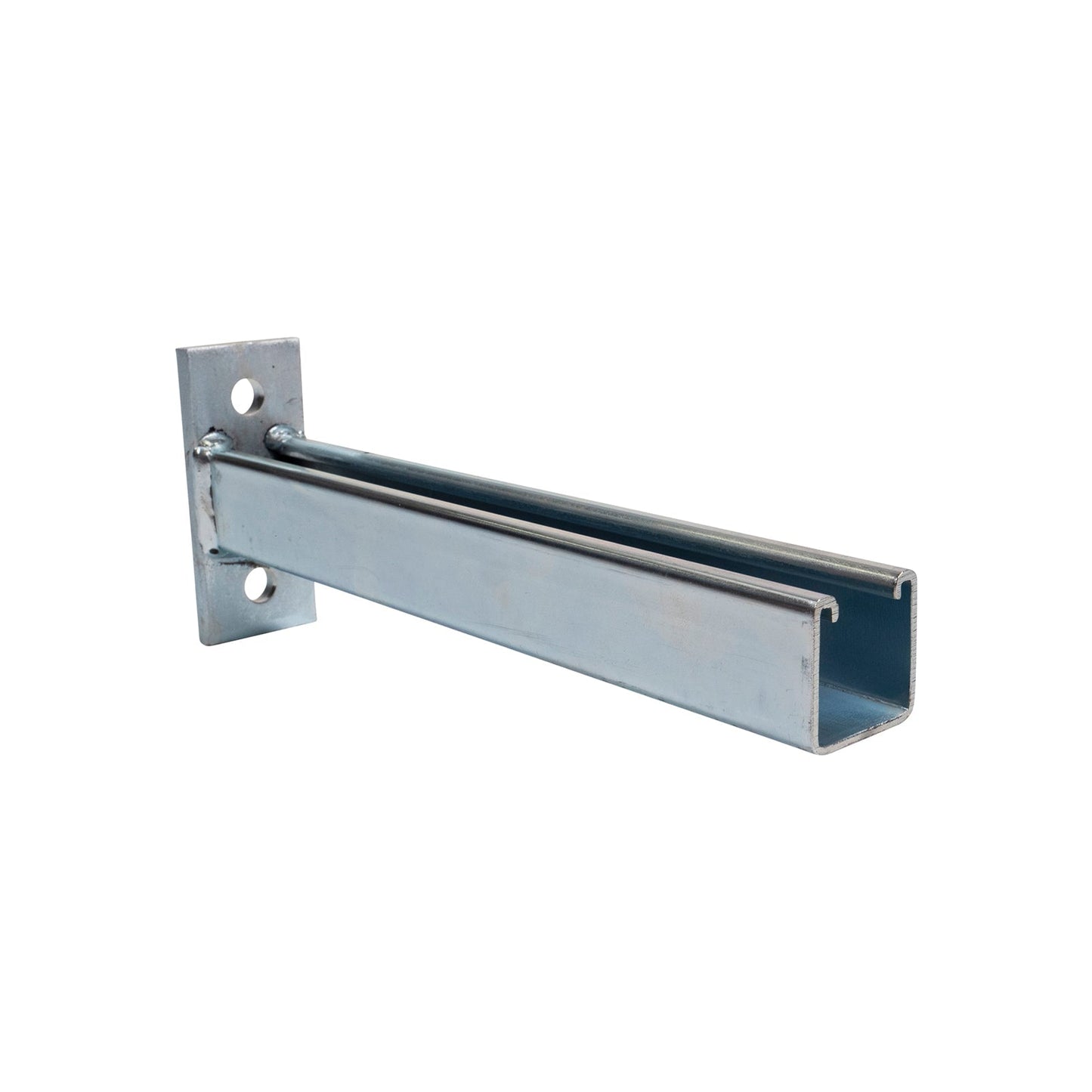

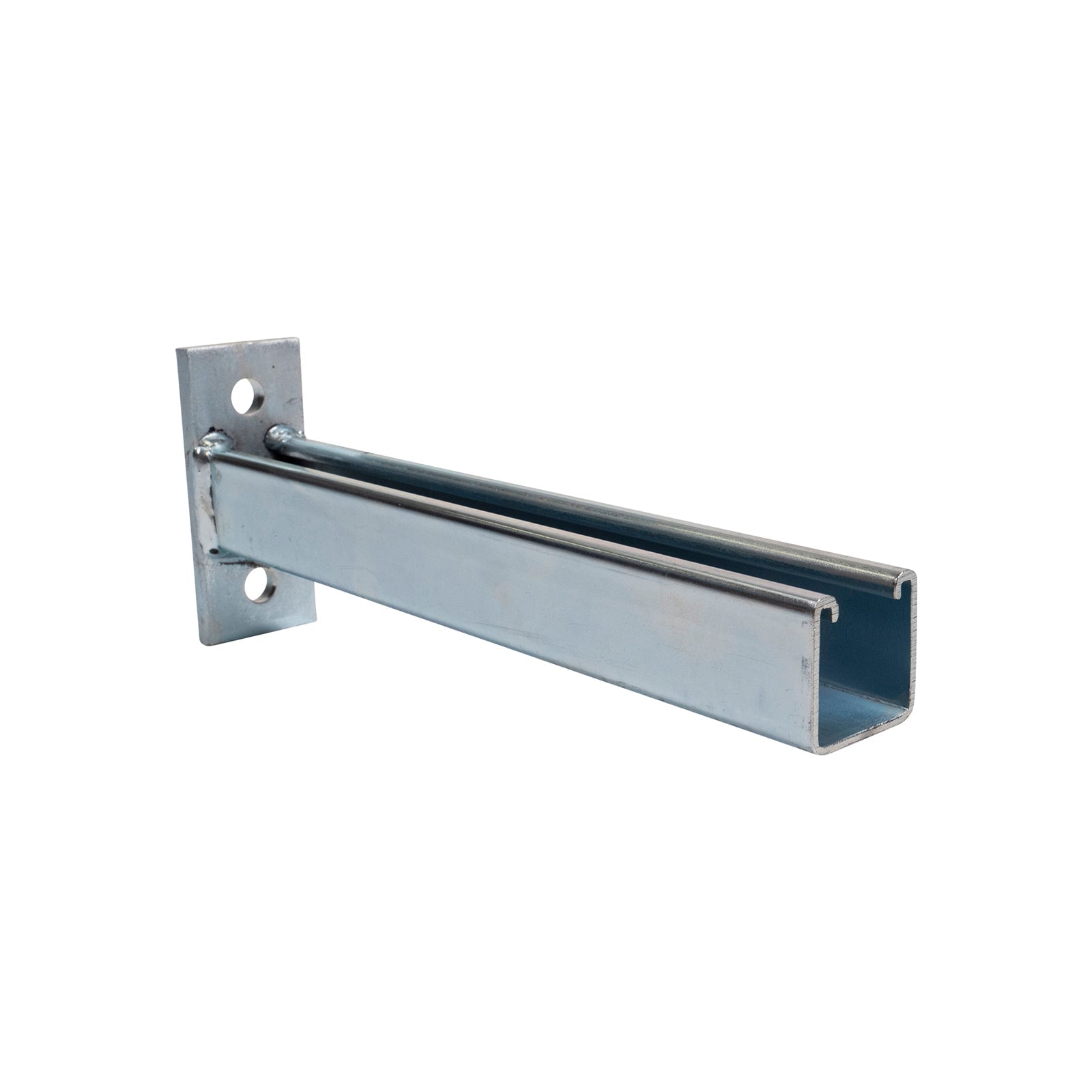

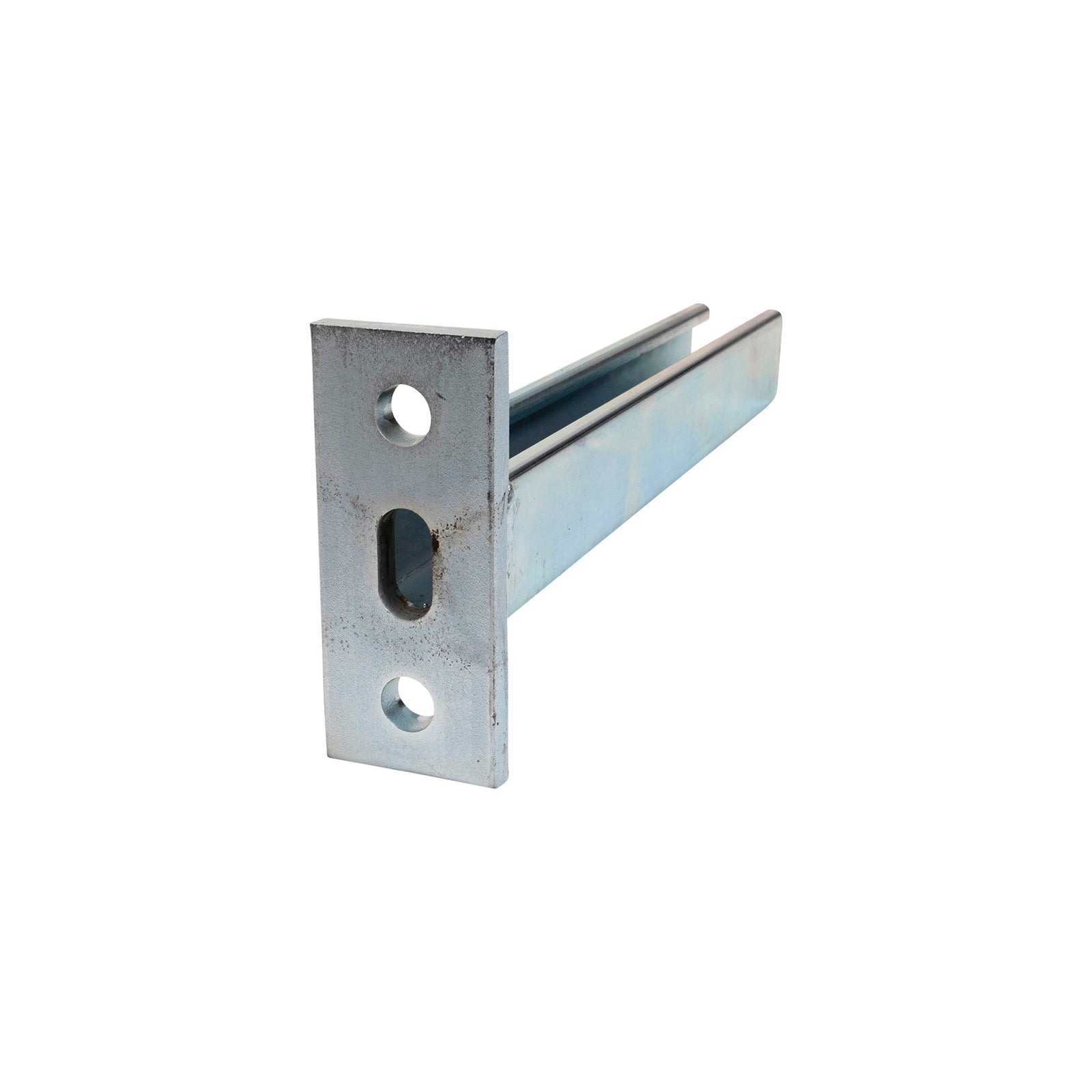

12" Channel Bracket Slot Up - Electro-Galvanized

12" Channel Bracket Slot Up - Electro-Galvanized!

Skip to product information
1 of 8
SKU: FS-5636-12-E/G

12" Channel Bracket Slot Up - Electro-Galvanized

$14.99
Request Bulk Pricing
Request Bulk Pricing
Ships today when you order in the next 9 hours 6 minutes

Blazing Fast Shipments

Shipping & Returns

Tailored Business Programs

Partner with Us

Questions?

We can help!

Payment Options

American Express
Apple Pay
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa

Specifications

Width: 1-5/8"
Length: 12"
Hole Diameter: 9/16"
Thickness: 1/4"
Material: Carbon Steel
Finish: Electro-Galvanized
Type: Electro-Galvanized Carbon Steel
Standards: Finish = ASTM B-633 (Type III SC1 (0.2 mil thickness)) & Material = ASTM A575 or ASTM A1011 Grade 33
Manufacturer Name: Flex-Strut
Additional Info: Uniform Design Load=1,500#
Description

12" Channel Bracket Slot Up - Electro-Galvanized

This 12-inch slot-up channel bracket is designed to create a compact, reliable support point from vertical strut channel. With the slotted surface facing upward, it allows components to be mounted directly on top of the bracket for clean, efficient installs. Electro-galvanized carbon steel construction makes it well-suited for interior applications.

Electro-Galvanized 12-Inch Slot-Up Channel Bracket for Vertical Strut Systems

Commonly used in electrical and mechanical frameworks, this bracket distributes loads while maintaining a straightforward connection point. Its compact length works well where space is limited but dependable support is required.

Key Features

  • Slot-Up Bracket Design: Allows direct top-mounted connections for clean layouts.
  • Electro-Galvanized Finish: Provides corrosion resistance for dry, low-humidity environments.
  • Heavy 1/4" Steel Thickness: Delivers dependable strength for structural support.
  • Standard 1-5/8" Width: Compatible with common strut channel systems.

Common Applications

  • Vertical Strut Supports: Creates horizontal mounting points from vertical channel.
  • Electrical Frameworks: Used for conduit and equipment support.
  • Mechanical Installations: Supports small piping or accessory components.
  • Interior Construction: Ideal for dry, controlled environments.
  • Maintenance Upgrades: Adds support where simple brackets are needed.

Installation Tips

  • Install Slots Facing Up: Ensures compatibility with top-mounted hardware.
  • Use Proper Hardware: Secure with compatible channel nuts, bolts, and washers.
  • Tighten Evenly: Draw fasteners down uniformly for stable load distribution.
