SKU: MSG-1-18

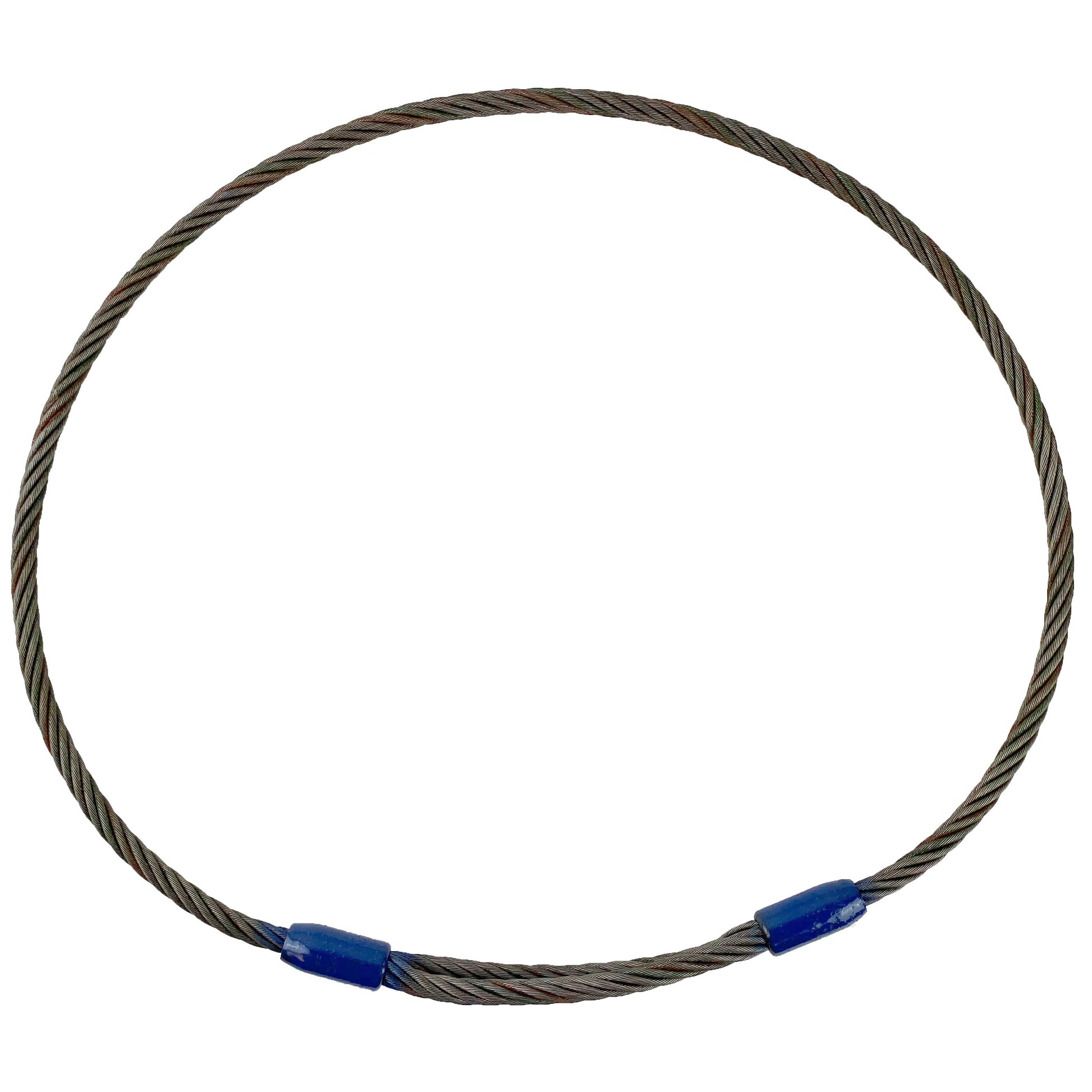

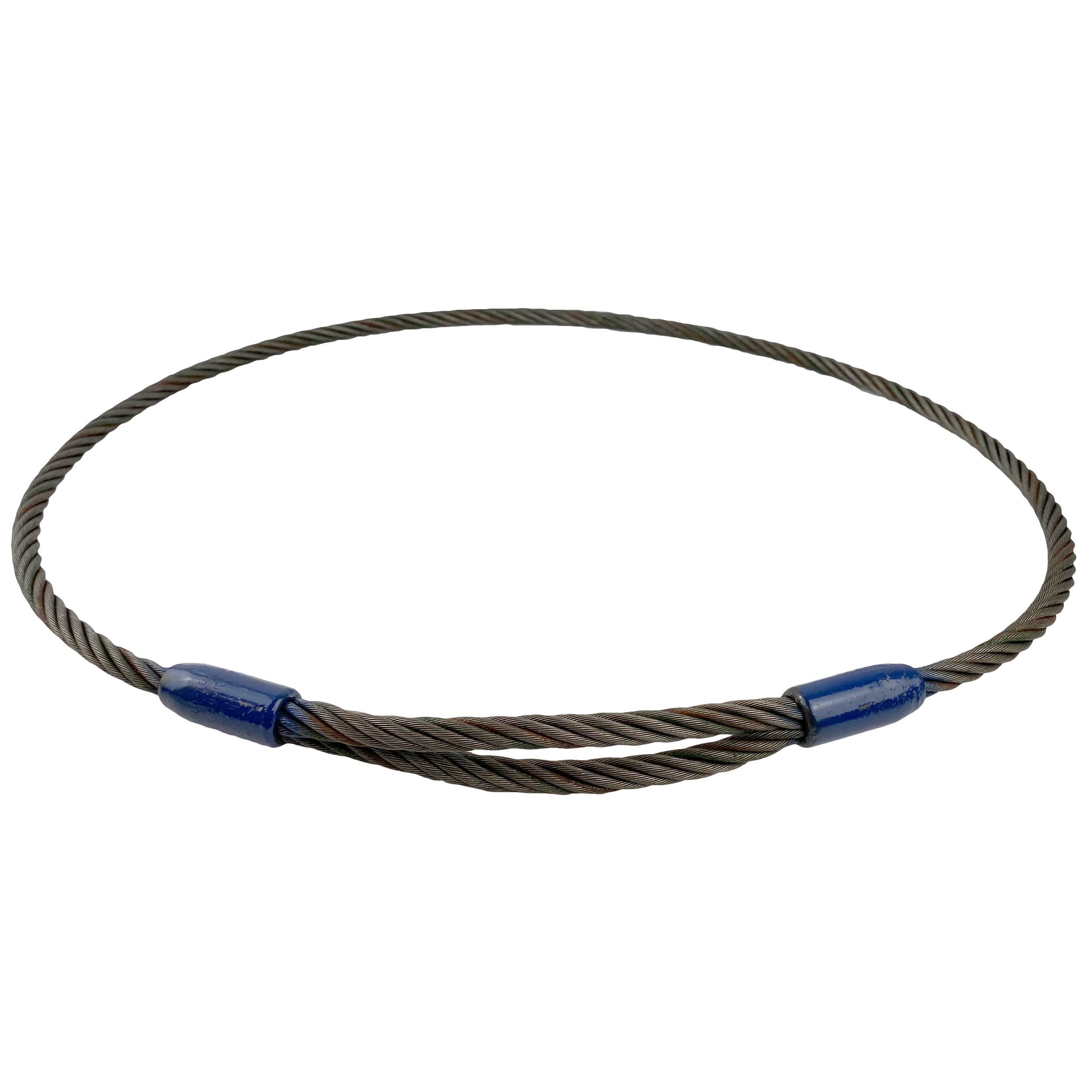

1" x 18' Mechanical Splice Grommet Wire Rope Sling
1" x 18' Mechanical Splice Grommet Wire Rope Sling!
SKU: MSG-1-18
$256.83
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Diameter: 1"
Length: 18'
Vertical capacity: 16 ton
Choker capacity: 11 ton
Basket capacity: 32 ton
30 degree capacity: 16 ton
45 degree capacity: 23 ton
60 degree capacity: 28 ton
Body diameter: 1"
Safety factor: 5:1
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all ASME B30.9 & OSHA 1910.184 requirements.
Wire rope class: 6x36WS
Description

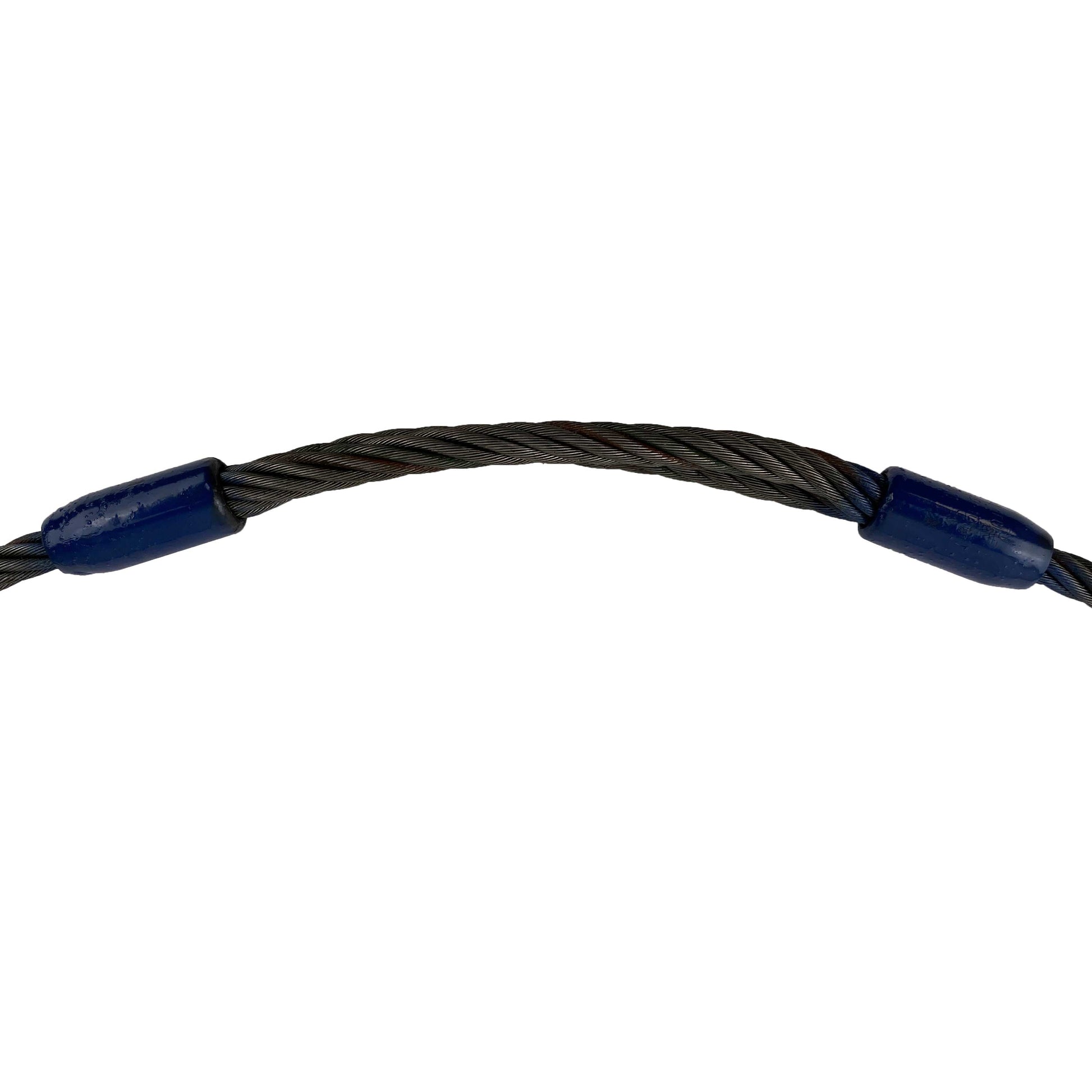

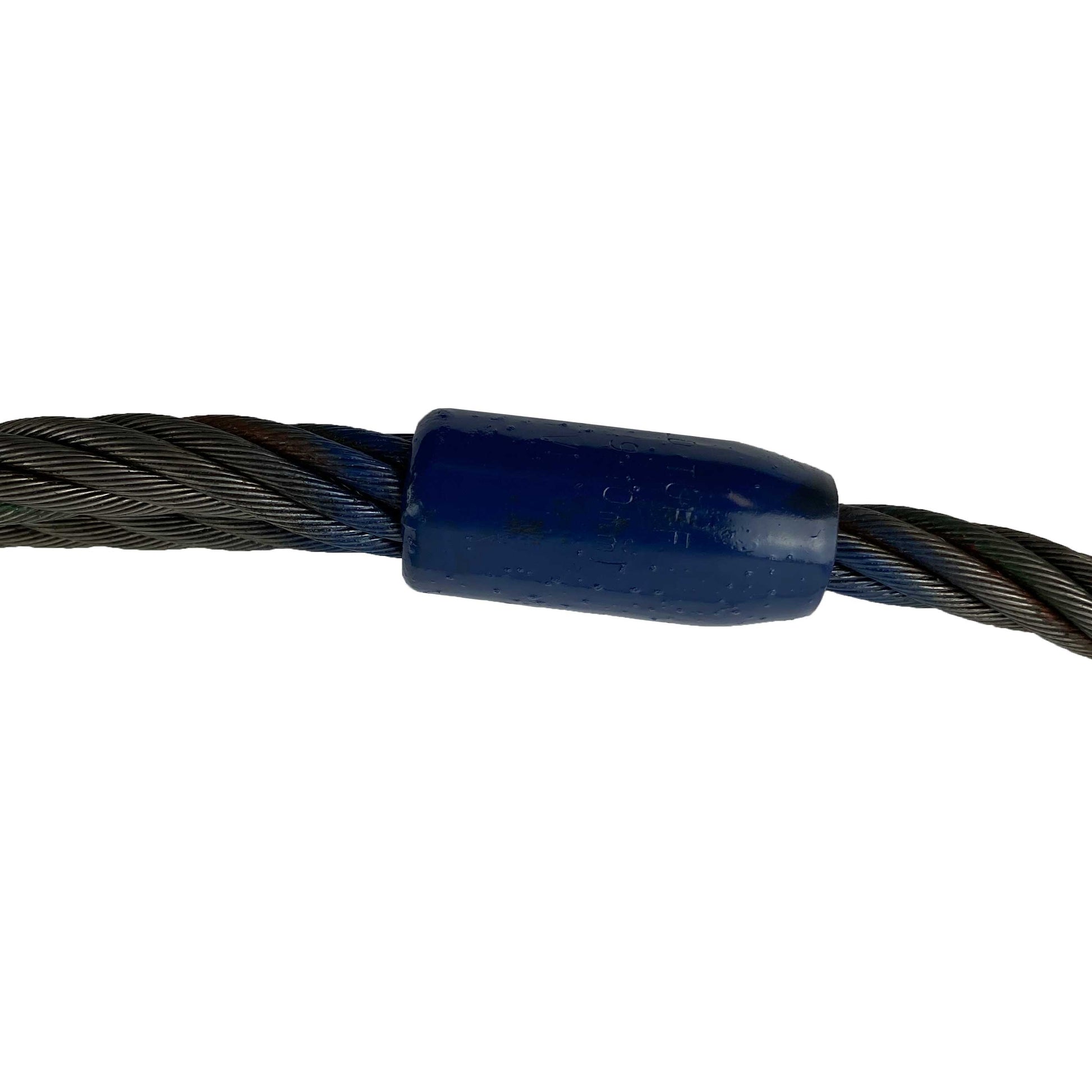

This 1" by 18' mechanical splice grommet is a sling used in lifting and rigging applications. This type of sling forms a continuous loop, so it is used in situations where extra flexibility is needed, or when rigging is too short for a more traditional wire rope sling with eyes on each end. A mechanical splice grommet is made from a continuous length of wire ripe. The end can be joined by mechanical sleeves or swaged sleeves. Looking for other types of slings for lifting and rigging? We have braided wire rope slings, chain slings, and more. Find out which is right for your project by contacting our sales specialists.
Endless Wire Rope Sling Measurements
The length of this sling is measured from the inside width of bearing point to bearing point (or end-to-end), not circumference.
