SKU: SLW100

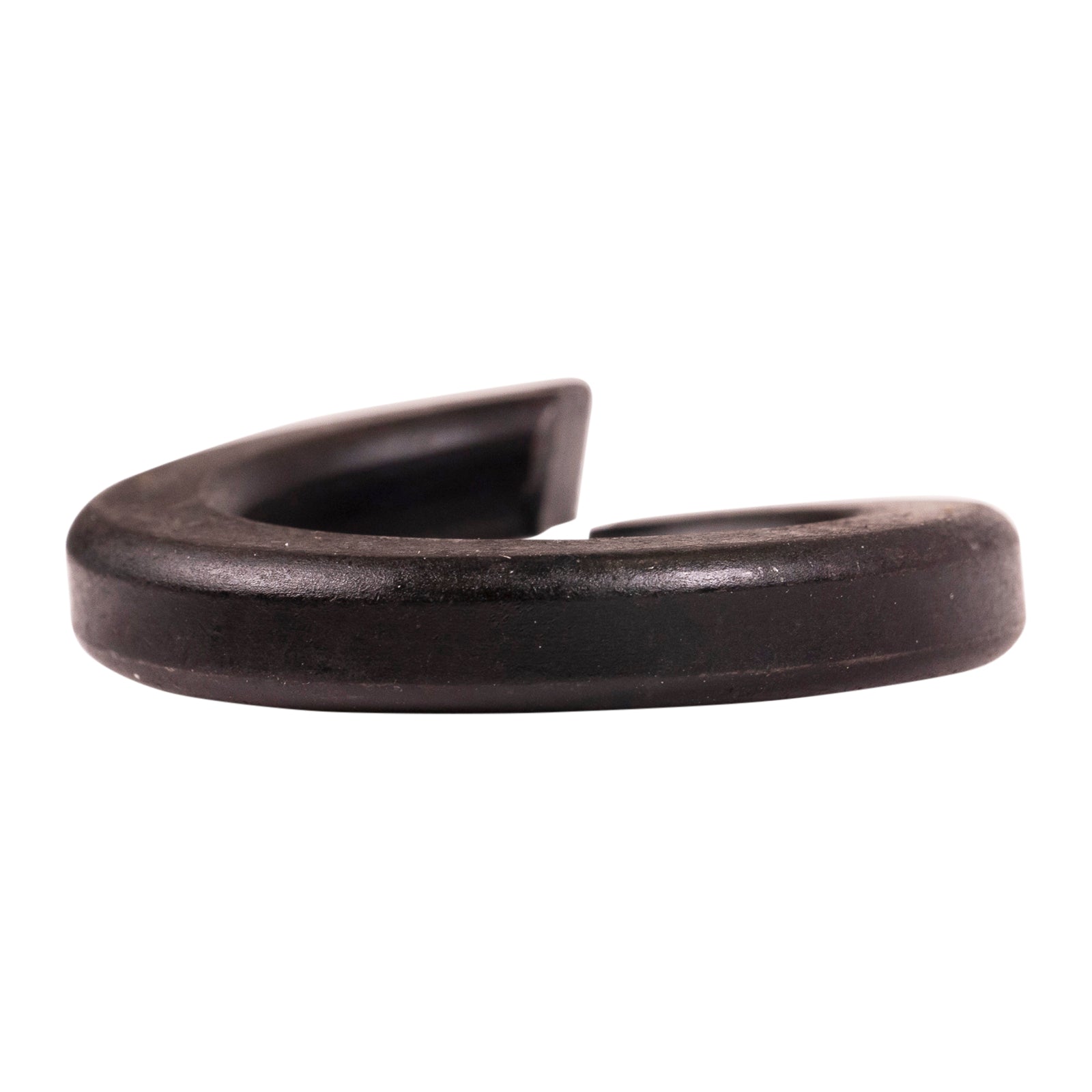

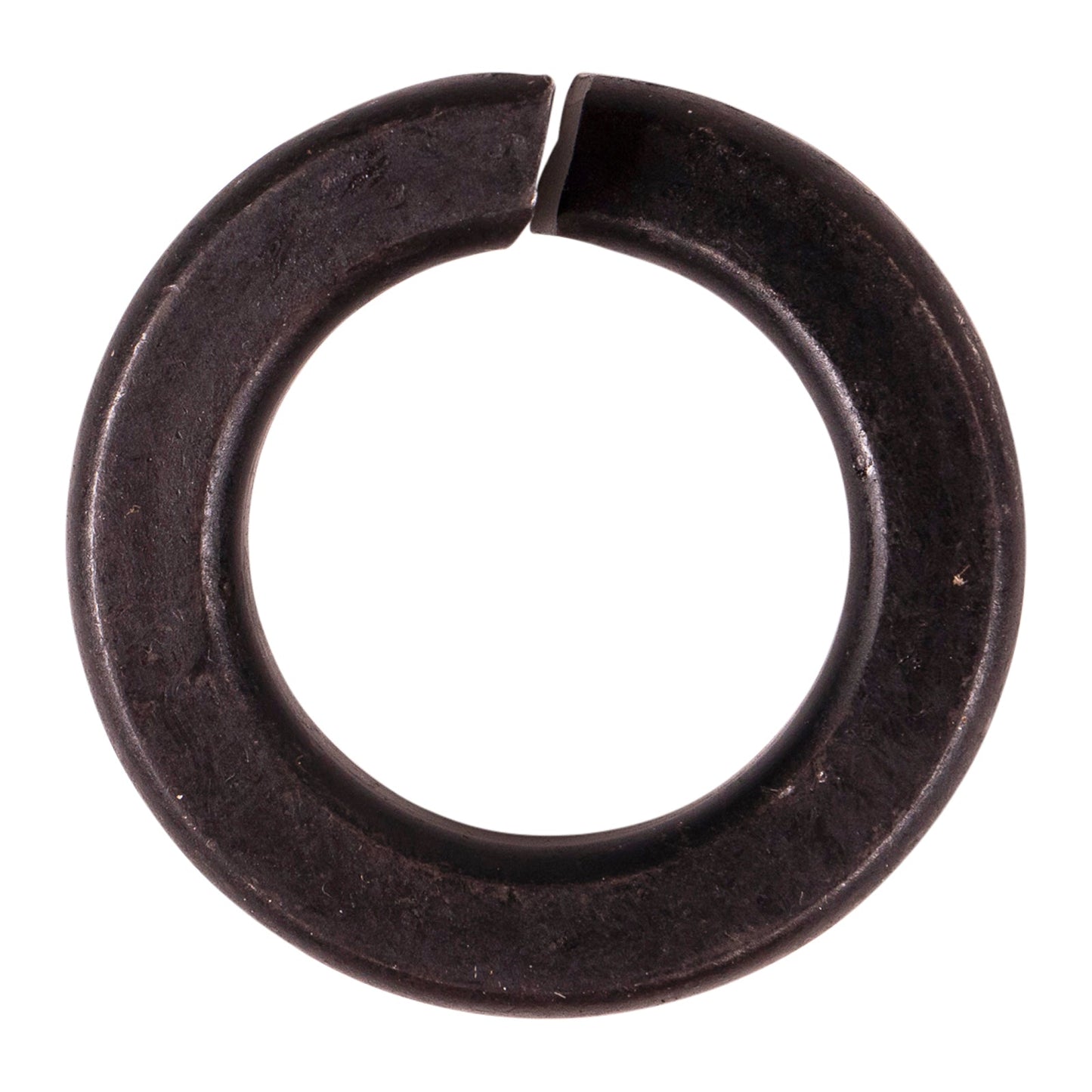

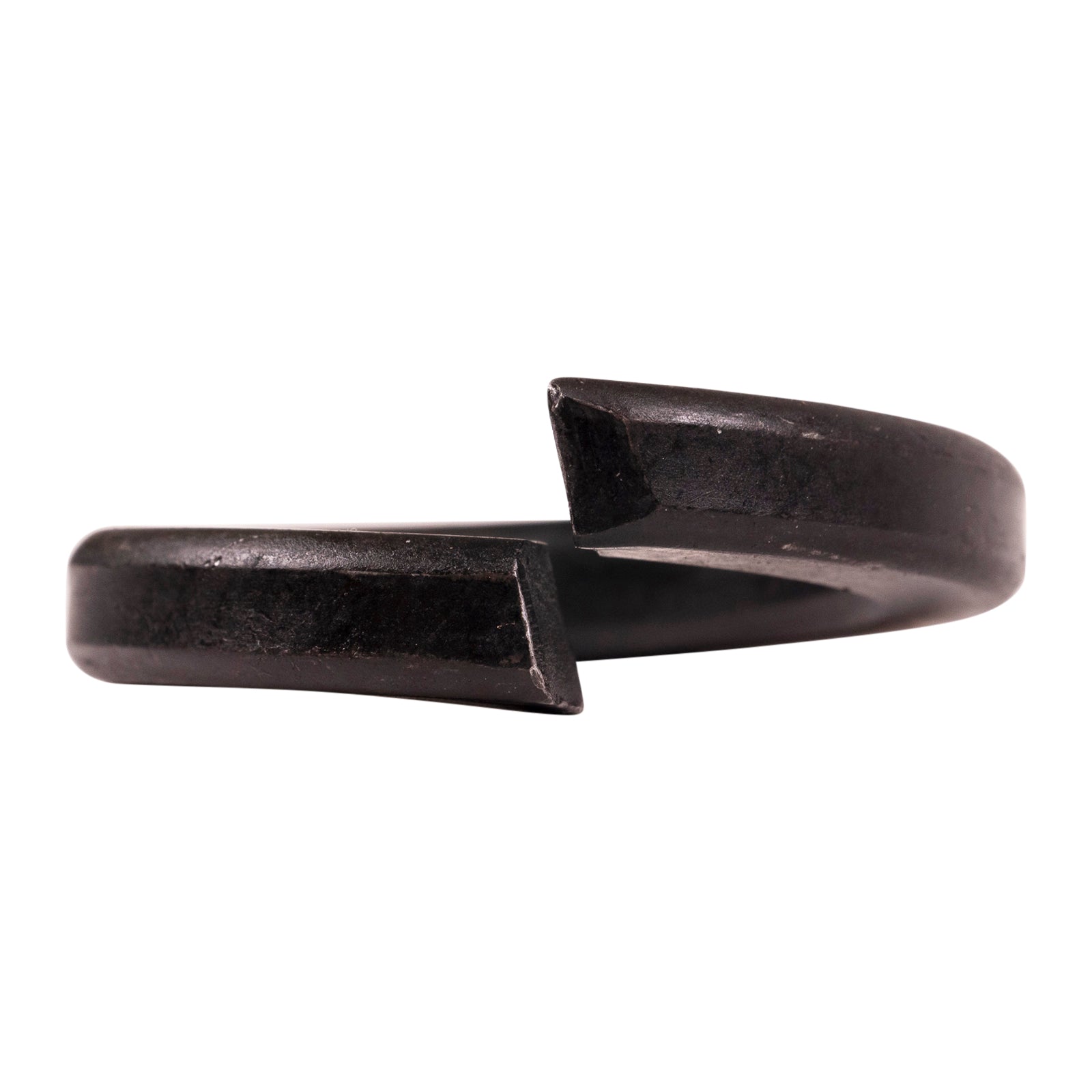

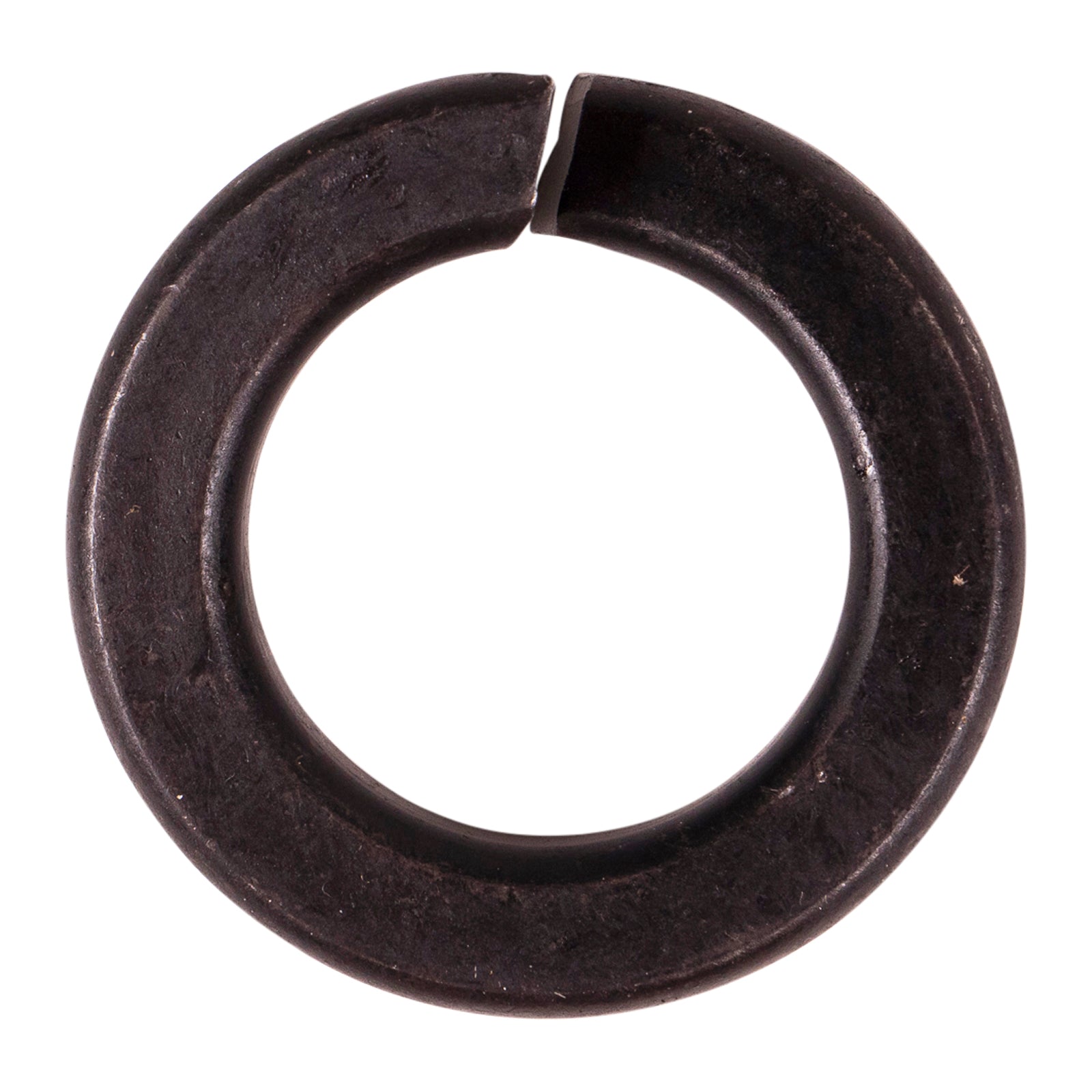

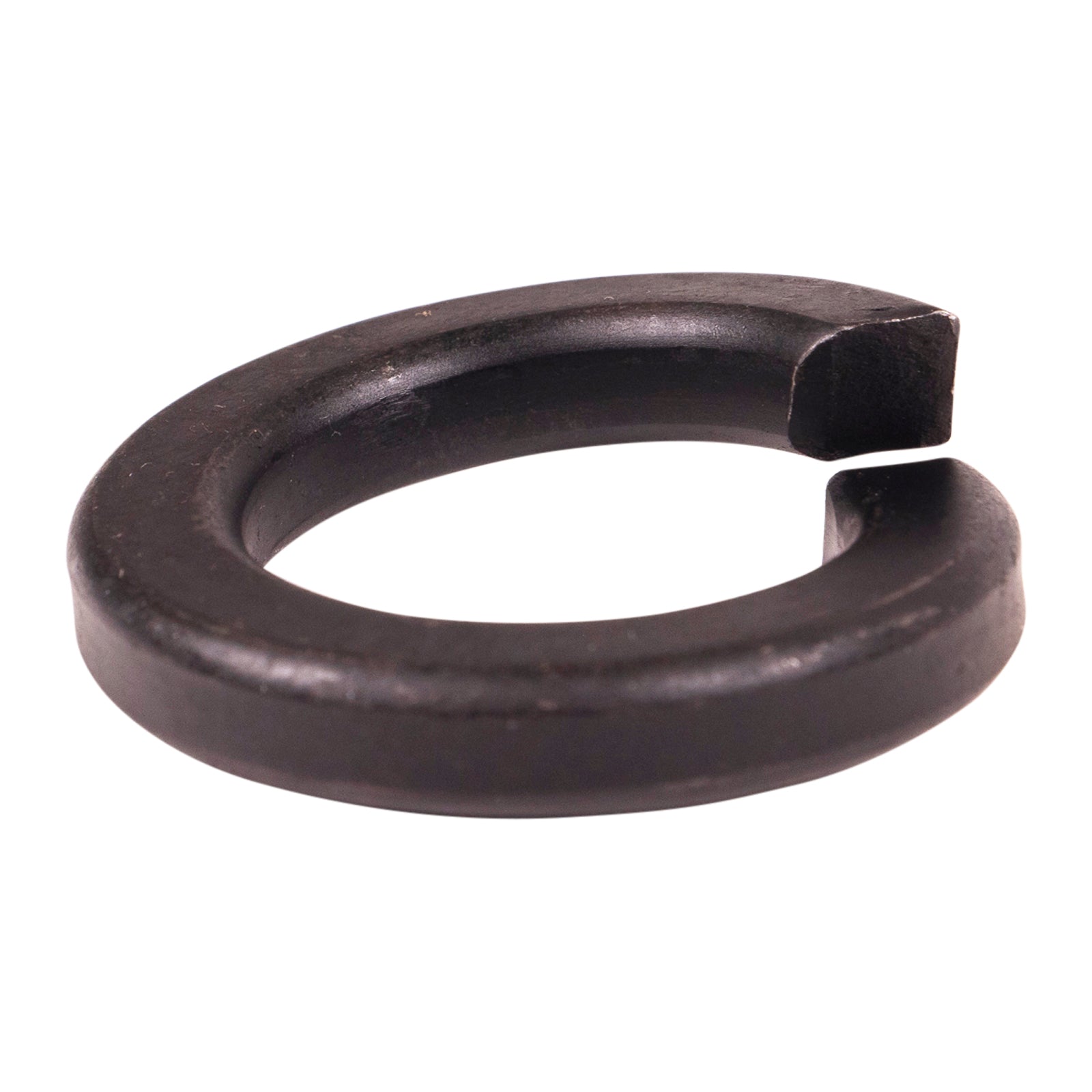

1" Conquest Split Lock Washer - Plain Finish

1" Conquest Split Lock Washer - Plain Finish!

  • Split Lock Washers
  • 1" Split Lock Washers
  • Conquest Split Lock Washers
  • Conquest Split Lock Washers - 1"
1 4

Continue Browsing

Nuts and Washers
SKU: SLW100

1" Conquest Split Lock Washer - Plain Finish

$0.68
Request Bulk Pricing
Request Bulk Pricing
Ships today when you order in the next 4 hours 59 minutes

Diameters:

1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 7/8" 1" 1-1/4" 1-1/2"

Finish:

Plain Hot Dip Galvanized

Blazing Fast Shipments

Shipping & Returns

Tailored Business Programs

Partner with Us

Questions?

We can help!

Payment Options

American Express
Apple Pay
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa

Specifications

Diameter: 1"
Width: 0.297"
Thickness: Max: 0.270" Min: 0.250"
Outside Diameter: 1.656"
Inside Diameter: Max: 1.024" Min: 1.003"
Material: Carbon Steel
Finish: Plain
Manufacturer Name: Conquest Fasteners
Quantity: Single
Description

1" Conquest Split Lock Washer - Plain Finish

This 1" split lock washer is made to keep extra-large fasteners from backing off under intense pressure or vibration. Its robust spring-steel body compresses under tightening to create tension, helping secure bolts in structural steel, machinery, or utility hardware. The plain finish offers dependable performance in dry environments where corrosion protection isn’t required.

Install beneath bolt head or nut and apply torque until the washer begins to flatten slightly.

1" Split Lock Washer – Maximum Holding Power for Oversized Fasteners

This washer provides cost-effective, mechanical fastener retention where large bolts carry big loads.

Key Features

  • Heavy-Duty Split Tension: Resists loosening under vibration and thermal cycles.
  • Plain Steel Finish: Suited for interior structural and assembly jobs.
  • 1" Bolt Compatible: Sized for large threaded hardware used in framing or utilities.
  • Direct Install: Simple to use, no extra tools or coatings needed.

Common Applications

  • Steel building columns and beams
  • Large trailer frameworks
  • Industrial mounting brackets
  • Machinery base plates
  • Infrastructure support systems

Installation Tips

  • Center under fastener and apply even torque to flatten slightly.
  • Use with flat washer when additional surface contact is needed.
  • Check fastener regularly in high-vibration use cases.
