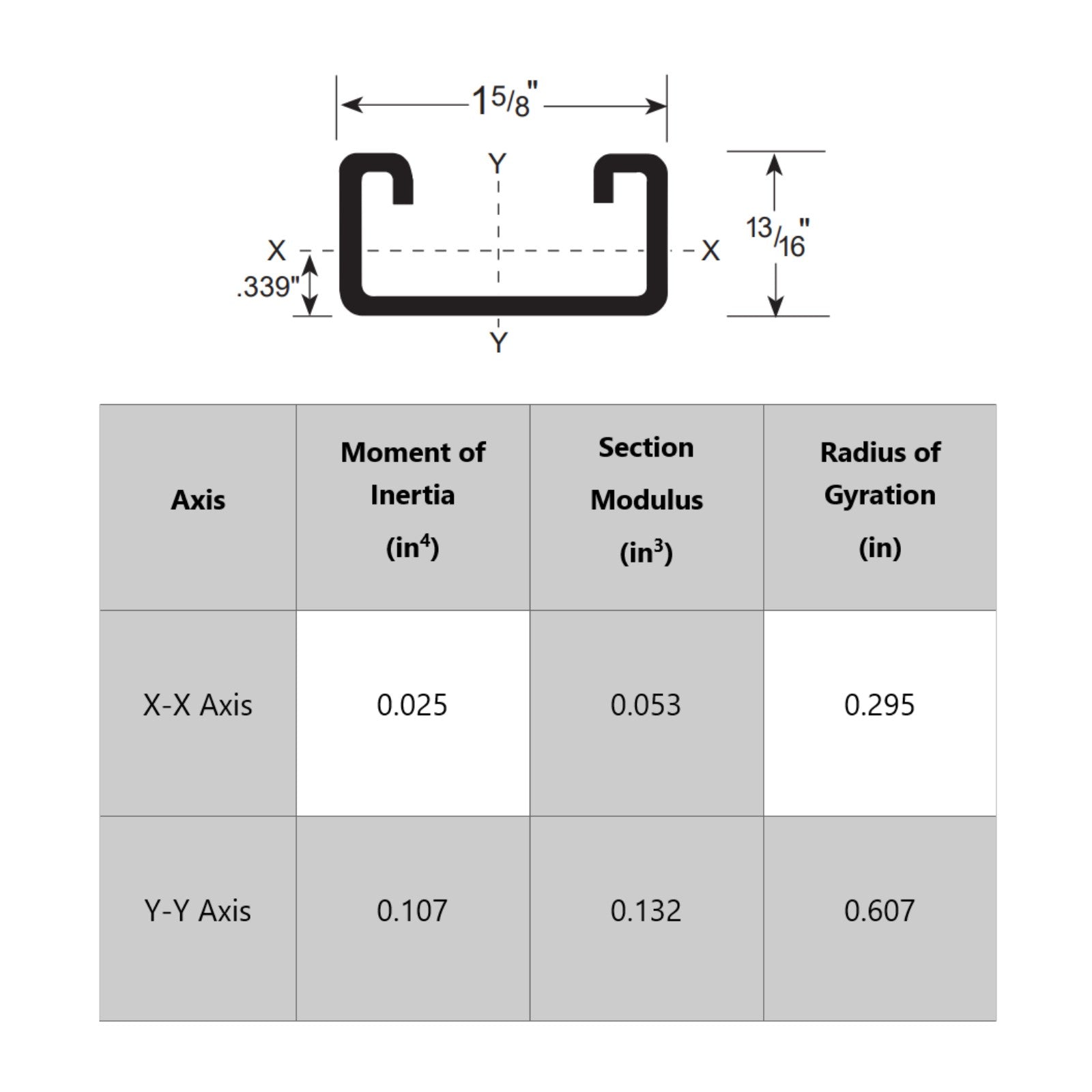

Specifications

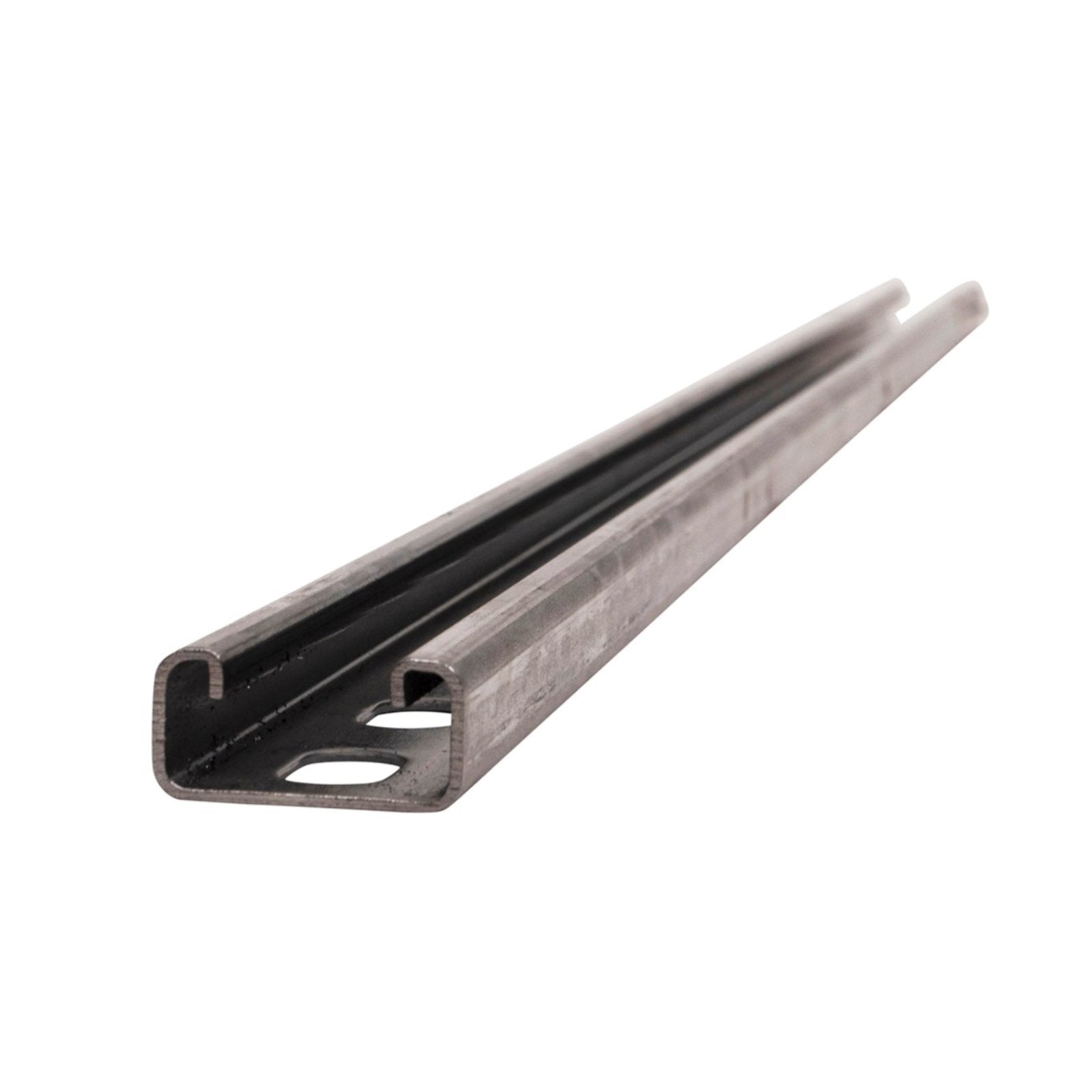

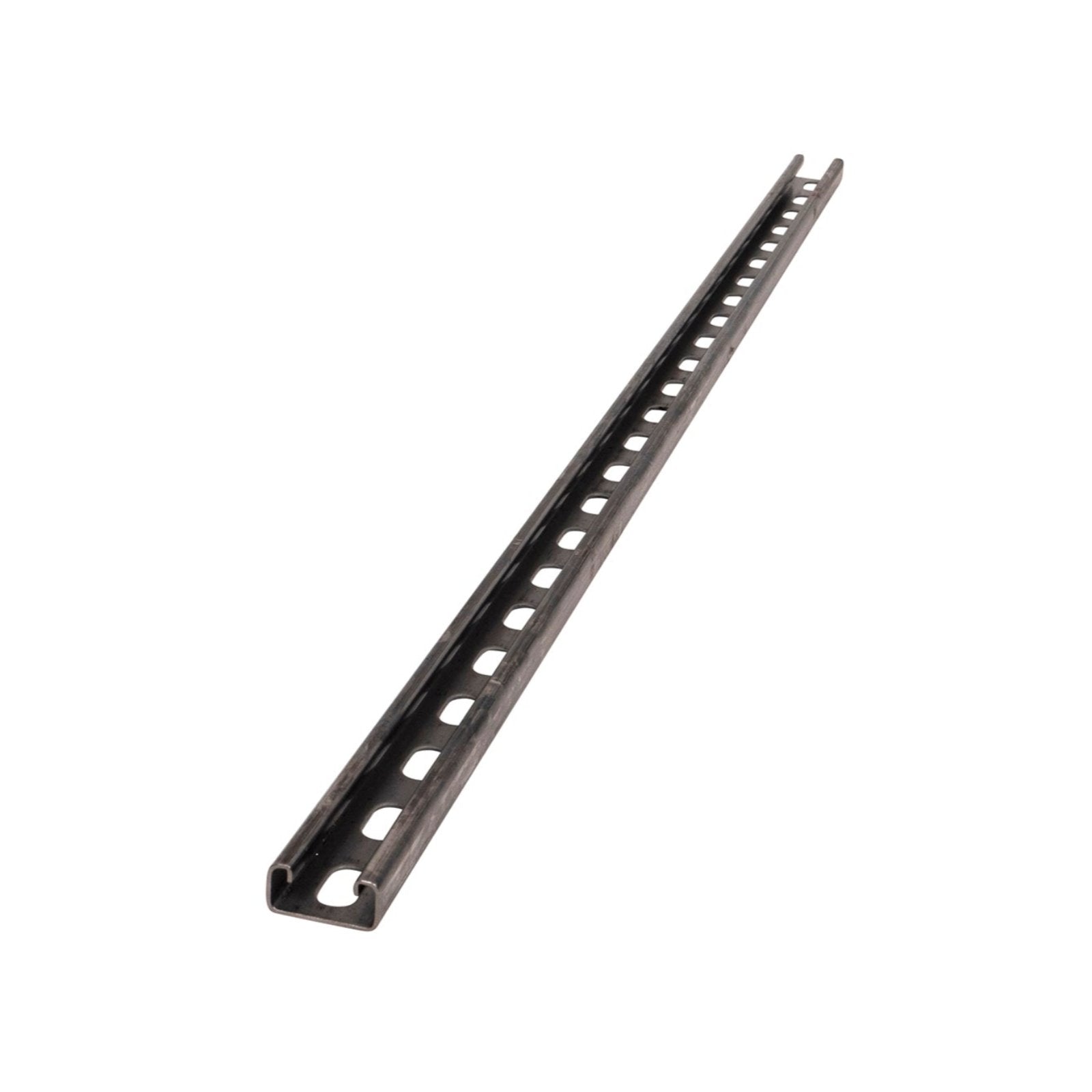

1-5/8" x 13/16" Strut Channel with Short Slots, 6 ft. - Plain
This 6-foot plain steel strut channel provides a strong, no-frills solution for structural support and system mounting. Built for controlled alignment, the short-slot design gives you just enough adjustment to dial in placement without compromising rigidity. It’s a reliable choice for professional installs where strength and consistency come first.
Notice: Plain carbon steel offers limited corrosion resistance. Consider environmental exposure and protective treatments when installing in damp or corrosive settings.
Plain Steel Short-Slotted Strut Channel for Framing and System Support
Well-suited for electrical, plumbing, and HVAC applications, this strut channel delivers dependable support in compact layouts. Short slots help maintain straight runs while still allowing hardware positioning during installation.
Key Features
- Plain Carbon Steel Construction: Manufactured from durable steel for dependable load support and long-term performance.
- Short-Slot Configuration: Provides moderate adjustability while keeping connections aligned and secure.
- ASTM A1011 Grade 33 Steel: Meets established physical requirements for structural framing applications.
Common Applications

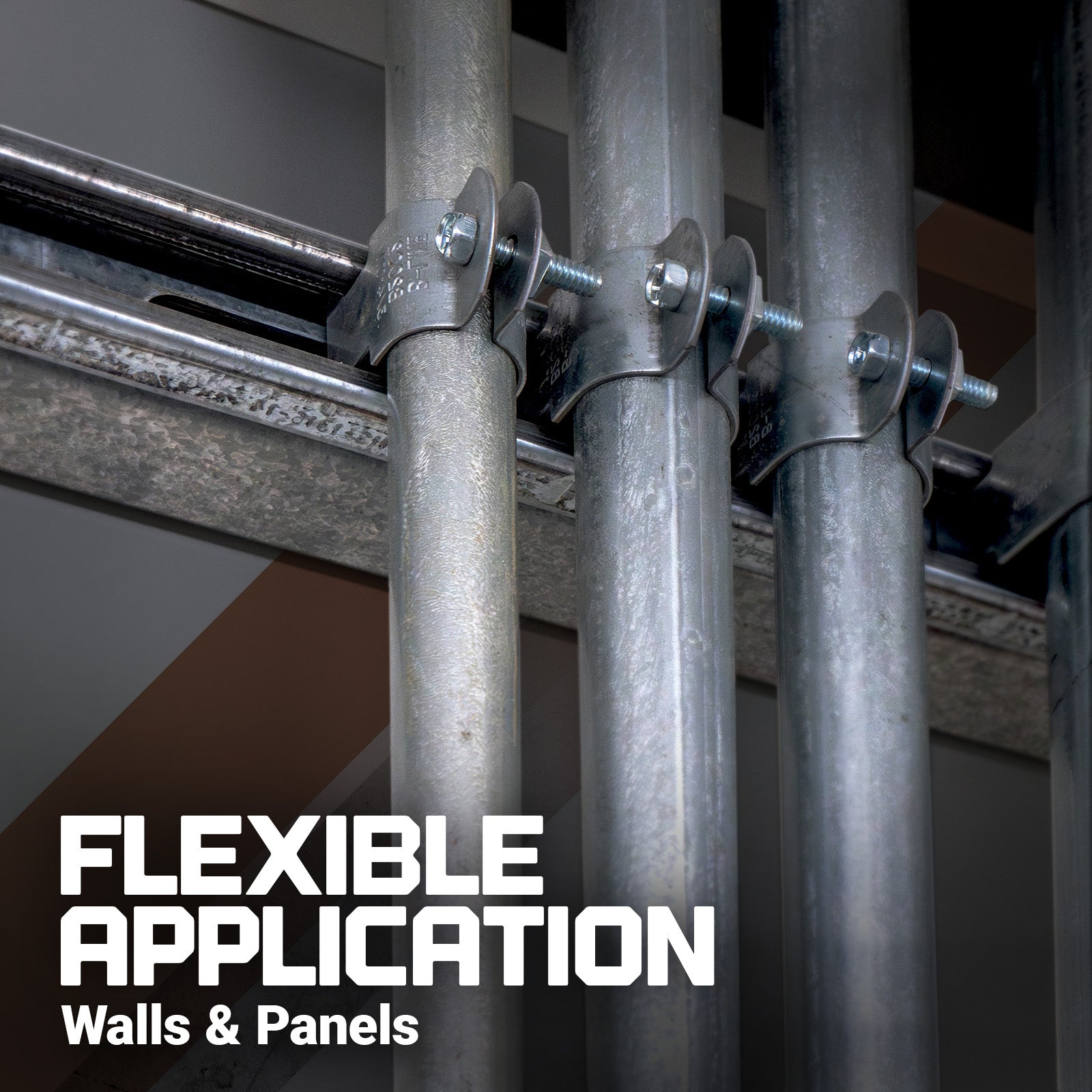

- Electrical Installations: Supports conduit, junction boxes, and cable routing systems.
- HVAC Support: Used for short hanger sections, bracing, and equipment mounts.
- Plumbing Systems: Provides a stable base for pipe clamps and small pipe runs.
- Framework Assembly: Helps build modular frames, racks, and reinforcement points.
- General Construction: Suitable for interior framing where a plain finish is acceptable.
Installation Tips

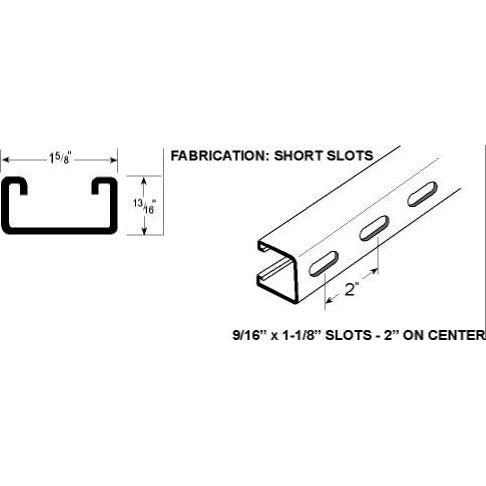

- Verify Slot Layout: Slots measure 1-1/8" x 9/16" with 2" center-to-center spacing, so align hardware before final tightening.
- Use Proper Strut Hardware: Pair with compatible 1-5/8" strut nuts, bolts, and fittings for a secure installation.
- Protect Exposed Steel: Apply paint or coating to cut edges to help reduce corrosion over time.
