SKU: GVEB12X8-T
1/2" x 8" Galvanized Eye Bolt - 3" Thread Length
1/2" x 8" Galvanized Eye Bolt - 3" Thread Length!
SKU: GVEB12X8-T
1/2" x 8" Galvanized Eye Bolt - 3" Thread Length
$6.99
Diameters:
Shank Lengths:
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options

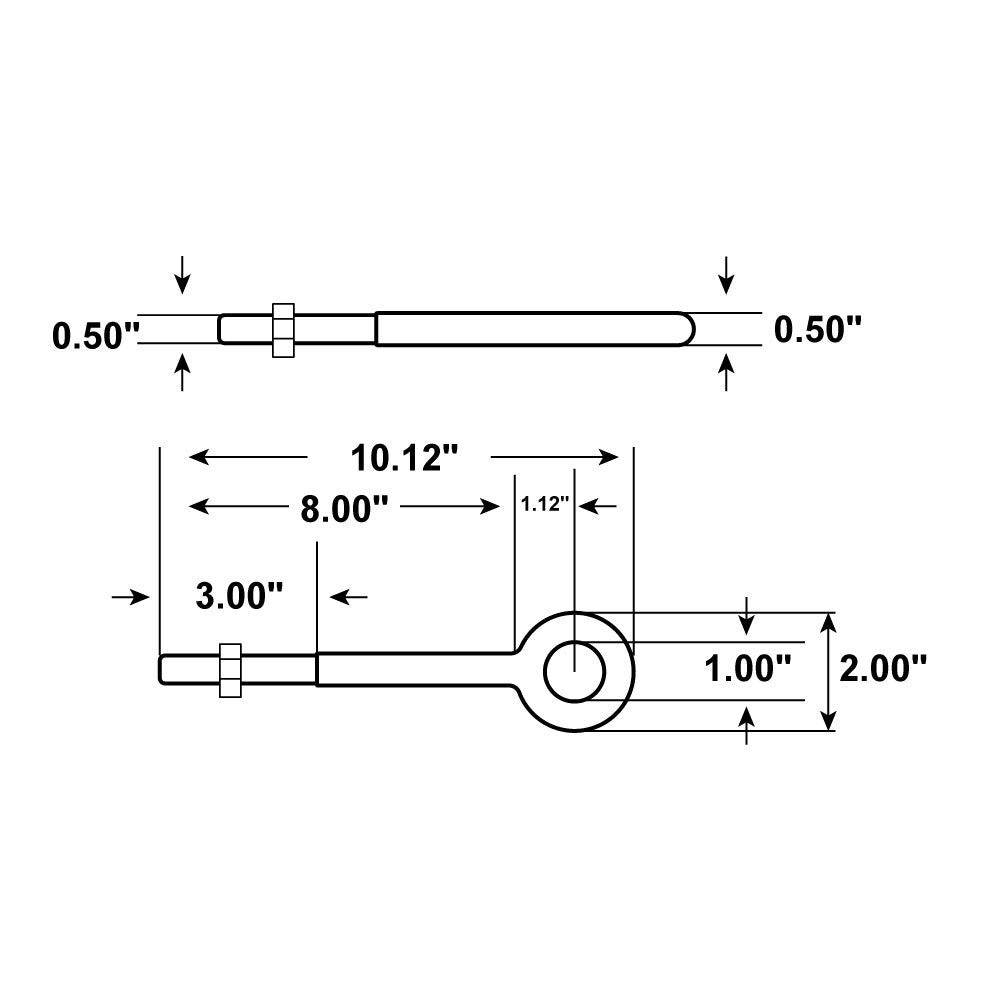

Specifications
Working Load Limit (lbs.): 2600
Assembly Break Strength: 13000 lbs.
Diameter: 1/2"
Width: 1.12"
Shank Length: 8"
Material: Steel
Finish: Galvanized
Product Weight: .8 lbs.
Standards: Meets or exceeds ASTM F541 requirements.
Shipping and Returns: This item cannot be returned due to safety risks associated with used materials.
Additional Info: Thread length is 1" shorter than our standard eye bolt.
Description

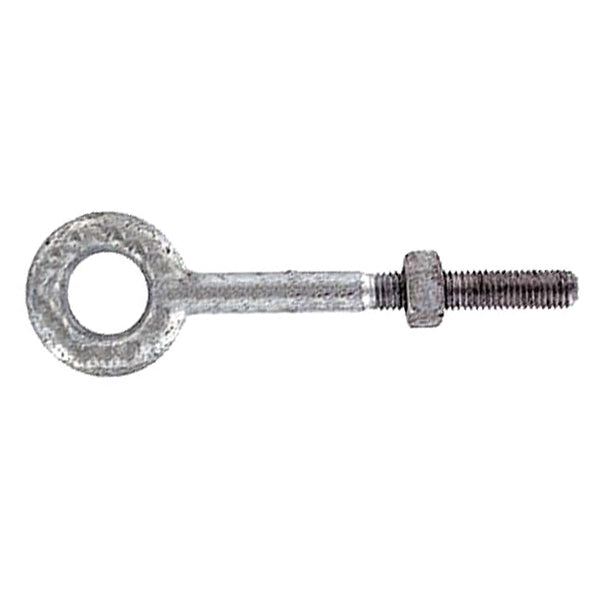

1/2" x 8" Galvanized Eye Bolts
Galvanized eye bolts are commonly used for anchoring wire rope, chain, or other rigging hardware to a fixed point, and are perfect for straight-line rigging applications. Forged from heavy-duty steel and galvanized for corrosion resistance, they hold up against the demands of outdoor and industrial environments with ease.
Compared to our standard eye bolts, this style has a shorter thread length and is being phased out. All other specs are similar.
Each eye bolt meets or exceeds ASTM F541 requirements, giving you a documented spec to point to when you're choosing rigging hardware for review or approval.
Note: These are designed for straight-line pulls only. Angular or side loading reduces working load capacity and isn't a supported use case - if your application involves angular loading, choose a shoulder eye bolt.
If you need marine-level corrosion-resistance, check out our stainless steel eye bolts.
Source: Import
