SKU: ABW114D

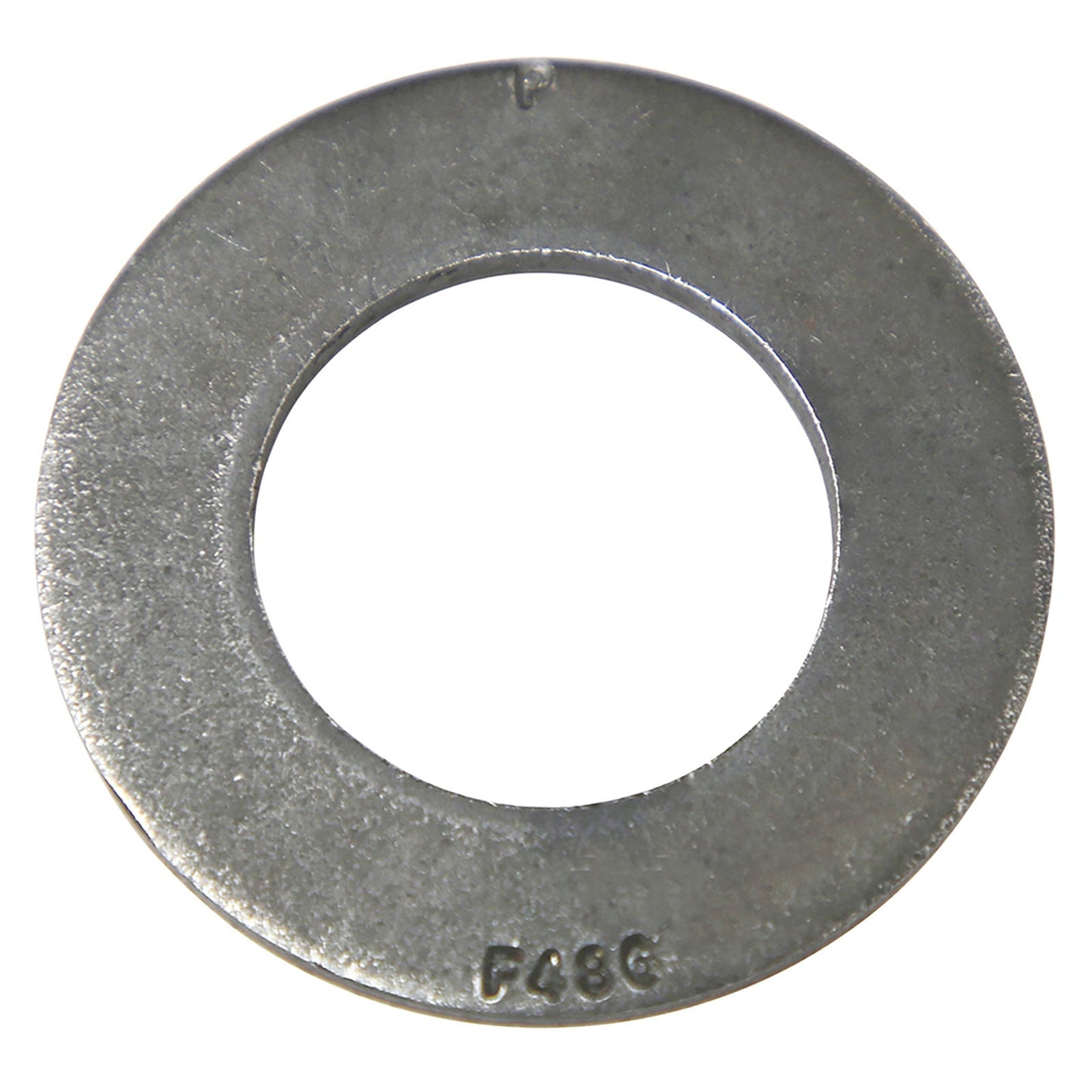

Conquest 1-1/4" F436 Flat Structural Washer - Plain Finish

Conquest 1-1/4" F436 Flat Structural Washer - Plain Finish!

Skip to product information

Continue Browsing

Nuts and Washers

SKU: ABW114D

Conquest 1-1/4" F436 Flat Structural Washer - Plain Finish

$1.46
Request Bulk Pricing
Request Bulk Pricing
Ships today when you order in the next 9 hours 34 minutes

Blazing Fast Shipments

Shipping & Returns

Tailored Business Programs

Partner with Us

Questions?

We can help!

Payment Options

American Express
Apple Pay
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa

Specifications

Diameter: 1-1/4"
Thickness: .136" - .177"
Outside Diameter: 2.437" - 2.563"
Inside Diameter: 1.375" - 1.438"
Thread Type: Applicable with both Coarse and Fine Threads
Material: Tempered Carbon Steel
Finish: Plain
Manufacturer Name: Conquest Fasteners
Quantity: Single
Description

1-1/4" Conquest F436 Flat Washer – Plain Finish

This 1-1/4" F436 washer is built for high-stress structural connections requiring a strong, stable bearing surface. The plain finish is well-suited for dry, protected environments. Machined from tempered carbon steel, it ensures durability under torque without distortion. Designed to pair with both coarse and fine thread 1-1/4" structural bolts.

Ensure washer, bolt, and nut sizes match and meet structural specifications for safety and compliance.

1-1/4" F436 Washer for Heavy-Duty Steel Connections

Ideal for base plates, framing joins, and structural columns, this washer delivers solid performance under load. The hardened steel prevents movement or surface damage during fastening. Use it in bridgework, plant installs, and commercial steel builds. Fully meets ASTM F436 standards for structural bolted joints.

Key Features

  • Tempered Carbon Steel: Built for high-strength applications.
  • Plain Finish: Use in non-corrosive environments.
  • ASTM F436 Certified: Compatible with structural bolts.
  • 1-1/4" ID: Supports coarse or fine thread bolts.
  • Flat Precision Surface: Protects base materials and secures joints.

Common Applications

  • Baseplate anchoring
  • Steel structure tie-downs
  • Industrial machinery installations
  • Commercial framing systems
  • Heavy utility framework

Installation Tips

  • Install between bolt head or nut and the base material.
  • Use only with matching structural bolts and nuts.
  • Torque to specification to prevent movement or loosening.
