1-1/2" x 10' Mechanical Splice Grommet Wire Rope Sling
1-1/2" x 10' Mechanical Splice Grommet Wire Rope Sling!
- Length: 10'
- Basket capacity: 60 ton
- Vertical capacity: 30 ton
- Choker capacity: 21 ton
- 30 degree capacity: 30 ton
- 45 degree capacity: 42 ton
- 60 degree capacity: 28 ton
- Wire rope class: 6x36WS
- Diameter: 1-1/2"
- Body diameter: 1-3/8"
- Shipping & Returns: This item cannot be returned due to safety risks associated with used materials.

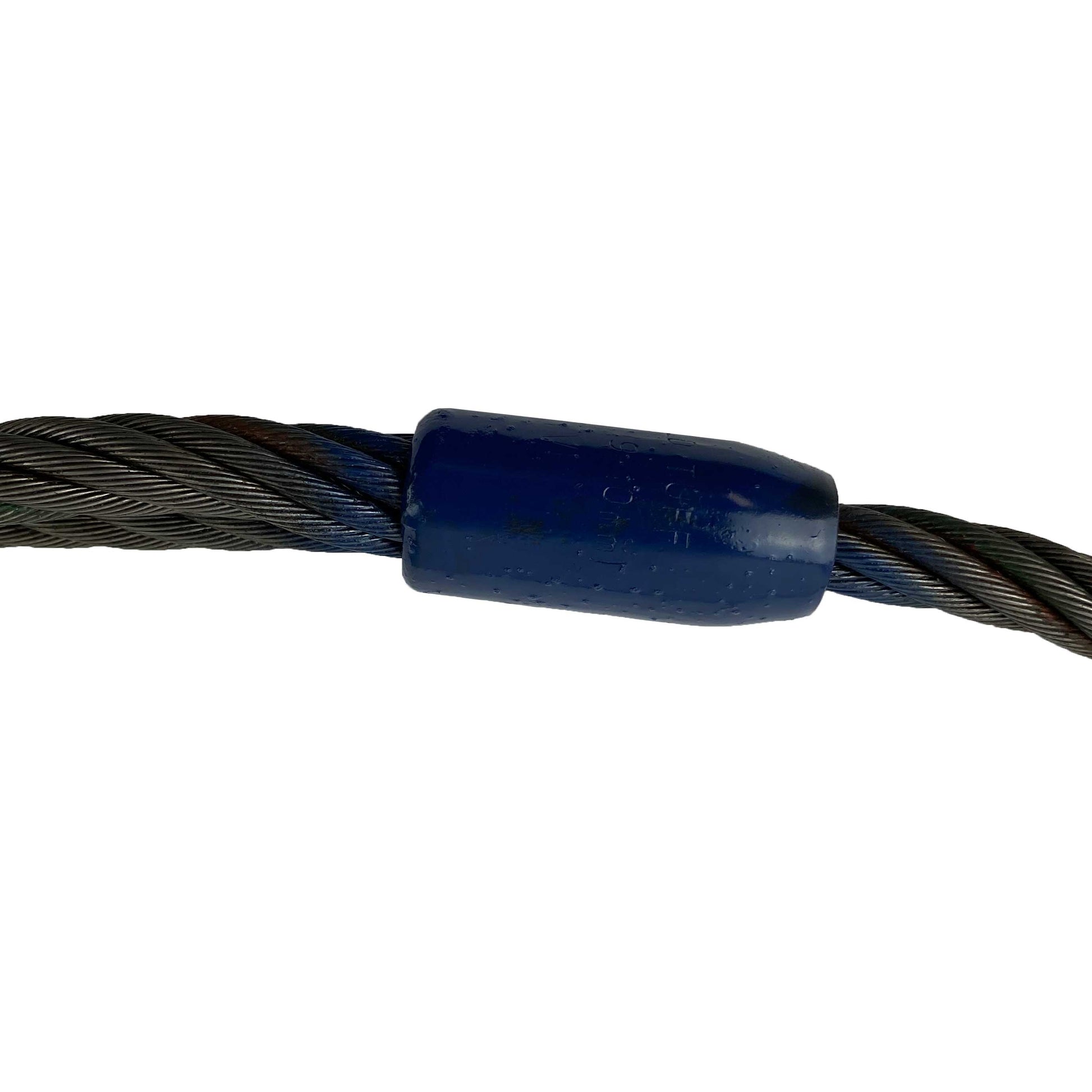

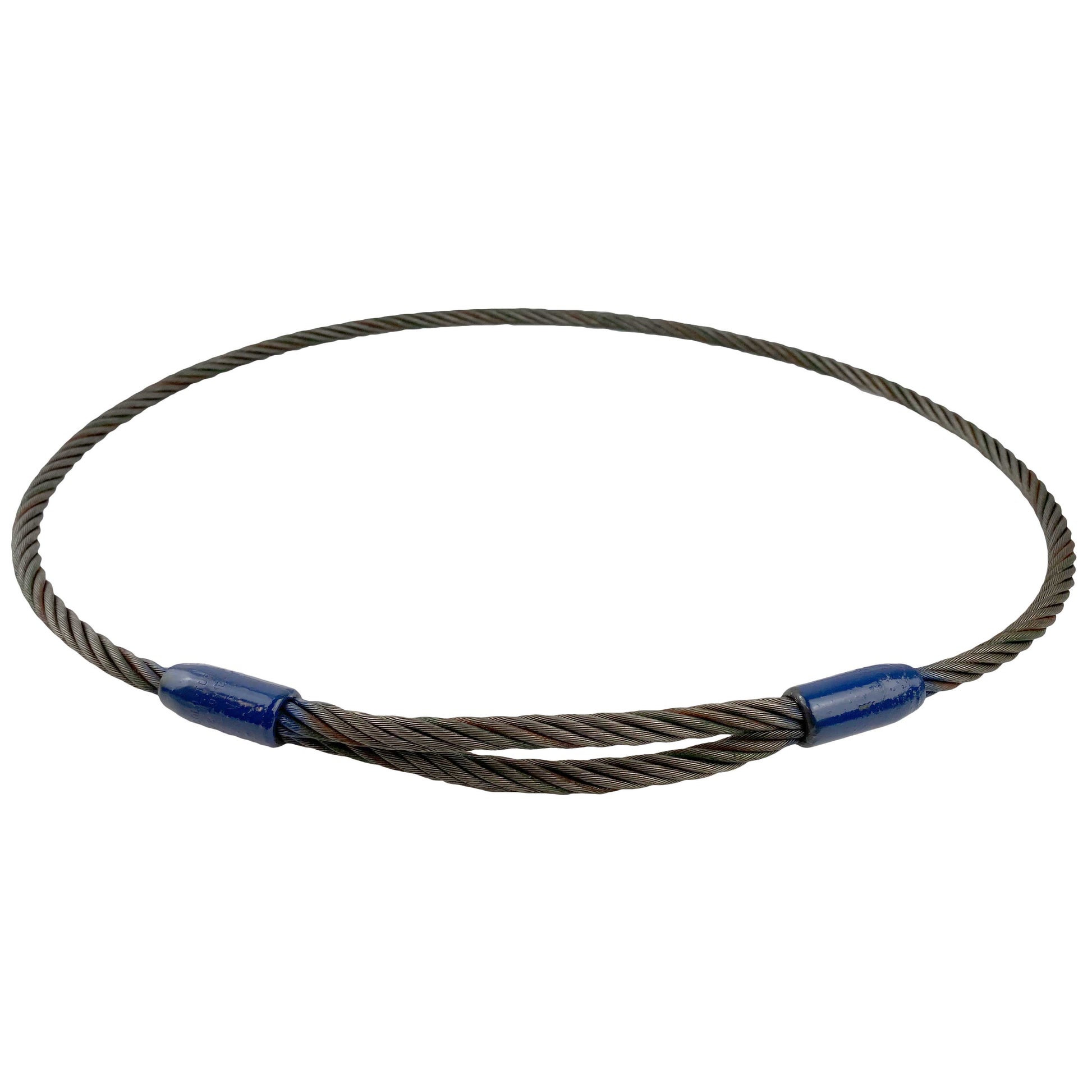

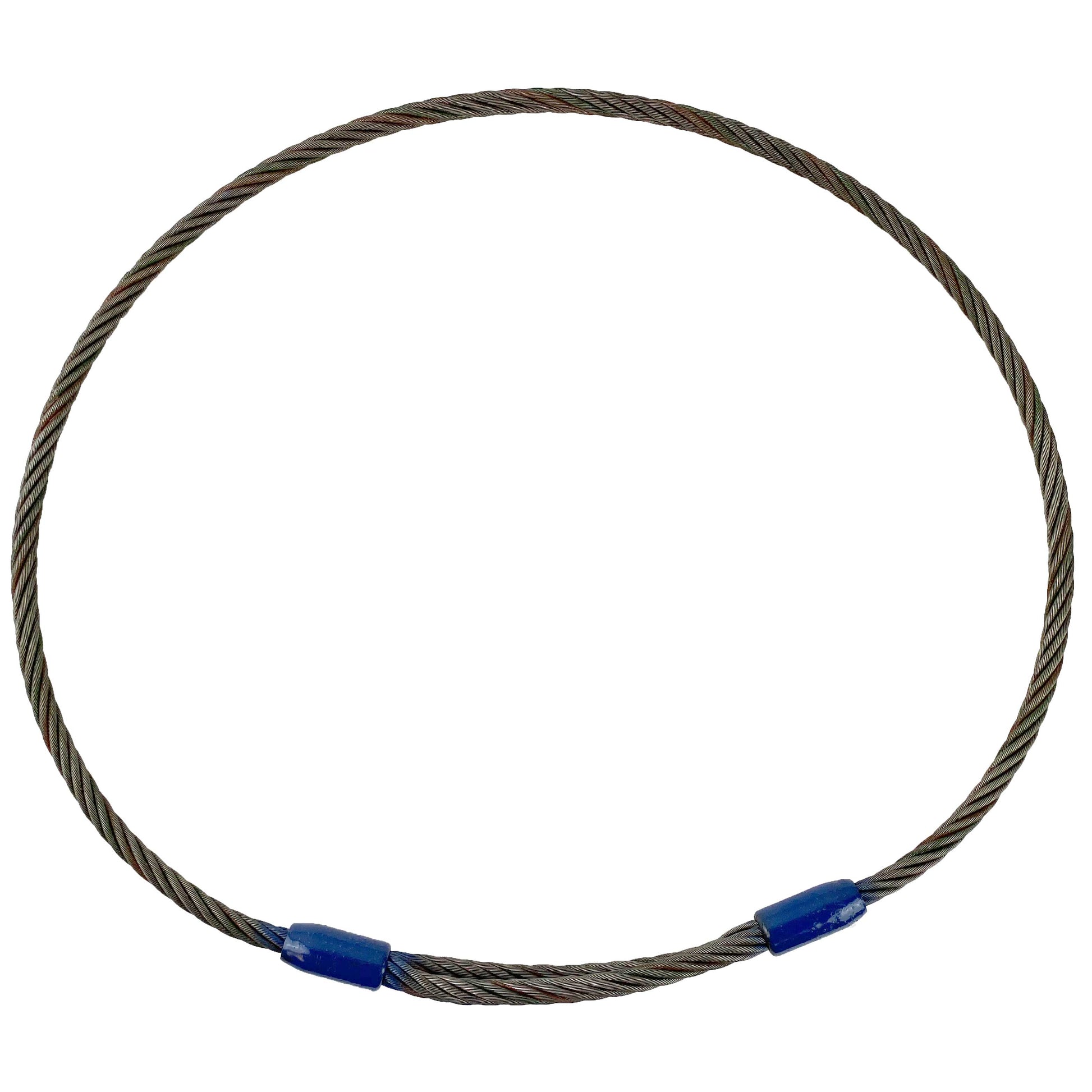

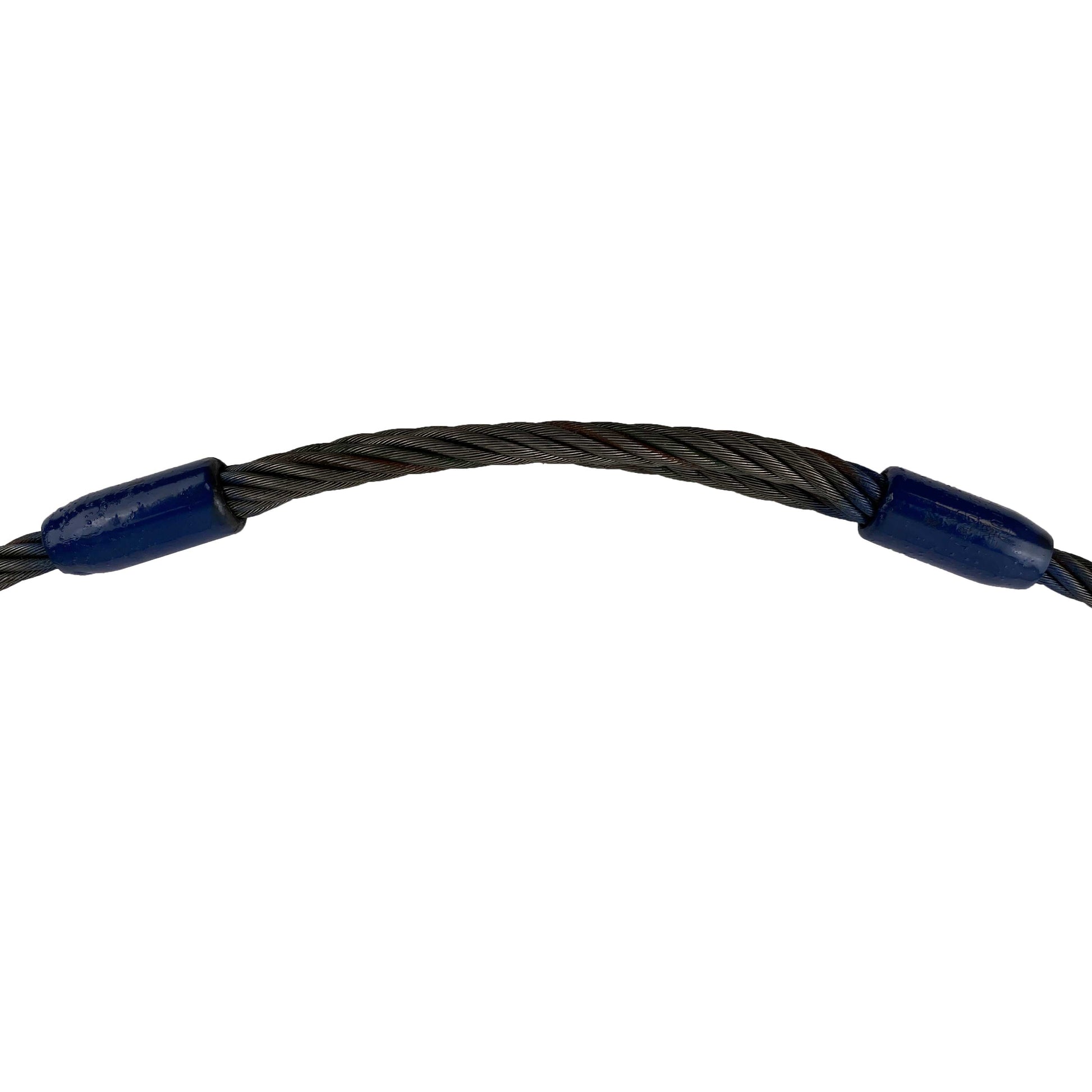

This 1-1/2" by 10' mechanical splice grommet is a sling used in lifting and rigging applications. This type of sling forms a continuous loop, so it is used in situations where extra flexibility is needed, or when rigging is too short for a more traditional wire rope sling with eyes on each end. A mechanical splice grommet is made from a continuous length of wire ripe. The end can be joined by mechanical sleeves or swaged sleeves. Looking for other types of slings for lifting and rigging? We have braided wire rope slings, chain slings, and more. Find out which is right for your project by contacting our sales specialists.
Endless Wire Rope Sling Measurements
The length of this sling is measured from the inside width of bearing point to bearing point (or end-to-end), not circumference.
