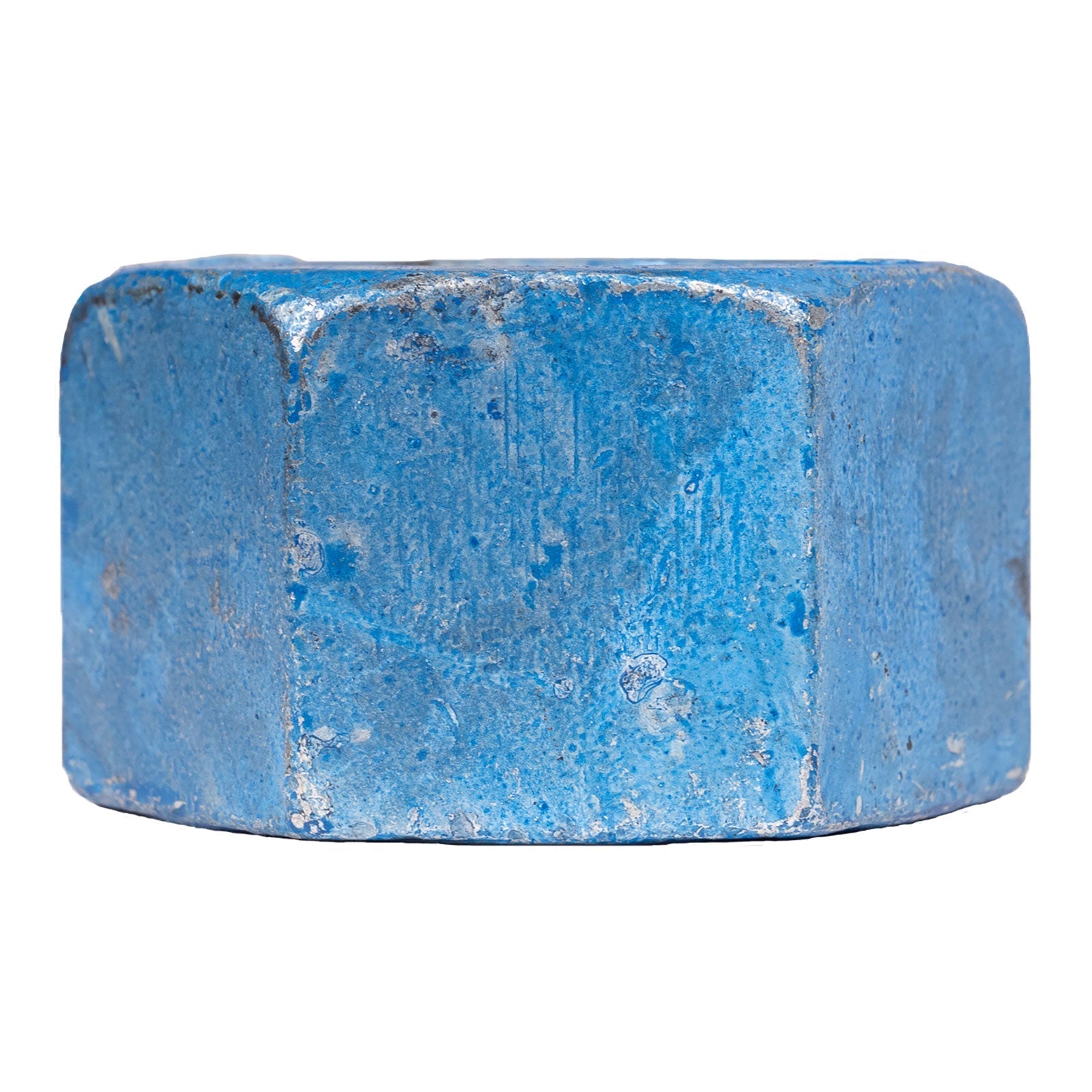

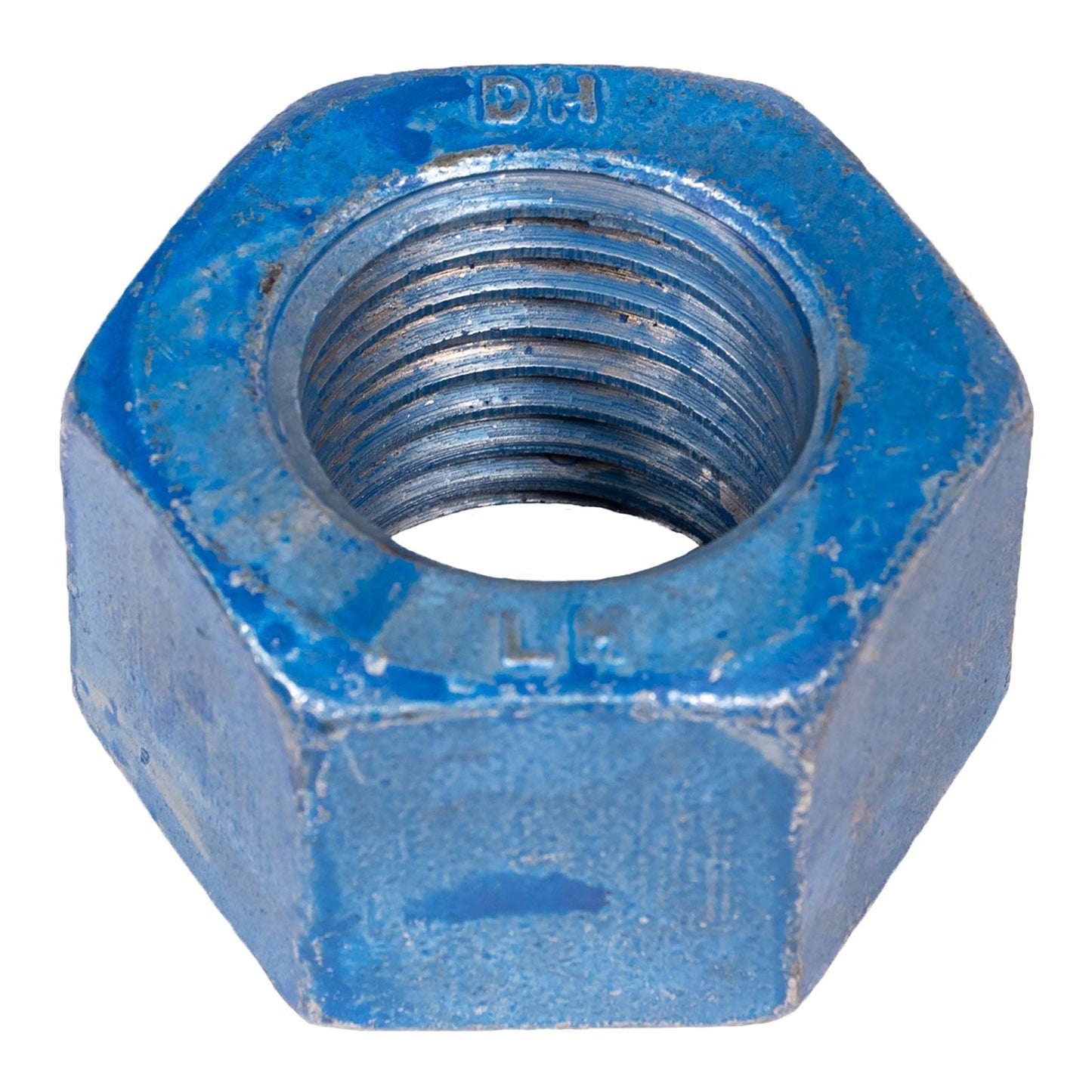

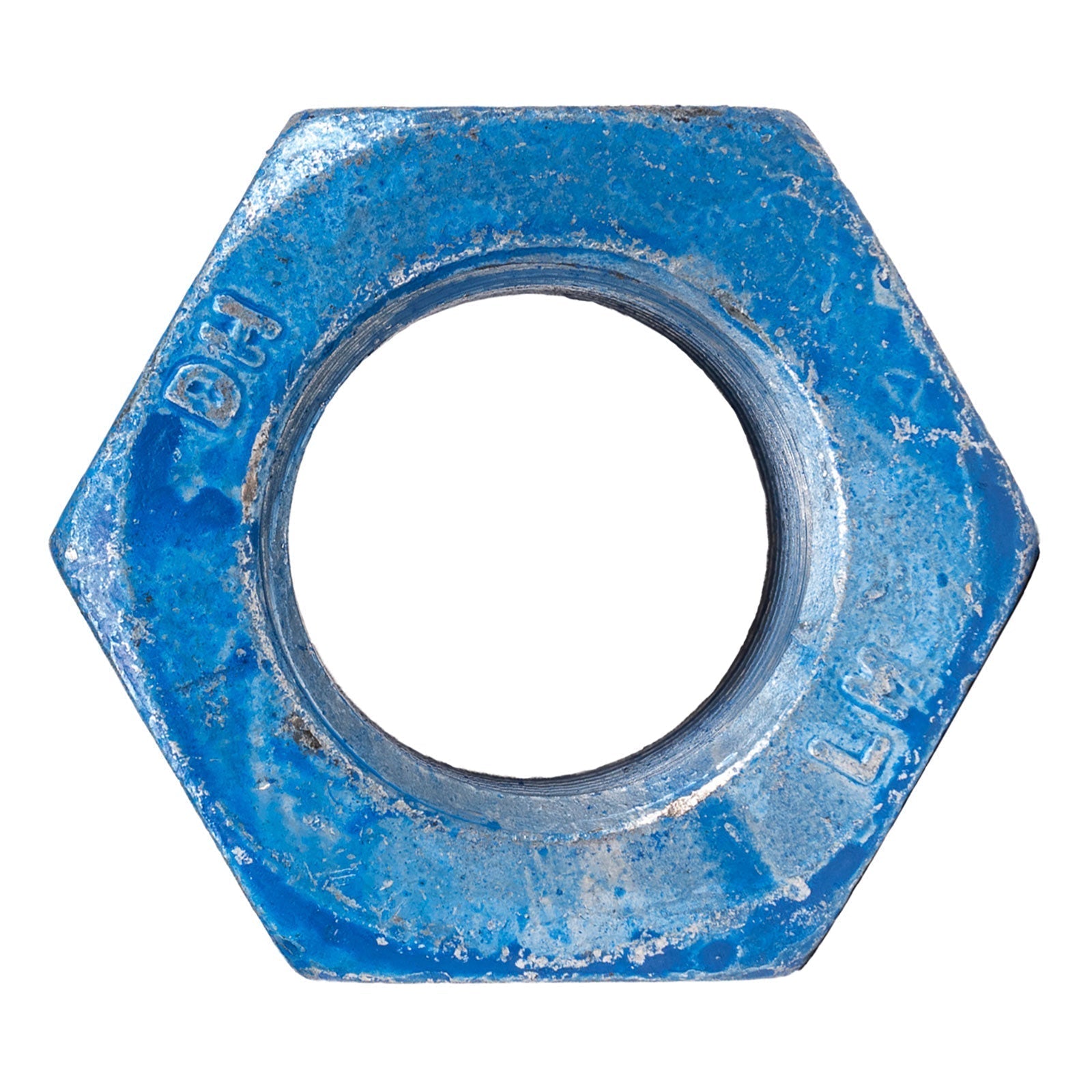

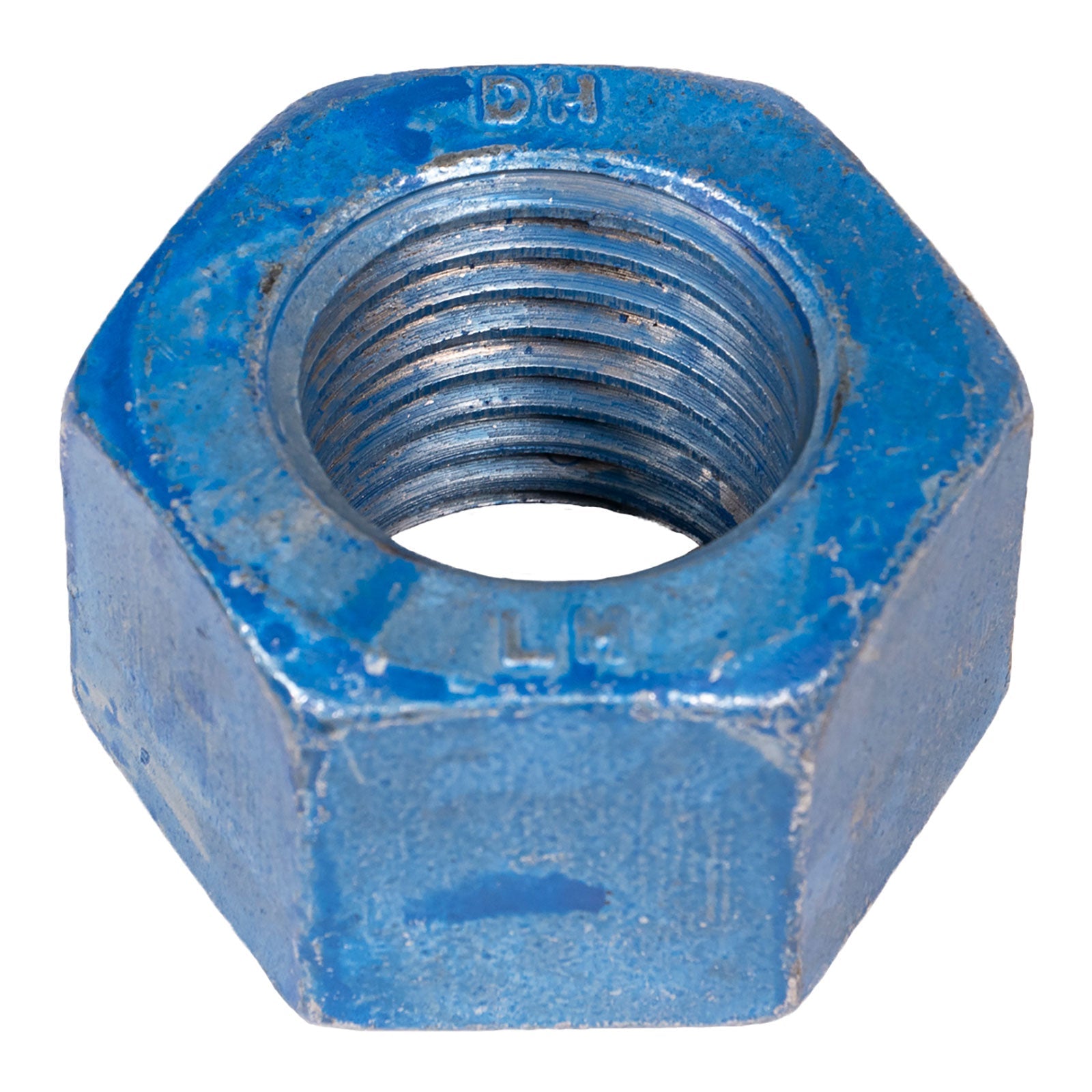

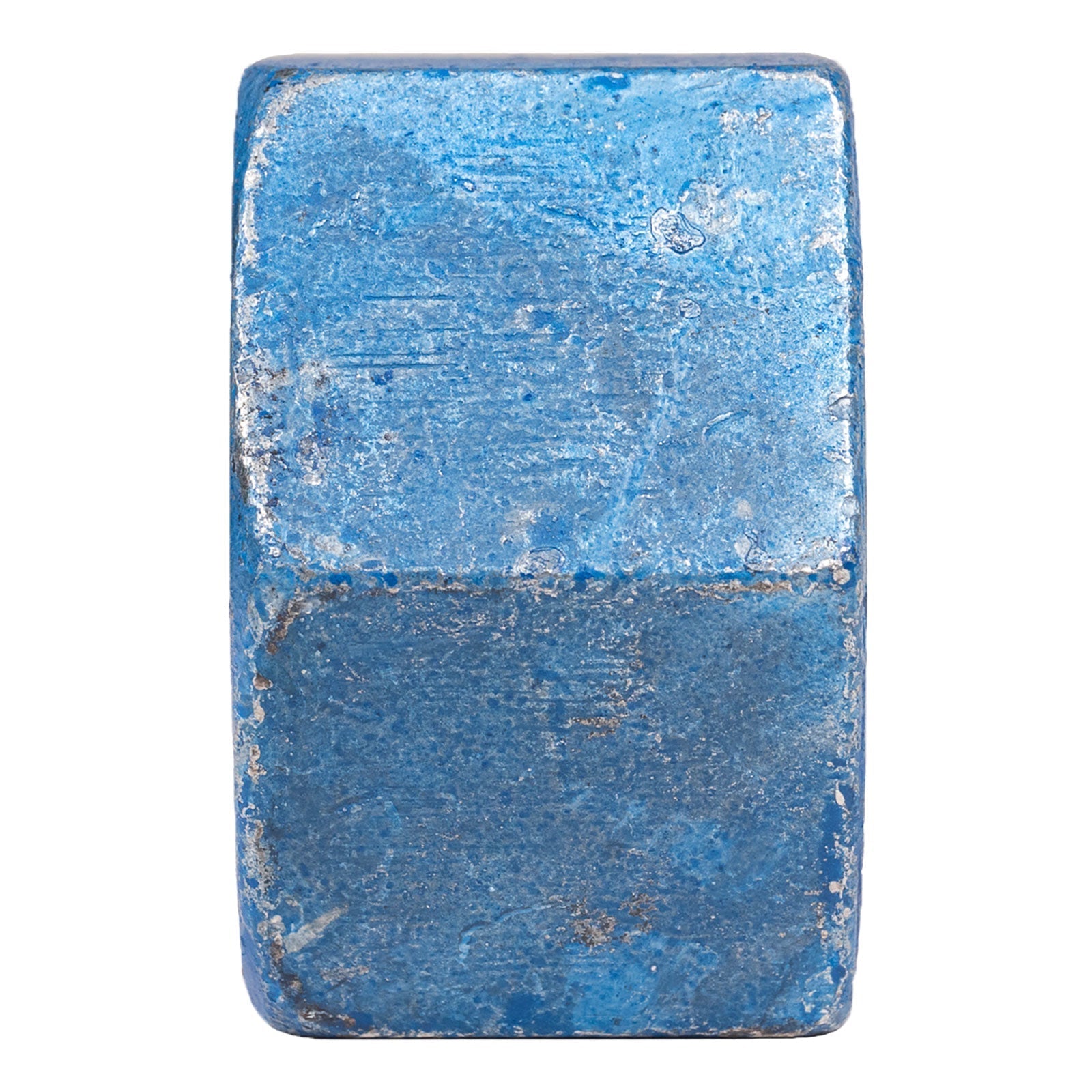

1-1/2"-6 Conquest A563 Grade DH Heavy Hex Nut – Hot Dip Galvanized, Wax, & Blue Dye
The 1-1/2"-6 Conquest A563 Grade DH Heavy Hex Nut is a large-diameter, high-strength fastener engineered for structural assemblies and anchor bolt systems in critical infrastructure and industrial construction. Made from quenched and tempered carbon steel, this nut is Hot Dip Galvanized, Waxed, and Blue Dyed for superior corrosion resistance, smoother installation, and clear grade identification. It is manufactured to meet the demanding requirements of ASTM A563 Grade DH.
Oversized Structural Nut for Anchor Bolts and High-Load Steel Connections
With a 1-1/2" diameter and 6 TPI coarse thread, this nut provides maximum torque resistance, deep thread engagement, and exceptional clamping force. The hot dip galvanized finish guards against rust and corrosion in exposed environments, while the wax coating minimizes installation friction and helps prevent galling. The blue dye offers instant visual verification in structural bolting systems.
Key Features
- Material: Quenched and tempered carbon steel for structural-grade durability.
- Thread Type/TPI: Coarse 6 TPI thread for optimal thread engagement in high-load systems.
- Heavy Hex Design: Larger dimensions deliver enhanced torque control and bearing surface.
- Finish: Hot Dip Galvanized with Wax and Blue Dye for corrosion protection, reduced friction, and easy identification.
- Standard Compliance: Complies with ASTM A563 Grade DH for strength and reliability in structural assemblies.
Applications
- Anchor bolt systems in bridge, highway, and infrastructure construction
- Steel column base plates and support assemblies
- Heavy-duty threaded rod systems (Grade B7, A307 Grade B)
- Outdoor utility and industrial structural framing
- High-load mechanical fastening in corrosive or outdoor conditions
Installation Tips
- Pair with 1-1/2"-6 galvanized A325 or A490 bolts or threaded rod rated for structural use.
- Use torque-calibrated impact tools or wrenches with sockets sized for heavy hex nuts.
- Take advantage of the wax coating for smoother thread engagement and reduced risk of galling under pressure.
