Calculate force per lifting point - then confirm your hoist ring's WLL covers it
HOIST RING ANGLE LOAD CALCULATOR

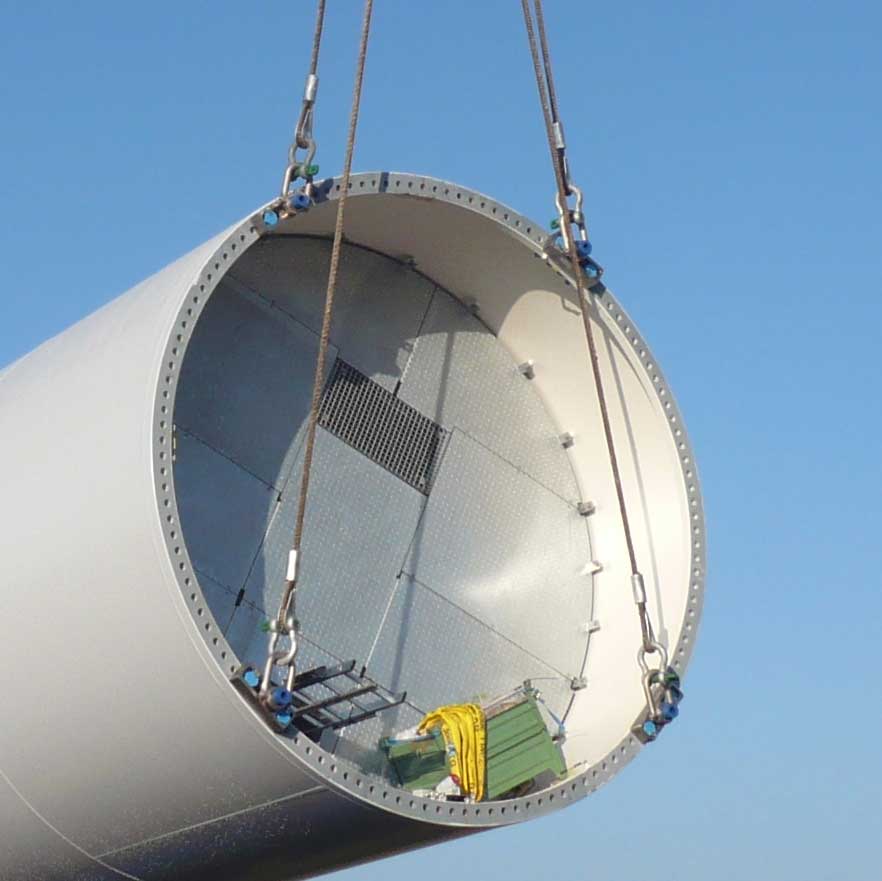

Swivel hoist rings maintain their rated capacity from 0° to 90°, but the force on each ring increases as the sling angle gets shallower. At 30°, each point carries nearly double its share of the total load. At 20°, it's close to triple.
This calculator quantifies that per-point force before the lift:
Load per lifting point = Total load ÷ (Number of hoist rings × sin(sling angle))
Use the result to confirm your hoist ring's WLL covers the actual calculated force, not just the divided share of the total load.
IMPORTANT NOTE:
Self-aligning hardware doesn't eliminate the force increase caused by shallow sling angles. Always size to the calculated per-point force. Per ASME B30.26 and Actek safety documentation, inspect hardware before each use and remove from service if deformation, wear, binding, or corrosion is present.
Hoist Ring Angle-Load Calculator
Determine actual force per lifting point at any sling angle
Results
Fill in the fields to calculate.
| Sling angle | sin(A) | Force multiplier | Status |
|---|
Sling Angle Force Reference
As sling angle decreases from vertical (90°), force per lifting point rises. The table below shows how.
| Sling Angle | Force Multiplier | Notes |
|---|---|---|
| 90° (vertical) | 1.00× | Most efficient geometry |
| 60° | 1.15× | Common in multi-leg bridles |
| 45° | 1.41× | 41% above vertical share |
| 30° | 2.00× | Force doubles - reassess hardware |
| 20° | 2.92× | Approaching 3× - avoid if possible |
| 15° | 3.86× | Consult a rigging engineer |
The calculator flags angles below 45° with a warning and triggers a hard warning below 30°.
WHEN TO USE THIS CALCULATOR
Use this tool when selecting or verifying hoist rings for:
- New fixtures, tooling plates, or molds
- Multi-leg bridle configurations
- Angular or side-mounted lifting applications
- Pre-order WLL confirmation before submitting a purchase order
For critical or high-cycle applications, this tool supports but does not replace a full rigging plan review by a qualified engineer.
HOW TO USE THIS CALCULATOR
Find Minimum WLL: Enter total load, number of lifting points, and sling angle. Returns the minimum WLL your hoist ring must meet at that geometry. Use the result to filter directly to compatible products on our Lifting Points collection page.
Find Maximum Load: Enter the hoist ring's rated WLL, number of points, and angle. Returns the maximum total load that configuration can safely handle.
TWO OTHER SIZING FACTORS TO CHECK
Thread Engagement: Hoist rings require a minimum thread engagement of 1.5× the screw diameter to achieve full rated capacity. Shallow threads reduce the effective load rating regardless of the stamped WLL.
Parent Material Tensile Strength: If tensile strength is below 80,000 PSI, through-hole mounting with a nut and washer should be used instead of direct threaded installation.
COMPATIBLE HOIST RING FAMILIES
This calculator applies to all swivel hoist ring families rated at 100% WLL from 0°-90°:
- Actek Swivel Hoist Rings - general angular lifting and multi-leg bridles
- Actek Speed Base® Hoist Rings - same angular capability, no torque wrench required
- Actek Stainless Steel Hoist Rings - 316 stainless for corrosive and washdown environments
- Actek Ultra Lifting Rings - compact, high-capacity, side-mounted and mold-handling applications
- Actek Street Plate Hoist Ring Systems - road plates and trench covers; use with matching coil nut
- Crosby® HR-125 Swivel Hoist Rings - general angular lifting and multi-leg bridles
- Crosby® HR-1000 Heavy Duty Swivel Hoist Rings - higher capacity angular lifting applications
- Crosby® SL-150 Slide-Loc™ Lift Points - low-profile swivel lift point for flush or recessed mounting
FREQUENTLY ASKED QUESTIONS
What formula does this calculator use?
Load per lifting point = Total load ÷ (Number of hoist rings × sin(sling angle)
Does a swivel hoist ring maintain full WLL at any angle?
Yes - swivel hoist rings are rated at 100% WLL from 0° to 90°. But the force delivered to each ring increases as angle decreases. This calculator quantifies that per-point force so you can confirm adequacy before ordering.
What's a safe minimum sling angle?
30° is the practical lower limit for most applications - below it, force exceeds 2× the vertical share and load stability risk increases. Below 20°, force approaches 3×. Consult a qualified engineer for any lift requiring angles below 30°.
Can I use this for shoulder eye bolts?
No. Shoulder eye bolts have meaningful angular limitations, and plain eye bolts should never be used for angular loads.
What does ASME B30.26 require?
Inspection before each use, removal from service if hardware is defective, clean and undamaged threads, free rotation and pivot, and no shock loads. Actek's safety documentation reinforces these same requirements.
