SKU: RLP100T-BTASA3-CR-PKG

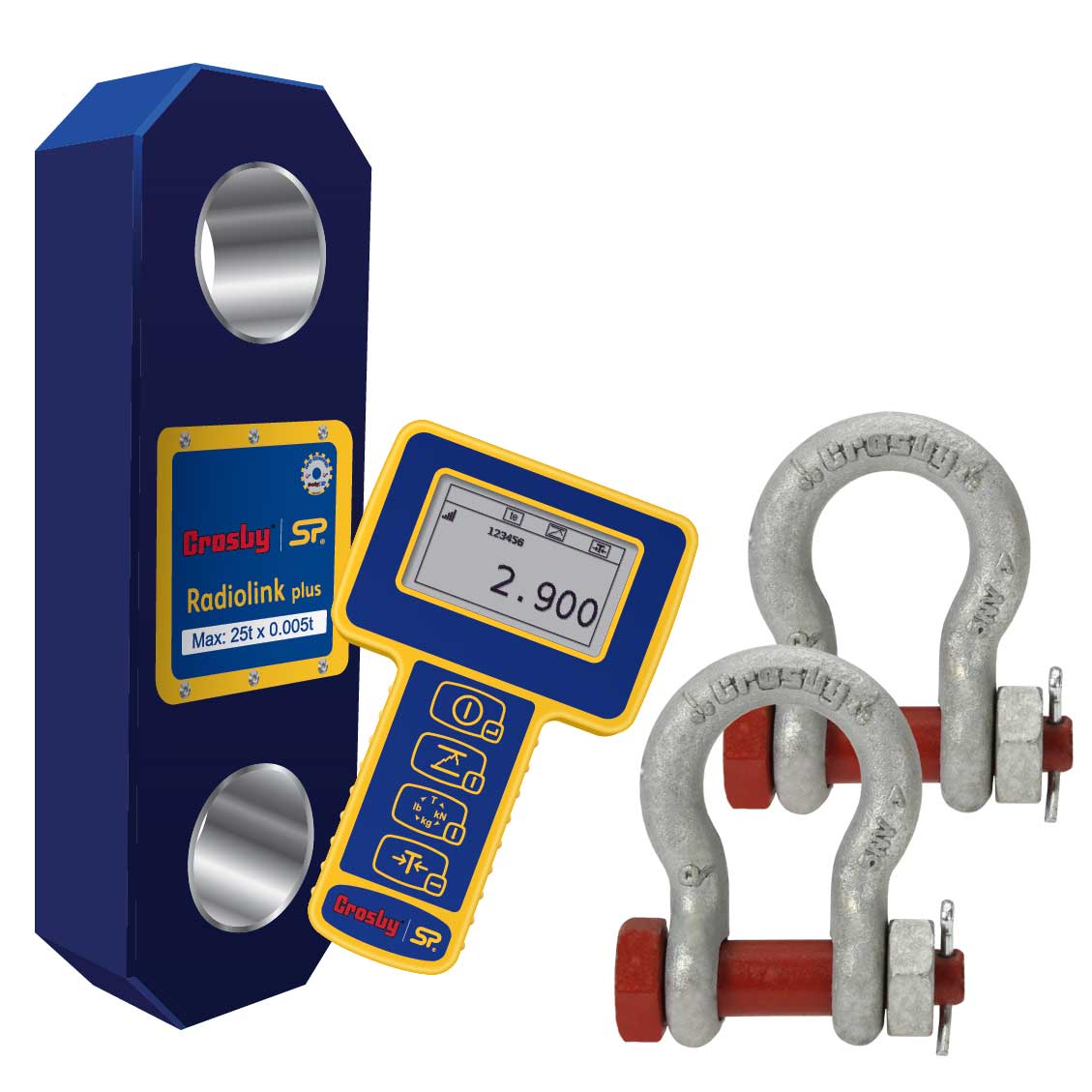

Straightpoint RLP100T 100 T Radiolink Plus with 2 Crosby 3" Shackles
Straightpoint RLP100T 100 T Radiolink Plus with 2 Crosby 3" Shackles!
Continue Browsing
Straightpoint Radiolink Plus
Straightpoint Load Monitoring Loadcells
Rigging Supplies & Rigging Hardware
Related Articles
$28,747.74
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Load capacity: 220,000 lbs.
Accuracy: +/- 0.1% of Full Scale
Battery life: Handheld: 40 hours continuous | Loadcell: 1,200 hours continuous
Battery type: Handheld: 2 x AA | Loadcell: 4 x AA
Data rate: 3Hz - up to 200Hz can be ordered for dynamic load monitorning applications
Display type: 240x128 Multi-Line Dot Matrix with Backlight
Manufacturer name: Crosby Straightpoint
Operating temperature: -10° to +50°C | 14° to 122° F
Pin size: 3-1/4"
Product weight: 399 lbs.
Range: 3,280'
Resolution: 100 lbs.
Shackle size: 3"
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: IP67
Description
Straightpoint 100-ton Radiolink Plus Tension Meter
Precisely weigh and dynamically monitor your rigging setups with a Radiolink Plus wireless load cell. The high-quality, hard-anodized, aerospace-grade aluminum construction and reliable design allows you to ensure safe tension levels at every job.
Common applications include tandem lifting and lowering, water bag load testing, overhead weighing, bollard pull testing, tug testing, breakbulk applications, heavy lift projects, offshore cranes, spreader beam load monitoring, measurement of vehicle towing loads, ship-to-ship transfers, and single point mooring.
The Radiolink Plus runs on 6 AA alkaline batteries (providing 1,200 hours of power) and uses an internal antenna to wirelessly transmit load cell readings to a SW-HHP handheld device (included with your purchase at no extra charge). It has a range of 3,280 feet, and allows you to check on up to 4 load cells at once.
Additional features of the handheld device include a push tare button, multiple display unit options (t/lbs/kg/kN), and an audible overload alarm.
Tension Load Cell Features
- Straightpoint part number: RLP100T
- Crosby part number: 2789081
- Compatible with INSIGHT computer software (not included with purchase)
- Internal sealed enclosure provides IP67 or NEMA6 environmental protection for electronic components
- Tension load cell comes with calibration and proof test certificate, multilingual user manual, and carrying case
- RFID-tagged
- Complies with ASME B30.26
- Includes a 2-year warranty

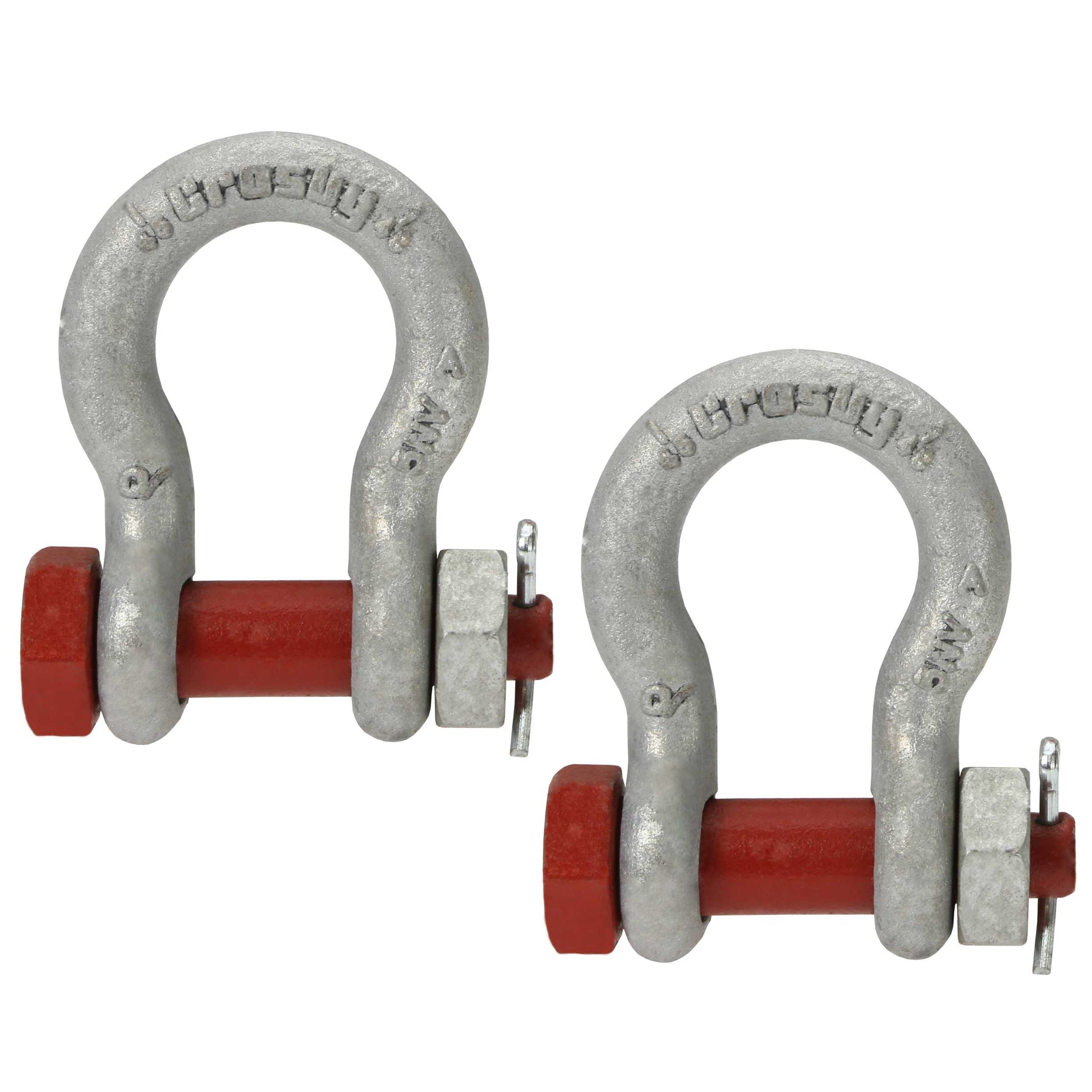

Radiolink Plus Kit Shackle Features
- Number of shackles in kit: 2
- Shackle Safety Factor: 5.4.1
- Finish: Galvanized
- Learn more about the Crosby shackles included in this kit
Other Tension Load Cells
Already have a handheld device? The Compound Plus is identical to the Radiolink Plus, but comes without the wireless handheld unit.
If you're looking for a Bluetooth option, we offer the Compound Plus - Bluetooth version too. Bluetooth transmission data is accessible on your smart phone using the free HHP App, available for both iOS and Android.
