SKU: LLP300T-BTASA6-CR-PKG

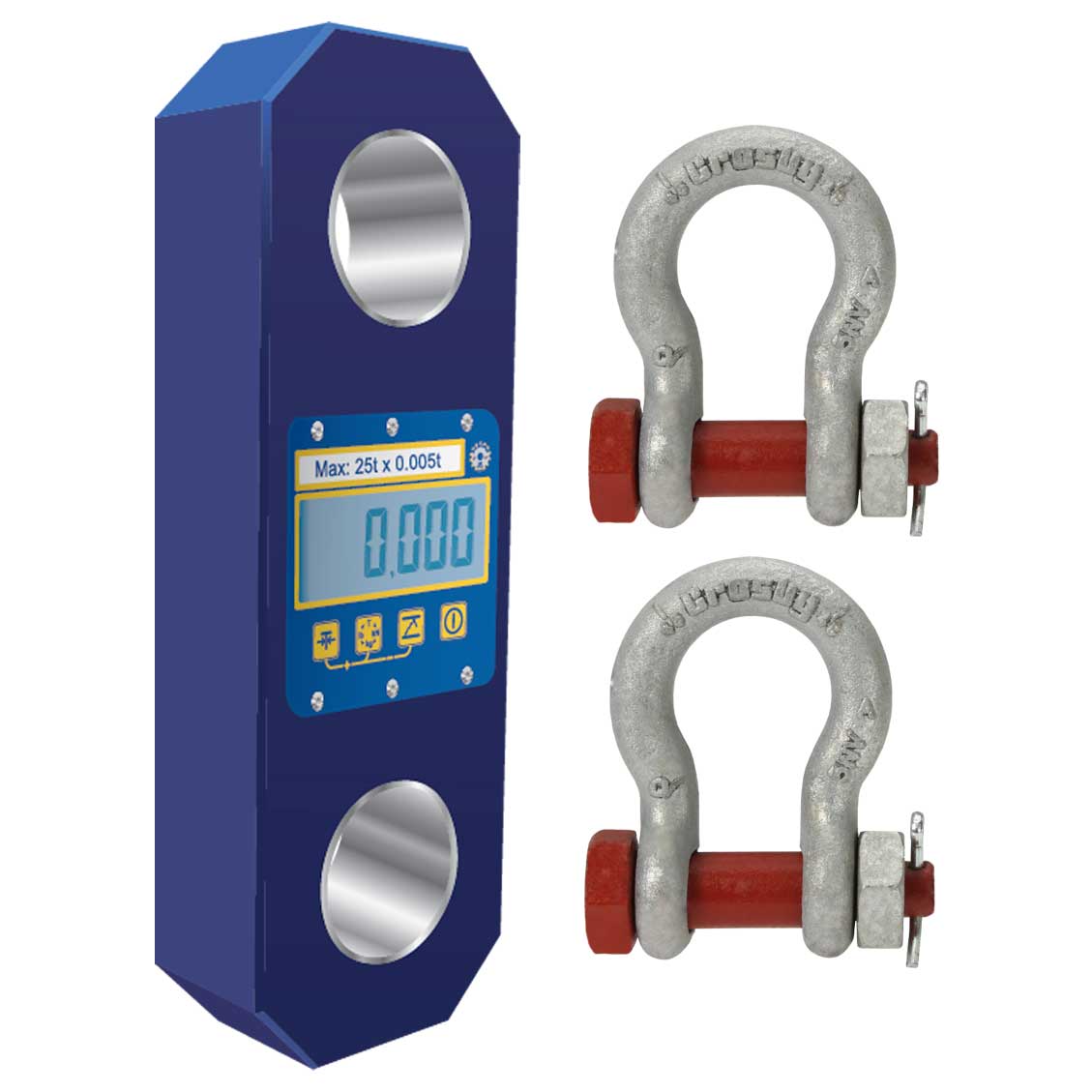

Straightpoint LLP300T 300 T Loadlink Plus with 2 Crosby 6" Shackles

Straightpoint LLP300T 300 T Loadlink Plus with 2 Crosby 6" Shackles!

Skip to product information
1 of 4
Call for Price

Request Bulk Pricing
Call to Order
Request Bulk Pricing
Ships FREE in 14-21 business days.
Fill out the form below or give our sales consultants a call at 866-444-9990.

Blazing Fast Shipments

Shipping & Returns

Buy in Bulk

Request a Quote

Questions? Need it custom?

We Can Help!

Payment Options

Amazon
American Express
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa

Specifications

Load capacity: 660,000 lbs.
Accuracy: +/- 0.1% of Full Scale
Battery life: 80 hours continuous
Battery type: 9v PP3
Data rate: 3Hz - up to 200Hz can be ordered for dynamic load monitorning applications
Display type: 240x128 Multi-Line Dot Matrix with Backlight
Manufacturer name: Crosby Straightpoint
Operating temperature: -10° to +50°C | 14° to 122° F
Output: Handheld
Pin size: 6"
Product weight: 1810 lbs.
Range: 3,280'
Resolution: 200 lbs.
Shackle size: 6"
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: IP65
Description

Straightpoint 300-ton Loadlink Plus

Ensure safe rigging setup tension levels with the Loadlink Plus, a dynamometer from Straightpoint. This device is made from high-quality, hard-anodized, aerospace-grade aluminum and makes it easy to precisely measure your application's tension levels.

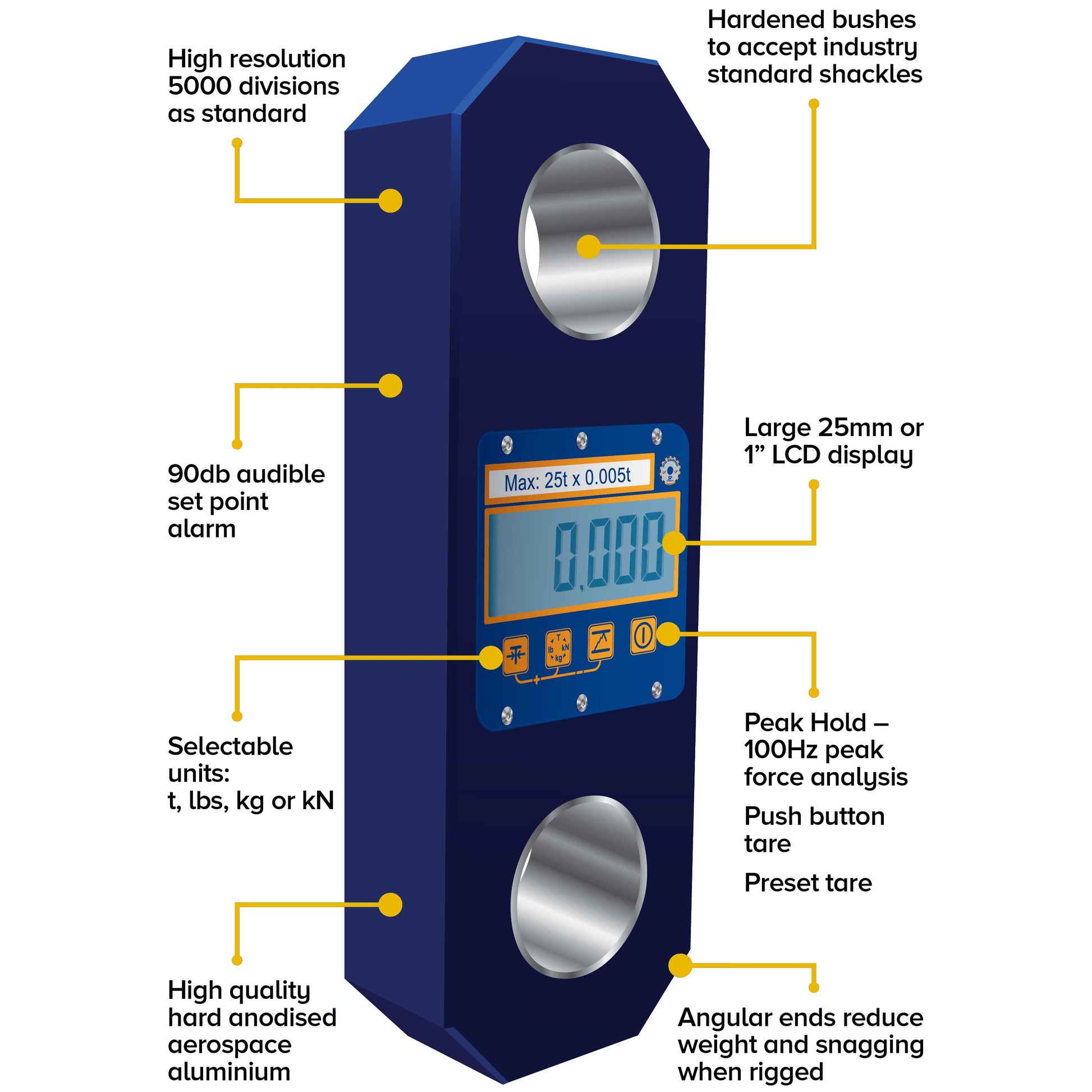

The Loadlink Plus features a 1-inch LCD display screen incorporated directly into the load cell design. Other features include a push tare button, multiple display unit options (t/lbs/kg/kN), and an audible overload alarm.

If you need to monitor loads remotely, you can even hook your tension load cell up to a wired HHP Handheld Plus.

Common applications include tandem lifting and lowering, overhead weighing, bollard pull testing, tug testing, cable tensioning, heavy lift projects, and single point mooring.

Tension Load Cell Features

  • Straightpoint part number: LLP300T
  • Crosby part number: 2789047
  • On average, this device is 30% lighter than competition with the same safety rating
  • Internal sealed enclosure provides IP67 or NEMA6 environmental protection for electronic components
  • Purchase includes calibration and proof test certificate, multilingual user manual, and carrying case
  • RFID-tagged
  • Complies with ASME B30.26
  • 2-year warranty

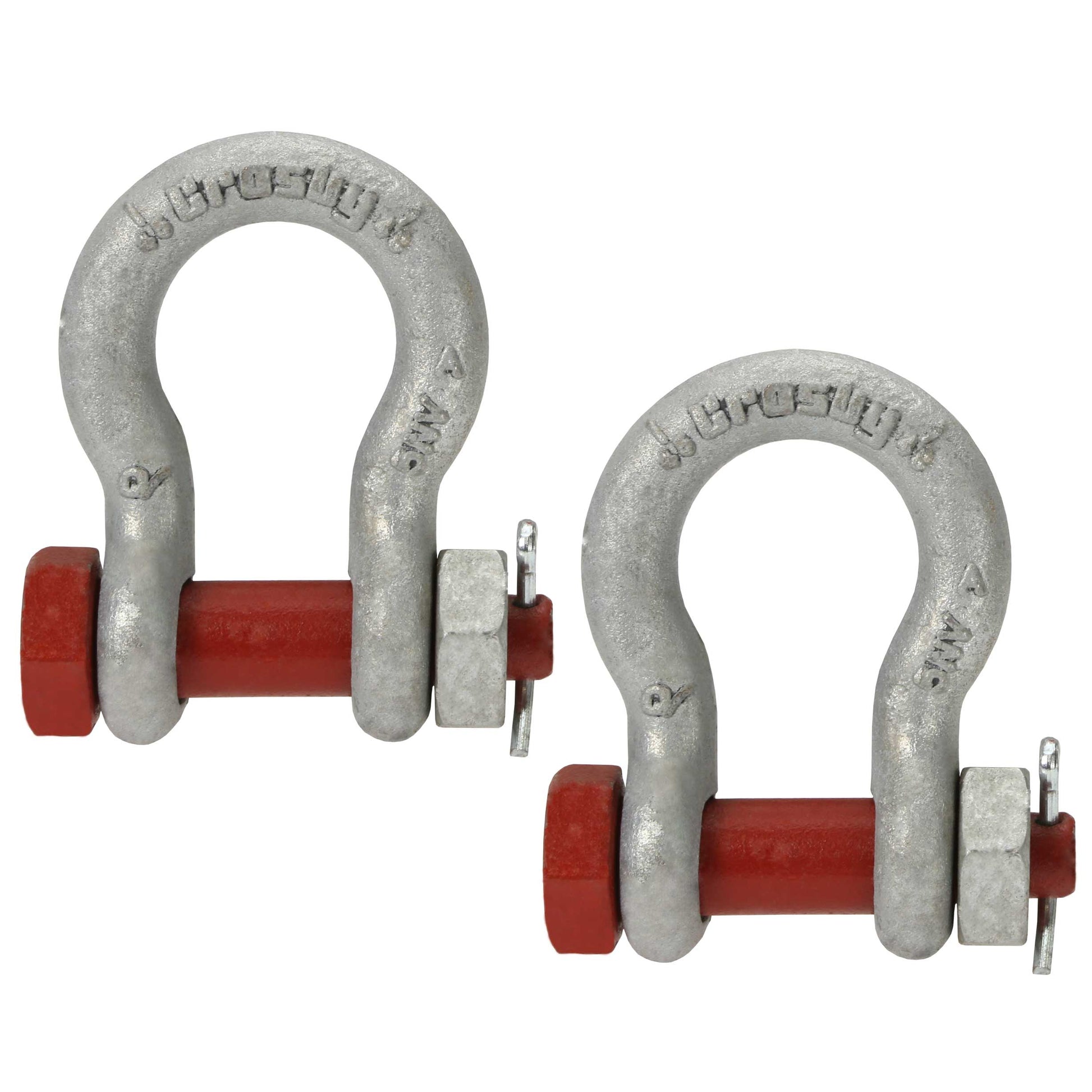

Loadlink Plus Kit Shackle Features

  • Number of shackles in kit: 2
  • Shackle Safety Factor: 4.1
  • Finish: Galvanized
  • Learn more about the Crosby shackles included in this kit

Tension Load Cell Options

We also carry Wirelink Plus load cells, which rely on a wired cable for data output, and Radiolink Plus cells, which wirelessly transmit data to an external screen.
