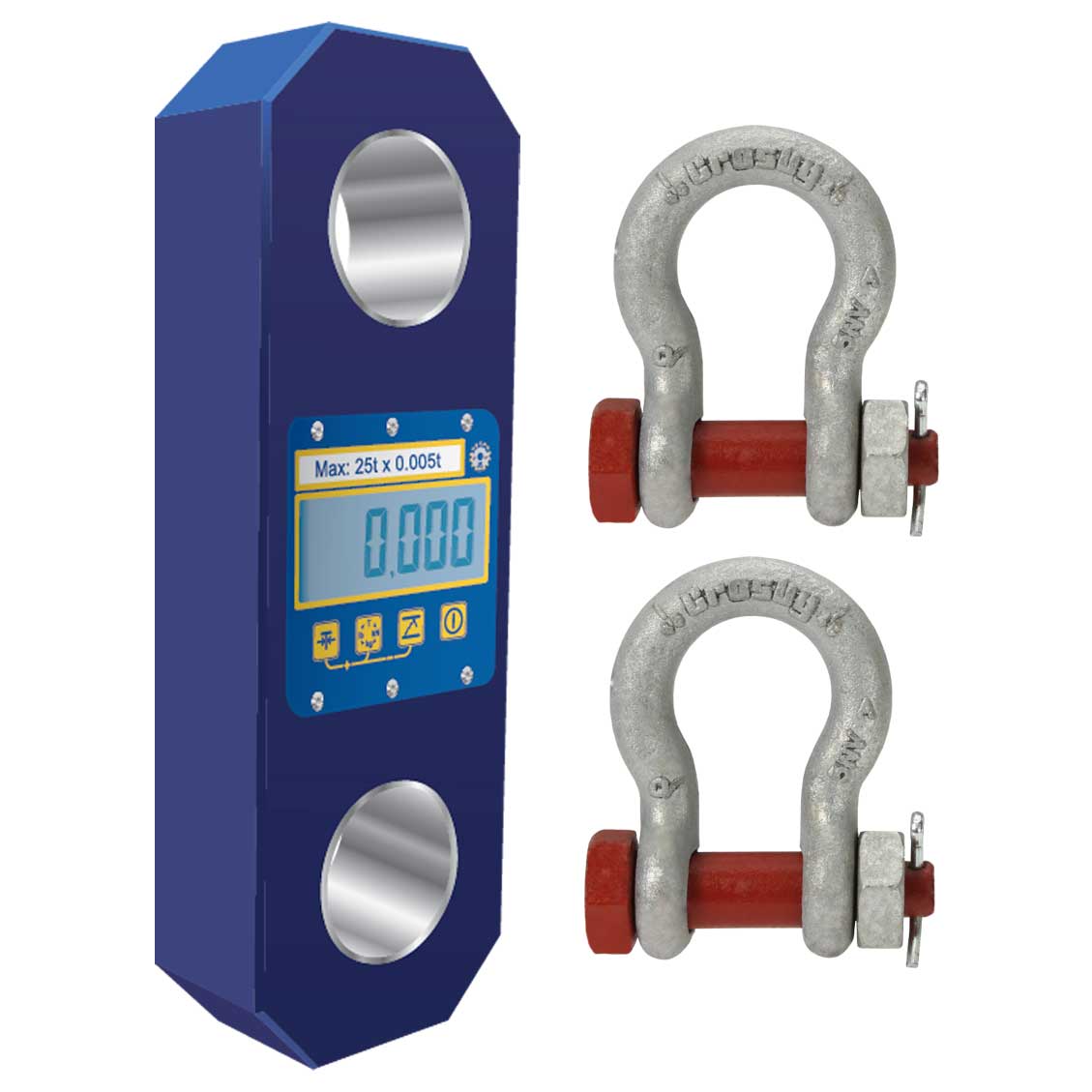

Straightpoint 200-ton Loadlink Plus
Ensure safe rigging setup tension levels with the Loadlink Plus, a dynamometer from Straightpoint. This device is made from high-quality, hard-anodized, aerospace-grade aluminum and makes it easy to precisely measure your application's tension levels.

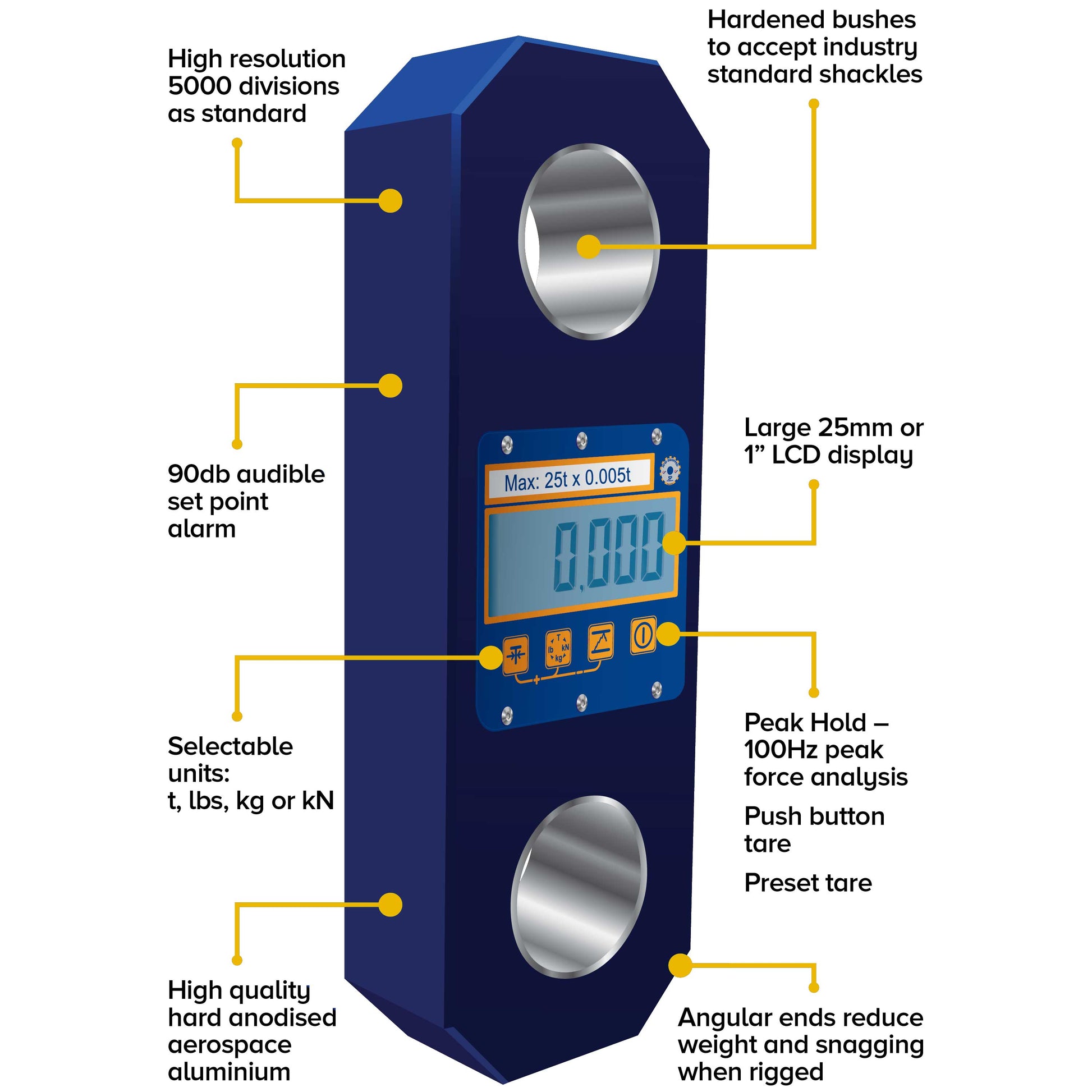

The Loadlink Plus features a 1-inch LCD display screen incorporated directly into the load cell design. Other features include a push tare button, multiple display unit options (t/lbs/kg/kN), and an audible overload alarm.
If you need to monitor loads remotely, you can even hook your tension load cell up to a wired HHP Handheld Plus.
Common applications include tandem lifting and lowering, overhead weighing, bollard pull testing, tug testing, cable tensioning, heavy lift projects, and single point mooring.
Tension Load Cell Features
- Straightpoint part number: LLP200T
- Crosby part number: 2789043
- On average, this device is 30% lighter than competition with the same safety rating
- Internal sealed enclosure provides IP67 or NEMA6 environmental protection for electronic components
- Purchase includes calibration and proof test certificate, multilingual user manual, and carrying case
- RFID-tagged
- Complies with ASME B30.26
- 2-year warranty

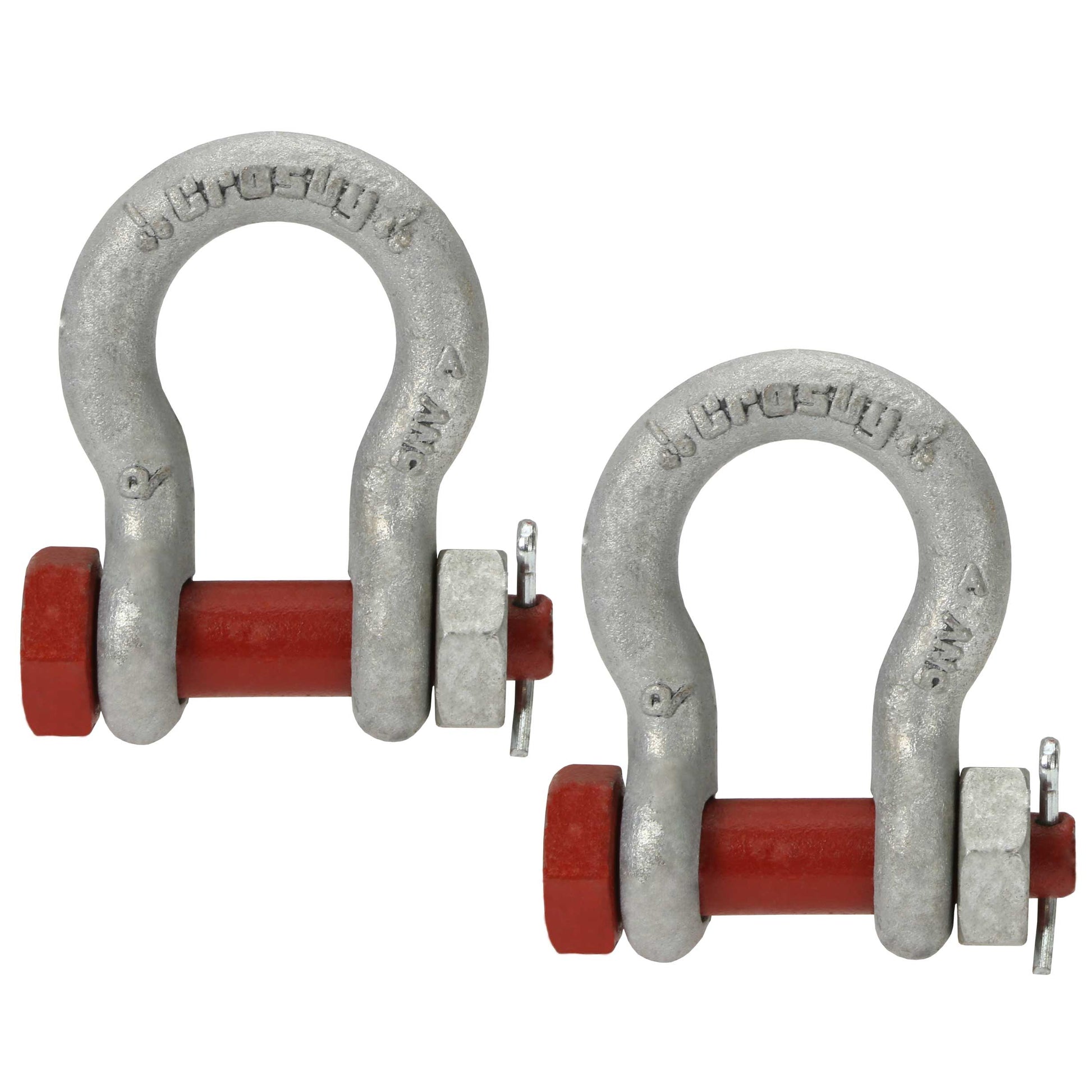

Loadlink Plus Kit Shackle Features
- Number of shackles in kit: 2
- Shackle Safety Factor: 4.1
- Finish: Galvanized
- Learn more about the Crosby shackles included in this kit
Tension Load Cell Options
We also carry Wirelink Plus load cells, which rely on a wired cable for data output, and Radiolink Plus cells, which wirelessly transmit data to an external screen.
Straightpoint 200-ton Loadlink Plus
Ensure safe rigging setup tension levels with the Loadlink Plus, a dynamometer from Straightpoint. This...
Straightpoint 200-ton Loadlink Plus
Ensure safe rigging setup tension levels with the Loadlink Plus, a dynamometer from Straightpoint. This device is made from high-quality, hard-anodized, aerospace-grade aluminum and makes it easy to precisely measure your application's tension levels.
The Loadlink Plus features a 1-inch LCD display screen incorporated directly into the load cell design. Other features include a push tare button, multiple display unit options (t/lbs/kg/kN), and an audible overload alarm.
If you need to monitor loads remotely, you can even hook your tension load cell up to a wired HHP Handheld Plus.
Common applications include tandem lifting and lowering, overhead weighing, bollard pull testing, tug testing, cable tensioning, heavy lift projects, and single point mooring.
Tension Load Cell Features
- Straightpoint part number: LLP200T
- Crosby part number: 2789043
- On average, this device is 30% lighter than competition with the same safety rating
- Internal sealed enclosure provides IP67 or NEMA6 environmental protection for electronic components
- Purchase includes calibration and proof test certificate, multilingual user manual, and carrying case
- RFID-tagged
- Complies with ASME B30.26
- 2-year warranty
Loadlink Plus Kit Shackle Features
- Number of shackles in kit: 2
- Shackle Safety Factor: 4.1
- Finish: Galvanized
- Learn more about the Crosby shackles included in this kit
Tension Load Cell Options
We also carry Wirelink Plus load cells, which rely on a wired cable for data output, and Radiolink Plus cells, which wirelessly transmit data to an external screen.
specifications
Product Weight (lbs.):
1080.8
Load Capacity:
440,000 lbs.
Shipping And Returns:
This item cannot be returned due to safety risks associated with used materials.
Pin Size:
4-3/4"
Shackle Size:
4-3/4"
Output:
Handheld
Resolution:
200 lbs.
Protection:
IP65
Battery Type:
9v PP3
Operating Temperature:
-10° to +50°C | 14° to 122° F
Accuracy:
+/- 0.1% of Full Scale
Battery Life:
80 hours continuous
Display Type:
240x128 Multi-Line Dot Matrix with Backlight
Range:
3,280'
Data Rate:
3Hz - up to 200Hz can be ordered for dynamic load monitorning applications
Product Guide:
Shackle Dimensions:
S:
2"
A:
2.25
B:
7.75
C:
3.25
D:
5.75
WLL:
55 ton
