SKU: CPBLE35T-BTASA2-CR-PKG
Ships FREE in 14-21 business days.
Fill out the form below or give our sales consultants a call at 866-444-9990.
Load capacity: 77,000 lbs.
Accuracy: +/- 0.1% of Full Scale
Battery life: 500 hours continuous
Battery type: 4 x AA Alkaline Batteries
Manufacturer name: Crosby Straightpoint
Operating temperature: -10° to +50°C | 14° to 122° F
Pin size: 2-1/4"
Product weight: 128.8 lbs.
Resolution: 10 lbs.
Shackle size: 2"
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: IP67
Straightpoint 35-ton Compound Plus
Transmit load cell readings directly to your phone or other Bluetooth-enabled device using Straighpoint's Compound Plus with Bluetooth load cells. This product can transmit up to 328 feet away and the HHP app is free for iOS and Android!
Tension load cells like this one allow you to precisely weigh and dynamically monitor rigging setups – thus ensuring optimal tension levels. They are commonly used in applications like tandem lifting and lowering, water bag load testing, overhead weighing, bollard pull testing, tug testing, breakbulk applications, heavy lift projects, offshore cranes, spreader beam load monitoring, measurement of vehicle towing loads, ship-to-ship transfers, and single point mooring.
Looking for a version of this that works with a handheld device? We also carry a Compound Plus load cell that will transmit data via a radio frequency to a SW-HHP handheld device.
Tension Load Cell Features
- Straightpoint part number: CP35T-BLE
- Crosby part number: 2789011
- Compatible with INSIGHT computer software (not included with purchase).
- Internal sealed enclosure provides IP67 or NEMA6 environmental protection for electronic components
- Purchase includes calibration and proof test certificate, multilingual user manual, and carrying case
- RFID-tagged
- Complies with ASME B30.26
- 2-year warranty

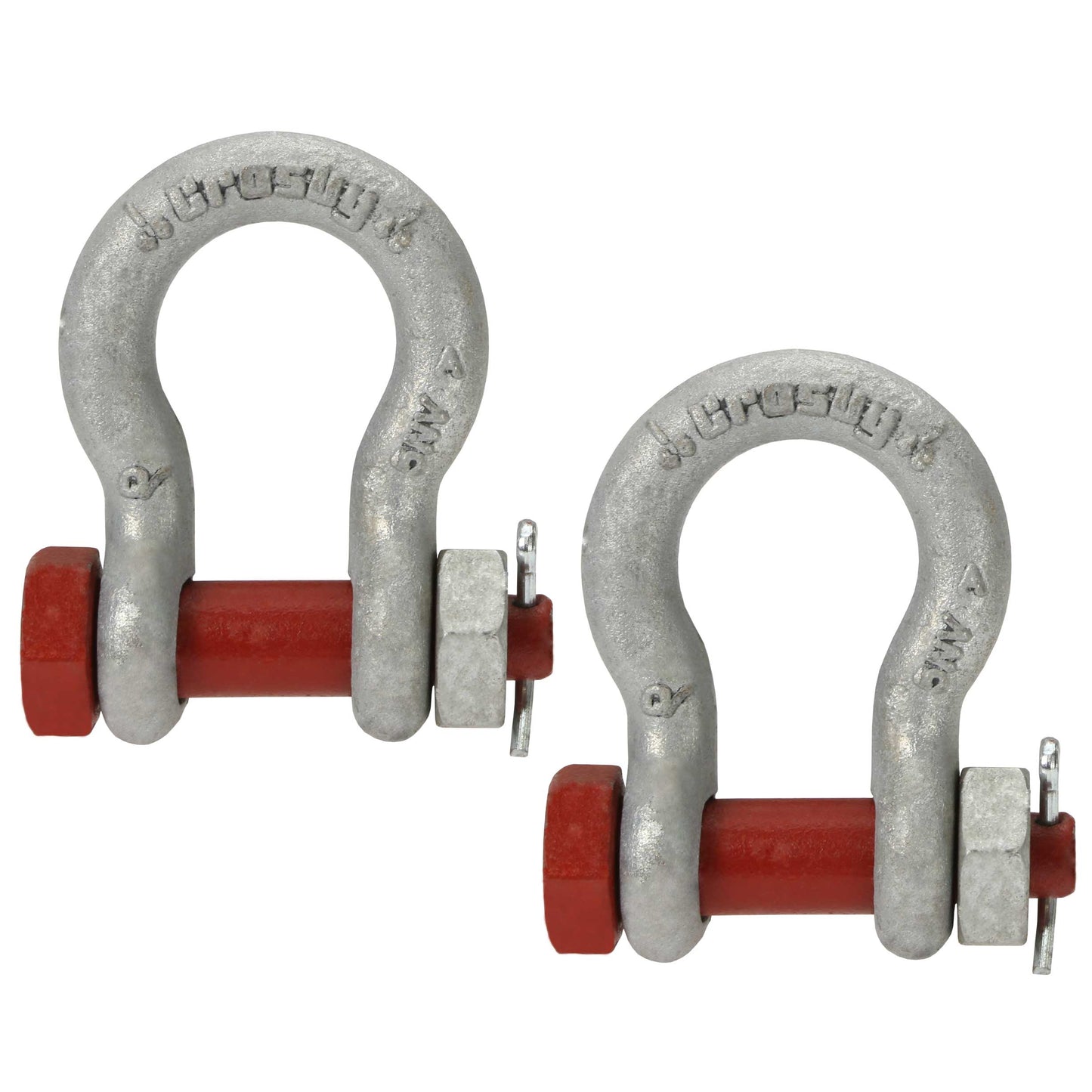

Compound Plus Kit Shackle Features
- Number of shackles in kit: 2
- Shackle Safety Factor: 5.4.1
- Finish: Galvanized
- Learn more about the Crosby shackles included in this kit
View Product Safety Warnings
