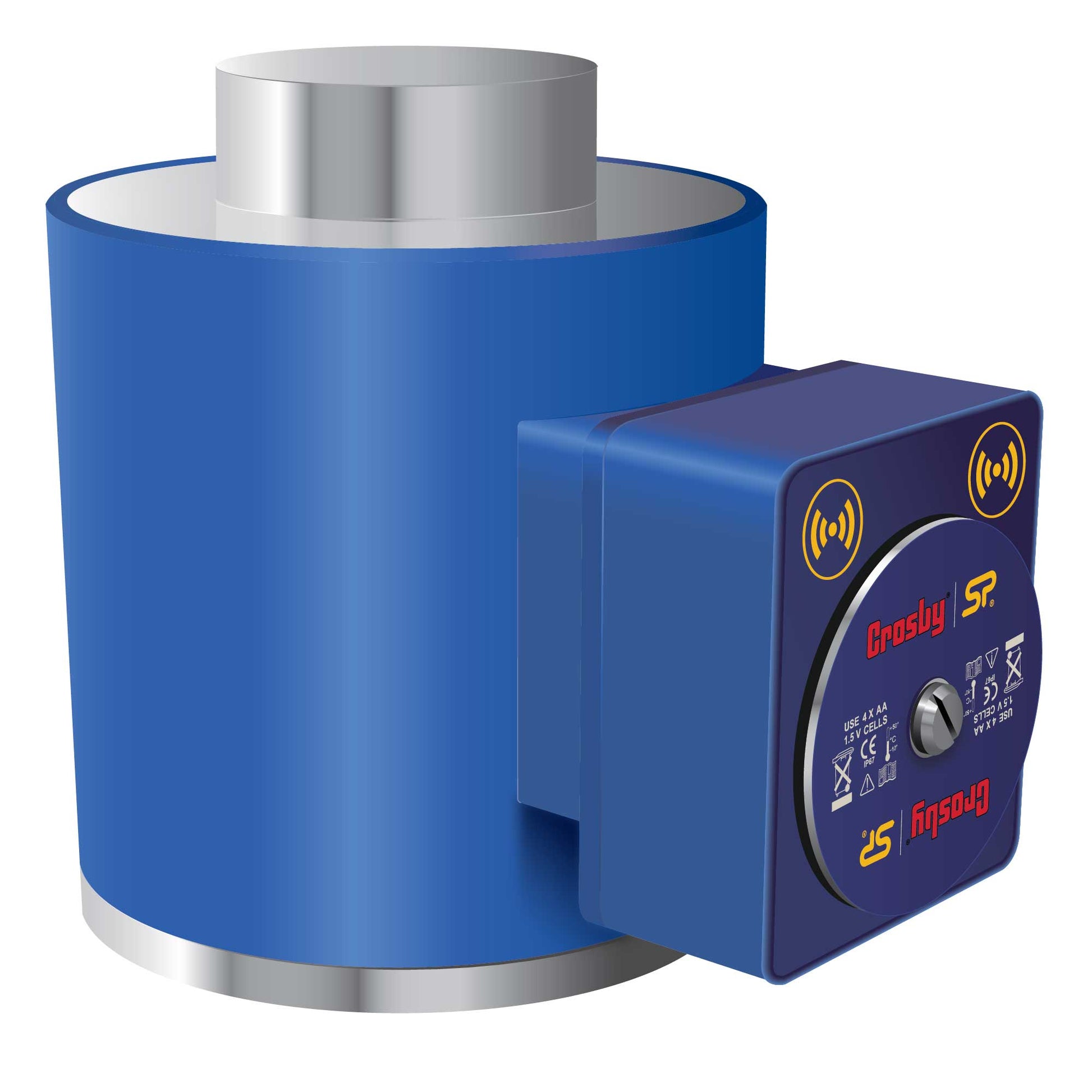

Straightpoint® 500 T LoadSafe Compression Load Cell - WNI500TC

  • Straightpoint® 500 T LoadSafe Compression Load Cell - WNI500TC
  • Straightpoint® 500 T LoadSafe Compression Load Cell - WNI500TC
  • Straightpoint® 500 T LoadSafe Compression Load Cell - WNI500TC
  • Straightpoint® 500 T LoadSafe Compression Load Cell - WNI500TC
  • Straightpoint® 500 T LoadSafe Compression Load Cell - WNI500TC
  • Straightpoint® 500 T LoadSafe Compression Load Cell - WNI500TC Thumbnail image
  • Straightpoint® 500 T LoadSafe Compression Load Cell - WNI500TC Thumbnail image
  • Straightpoint® 500 T LoadSafe Compression Load Cell - WNI500TC Thumbnail image
  • Straightpoint® 500 T LoadSafe Compression Load Cell - WNI500TC Thumbnail image
  • Straightpoint® 500 T LoadSafe Compression Load Cell - WNI500TC Thumbnail image
SKU: WNI-500-TC

$14,639.00
Free Shipping
Call/Chat for exact lead times
Standard Lead Time 28-42 business days.
LoadSafe is a wireless compression load cell from Straightpoint that saves time and money by accurately measuring your load. Compression load cells are used in a variety of industries to weigh and verify center of gravity of large and heavy objects which may not be evenly proportioned. This particular model (Straightpoint part #WNI500TC and Crosby part #2789195) is a 500-ton compression load cell that's machined from high-grade stainless steel. Instead of cables, this modern compression load cell with digital readout uses an internal antenna to transmit load cell readings at a max range of 3,280 feet. LoadSafe is designed to be used with the SW-HHP handheld device or Straightpoint's INSIGHT computer software. LoadSafe runs on AA alkaline batteries that are easy to replace and provide 1,200 hours of wireless use. Because of its compact size, some may consider this a miniature load cell or low-profile load cell. Still, this compression load cell is environmentally sealed to IP67/NEMA 6 standards and ready to handle the toughest of jobs in the harshest of environments. Don't risk a major accident, get peace of mind and modern convenience with this LoadSafe compression type load cell.
LoadSafe is a wireless compression load cell from Straightpoint that saves time and money by accurately measuring your load. Compression load cells ar...

Read More

LoadSafe is a wireless compression load cell from Straightpoint that saves time and money by accurately measuring your load. Compression load cells are used in a variety of industries to weigh and verify center of gravity of large and heavy objects which may not be evenly proportioned. This particular model (Straightpoint part #WNI500TC and Crosby part #2789195) is a 500-ton compression load cell that's machined from high-grade stainless steel. Instead of cables, this modern compression load cell with digital readout uses an internal antenna to transmit load cell readings at a max range of 3,280 feet. LoadSafe is designed to be used with the SW-HHP handheld device or Straightpoint's INSIGHT computer software. LoadSafe runs on AA alkaline batteries that are easy to replace and provide 1,200 hours of wireless use. Because of its compact size, some may consider this a miniature load cell or low-profile load cell. Still, this compression load cell is environmentally sealed to IP67/NEMA 6 standards and ready to handle the toughest of jobs in the harshest of environments. Don't risk a major accident, get peace of mind and modern convenience with this LoadSafe compression type load cell.

Show Less

Product Weight (lbs.):
143

Load Capacity:
1,100,000 lbs.

Safety Factor:
3:1

Output:
Handheld

Resolution:
500 lbs.

Protection:
IP67

Battery Type:
4 x AA Alkaline Batteries

Operating Temperature:
-10° to +50°C | 14° to 122° F

Accuracy:
+/- 0.1% of Full Scale

Battery Life:
1,200 hours continuous

Range:
3,280'

Data Rate:
3Hz - Configurable to 200Hz

Product Guide:
