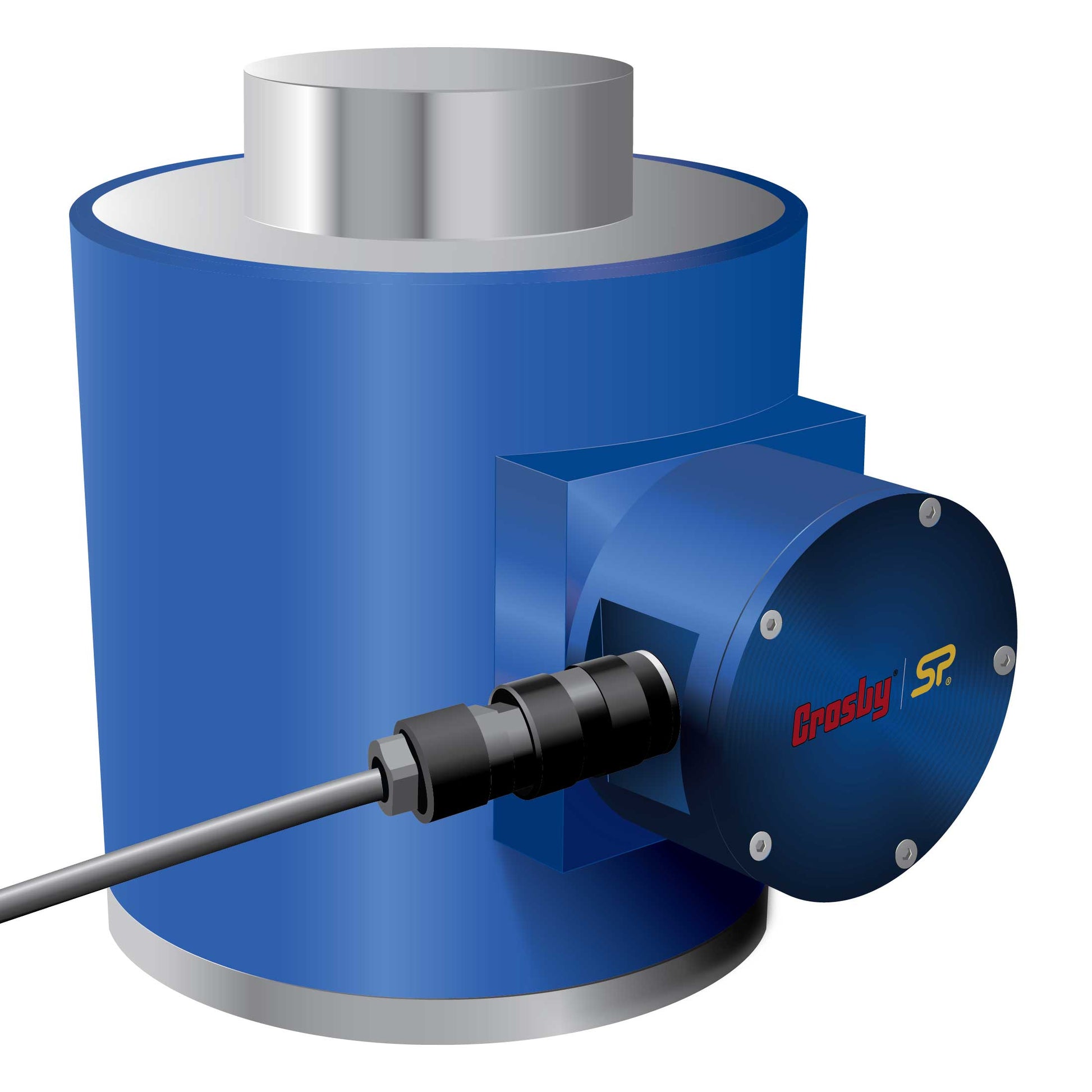

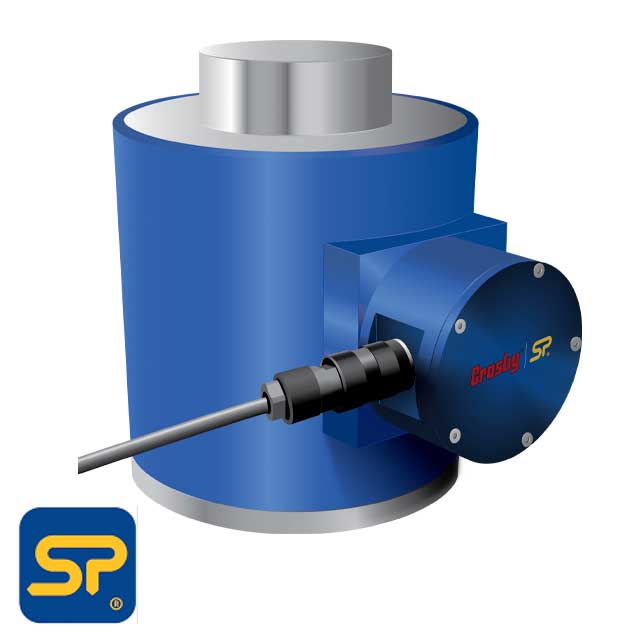

Straightpoint® 500 T Compression Load Cell - NI500TC
Straightpoint® 500 T Compression Load Cell - NI500TC!
- Load capacity: 1,100,000 lbs.
- Safety factor: 3:1
- Resolution: 500 lbs.
- Standards: IP67
- Operating temperature: -10° to +50°C | 14° to 122° F
- Accuracy: +/- 0.1% of Full Scale
- Product weight: 143 lbs.
- Product Guide(s): View Spec Sheet

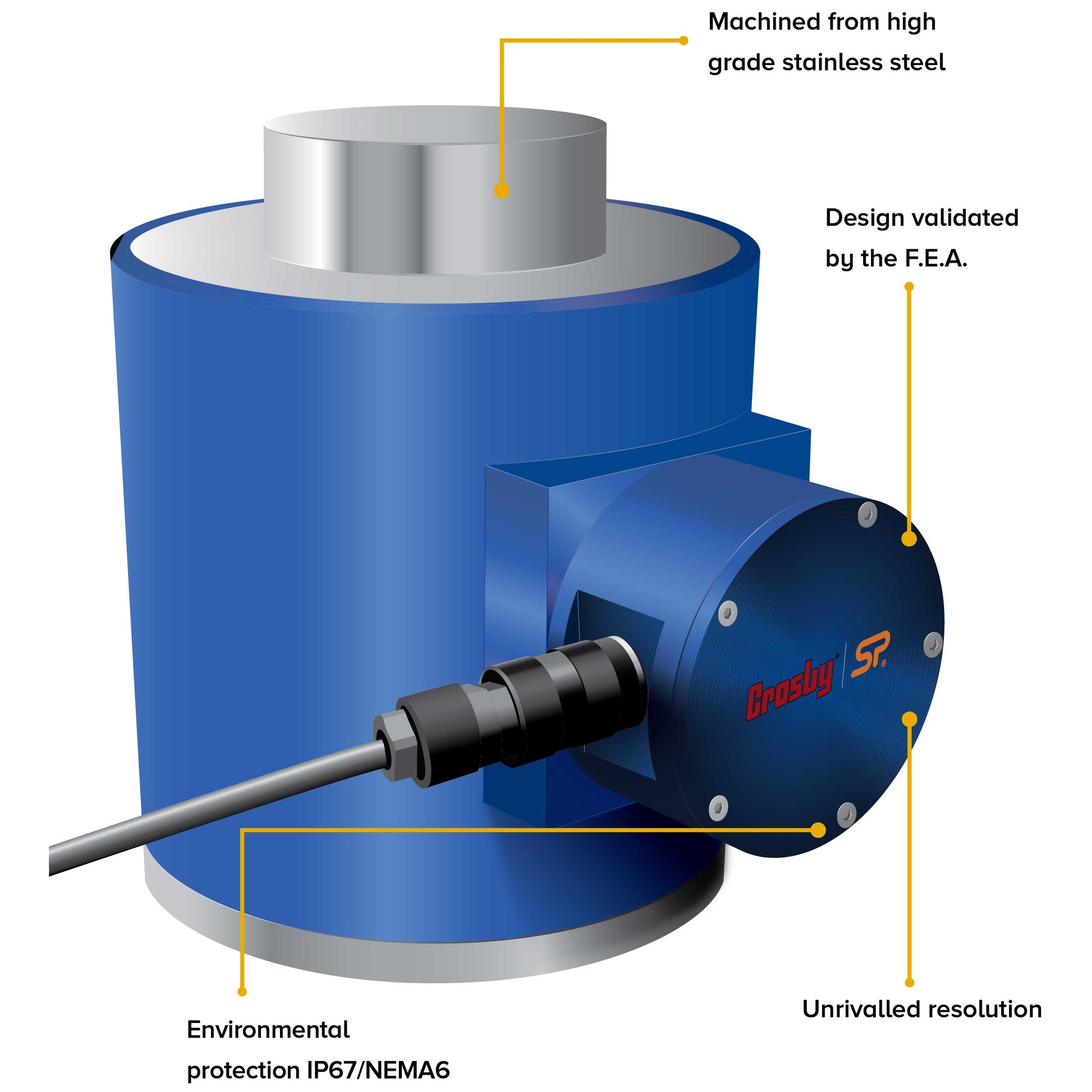

Straightpoint's compression load cell with cable is equipped with a 30-foot output cable. Compression load cells are used in a variety of industries to weigh and verify center of gravity of large and heavy objects which may not be evenly proportioned. In order to see readings this cabled load cell requires a connection to Straightpoint's HHP Handheld Plus Controller (sold separately). This particular model (Straightpoint part #NI500TC and Crosby part #2789066) is a 500-ton [physical calibration to 350te extrapolated readings to 500te] compression load cell that's machined from high-grade stainless steel. Because of its compact size and light weight, some may consider this a miniature load cell or low-profile load cell. Still, this cabled compression load cell is built to last, environmentally sealed to IP67/NEMA 6 standards, and ready to handle the toughest of jobs in the harshest of environments. Don't risk a major accident, get peace of mind and modern convenience with this superior compression type load cell. If you prefer a totally wireless compression load cell, we also offer LoadSafe compression load cells, which use an internal antenna to transmit data wirelessly. There is also a Bluetooth-only compression load cell option.
