SKU: SLB-400-T

Straightpoint® 400 T Loadshackle - SLB400T

Straightpoint® 400 T Loadshackle - SLB400T!

SKU: SLB-400-T

Straightpoint® 400 T Loadshackle - SLB400T

Straightpoint® 400 T Loadshackle - SLB400T!


Regular price $58,386.00
Sale price $58,386.00 Regular price
0% off
Ships FREE in 14-21 business days.
Request Bulk Pricing
Payment methods
Accepted payments:
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
Fill out the form below or give our sales consultants a call at 866-444-9990.

Specifications

  • Load capacity: 880,000 lbs.
  • Safety factor: 5:1 when used with bobbin
  • Manufacturer name: Crosby Straightpoint
  • Brand part number: SLB400T / 2789108
  • Resolution: 1,000 lbs.
  • Standards: IP67
  • Operating temperature: -10° to +50°C | 14° to 122° F
  • Accuracy: +/- 1% of Full Scale
  • Product weight: 1,226 lbs.

Description

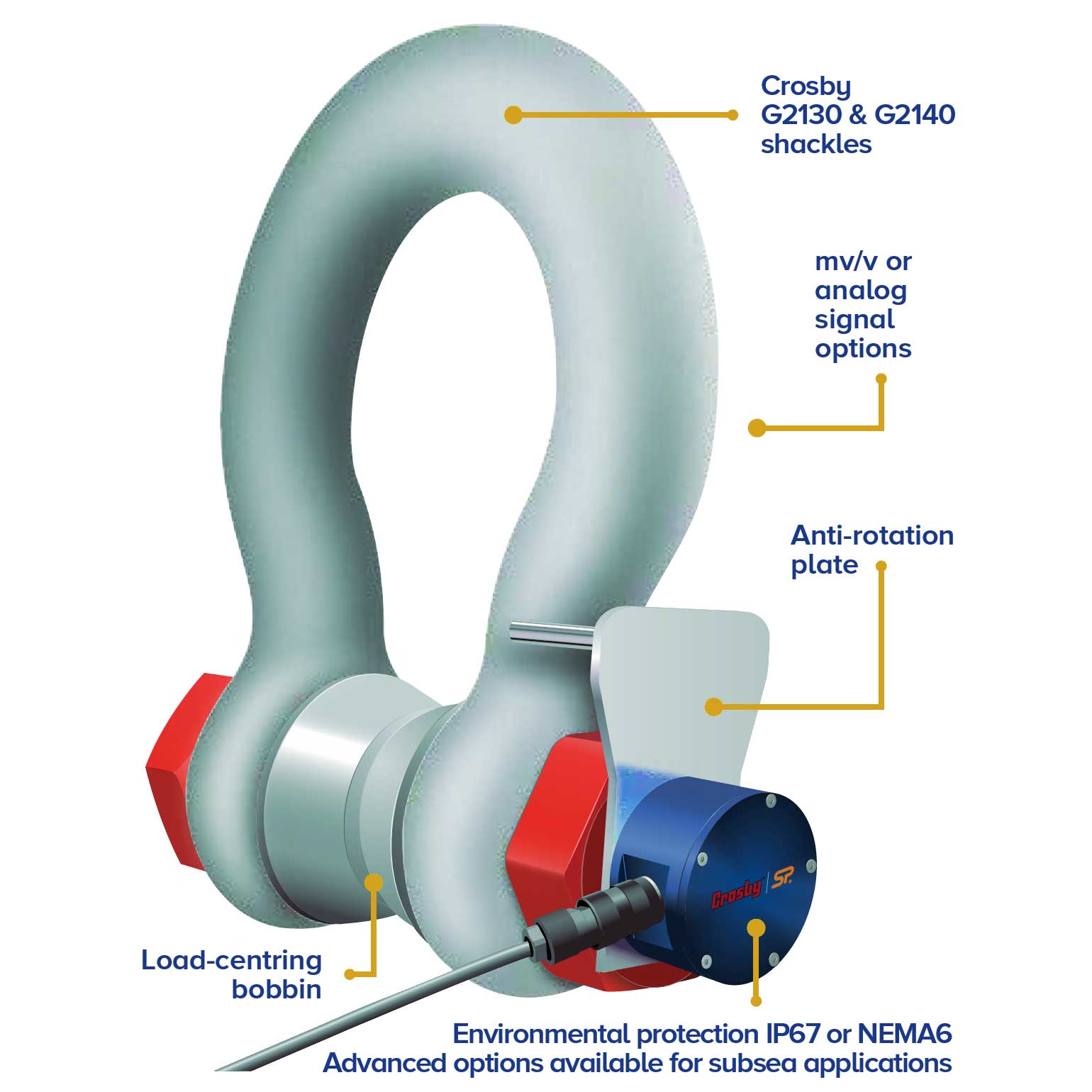

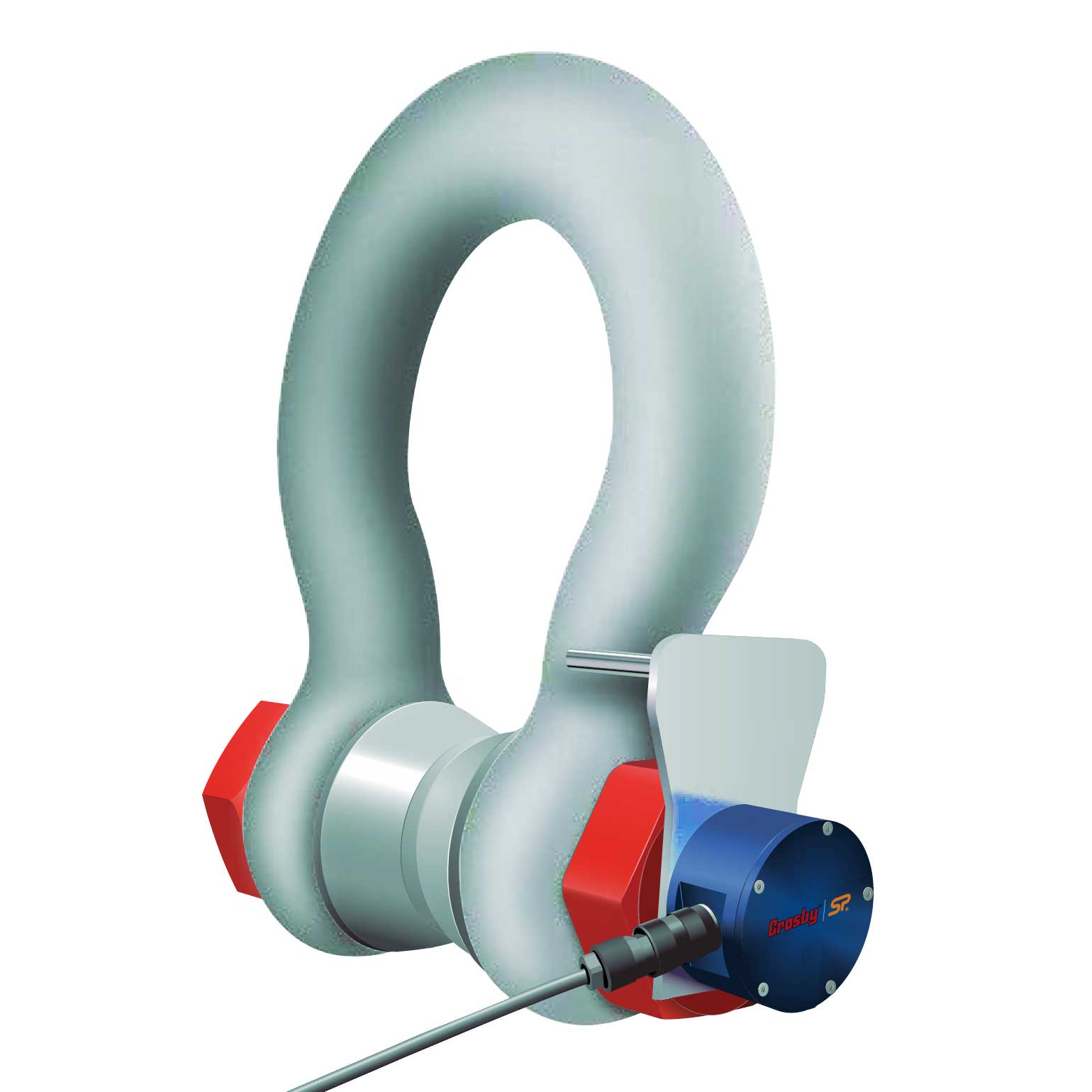

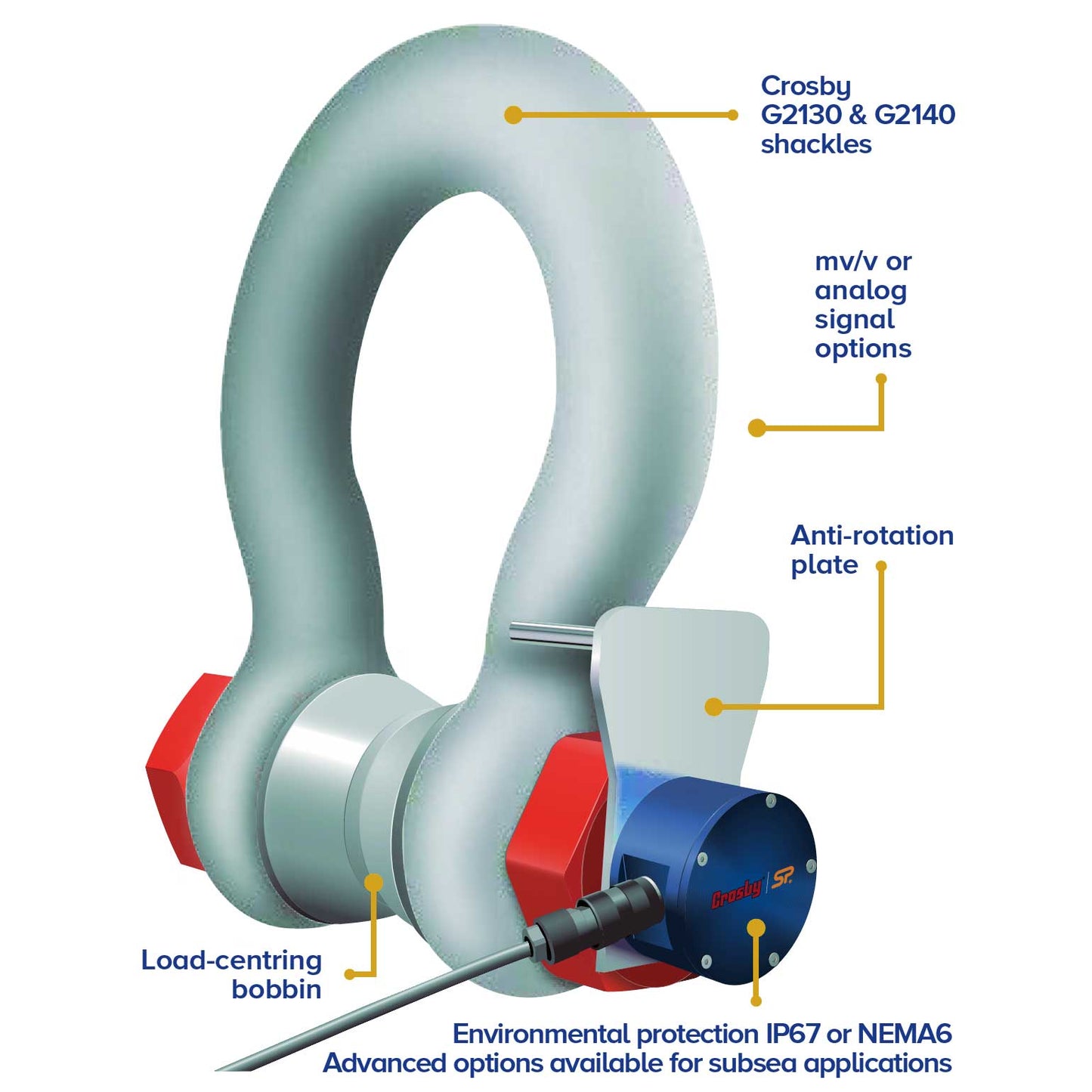

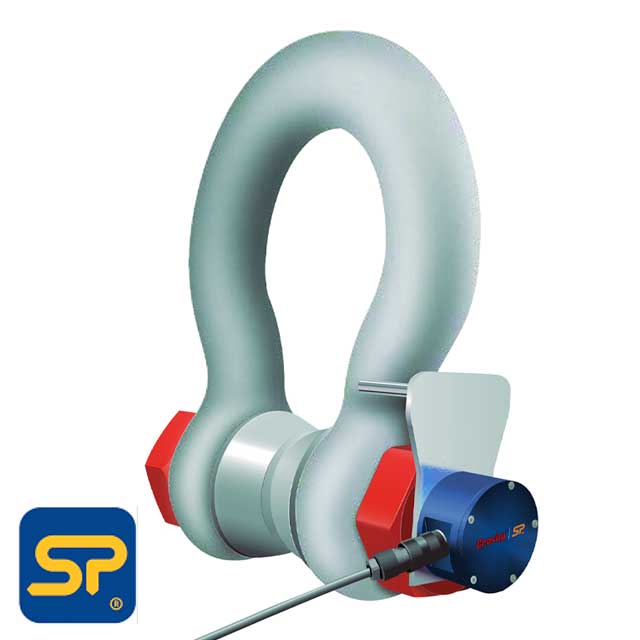

This cabled loadshackle from Straightpoint offers reduced overall weight and headroom, making it ideal for low headroom applications. Straightpoint Loadshackles are made using Crosby brand shackles, a trusted industry leader. This 400-ton cabled load cell shackle (Straightpoint model #SLB400T & Crosby model #2789108) is designed for use with digital external displays including the Straightpoint HHP Handheld Plus, PLCs, data acquisition systems (DAQ), etc. and configured with a vast array of output formats. Whether used in heavy lifting, mooring anchor placement, or sub-sea applications, Straightpoint's cabled Loadshackle offers robust construction, advanced electronics, industry leading resolution and accuracy all at a cost-effective, affordable price. Straightpoint cabled Loadshackles are also environmentally sealed to IP67 and, as an option, sealed for permanent submersion for sub-sea use. All Straightpoint Loadshackles comply with ASME B30.26 and feature a load-centering bobbin. Lift yourself into the future of shackle rigging with this wireless loadshackle today. We also offer a wireless load shackle that is designed for use with Straightpoint's SW-HHP handheld device readout device or INSIGHT computer software, as well as a Bluetooth-only wireless loadshackle option.

View Product Safety Warnings
