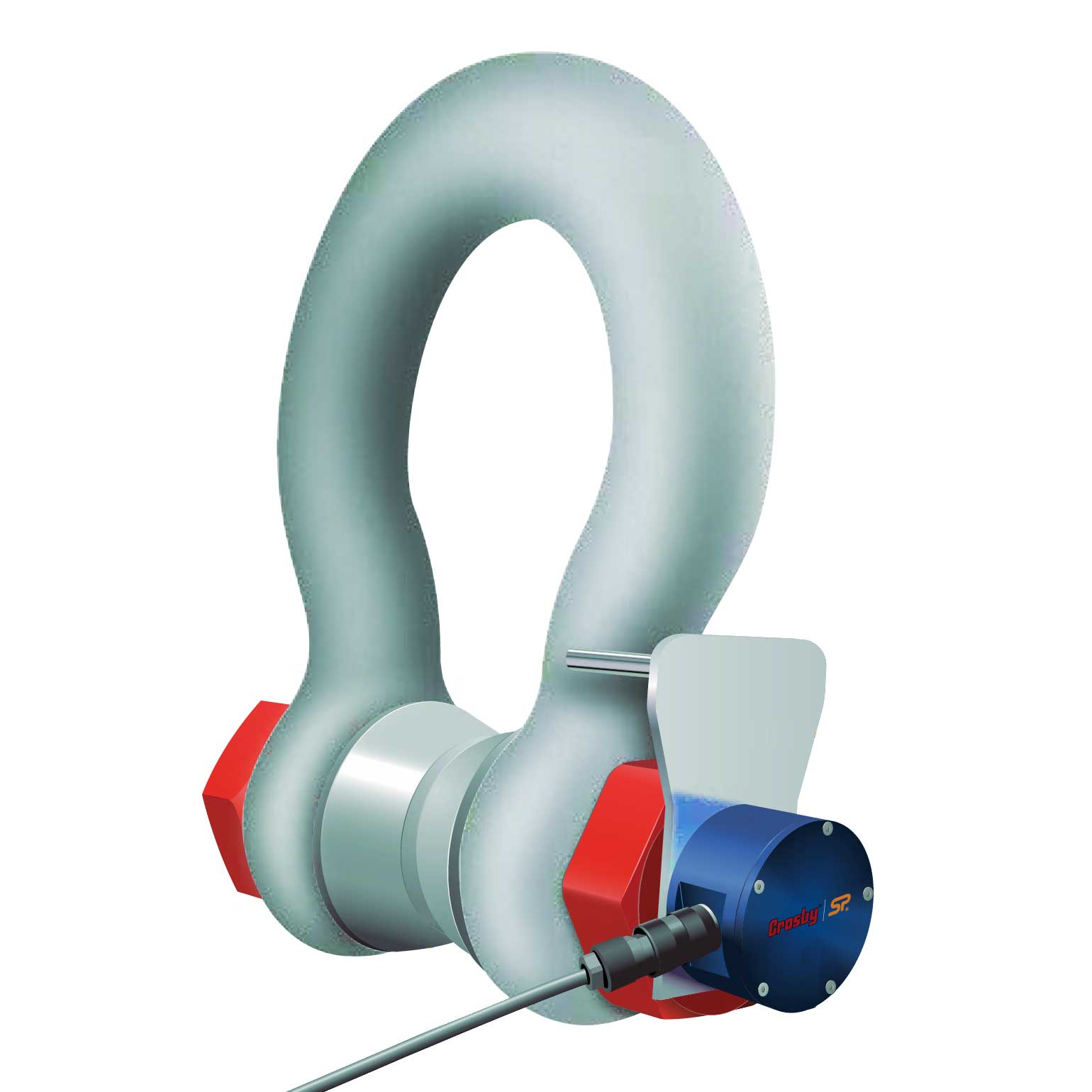

Straightpoint® 300 T Loadshackle - SLB300T
Straightpoint® 300 T Loadshackle - SLB300T!
- Load capacity: 660,000 lbs.
- Safety factor: 5:1 when used with bobbin
- Resolution: 1,000 lbs.
- Standards: IP67
- Operating temperature: -10° to +50°C | 14° to 122° F
- Accuracy: +/- 1% of Full Scale
- Product weight: 877 lbs.
- Product Guide(s): View Spec Sheet
This cabled loadshackle from Straightpoint offers reduced overall weight and headroom, making it ideal for low headroom applications. Straightpoint Loadshackles are made using Crosby brand shackles, a trusted industry leader. This 300-ton cabled load cell shackle (Straightpoint model #SLB300T & Crosby model #2789107) is designed for use with digital external displays including the Straightpoint HHP Handheld Plus, PLCs, data acquisition systems (DAQ), etc. and configured with a vast array of output formats. Whether used in heavy lifting, mooring anchor placement, or sub-sea applications, Straightpoint's cabled Loadshackle offers robust construction, advanced electronics, industry leading resolution and accuracy all at a cost-effective, affordable price. Straightpoint cabled Loadshackles are also environmentally sealed to IP67 and, as an option, sealed for permanent submersion for sub-sea use. All Straightpoint Loadshackles comply with ASME B30.26 and feature a load-centering bobbin. Lift yourself into the future of shackle rigging with this wireless loadshackle today. We also offer a wireless load shackle that is designed for use with Straightpoint's SW-HHP handheld device readout device or INSIGHT computer software, as well as a Bluetooth-only wireless loadshackle option.
