SKU: RLP-250-T
Straightpoint® 250 T Radiolink Plus - RLP250T
Straightpoint® 250 T Radiolink Plus - RLP250T!
Continue Browsing
Straightpoint Radiolink Plus
Straightpoint Load Monitoring Loadcells
Rigging Supplies & Rigging Hardware
Related Articles
$40,297.00
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Load capacity: 550,000 lbs.
Accuracy: +/- 0.1% of Full Scale
Battery life: Handheld: 40 hours continuous | Loadcell: 1,200 hours continuous
Battery type: Handheld: 2 x AA | Loadcell: 4 x AA
Brand part number: RLP250T / 2789087
Data rate: 3Hz - up to 200Hz can be ordered for dynamic load monitorning applications
Display type: 240x128 Multi-Line Dot Matrix with Backlight
Manufacturer name: Crosby Straightpoint
Operating temperature: -10° to +50°C | 14° to 122° F
Pin size: 5"
Product weight: 180.8 lbs.
Range: 3,280'
Resolution: 200 lbs.
Safety factor: 4:1
Standards: IP67
Description

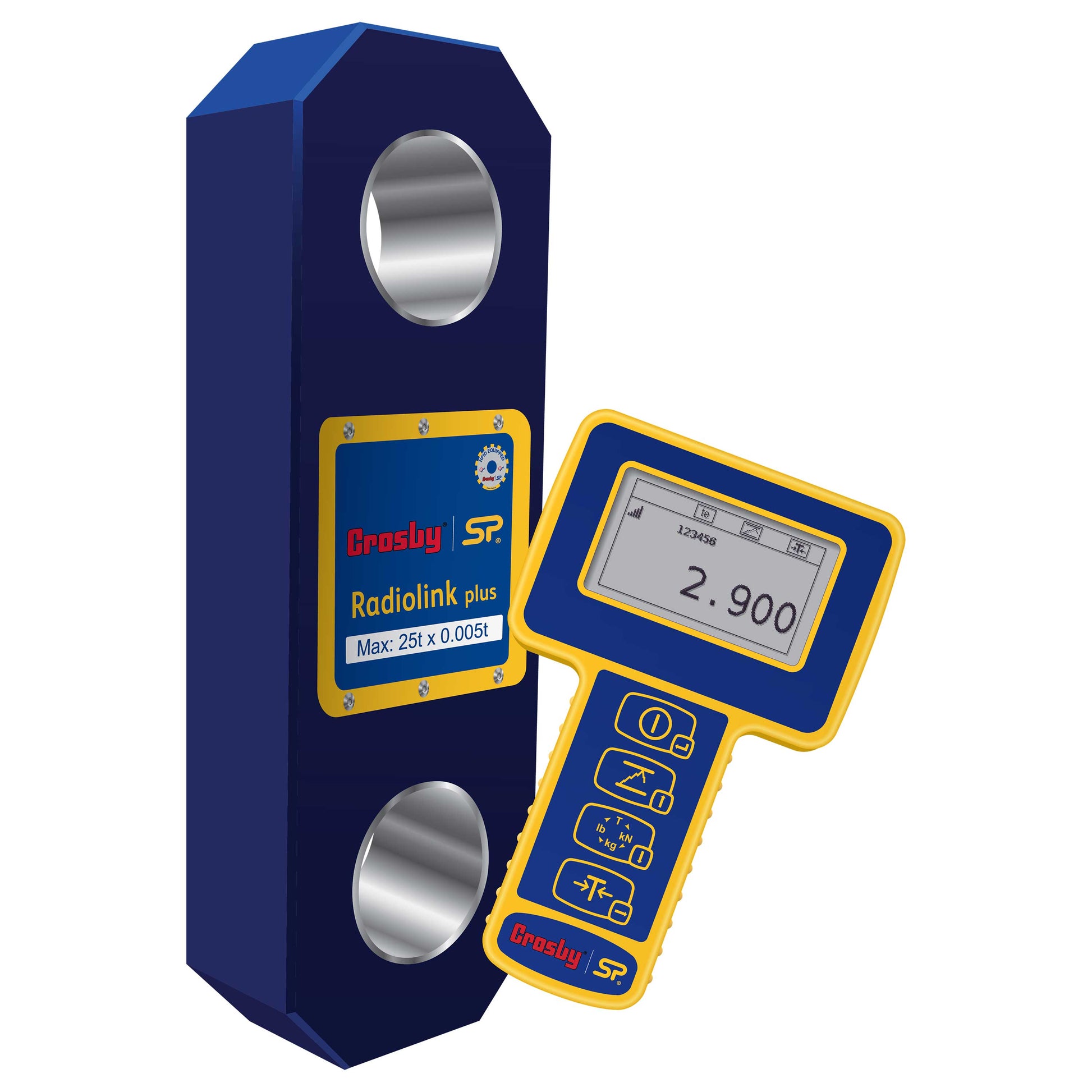

Radiolink Plus from Straightpoint is a powerful wireless load cell that allows you to precisely weigh and dynamically monitor rigging setups to ensure safe and optimal tension levels. This particular model (Straightpoint part #RLP250T and Crosby part #2789087) is a 250-ton rated tension load cell that's constructed from high-quality hard anodized aerospace grade aluminum. Straightpoint Radiolink load cells are designed to be used with Crosby shackles, however they are also compatible with other shackle brands. Unlike Wirelink Plus load cell, which relies on a wired cable for data output, the Radiolink Plus runs on 6 AA alkaline batteries that provide an impressive 1,200 hours of power. Straightpoint Radiolink uses an internal antenna to wirelessly transmit load cell readings to the included SW-HHP handheld device. This handheld device, which is included with your purchase at no additional charge, allows for a safe 3280-foot wireless range. Use the LCD screen to remotely read up to 4 load cells at once while enjoying the convenience of a push tare button, multiple display unit options (t/lbs/kg/kN), and audible overload alarm. Radiolink Plus is also compatible with the INSIGHT computer software (purchase not included). If you are looking for an additional loadcell to pair with an existing handheld device, the Compound Plus is available without the handheld. We also offer individual SW-HHP handheld device if you are looking for an additional or a replacement. If you are looking for a Bluetooth option, we offer the Compound Plus - Bluetooth version. Bluetooth transmission data is accessible on your smart phone using the free HHP App, available for both iOS and Android.
Common applications for this 250-ton Radiolink Plus tension load cell include tandem lifting and lowering, water bag load testing, overhead weighing, bollard pull testing, tug testing, breakbulk applications, heavy lift projects, offshore cranes, spreader beam load monitoring, measurement of vehicle towing loads, ship to ship transfers, and single point mooring.
The Radiolink Plus is suitable for even the harshest of environments, as it allows the use of a separate internal sealed enclosure that provides the load cell's electronic components with IP67 or NEMA6 environmental protection. This 250-ton Radiolink tension load cell complies with ASME B30.26 and comes with a 2-year warranty, calibration & proof test certificate, multilingual user manual, carry case, and is RFID tagged. It also includes six AA alkaline batteries and the SW-HHP handheld display at no additional charge. Don't risk an overloaded lift ever again, get your hands on this game changing tension meter today.
Common applications for this 250-ton Radiolink Plus tension load cell include tandem lifting and lowering, water bag load testing, overhead weighing, bollard pull testing, tug testing, breakbulk applications, heavy lift projects, offshore cranes, spreader beam load monitoring, measurement of vehicle towing loads, ship to ship transfers, and single point mooring.
The Radiolink Plus is suitable for even the harshest of environments, as it allows the use of a separate internal sealed enclosure that provides the load cell's electronic components with IP67 or NEMA6 environmental protection. This 250-ton Radiolink tension load cell complies with ASME B30.26 and comes with a 2-year warranty, calibration & proof test certificate, multilingual user manual, carry case, and is RFID tagged. It also includes six AA alkaline batteries and the SW-HHP handheld display at no additional charge. Don't risk an overloaded lift ever again, get your hands on this game changing tension meter today.
Straightpoint Radiolink plus - Wireless Load Cell
